Bently Nevada 31000 Proximity Probe Housing: The Secure Enclosure for Critical Measurements

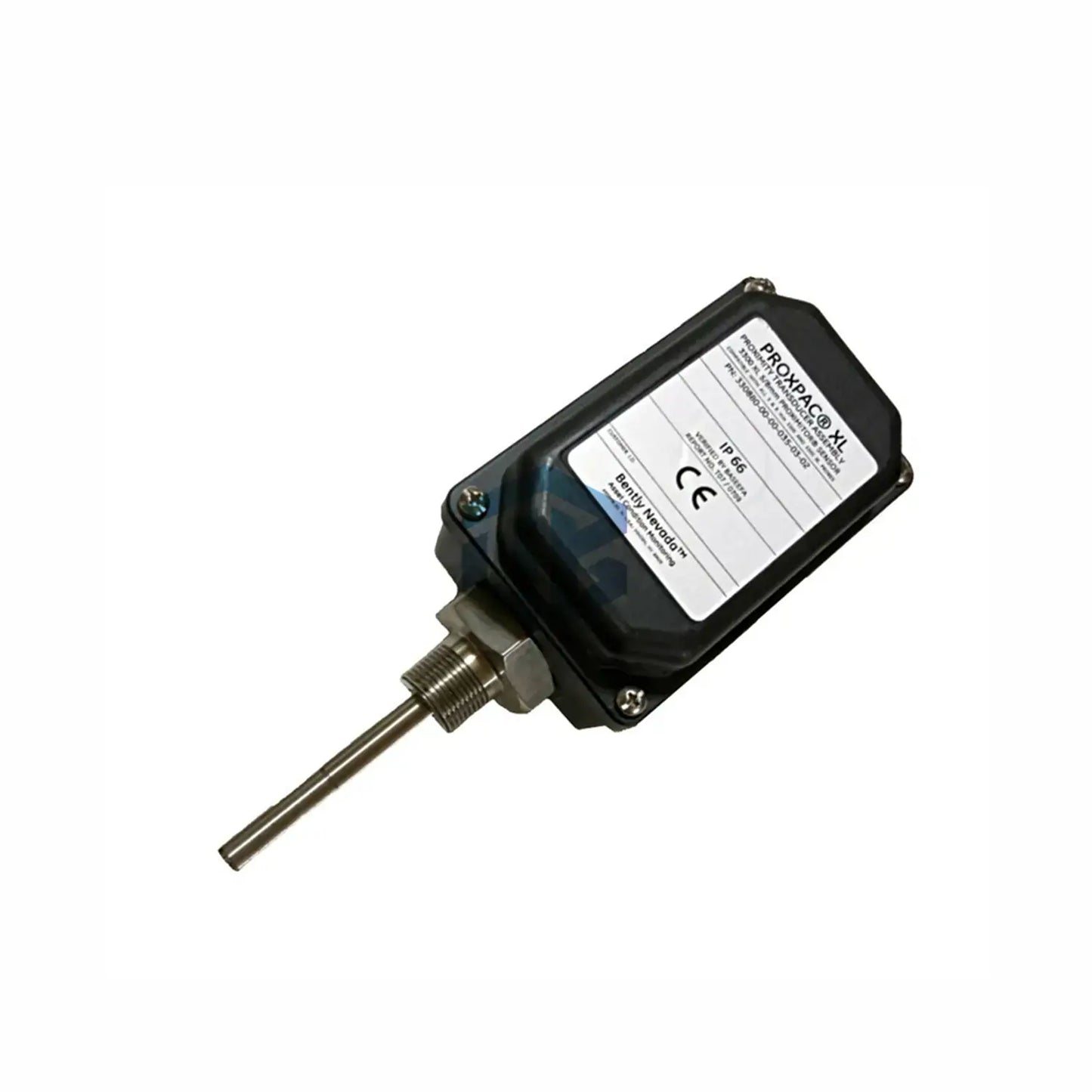

Introducing the Bently Nevada 31000-27-05-15-040-03-02. This is a rugged, factory-assembled housing for proximity probes. It protects your sensitive vibration sensors in harsh industrial environments. This complete kit ensures a safe and reliable installation for your machinery monitoring system.

Understanding Your Housing Model Number

The model 31000-27-05-15-040-03-02 is a complete specification. Each part tells you what is included:

• 31000: Base model for the proximity probe housing system.
• 27: Probe Compatibility: Pre-configured for a 3300 XL NSv probe with multiple approvals.
• 05: Probe Cable Inside: 0.5 meter (20 inches) of cable within the housing.
• 15: Standoff Adapter: Provides a 1.5-inch extension from the mounting point.
• 040: Probe Penetration: The probe tip extends 40 mm beyond the housing sleeve.
• 03: Fittings Kit: Includes two plugs, one 3/4-14 NPT fitting, one reducer, and a cable seal grip with three grommet sizes.
• 02: Mounting Thread: The housing has a 3/4-14 NPT thread for installation.

Technical Specifications & Durability Data

• Manufacturer & Type: Bently Nevada 31000 Series Probe Housing.
• Complete Part Number: 31000-27-05-15-040-03-02.
• Environmental Protection: Rated Type 4X and IP66 (dust-tight, protected against powerful water jets).
• Hazardous Area Safety: Conductive material meets CENELEC EN50014 for electrostatic dissipation.
• Temperature Rating: -51°C to +105°C (-60°F to +221°F).
• Construction Materials:
  • Housing: Conductive, glass-reinforced PPS thermoplastic.
  • Sleeve & Chain: AISI 304 Stainless Steel.
  • Exterior Screws: AISI 303 Stainless Steel.
  • Seal: Neoprene O-Ring.
• Mechanical Strength:
  • Impact: Withstands 4 Joule impacts at extreme temperatures.
  • Load: Supports over 205 lbs (912 N) of force on the unsupported end.
• Installation Torque: Tighten retaining nut to 29.4 N·m (260 in·lb).
• Weight: Approximately 1.2 kg (2.6 lb).

Installation & Compatibility Guide

This housing comes pre-assembled for a 3300 XL NSv probe. The 1.5-inch standoff adapter provides correct sensor positioning. Use the included 3/4-14 NPT fitting to mount it to your machine. The cable seal grip accommodates different cable diameters for a weatherproof connection.

Safety Certifications & Ratings

This housing is built for demanding and hazardous locations. It carries a CSA-certified Type 4X rating and a verified IP66 ingress protection rating. Its conductive plastic construction prevents static buildup in explosive atmospheres.

Package Contents and Warranty

• One (1) Bently Nevada 31000-27-05-15-040-03-02 Probe Housing Assembly.
• Full fittings kit (plugs, NPT fitting, reducer, cable seal grip with grommets).
• All necessary hardware.

This product is covered by a reliable 12-month warranty against defects.

Shipping Information

We ship globally using express couriers: FedEx, UPS, and DHL. Tracking information is provided for all orders.

Frequently Asked Questions (FAQ)

What probe is pre-installed in this housing?

This housing assembly (-27 option) comes with a Bently Nevada 3300 XL NSv series proximity probe already installed and ready for use.

What is the purpose of the standoff adapter?

The 1.5-inch standoff adapter spaces the housing away from the mounting surface. This ensures the probe tip is at the correct depth inside the machine for accurate measurement.

Can I use this housing with other probe models?

No. The 31000-27-05-15-040-03-02 is a complete, pre-configured unit for a specific 3300 XL NSv probe. It is not designed for field retrofitting with different probes.

What do the Type 4X and IP66 ratings mean for my application?

Type 4X means it is weatherproof, watertight, and corrosion-resistant. IP66 confirms it is totally dust-tight and can handle strong water jets. It is ideal for outdoor or washdown areas.

What cables does the included seal grip fit?

The cable seal grip includes three grommets. They fit cable outer diameters ranging from 1/8 inch (3.2mm) up to 3/8 inch (9.5mm). This covers most industrial sensor and conduit cables.
