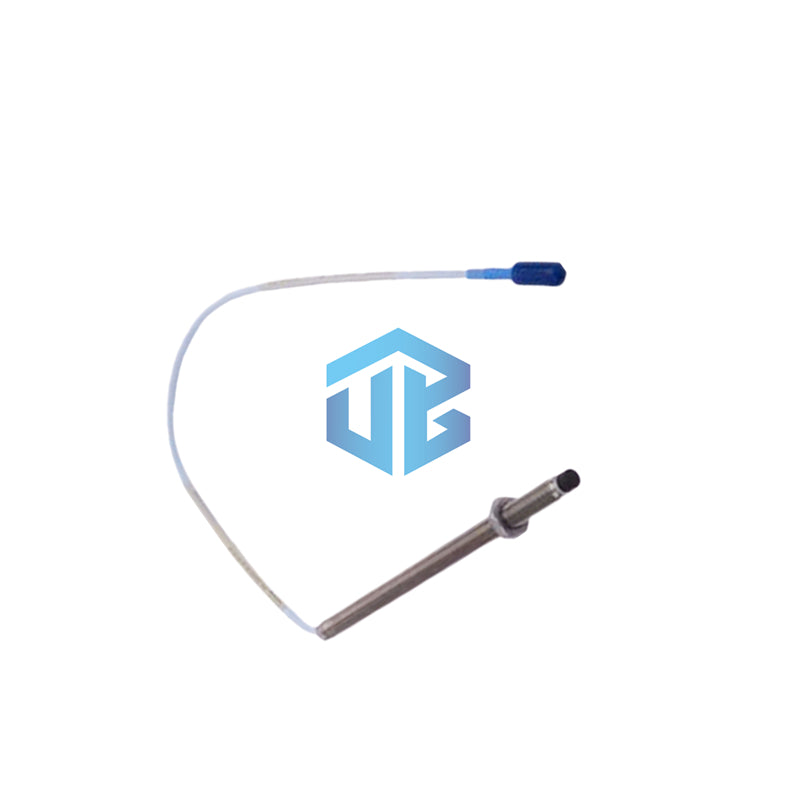

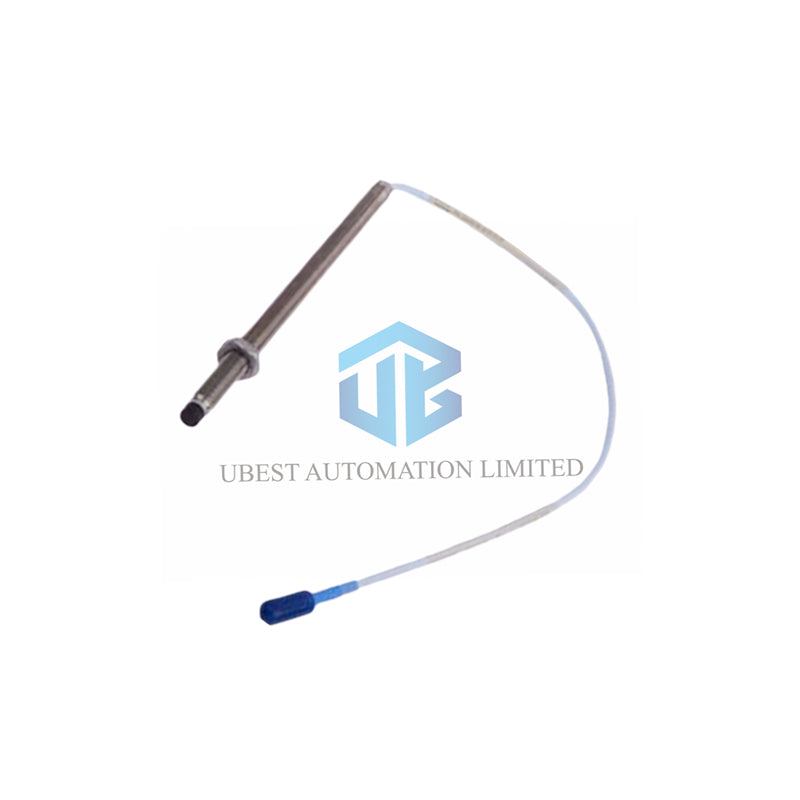

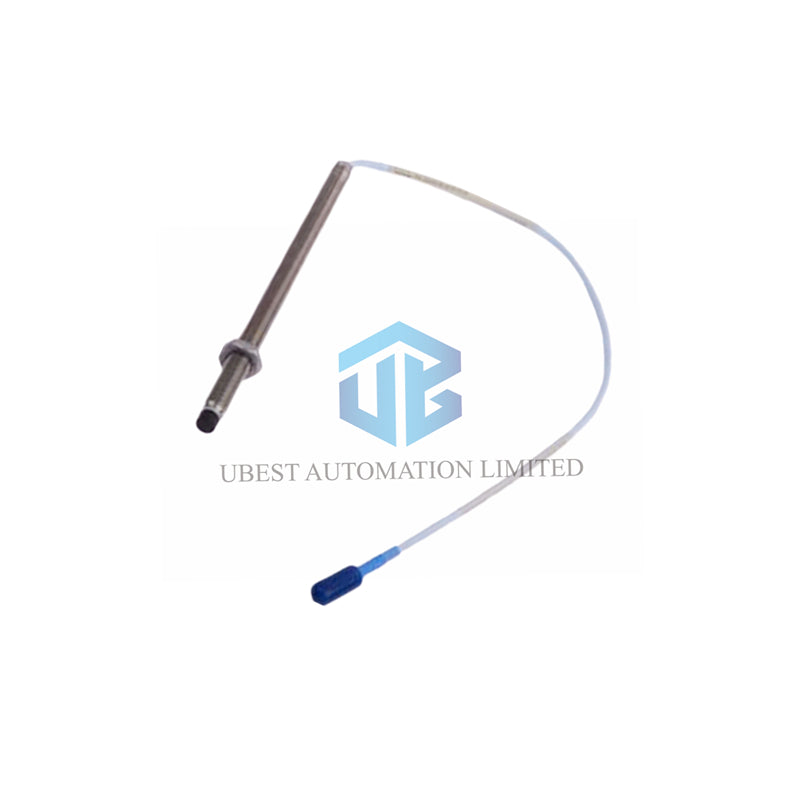

Bently Nevada 3300 NSv Long-Length Proximity Probe

The Bently Nevada 3300 NSv proximity probe provides reliable monitoring for extended-reach applications. This model 330908-00-20-70-02-05 offers a long 7.0-meter integrated cable without armor. It features a robust stainless steel case and a durable PPS plastic tip. The probe is designed for precise measurement of vibration and position in various machinery. Engineers select the 3300 NSv series for its performance and flexibility in system design.

Model Configuration: 330908-00-20-70-02-05

• 330908: Base code for the 3300 NSv series probe without armor.
• 00: Specifies an unthreaded probe length of 0.0 inches.
• 20: Indicates an overall case length of 2.0 inches.
• 70: Defines the total integrated cable length as 7.0 meters (23.0 feet).
• 02: Denotes a Miniature Coaxial ClickLoc connector with standard cable.
• 05: Confirms the probe holds multiple CSA, ATEX, and IECEx agency approvals.

Electrical & Mechanical Specifications

• Probe Resistance (RPROBE): 5.9 Ω ± 0.9 Ω for the 7.0-meter length.
• Cable Type: 75 Ω coaxial cable with FEP (fluoroethylene propylene) insulation.
• Thread Type: Standard 3/8-24 UNF mounting thread.
• Max Thread Engagement: Do not exceed 0.563 inches of thread engagement.
• Installation Torque: Recommended torque is 11.3 N•m (100 in•lb); maximum is 33.9 N•m.
• Probe Weight: Approximately 14 to 150 grams (0.5 to 5.3 oz), depending on length.

Construction & Materials

• Probe Case: Manufactured from corrosion-resistant AISI 304 stainless steel.
• Probe Tip: Precision-molded from rugged Polyphenylene sulfide (PPS) plastic.
• Cable Insulation: High-quality FEP insulation ensures stable electrical performance.
• Pressure Seal: Designed with a Viton® O-ring to seal differential pressure.
• Connector: Reliable Miniature Coaxial ClickLoc connector for a secure system connection.
• Length Options: Available in 0.5, 1, 5, or 7-meter total probe lengths to suit various applications.

Environmental Ratings & Limits

• Operating Temperature: Rated for -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: Can be stored within the same -52°C to +177°C range.
• Low-Temperature Caution: Sustained exposure below -34°C (-30°F) may damage the pressure seal.
• Pressure Testing: Probes are not pressure tested before shipment as a standard procedure.
• Agency Approvals: Carries multiple international approvals for use in regulated industries.

Installation & Application Notes

• Long-Reach Use: The 7-meter length is ideal for applications where the monitor is far from the measurement point.
• Torque Guidance: Always use a torque wrench. Do not exceed the recommended 11.3 N•m to avoid case damage.
• Thread Care: Ensure threads are clean and engage smoothly. Do not force the probe beyond its engagement limit.
• System Integration: Compatible with 3300 NSv compatible monitors and signal conditioners.
• Cable Handling: Route the long cable carefully to avoid sharp bends, kinks, or excessive tension.

Packaging & Shipping

• The Bently Nevada 3300 NSv probe is shipped in protective, anti-static packaging.
• Package includes the probe with pre-attached 7-meter cable and ClickLoc connector.
• We ship globally using express logistics partners: FedEx, UPS, and DHL.
• Real-time tracking information is provided for complete shipment visibility.

Frequently Asked Questions (FAQ)

What is the 3300 NSv series, and how does it differ from the 3300 XL?

• The 3300 NSv is a distinct product line from Bently Nevada. It often features different electrical characteristics (like 75 Ω cable) and may be optimized for specific system integrations or cost-effective solutions compared to the 3300 XL series.

Why is the recommended installation torque important?

• Applying the correct 11.3 N•m (100 in•lb) torque ensures a secure fit without stripping the stainless steel threads or damaging the probe case, guaranteeing a reliable mechanical installation.

Can I cut or shorten the 7-meter cable if my application is shorter?

• No. The probe cable is a calibrated part of the system. Cutting it will change the electrical characteristics (resistance, capacitance) and make the probe inaccurate. Always order the correct length.

What does FEP cable insulation offer?

• FEP (Fluorinated Ethylene Propylene) insulation provides excellent chemical resistance, high-temperature stability, and low signal loss. This makes it suitable for demanding industrial environments.

Is this probe suitable for hazardous areas?

• Yes. The agency approval option '05' indicates the probe is certified for use in hazardous locations. It carries CSA, ATEX, and IECEx approvals, but always verify the specific certification matches your area classification.
