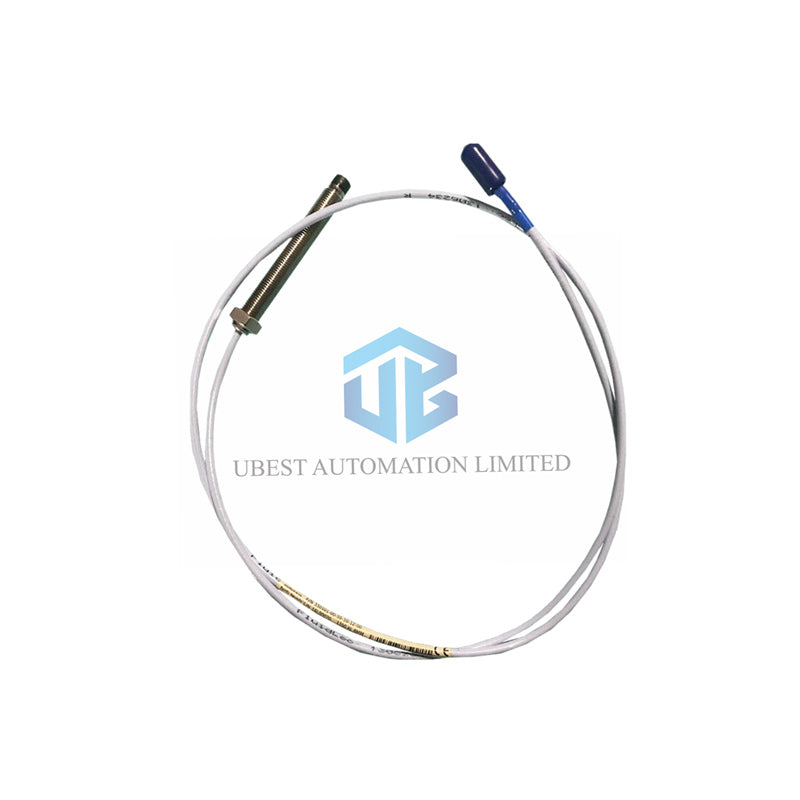

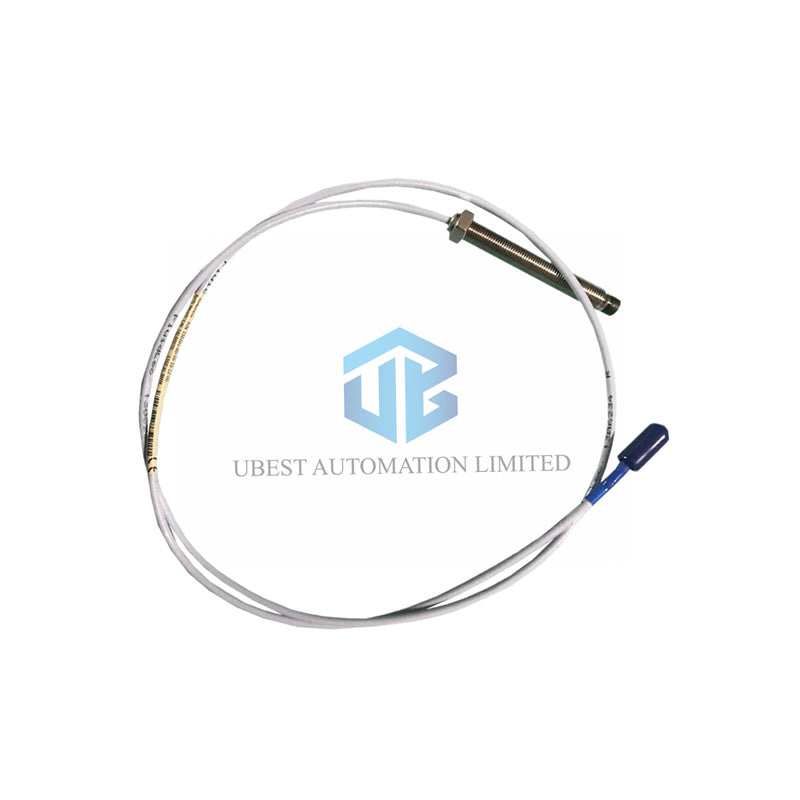

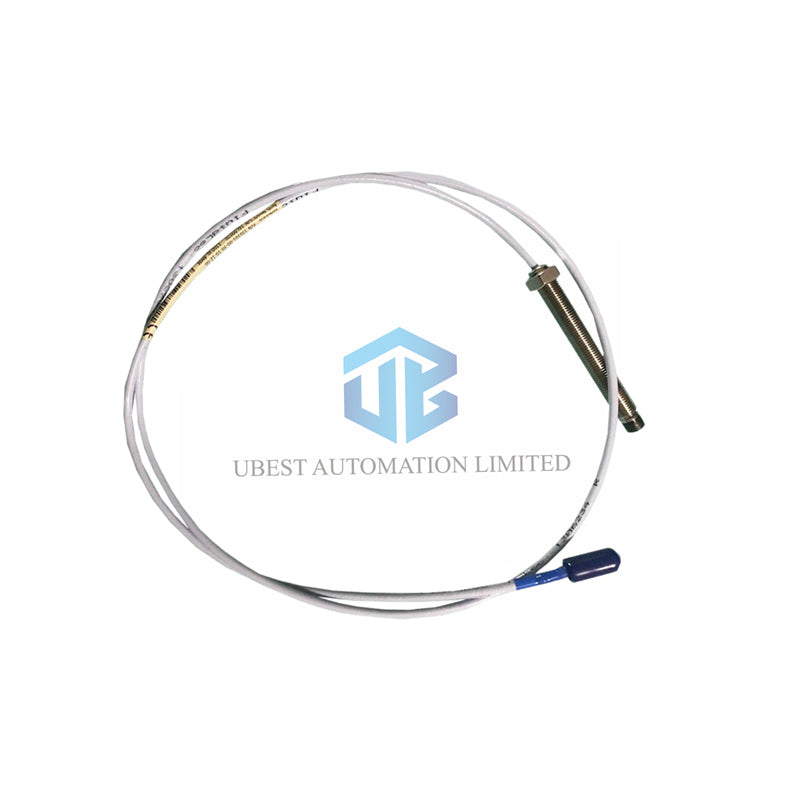

Bently Nevada 330702: Long-Reach 3300 XL 11 mm Proximity Probe

Complete Product Specifications & Suffix Code

• Brand: Bently Nevada
• Model & Full Suffix: 330702-00-26-90-12-05
• 330702: 3300 XL 11 mm Probe with armor
• 00: Unthreaded Length = 0.0 in
• 26: Overall Case Length = 2.6 in
• 90: Total Cable Length = 9.0 meters
• 12: Miniature coaxial ClickLoc connector, FluidLoc cable
• 05: Multiple Agency Approvals
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 Stainless Steel (SST).
• Cable Specification: 75 Ω triaxial, FEP insulated.

Detailed Technical Parameters

• Probe DC Resistance (RPROBE): 8.5 ± 1.1 ohms (for 9.0m length).
• Primary Case Thread: 1/2-20 UNF.
• Case Torque (Recommended / Max): 15.2 N•m / 45.2 N•m.
• Connector Torque (Recommended / Max): Finger tight / 0.565 N•m.
• Operating Temperature: -51°C to +177°C (-60°F to +351°F).
• Minimum Cable Bend Radius: 25.4 mm (1.0 in).
• Alternate Thread Options: M16x1.5 and M14x1.5 (specify when ordering).

Frequently Asked Questions (FAQ)

• Q: What is the key feature of the 330702-00-26-90-12-05 model?
  A: This 330702 model features a long 9.0-meter (29.5 ft) FluidLoc cable for extended reach.
• Q: Is the cable on this probe armored?
  A: Yes, the product number 330702 indicates the probe comes with a stainless steel armored cable.
• Q: Can I get this probe with a metric thread instead of UNF?
  A: Yes, this probe design is also available with M16x1.5 or M14x1.5 threads upon request.
• Q: What does the '12' in the suffix code mean?
  A: It specifies a Miniature coaxial ClickLoc connector with FluidLoc cable.
