Complete suffix information – 330103-00-13-10-02-05

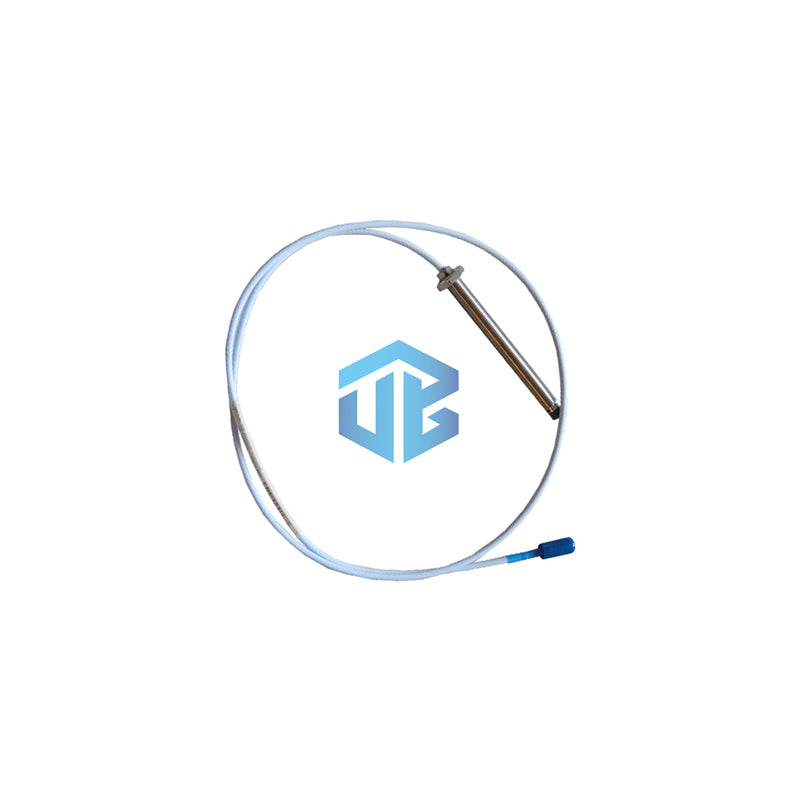

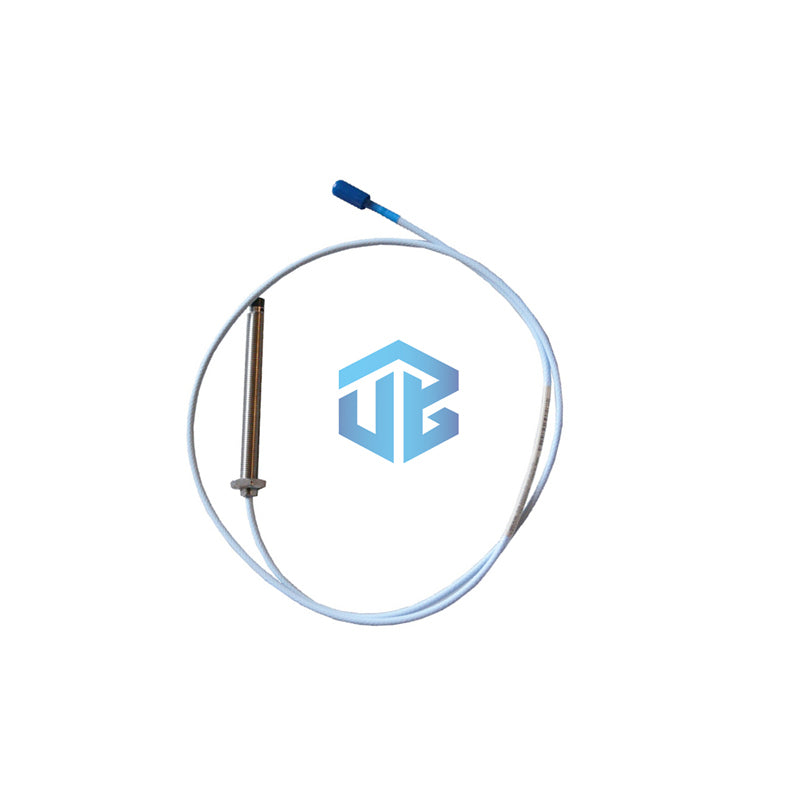

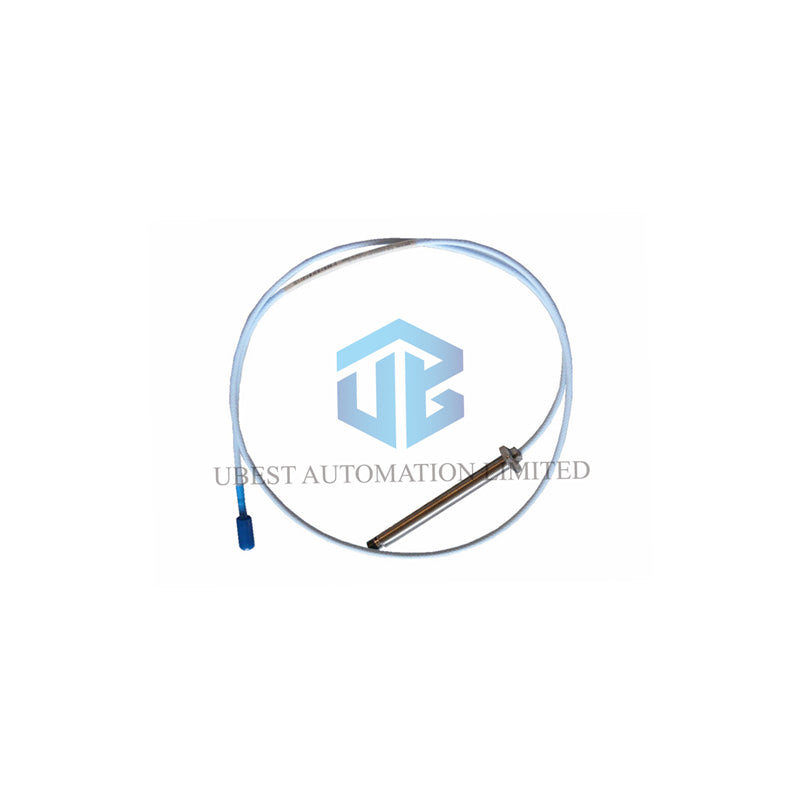

• 330103 – 3300 XL 8 mm probe, M10 x 1 thread, without armor
  • 00 – Unthreaded length: 0 mm
  • 13 – Overall case length: 130 mm
  • 10 – Total length: 1.0 meter (3.3 feet)
  • 02 – Miniature coaxial ClickLoc connector, standard cable
  • 05 – Approvals: CSA, ATEX, IECEx

Technical specifications – 3300 XL 8 mm Proximity Probes

• Brand / Manufacturer: Bently Nevada
• Model: 330103-00-13-10-02-05
• Type: 3300 XL 8 mm Proximity Probes
• Linear range: 2 mm (80 mils) from 0.25 to 2.3 mm
• Recommended gap (radial vibration): -9 Vdc (~1.27 mm / 50 mils)
• Probe DC resistance (1.0m): 7.59 ± 0.50 Ω
• Frequency response: supports field wiring up to 305 m (1000 ft)
• Tip material: Polyphenylene sulfide (PPS)
• Case material: AISI 303 / 304 stainless steel
• Thread: M10 x 1, max engagement 15 mm
• Temperature range (standard probe): -52°C to +177°C (-62°F to +350°F)
• Extended range (tip/cable): up to +218°C (tip) / +260°C (cable)
• Humidity: <3% ASF change after 56 days at 93% RH (IEC 68-2-3)
• Pressure seal: Viton® O-ring, differential pressure design
• Approvals: CSA, ATEX, IECEx (Class I, Zone 0, Div 1 & 2)
• Weight: 323 g/m (11.4 oz/ft)

Frequently asked questions (FAQ)

• What is the linear range of the 330103-00-13-10-02-05? It provides a 2 mm linear range from 0.25 to 2.3 mm gap.
• Can I use this probe in hazardous areas? Yes, the suffix -05 includes CSA, ATEX, and IECEx approvals for Zone 0/1/2 and Div 1/2.
• What connector does this model use? The 3300 XL Proximity Probes with option 02 feature a miniature coaxial ClickLoc connector.
• What is the maximum cable extension? You can extend up to 305 meters (1000 feet) with proper triax cable.
• Is the probe tip replaceable? The tip is integrally molded with PPS; the entire probe is a single assembly.
