Complete suffix information – 330103-00-25-10-02-00

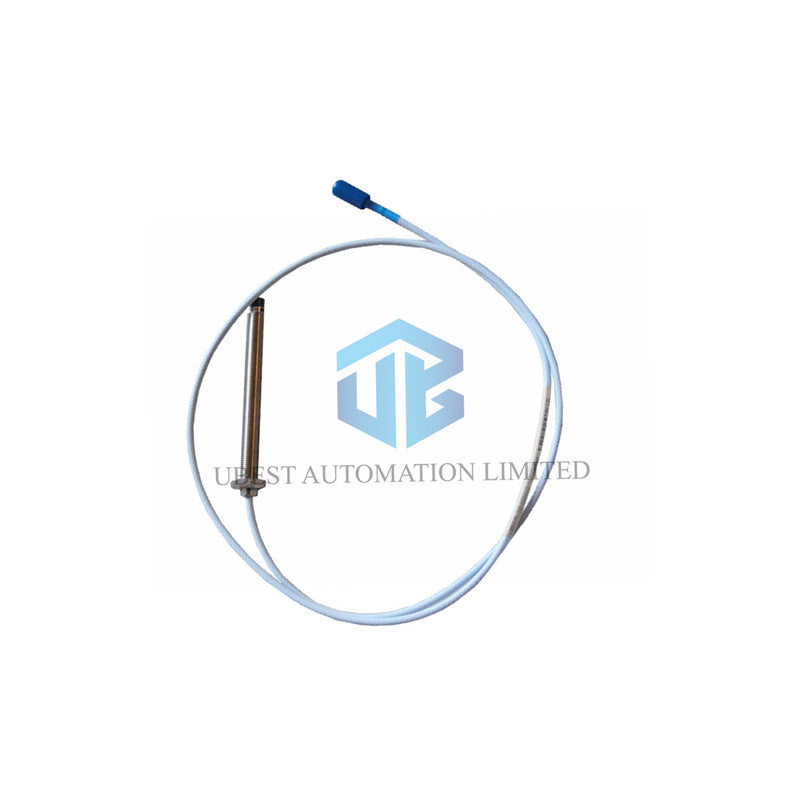

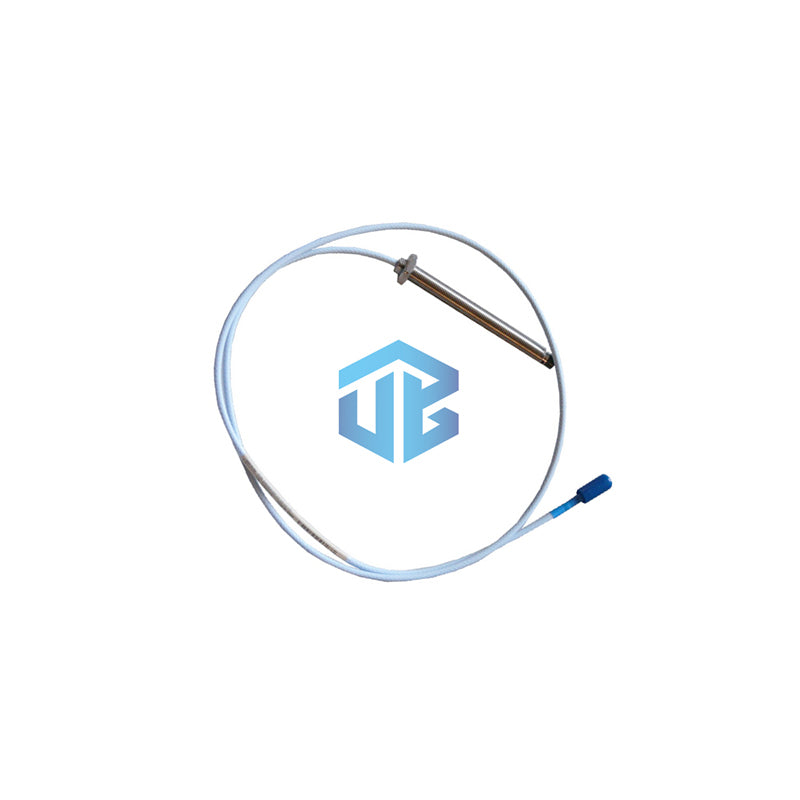

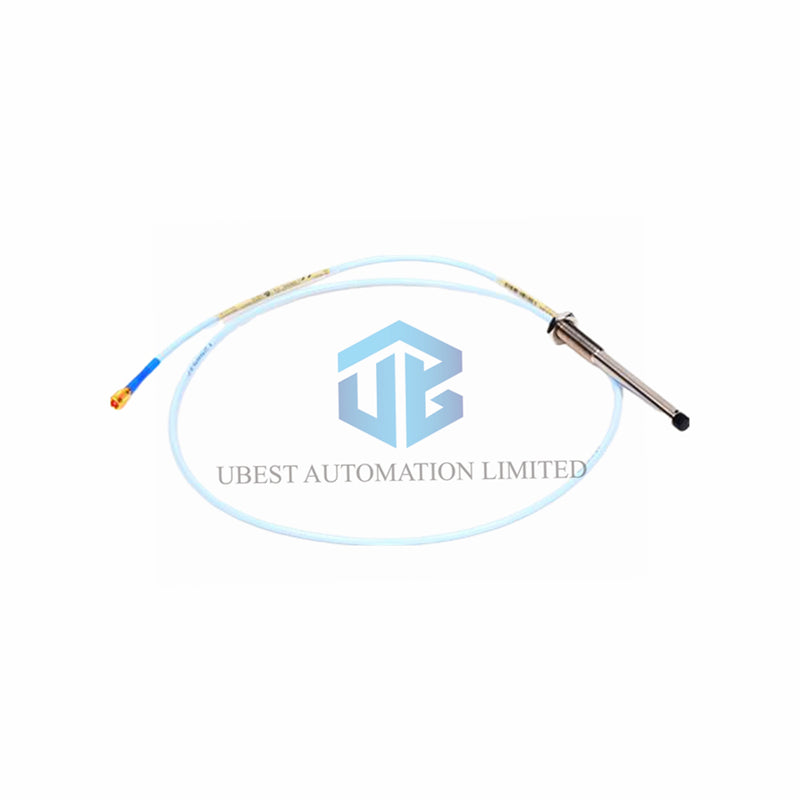

• 330103 – 3300 XL 8 mm probe, M10 x 1 thread, without armor
  • 00 – Unthreaded length: 0 mm
  • 25 – Overall case length: 250 mm
  • 10 – Total length: 1.0 meter (3.3 feet)
  • 02 – Miniature coaxial ClickLoc connector, standard cable
  • 00 – Agency approval: Not required (general purpose)

Technical specifications – 3300 XL 8 mm Proximity Probes

• Brand / Manufacturer: Bently Nevada
• Model: 330103-00-25-10-02-00
• Type: 3300 XL 8 mm Proximity Probes
• Linear range: 2 mm (80 mils) from 0.25 to 2.3 mm
• Recommended gap (radial vibration): -9 Vdc (~1.27 mm / 50 mils)
• Probe DC resistance (1.0m): 7.59 ± 0.50 Ω
• Frequency response: supports field wiring up to 305 m (1000 ft)
• Tip material: Polyphenylene sulfide (PPS)
• Case material: AISI 303 / 304 stainless steel
• Thread: M10 x 1, max engagement 15 mm
• Temperature range (standard probe): -52°C to +177°C (-62°F to +350°F)
• Extended range (tip/cable): up to +218°C (tip) / +260°C (cable)
• Humidity: <3% ASF change after 56 days at 93% RH (IEC 68-2-3)
• Pressure seal: Viton® O-ring, differential pressure design
• Weight: 323 g/m (11.4 oz/ft)

Field wiring & installation

• Use 0.2 to 1.5 mm² (16–24 AWG) 3-conductor shielded triad cable
• Maximum cable length between probe and monitor: 305 meters (1000 feet)
• Signal roll-off at high frequencies – refer to frequency response graphs
• Proximitor® sensor compatibility ensures seamless integration

Environmental tolerance

• Operating/storage temp: -52°C to +177°C (standard probe)
• Extended temp probe tip: -52°C to +218°C; cable: -51°C to +260°C
• 93% humidity test with minimal scale factor drift
• General purpose design (suffix 00) – no hazardous location approvals

Frequently asked questions (FAQ)

• What is the linear range of the 330103-00-25-10-02-00? It provides a 2 mm linear range from 0.25 to 2.3 mm gap.
• Does this probe have hazardous area approvals? No, suffix 00 means general purpose – no CSA, ATEX, or IECEx.
• What connector does this model use? The 3300 XL Proximity Probes with option 02 feature a miniature coaxial ClickLoc connector.
• What is the maximum cable extension? You can extend up to 305 meters (1000 feet) with proper triax cable.
• What is the overall case length for this variant? Option 25 provides a 250 mm case length.
