Complete Model Breakdown: 330104-01-17-05-01-05

• 330104 = Base Part Number

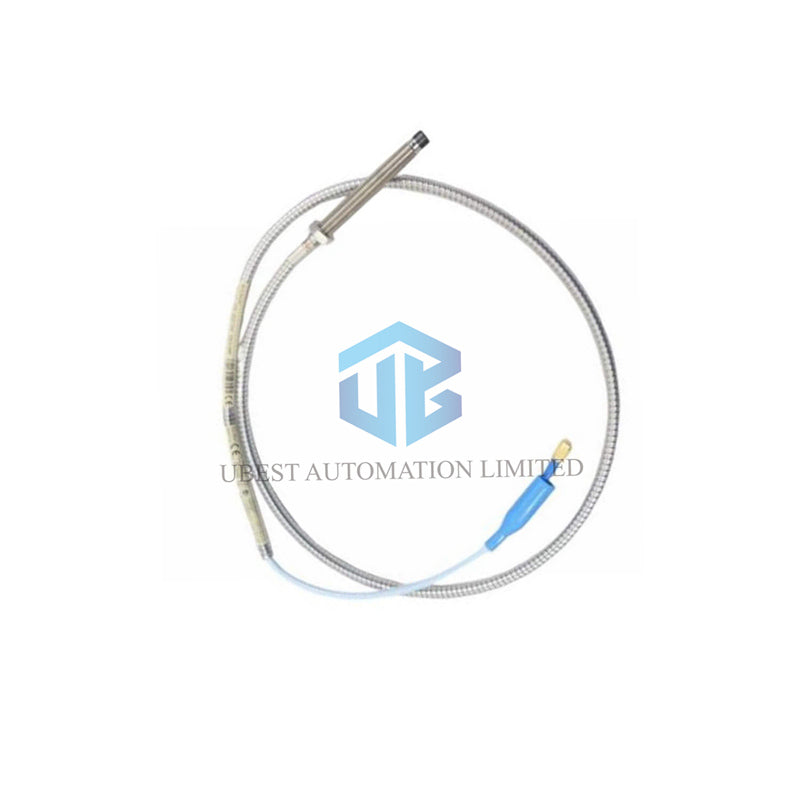

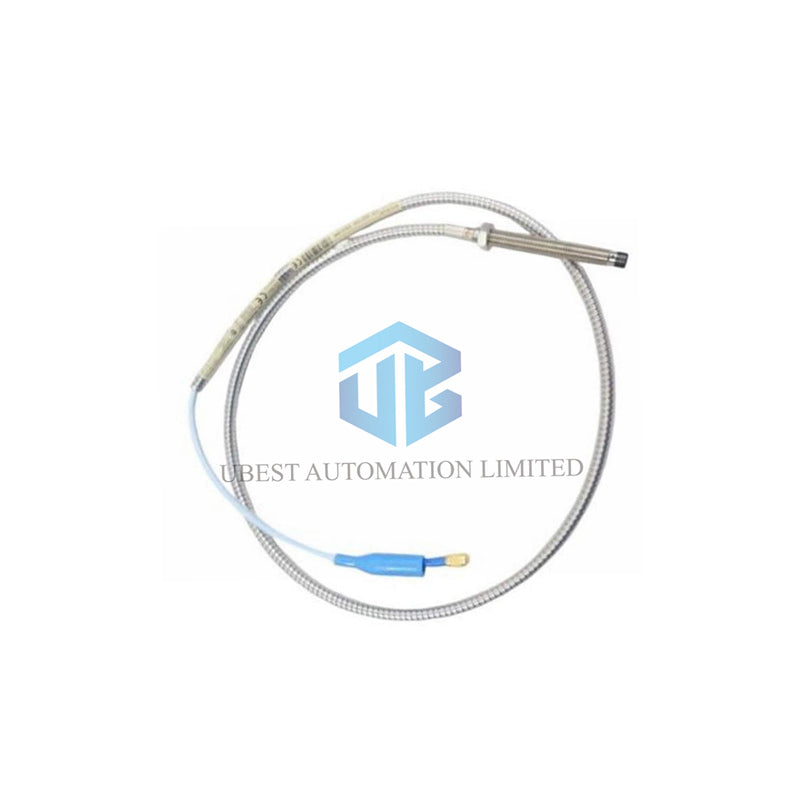

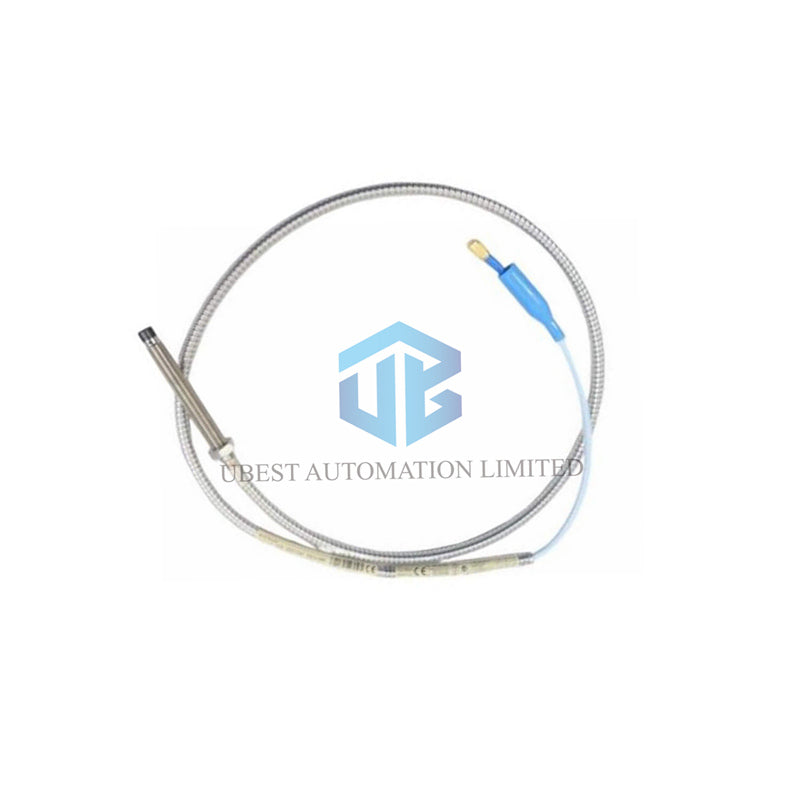

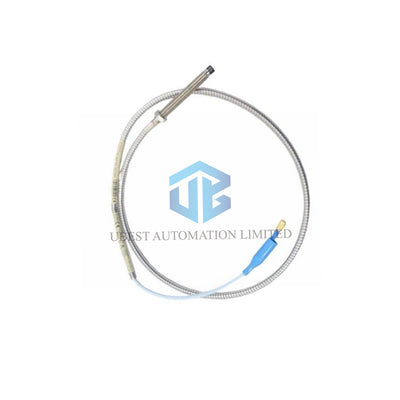

  • Description: 3300 XL 8 mm Probe, M10 x 1 thread, with armor
• 01 = Unthreaded Length Option
  • Description: 10 mm unthreaded length
• 17 = Overall Case Length Option
  • Description: 170 mm overall case length
• 05 = Total Length Option
  • Description: 0.5 meter (1.6 feet) total length
• 01 = Connector and Cable-Type Option
  • Description: Miniature coaxial ClickLoc connector with protector, standard cable
• 05 = Agency Approval Option
  • Description: CSA, ATEX, IECEx approvals

Key Technical Specifications

• Performance & Electrical Data

  • Linear Range: 2 mm (80 mils) from 0.25 to 2.3 mm
  • DC Resistance (RPROBE): 7.45 ± 0.50 Ω for 0.5m probe length
  • Field Wiring: 0.2 to 1.5 mm² (16-24 AWG) shielded triad, up to 305 m (1000 ft)

• Mechanical Construction

  • Probe Tip Material: Polyphenylene sulfide (PPS)
  • Probe Case Material: AISI 303 or 304 stainless steel (SST)
  • Probe Case Thread: M10 x 1, max engagement 15 mm
  • Weight: 323 g/m (11.4 oz)

• Environmental Limits

  • Standard Temperature: -52°C to +177°C (-62°F to +350°F)
  • Extended Tip Range: -52°C to +218°C (-62°F to +425°F)
  • Humidity Tolerance: < 3% ASF change per IEC 68-2-3 (93% RH, 56 days)

• Approvals & Safety

  • Intrinsic Safety (ia): Class I, Zone 0; AEx/Ex ia IIC T5...T1 Ga
  • Non-Incendive (nA, ec): Class I, Zone 2; AEx/Ex nA IIC T5...T1 Gc

Frequently Asked Questions (FAQ)

• What is the linear range of this 3300 XL probe?

  • It provides a 2 mm linear range from 0.25 mm to 2.3 mm from the target surface.

• Can I use this probe in hazardous areas?

  • Yes, the 330104-01-17-05-01-05 includes CSA, ATEX, and IECEx approvals for Zone 0/2.

• What voltage should I set for radial vibration?

  • Bently Nevada recommends a -9 Vdc gap setting, which is approximately 1.27 mm (50 mils).

• Does the probe come with a warranty?

  • Ubest Automation provides a 12-month warranty against manufacturing defects. Standard terms apply.

• What is the connector type on this model?

  • It features a miniature coaxial ClickLoc connector with a protective shell.
