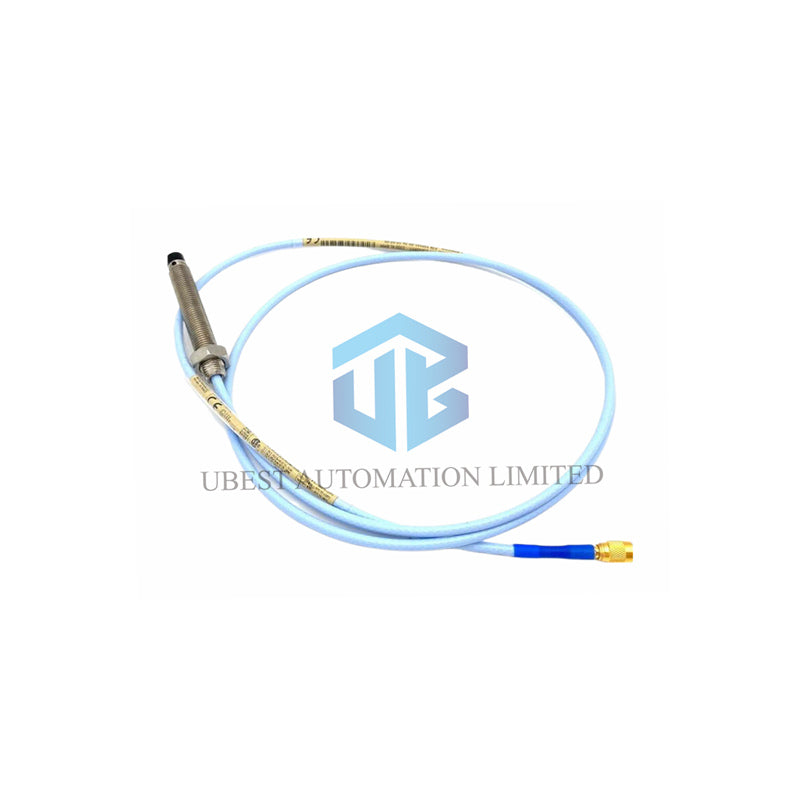

Bently Nevada 3300 XL 8mm Vibration Probe: Superior Machinery Protection

Complete Product Identification & Suffix Breakdown

• Manufacturer: Bently Nevada
• Core Model: 3300 XL 8mm Vibration Probe
• Full Factory Part Number: 330101-00-36-05-02-00
  • 330101 : Base Code for 8mm Probe, 3/8-24 UNF, No Armor
  • -00 : Unthreaded Length = 0.0 inch
  • -36 : Overall Case Length = 3.6 inch
  • -05 : Total Cable Length = 0.5 meter
  • -02 : Connector = Mini Coaxial ClickLoc, Std Cable
  • -00 : Not Required / Default Option

Essential Technical Parameters & Performance Data

• Brand & Model: Bently Nevada 3300 XL
• Linear Measurement Range: 0.25 to 2.3 mm (10 to 90 mils)
• Recommended Gap (Radial): Set to -9 Vdc (~1.27 mm / 50 mils)
• Sensitivity (ISF): 7.87 V/mm (200 mV/mil) ±5%
• Frequency Response: Suitable for monitoring up to 10 kHz
• Probe Tip Material: Rugged Polyphenylene Sulfide (PPS)
• Probe Resistance (0.5m): 7.45 Ω ± 0.50 Ω
• Operating Temperature (Std): -34°C to +177°C (-30°F to +350°F)
• Cable Capacitance: Typical 69.9 pF per meter
• Cable Pull Strength: 330 N (75 lbf) with CableLoc

Key Design Features & Product Advantages

• 8mm Ruggedized Construction: Provides superior physical durability over smaller probes
• Patented TipLoc Technology: Ensures a secure and robust probe tip bond
• High-Temperature Options: ETR probes handle tips up to 218°C (425°F)
• Reliable Pressure Seal: Viton® O-ring design for differential pressure sealing
• Optional FluidLoc Cable: Available to prevent internal fluid migration
• Stainless Steel Housing: AISI 303/304 case offers excellent corrosion resistance

Packaging, Shipping & Field Setup

• Package Contents: One 3300 XL Probe, Product Documentation
• Shipping Services: Available via FedEx, UPS, and DHL Express
• Field Wiring Guidance: Use shielded triad cable (0.2-1.5 mm² / 16-24 AWG)
• Maximum Field Run: Up to 305 meters (1000 feet) to the monitor
• Installation Tip: Maintain clean target area and proper gap calibration

Expert Frequently Asked Questions

• Q: Why choose an 8mm probe over other sizes from Bently Nevada? The 8mm version offers the best physical protection for the sensing coil. Its thicker body resists bending and impact in tough plant conditions, giving you a more reliable long-term asset.
• Q: What does the '-02' suffix in the part number specify? This suffix indicates the connector type. '-02' specifically means the probe has a Miniature Coaxial ClickLoc connector paired with the standard performance coaxial cable.
• Q: How does humidity affect this vibration probe's performance? The probe demonstrates strong humidity resistance. Testing shows less than a 3% change in its output sensitivity even after 56 days in 93% relative humidity environments.
• Q: Can I order this probe with a different cable length? Yes, Bently Nevada offers the 330101-00-36-05-02-00 in various standard lengths. The '-05' denotes 0.5m; other common options include '-10' for 1.0 meter and '-20' for 2.0 meters.
• Q: Is the probe's pressure seal tested before it ships? No, standard probes do not undergo pressure seal testing prior to shipment. For applications requiring a validated seal, you must contact Bently Nevada's custom design team for special testing services.
