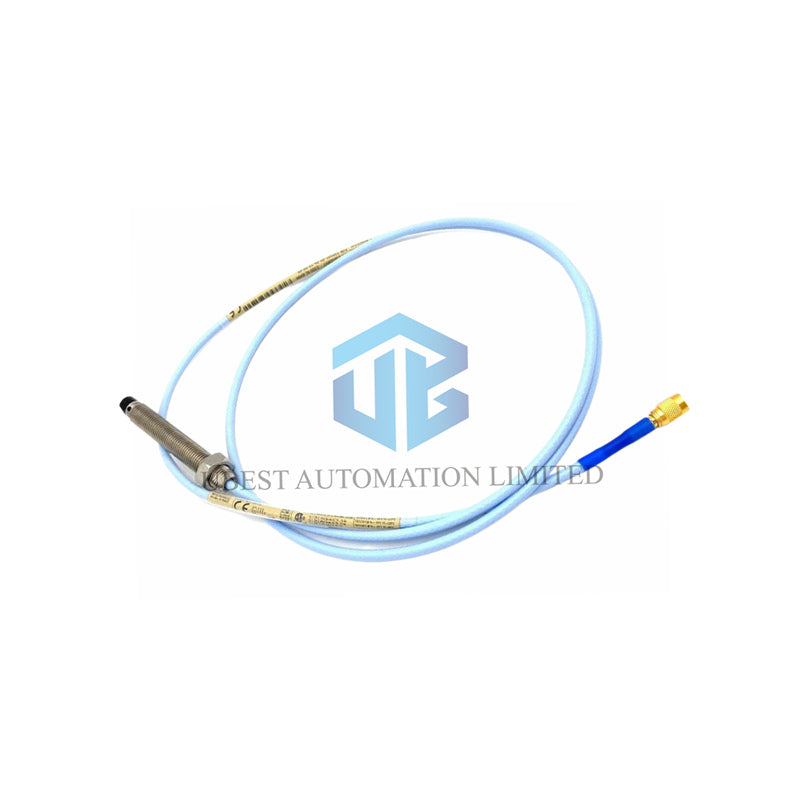

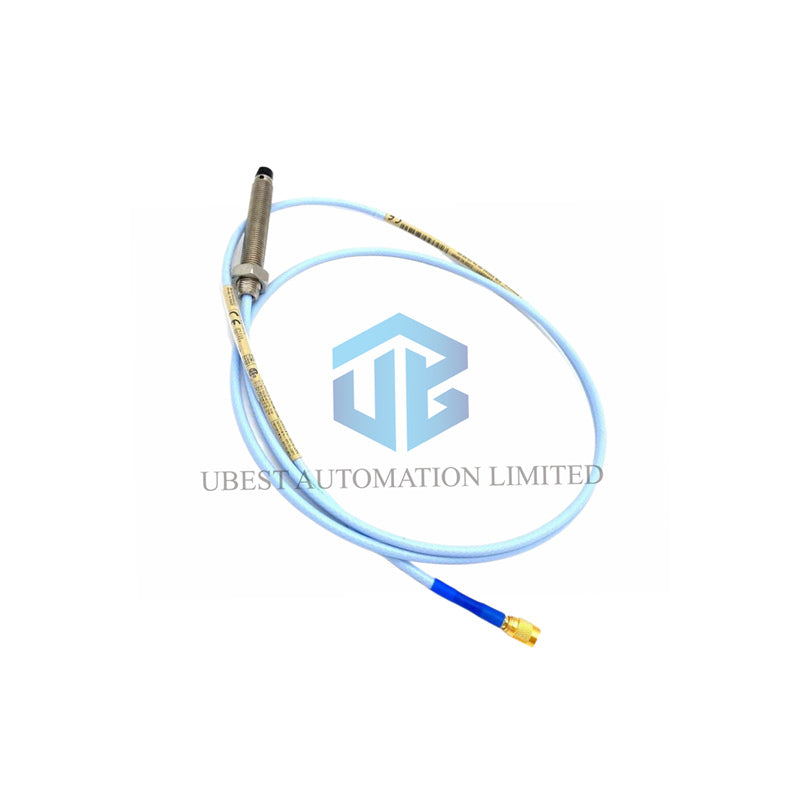

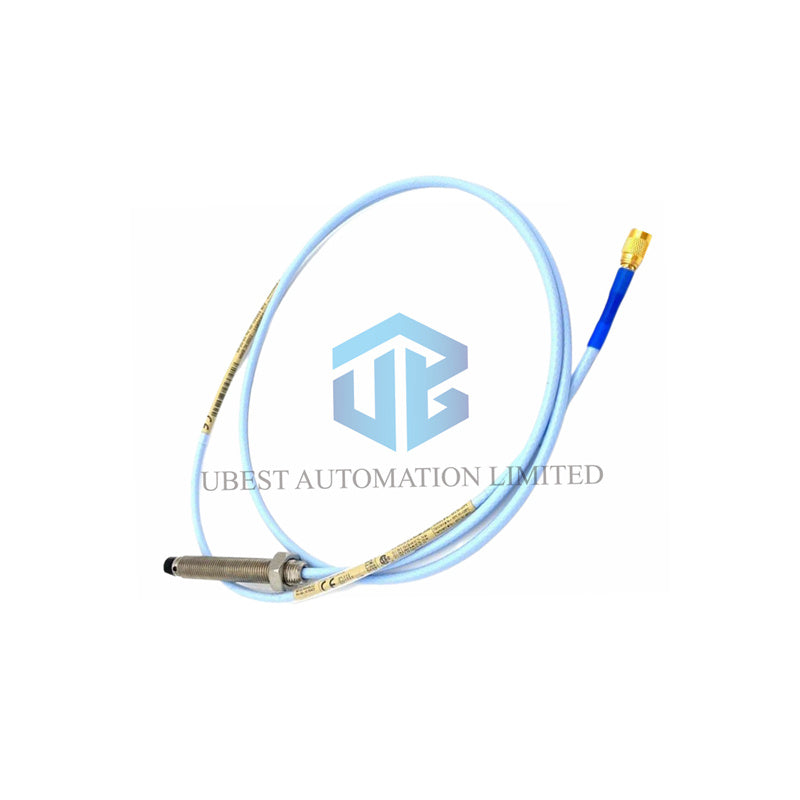

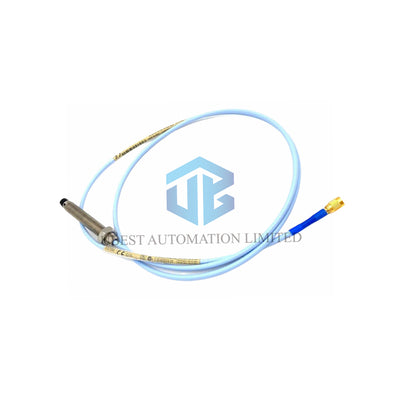

Introducing the Bently Nevada 3300 XL 8mm Vibration Probe

Complete Product Model & Configuration

The full part number Bently Nevada 330101-00-20-05-02-00 details its exact build:

• Base Product (330101): 3300 XL 8 mm Probe, 3/8-24 UNF Thread, No Armor
• Unthreaded Length (00): 0.0 inches
• Overall Case Length (20): 2.0 inches
• Total Cable Length (05): 0.5 meter (1.6 feet)
• Connector & Cable (02): Miniature Coaxial ClickLoc Connector, Standard Cable
• Approvals (00): Not Required for this configuration

Core Technical Specifications

• Brand & Model: Bently Nevada 330101-00-20-05-02-00
• Linear Range: 2.0 mm (80 mils), from 0.25 to 2.3 mm from target
• Recommended Gap: 1.27 mm (50 mils) for a -9 Vdc output
• Sensitivity (ISF): 7.87 V/mm (200 mV/mil) ±5%
• Probe Resistance (0.5m): 7.45 Ω ± 0.50 Ω
• Probe Tip Material: Durable Polyphenylene Sulfide (PPS)
• Case Material: AISI 303 or 304 Stainless Steel
• Operating Temperature: -52°C to +177°C (-62°F to +350°F)

Frequently Asked Questions (FAQ)

• What is the cable length for this probe? This model has a 0.5-meter (1.6-foot) integrated cable.
• Does this probe have a FluidLoc cable? No, this version uses a standard cable. Order suffix '12' for FluidLoc.
• How do I set the probe gap? Adjust the probe position to achieve about -9 Vdc for standard radial vibration measurement.
