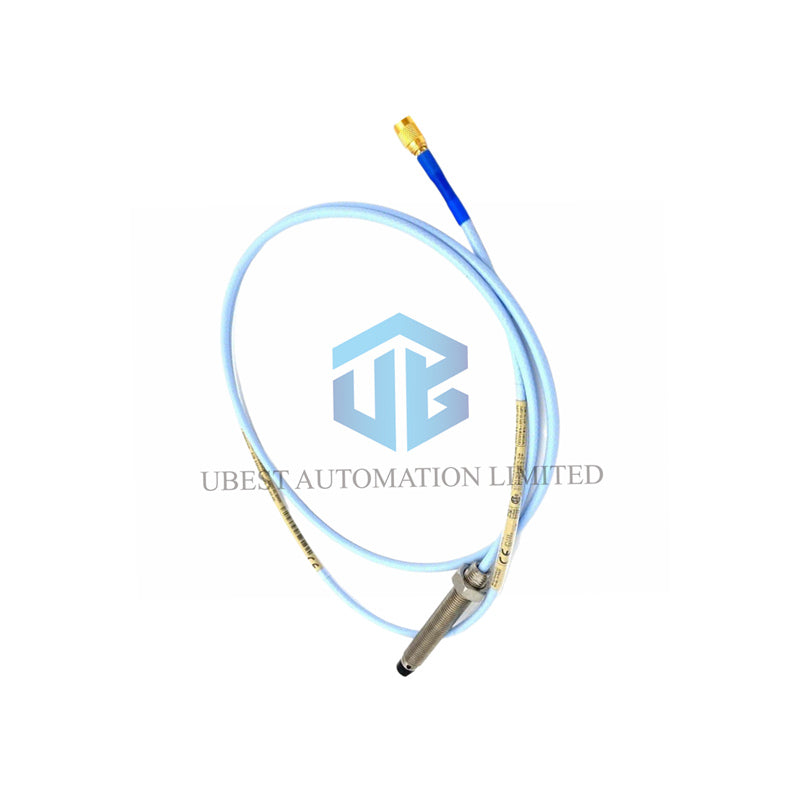

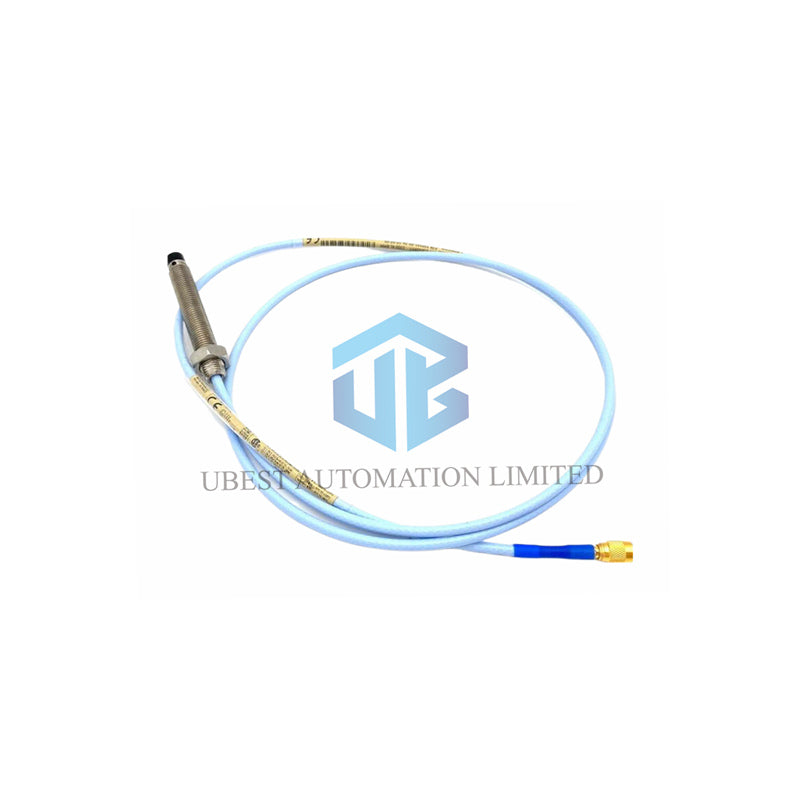

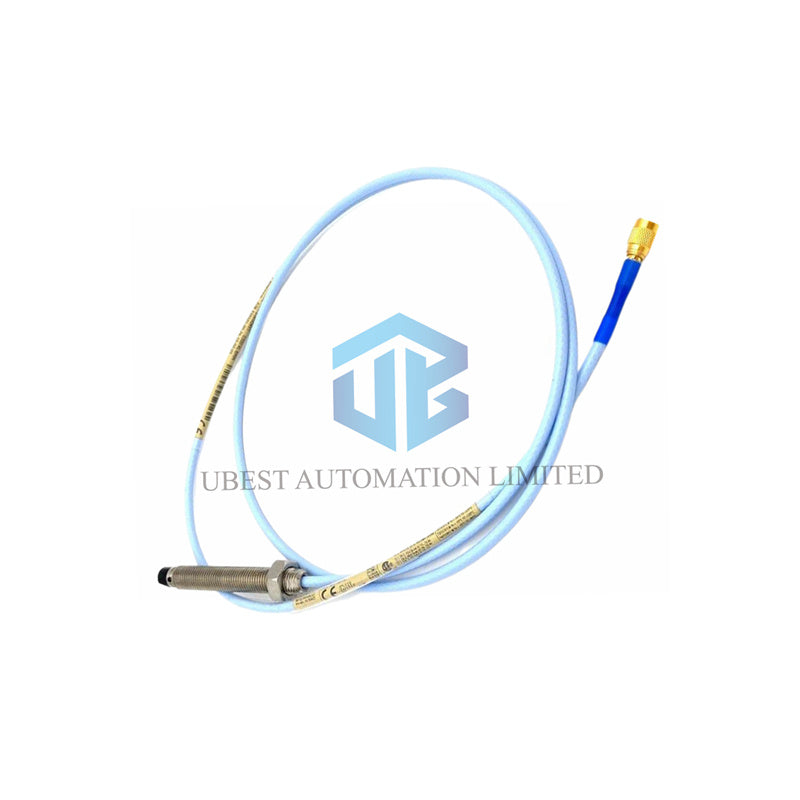

Premium Vibration Probe 330101-00-36-05-02-05 for Industrial Machinery Protection

Complete Product Identification & Suffix Decoder

Understand every feature of your sensor with this detailed breakdown:

• ➤ 330101 | Core Product: 3300 XL 8mm Probe, 3/8-24 UNF, No Armor
• ➤ 00 | Unthreaded Shank: 0.0 Inch
• ➤ 36 | Case Length: 3.6 Inches (91.4 mm)
• ➤ 05 | Cable Length: 0.5 Meter (1.6 Feet)
• ➤ 02 | Connection: Miniature Coaxial ClickLoc, Standard Cable
• ➤ 05 | Certifications: CSA, ATEX, IECEx (Hazardous Areas)

Core Technical Performance Data

• Manufacturer & Model: Bently Nevada 330101-00-36-05-02-05
• Measurement Range: 2.0 mm (80 mils) linear displacement range.
• Gap Setting & Sensitivity: Set to 1.27 mm (50 mils) for -9 Vdc. Sensitivity is 7.87 V/mm ±5%.
• Electrical Specs: Probe Resistance: 7.45 Ω ± 0.50 Ω (0.5m). Cable Capacitance: 69.9 pF/m typical.
• Linearity & Accuracy: Deviation from straight line is less than ±0.025 mm (±1 mil).
• Environmental Range: Operating Temperature: -52°C to +177°C (-62°F to +350°F).
• Humidity Immunity: Less than 3% signal change after 56 days at 93% relative humidity.
• Field Wiring Guide: Use 3-conductor shielded cable. Maximum run: 305 meters (1000 feet).

Critical Product Features & Benefits

• The extended 3.6-inch case length allows installation in deeper mounting holes or through thicker casing walls.
• Carries major hazardous location approvals (CSA, ATEX, IECEx) for use in explosive atmospheres.
• The patented TipLoc and CableLoc technologies ensure superior mechanical integrity.
• Constructed with a rugged PPS plastic tip and AISI 303/304 stainless steel body for maximum durability.
• Shorter 0.5m integrated cable is ideal for tight spaces where long cables are not necessary.
• The 8mm diameter design offers the best possible protection against physical damage and abrasion.

Professional FAQs for This Probe Model

• When should I choose this 3.6-inch case length over a shorter one? Select this length when you need to mount the probe through a thick machine housing, a cooling jacket, or an adapter sleeve where a longer threaded section is required to properly engage.
• Does the "05" approval suffix mean the probe is intrinsically safe? Yes, the CSA, ATEX, and IECEx approvals indicate the probe is certified for use in hazardous locations. However, you must use it with a similarly certified proximitor and barrier system to maintain the intrinsic safety loop.
• What is the weight and stiffness impact of the longer 3.6" case? The longer stainless steel case adds minimal weight but increases rigidity. This can be beneficial in high-vibration environments, as it reduces potential harmonic resonance in the probe body itself.
• Can I directly replace a shorter probe with this 3.6-inch model? You can only do this if your mounting hole has sufficient depth and threads to accommodate the extra length. Always check the physical clearance behind the mounting point to avoid interference.
• How does the 0.5m cable length affect system calibration? The shorter cable reduces overall system capacitance, which can marginally improve high-frequency response. The system's Scale Factor (ISF) calibration already accounts for standard 5m or 9m system lengths, so no special adjustment is needed for this integrated 0.5m cable.
