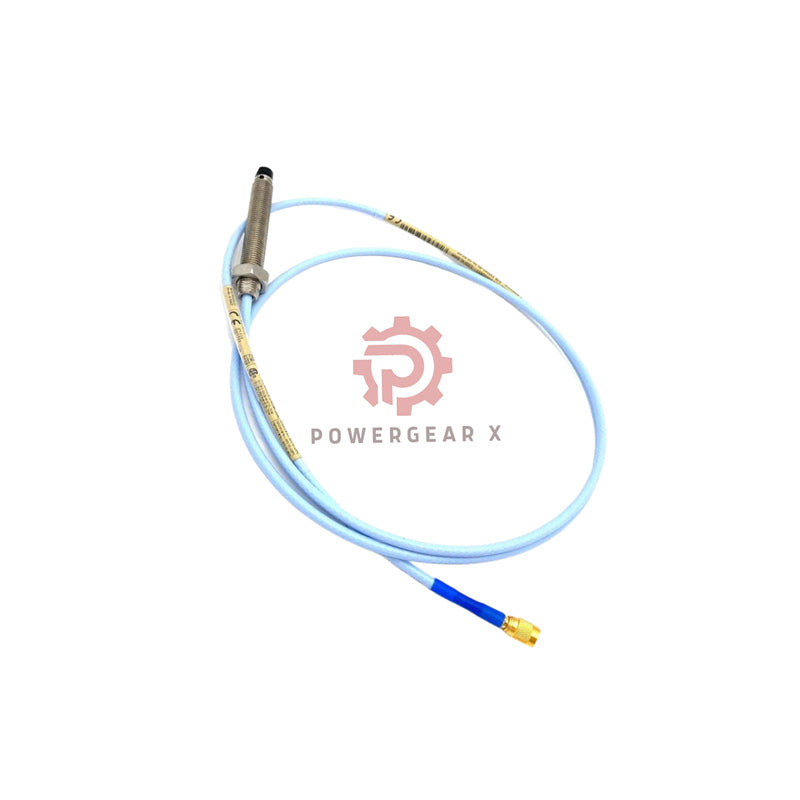

Bently Nevada 3300 XL 8mm Proximity Probe: Robust Industrial Monitoring

Product Identification & Configuration

This 3300 XL 8mm Probe model features a complete suffix code that defines its build:

• Manufacturer & Base Model: Bently Nevada 330101
• Full Suffix Breakdown:
  • -00: Unthreaded Length = 0.0 inch
  • -43: Overall Case Length = 4.3 inches
  • -15: Total Cable Length = 1.5 meters (4.9 feet)
  • -02: Miniature Coaxial ClickLoc Connector with Standard Cable
  • -CN: Country-Specific Configuration
• Thread: 3/8-24 UNF
• Armor: Without Armor
• Origin: Made in U.S.A.

Key Features & Design Advantages

• The patented TipLoc molding creates a superior bond between the tip and body.
• The CableLoc design secures the cable with 330 N (75 lbf) pull strength.
• Optional FluidLoc cable prevents internal fluid migration along the cable.
• The 8mm diameter provides a thicker coil encapsulation for enhanced physical robustness.
• We recommend the 8mm probe for optimal resistance to physical abuse.

Detailed Technical Specifications

• Brand: Bently Nevada
• Model: 330101-00-43-15-02-CN
• Type: 3300 XL 8 mm Proximity Probe
• Electrical Characteristics:
  • Nominal Probe Resistance (R_PROBE): 7.73 Ω ± 0.50 Ω (for 1.5m length)
  • Extension Cable Capacitance: 69.9 pF/m typical
• Measurement Performance:
  • Linear Range: 2.0 mm (80 mils), from 0.25 to 2.3 mm from target
  • Recommended Gap (Radial Vibration): 1.27 mm (50 mils) for -9 Vdc
  • Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for 5/1m system
  • Deviation from Straight Line (DSL): < ±0.025 mm (±1 mil) for 5/1m system
• Mechanical & Material Construction:
  • Probe Tip Material: Polyphenylene Sulfide (PPS)
  • Probe Case Material: AISI 303/304 Stainless Steel
  • Cable Weight: Approximately 323 g/m (11.4 oz/ft)
• Environmental Ratings:
  • Standard Temp Range: -52°C to +177°C (-62°F to +350°F)
  • Extended Temp Range (ETR Probe Tip): Up to +218°C (+425°F)
  • Pressure Seal: Viton® O-ring, seals differential pressure
  • Relative Humidity: <3% ASF change at 93% humidity per IEC 68-2-3
• Installation Limits:
  • Max Thread Engagement: 0.563 inch
  • Recommended Case Torque: 11.2 N•m (100 in•lbf)
  • Torque on First 3 Threads: 7.5 N•m (66 in•lbf)

Frequently Asked Questions (FAQ)

• What is the main advantage of the 8mm probe? Its larger diameter offers superior ruggedness and physical protection for the sensing coil.
• Can this probe handle high-pressure environments? It has a Viton O-ring seal for differential pressure but is not pressure-tested by default.
• What is the FluidLoc option? It is a special cable construction that prevents oil or other liquids from wicking through the cable core.
• What temperature classification does it have? It complies with multiple EPL classifications (e.g., T1, T2 for Ga/Gc) as per the temperature schedule.
