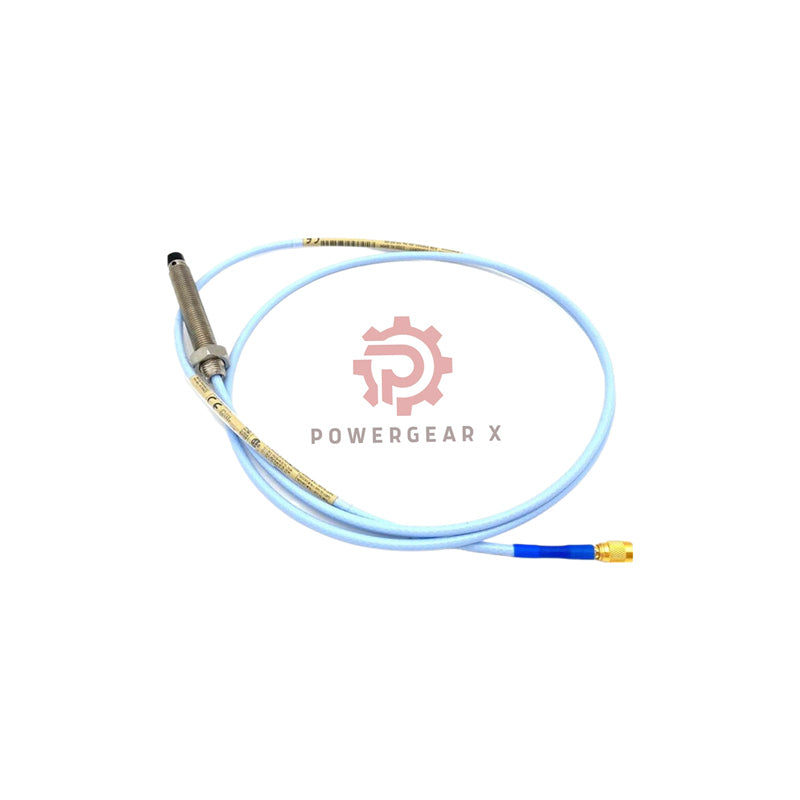

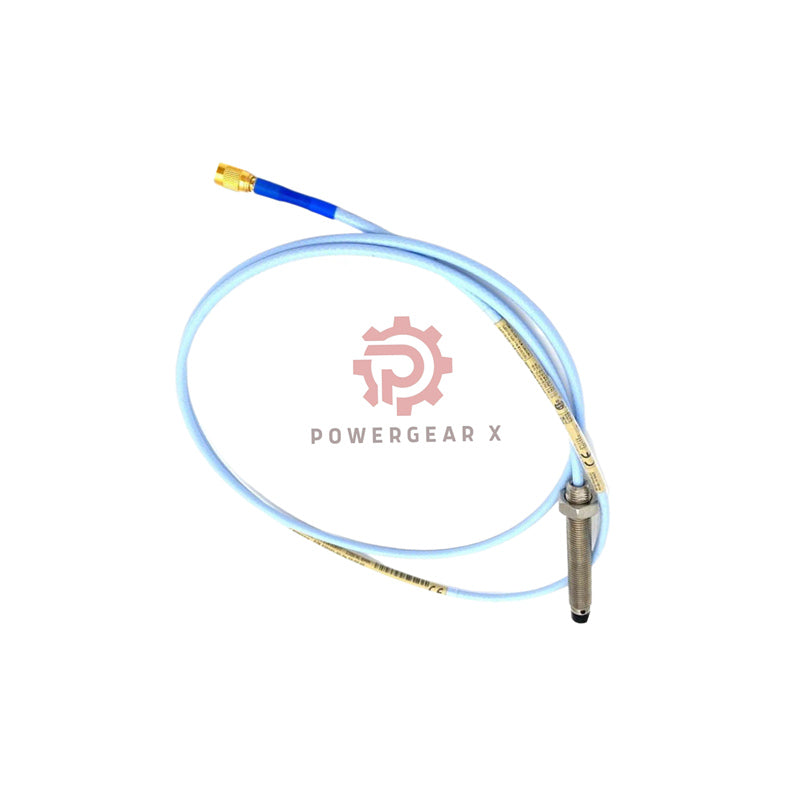

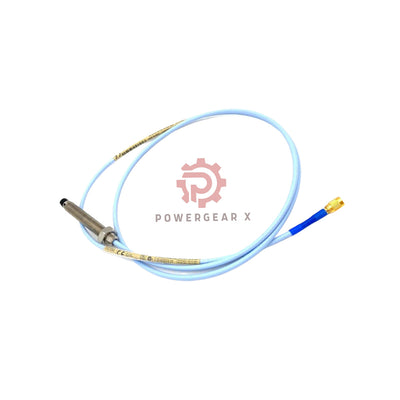

Bently Nevada 3300 XL 8mm Probe

Complete Product Configuration

• Full Model: 330101-00-77-15-02-CN
• 330101: 3300 XL 8mm Probe, 3/8-24 UNF thread, without armor
• -00: Unthreaded Length = 0.0 inch
• -77: Overall Case Length = 7.7 inches
• -15: Total Cable Length = 1.5 meters (4.9 feet)
• -02: Miniature coaxial ClickLoc connector, standard cable
• -CN: Country Specific variant

Technical Specifications

• Brand: Bently Nevada | Model: 330101-00-77-15-02-CN
• Measurement Range: 2.0 mm (80 mils) linear range from 0.25 to 2.3 mm
• Recommended Gap: 1.27 mm (50 mils) for radial vibration (~ -9 Vdc output)
• Sensitivity (ISF): 7.87 V/mm (200 mV/mil) ±5% for 5m systems
• Linearity (DSL): Better than ±0.025 mm (±1 mil) over full operating range
• Frequency Response: Stable performance; consult manual for long wiring effects
• Probe Resistance: 7.73 Ω ± 0.5 Ω at 1.5 meter cable length
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical for extension cables
• Temperature Range: -52°C to +177°C standard operation and storage
• Environmental Rating: Viton® O-ring seal; <3% ASF change in 93% humidity
• Case Material: AISI 303/304 stainless steel for corrosion resistance
• Tip Material: Molded PPS (Polyphenylene sulfide) plastic

Installation Guidelines

• Maximum thread engagement: 0.563 inches (14.3 mm) into mounting hole
• Recommended installation torque: 11.2 N•m (100 in-lbf) for probe case
• First three threads torque: 7.5 N•m (66 in-lbf) to prevent damage
• Field wiring: Use 3-conductor shielded cable (16-24 AWG, 0.2-1.5 mm²)
• Maximum field wiring distance: 305 meters (1000 feet) to monitor

Packaging & Shipping

• Condition: 100% New Original Bently Nevada Product
• Availability: In stock and ready for immediate shipment
• Processing: Orders ship within 3-5 business days
• Carriers: FedEx, UPS, DHL available for worldwide delivery

Frequently Asked Questions

• Q: What is the difference between this model and 330101-00-61-15-02-CN?
  A: This model has a 7.7-inch case length (-77), while the other has a 6.1-inch case (-61). Choose based on your mounting requirements.
• Q: What makes the 8mm probe more durable than smaller probes?
  A: The 3300 XL 8mm Probe has thicker encapsulation and a larger stainless steel body for better impact resistance.
• Q: Can this probe handle high-temperature applications?
  A: Yes, the standard version operates from -52°C to +177°C. An ETR version is available for up to 218°C at the tip.
• Q: What connector type does this probe use?
  A: It features a Miniature coaxial ClickLoc connector (option -02) for secure connection to extension cables.
• Q: Is special wiring needed for installation?
  A: Use 3-conductor shielded cable (16-24 AWG). Keep field wiring under 305 meters for best signal quality.
