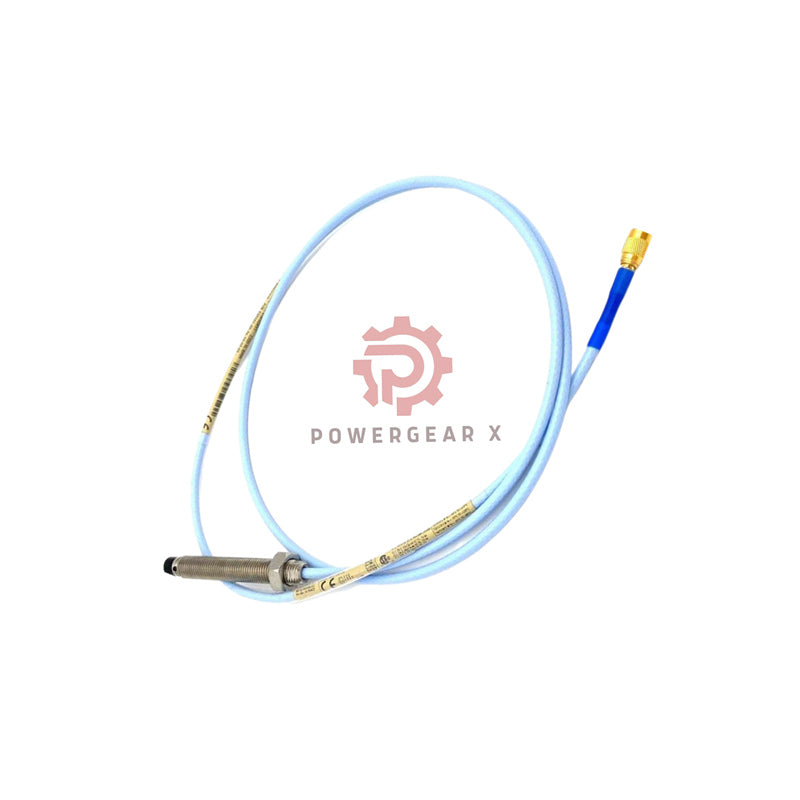

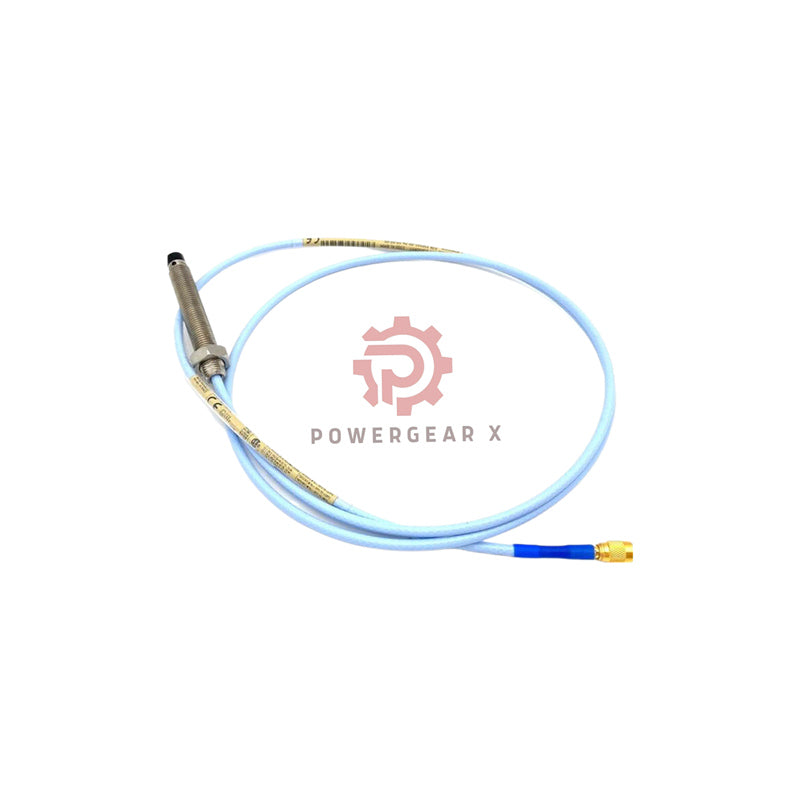

Bently Nevada 3300 XL 8mm Probe

Complete Product Configuration

• Full Model: 330101-00-84-20-02-CN
• 330101: 3300 XL 8mm Probe, 3/8-24 UNF thread, without armor
• -00: Unthreaded Length = 0.0 inch
• -84: Overall Case Length = 8.4 inches
• -20: Total Cable Length = 2.0 meters (6.6 feet)
• -02: Miniature coaxial ClickLoc connector, standard cable
• -CN: Country Specific variant

Technical Specifications

• Brand: Bently Nevada
• Measurement Range: 2.0 mm (80 mils) linear range from 0.25 to 2.3 mm
• Recommended Gap: 1.27 mm (50 mils) for radial vibration (~ -9 Vdc output)
• Sensitivity (ISF): 7.87 V/mm (200 mV/mil) ±5% for 5m systems
• Linearity (DSL): Better than ±0.025 mm (±1 mil) over full operating range
• Probe Resistance: 7.88 Ω ± 0.5 Ω at 2.0 meter cable length
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical for extension cables
• Temperature Range: -52°C to +177°C standard operation and storage
• Field Wiring: Maximum 305 meters (1000 feet) to monitor for best performance
• Case Material: AISI 303/304 stainless steel for corrosion resistance
• Tip Material: Molded PPS (Polyphenylene sulfide) plastic

Environmental & Mechanical Ratings

• Pressure Seal: Viton® O-ring seals differential pressure between tip and case
• Humidity Resistance: Less than 3% ASF change in 93% humidity for 56 days
• Thread Engagement: Maximum 0.563 inches (14.3 mm) into mounting hole
• Installation Torque: Recommended 11.2 N•m (100 in-lbf) for probe case
• Low Temperature Caution: Avoid below -34°C (-30°F) to prevent seal failure

Frequently Asked Questions

• Q: What are the key differences in the 330101-00-84-20-02-CN configuration?
  A: This model features an 8.4-inch case length (-84) and 2.0-meter cable (-20), providing more mounting flexibility and reach.
• Q: Why should I choose an 8mm probe over smaller diameter options?
  A: The 3300 XL 8mm Probe offers superior durability with thicker encapsulation and stronger construction for harsh environments.
• Q: What is the probe resistance for this 2.0-meter cable version?
  A: The nominal DC resistance is 7.88 Ω ± 0.5 Ω, slightly higher than the 1.5-meter version due to longer cable.
• Q: Can this probe withstand wet or humid environments?
  A: Yes, it shows less than 3% sensitivity change when tested in 93% humidity for extended periods according to IEC standards.
• Q: What installation precautions should I take with this probe?
  A: Follow torque specifications (11.2 N•m max), limit thread engagement to 0.563 inches, and avoid temperatures below -34°C to protect the pressure seal.
