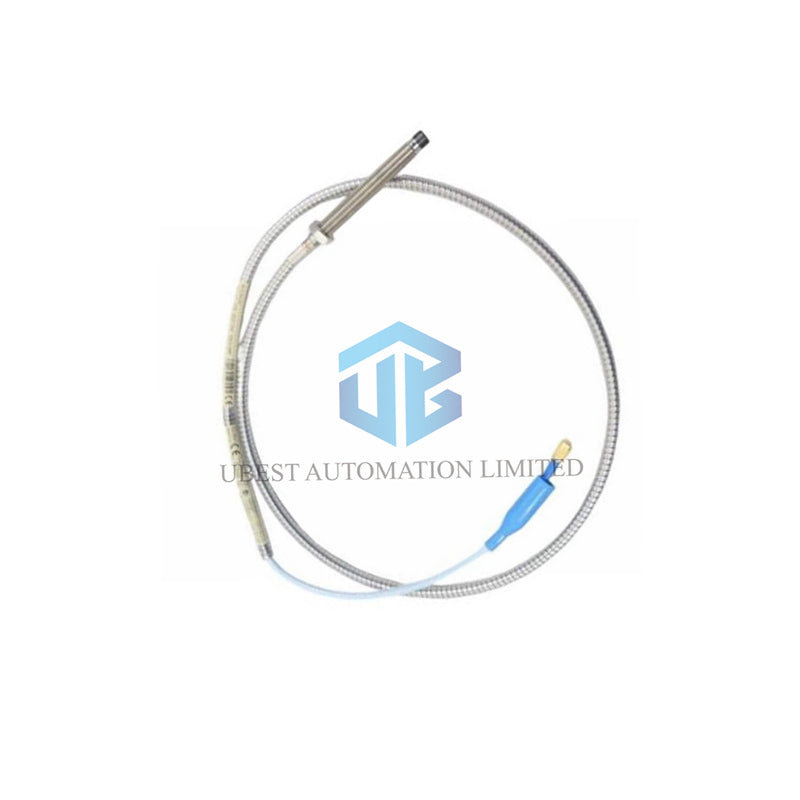

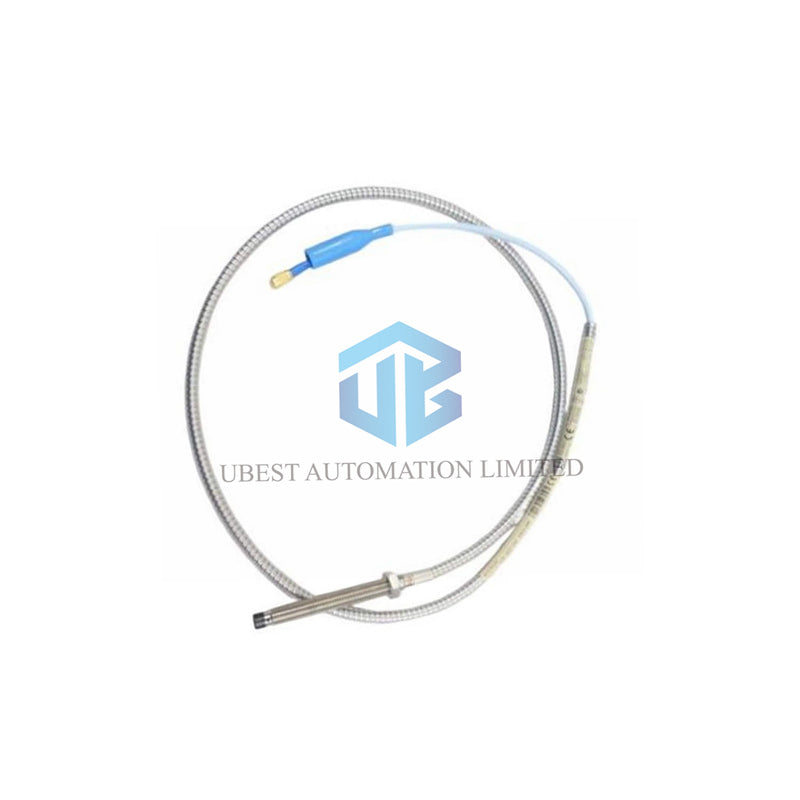

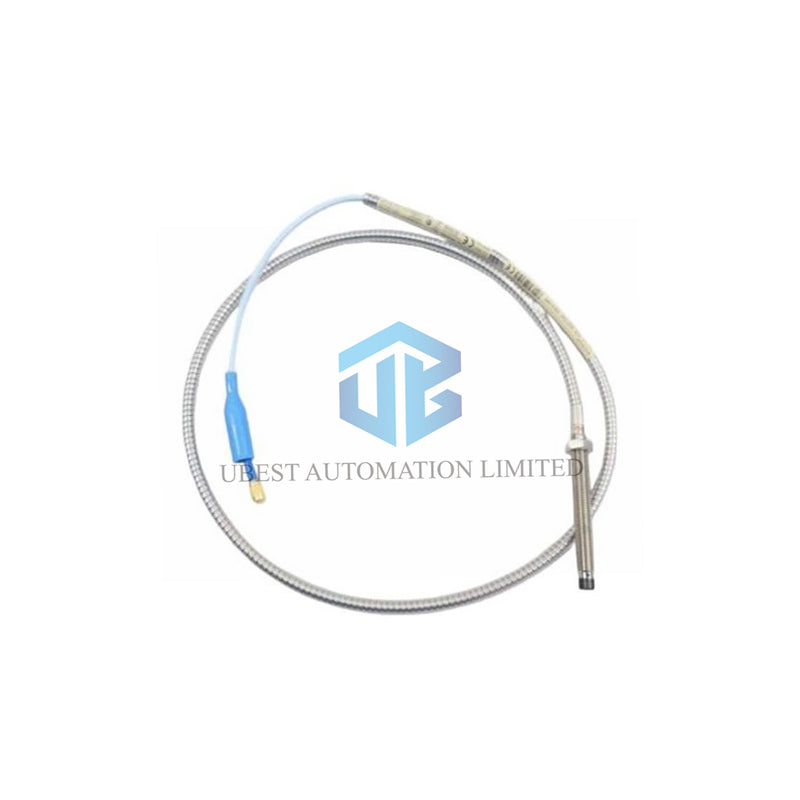

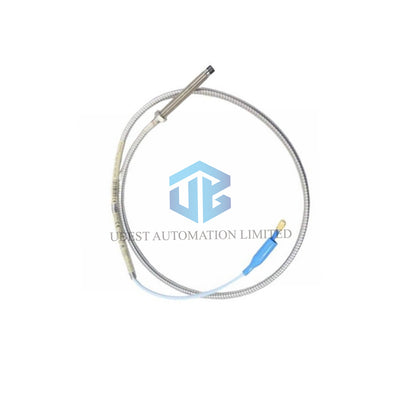

Bently Nevada 330102-00-64-10-02-00 Proximity Probe Technical Overview

Core Technical Specifications & Performance Data

• Model & Identification: Bently Nevada 330102-00-64-10-02-00 (3300 XL Series).
• Linear Measurement Range: 0.25 mm to 2.3 mm (10 to 90 mils) for precise displacement tracking.
• Recommended Gap Setting: 1.27 mm (50 mils), establishing a -9 Vdc output baseline.
• Frequency Response: Up to 10 kHz for capturing high-speed dynamic machinery events.
• System Sensitivity (Scale Factor): 200 mV/mil (7.87 V/mm), producing a strong, measurable signal.
• Probe DC Resistance (RPROBE): 7.59 Ω ± 0.50 Ω at 1.0 meter cable length for consistent electrical output.
• Electrical Linearity: Typically within ±1% across the specified linear operating range.

Physical Construction & Environmental Ratings

• Case Length & Thread: 6.4-inch (163 mm) stainless steel case with 3/8-24 UNF thread.
• Total Cable Length: Integrated 1.0 meter (3.3 feet) cable for flexible routing and connection.
• Tip Material: Durable Polyphenylene Sulfide (PPS) for wear and chemical resistance.
• Case Material: AISI 303 or 304 Stainless Steel (SST) for corrosion resistance and strength.
• Sealing Design: Viton® O-ring provides a seal against differential pressure between tip and case.
• Standard Temperature Range: Operates from -52°C to +177°C (-62°F to +350°F).
• Humidity Stability: Less than 3% change in output after 56 days at 93% relative humidity.

Key Product Advantages & Selling Points

• Features a longer 6.4-inch overall case length for deeper mounting applications.
• Includes a 1.0-meter integrated cable with a Miniature ClickLoc connector for easy hookup.
• Built with a robust PPS tip and SST case for long service life in harsh industrial environments.
• Offers excellent signal stability with minimal drift due to humidity or temperature changes.
• Provides a reliable Viton sealing solution for applications with pressure differentials.
• This specific 330102-00-64-10-02-00 model delivers versatile performance for standard industrial zones.

Expert FAQ on the 3300 XL 8mm Probe

• Q: Does this 1.0-meter probe model require special agency certifications?
  A: The 330102-00-64-10-02-00 comes without agency approvals ("00" option), making it ideal for standard, non-hazardous industrial areas.
• Q: What is the benefit of the longer 6.4-inch case length on this probe?
  A: It allows installation through thicker machinery casings or mounting brackets for deeper reach to the measurement target.
• Q: How does the Viton O-ring seal function in this probe's design?
  A: It seals the internal cavity, protecting the sensing element from external pressure differences and contaminants.
• Q: Can I use this probe in very cold environments below -34°C?
  A: We do not recommend it, as temperatures below -34°C (-30°F) may compromise the integrity of the pressure seal.
• Q: What makes the 3300 XL system's -9 Vdc gap setting the industry standard?
  A: It positions the operating point in the center of the linear range, allowing equal measurement of vibration peaks in both directions.
