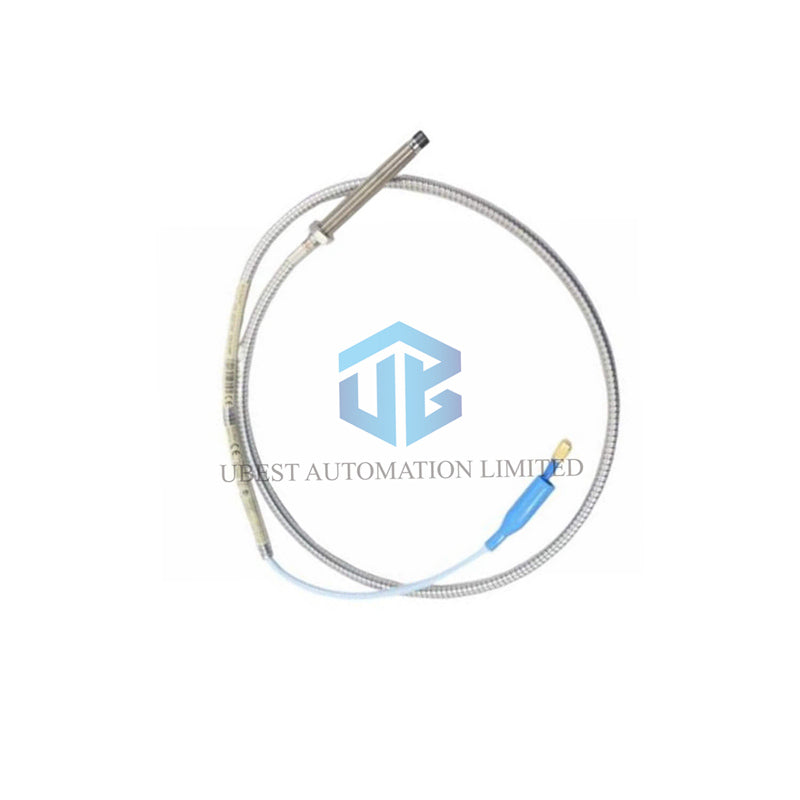

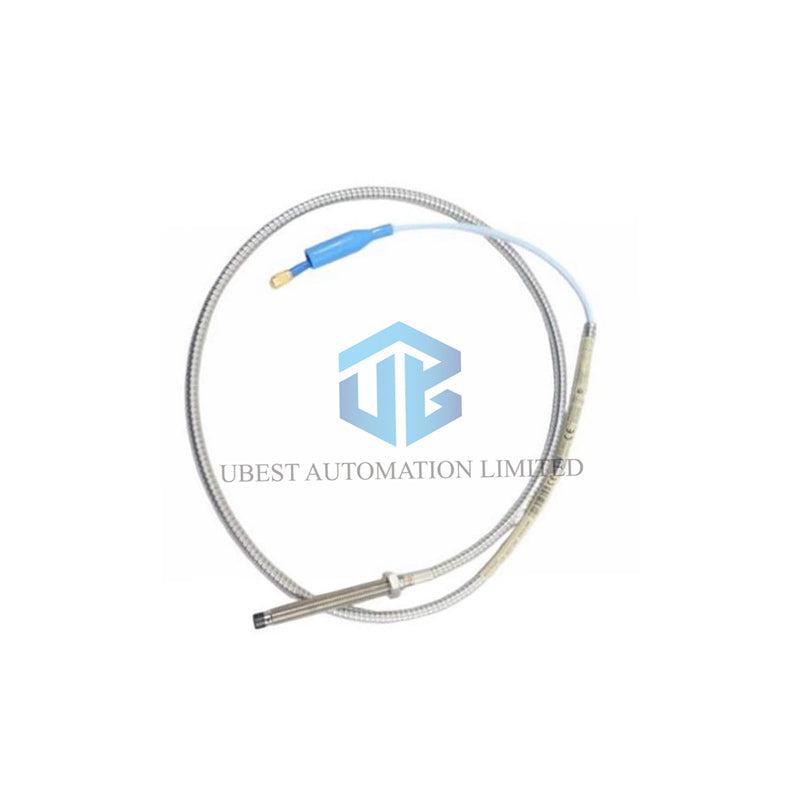

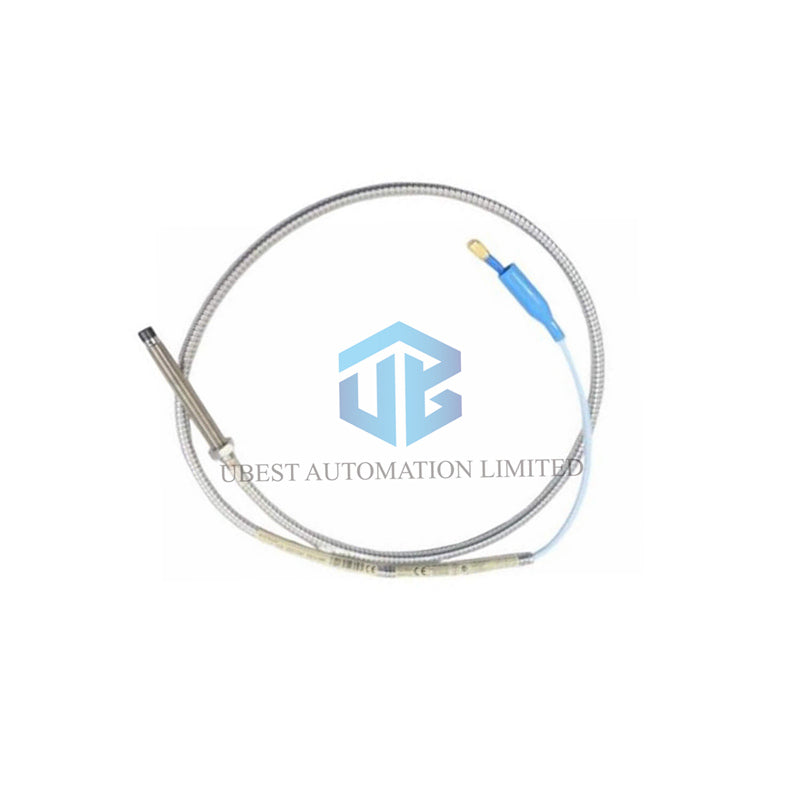

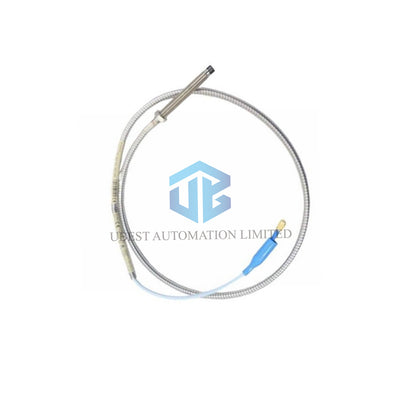

Bently Nevada 330102-60-96-10-02-CN 8mm Proximity Probe

In stock
Manufacturer:
Bently Nevada
Product No.:
330102-60-96-10-02-CN
Condition:
In Stock
Product Type:
Proximity Probe
Product Origin:
USA
Weight:
170g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

Product Overview: Bently Nevada 3300 XL 8mm Proximity Probe

Complete Model Suffix Breakdown

The full part number 330102-60-96-10-02-CN details every configuration option:

  • Base Model: 330102 - 3300 XL 8mm Probe with armored cable, 3/8-24 UNF thread.
  • Unthreaded Length: 60 = 6.0 inches.
  • Overall Case Length: 96 = 9.6 inches.
  • Total Cable Length: 10 = 1.0 meter (3.3 feet).
  • Connector Type: 02 = Miniature coaxial ClickLoc connector.
  • Agency Approval: CN = Country Specific certification.

Key Technical Specifications & Parameters

  • Brand & Model: Bently Nevada 3300 XL series, Part# 330102-60-96-10-02-CN.
  • Linear Measuring Range: 2.0 mm (80 mils), from 0.25 mm to 2.3 mm from target.
  • Recommended Gap Setting: 1.27 mm (50 mils) for a -9 Vdc output.
  • Nominal Probe Resistance (RPROBE): 7.59 Ω ± 0.50 Ω for the 1.0m version.
  • Frequency Response: Performance depends on field wiring length. Consult factory graphs for details.
  • Probe Tip Material: Durable Polyphenylene Sulfide (PPS).
  • Probe Case Material: Stainless Steel (AISI 303/304).
  • Sealing: Viton® O-ring for differential pressure sealing.

Environmental & Operational Ratings

  • Standard Temperature Range: Operates from -52°C to +177°C (-62°F to +350°F).
  • Extended Cable/Connector Rating: Up to +260°C (+500°F).
  • Note: Temperatures below -34°C (-30°F) may affect the pressure seal.
  • Humidity: Less than 3% ASF change at 93% humidity per IEC 68-2-3.
  • Intrinsic Safety (when installed per guidelines): AEx/Ex ia IIC T5...T1 Ga.
  • Non-incendive/ec (when installed per guidelines): AEx/Ex nA/ec IIC T5…T1 Gc.

Frequently Asked Questions (FAQ)

  • What is the output voltage range? The linear output is approximately -1 to -17 Vdc across the 2mm range.
  • Can I use a 5m cable with this probe? No. This model has a fixed 1.0m cable. Order a different part number for 5m integrated cables.
  • Is it pressure tested? Probes are not pressure tested before shipment. Contact Bently Nevada for custom testing needs.
  • Where can I buy it? Ubest Automation stocks this 3300 XL probe for fast delivery.
