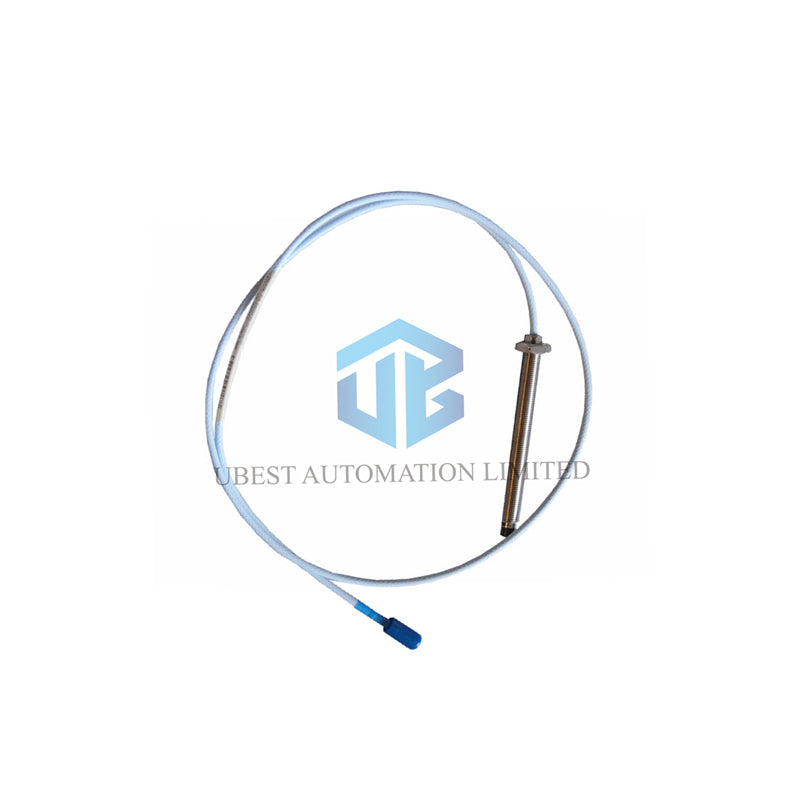

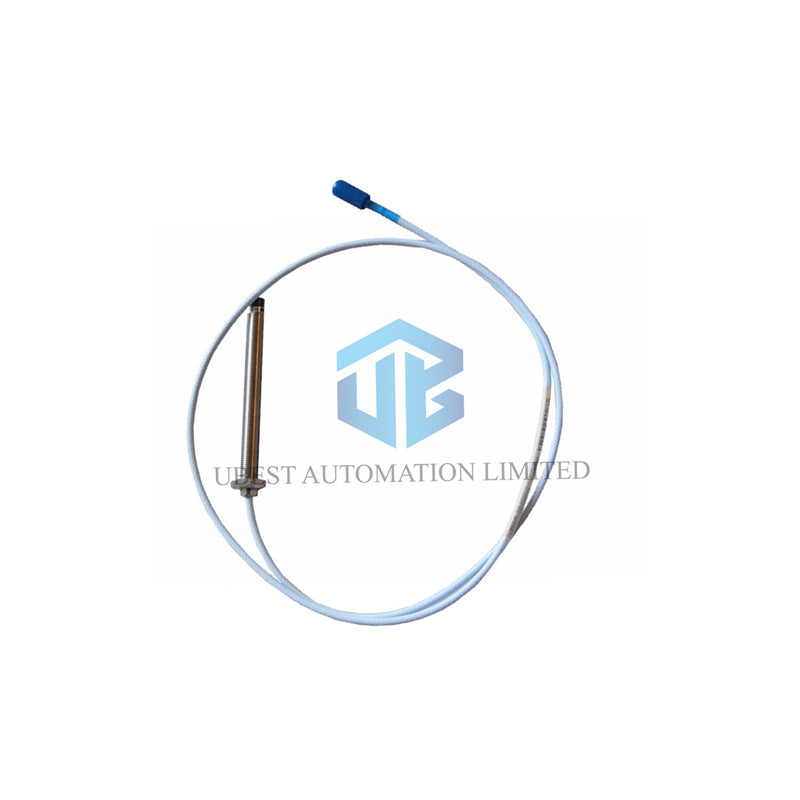

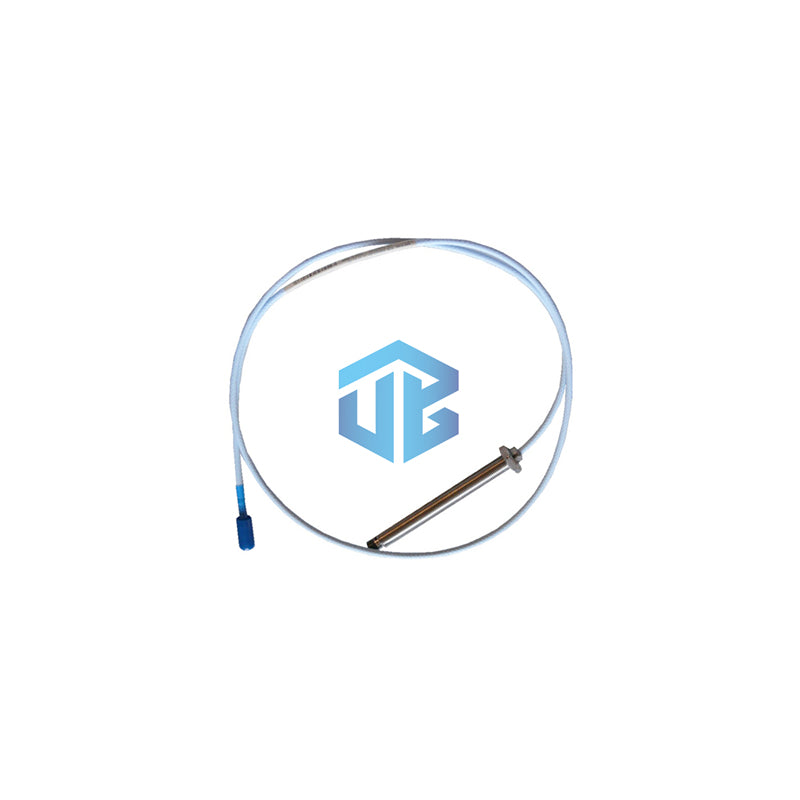

Bently Nevada 3300 XL 8 mm Probe: 330103-05-10-10-02-05

Core Technical Specifications

• Manufacturer: Bently Nevada
• Product No.: 330103-05-10-10-02-05
• Type: 3300 XL 8 mm Proximity Probes
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm. Output spans -1 to -17 Vdc. Set gap to -9 Vdc for radial vibration.
• Frequency Response: System bandwidth supports dynamic analysis. Figures 10 and 12 show roll-off with long cables.
• Sensitivity & Linearity: Nominal sensitivity is 7.87 V/mm. Linearity stays tight across the full range.
• Temperature Range: Standard probe operates -52°C to +177°C. Tip withstands +218°C. Keep above -34°C for seal integrity.
• Humidity Resistance: ASF changes less than 3% after 56 days at 93% humidity (IEC 68-2-3).
• Pressure Seal: Viton® O-ring seals differential pressure. We do not pressure test before shipping. Contact us if you need a test.
• Approvals: Suffix 05 includes CSA, ATEX, IECEx for hazardous areas.

Suffix Breakdown: 330103-05-10-10-02-05

• 330103: Base model – 3300 XL 8 mm Probe, M10 x 1 thread, no armor
• 05: Unthreaded length = 50 mm
• 10: Overall case length = 100 mm
• 10: Total cable length = 1.0 meter (3.3 feet)
• 02: Miniature coaxial ClickLoc™ connector, standard cable
• 05: Agency approvals: CSA, ATEX, IECEx

Electrical & Mechanical Data

• Tip Material: Polyphenylene sulfide (PPS) resists chemicals and high temperatures.
• Case Material: AISI 303/304 stainless steel for durability.
• DC Resistance: 7.59 ± 0.50 Ω (center to outer conductor) for 1.0 m probe.
• Thread: M10 x 1, max engagement 15 mm.
• Weight: 323 g/m (11.4 oz/ft).
• Field Wiring: Use 0.2–1.5 mm² shielded triad. Max length to monitor is 305 m.
• Hazardous Locations: Meets Class I, Zone 0 AEx/Ex ia IIC T5…T1 Ga when used with barriers per drawing 141092.

FAQ

• Q: What is the linear range of 330103-05-10-10-02-05?
  A: The 3300 XL 8mm Probe has a 2 mm linear range (0.25–2.3 mm), output -1 to -17 Vdc.
• Q: Does it work with older monitors?
  A: Yes, it works with all 3300 XL Proximitor sensors. Follow cable length rules.
• Q: What approvals does suffix 05 include?
  A: Suffix 05 means CSA, ATEX, and IECEx certification for gas and dust hazards.
• Q: Can the tip handle chemicals?
  A: Yes, the PPS tip offers excellent chemical and temperature resistance.
• Q: When will you ship?
  A: We typically ship within 24 hours via FedEx, UPS, or DHL.
