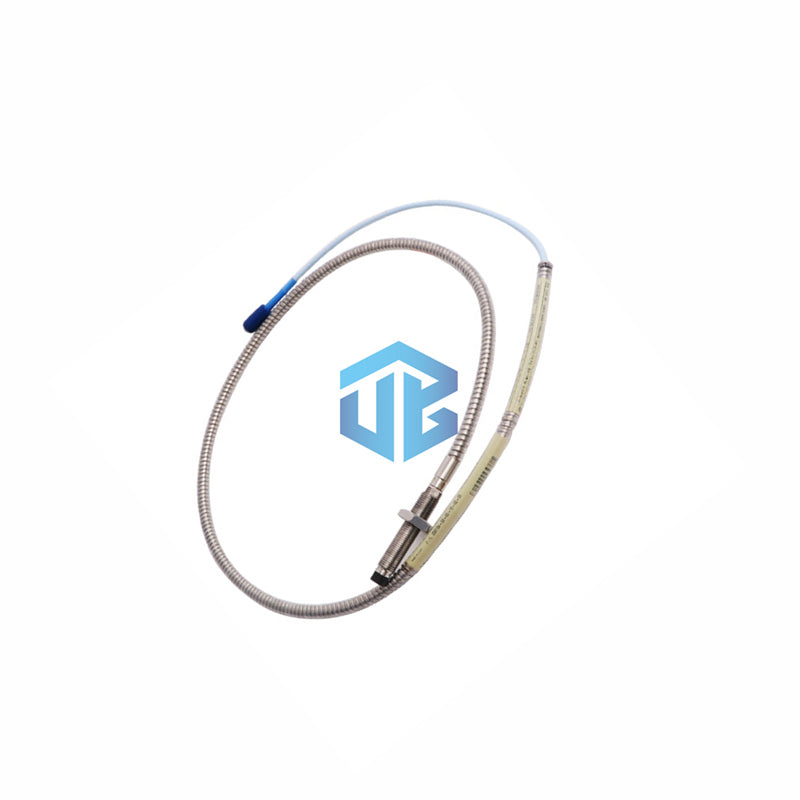

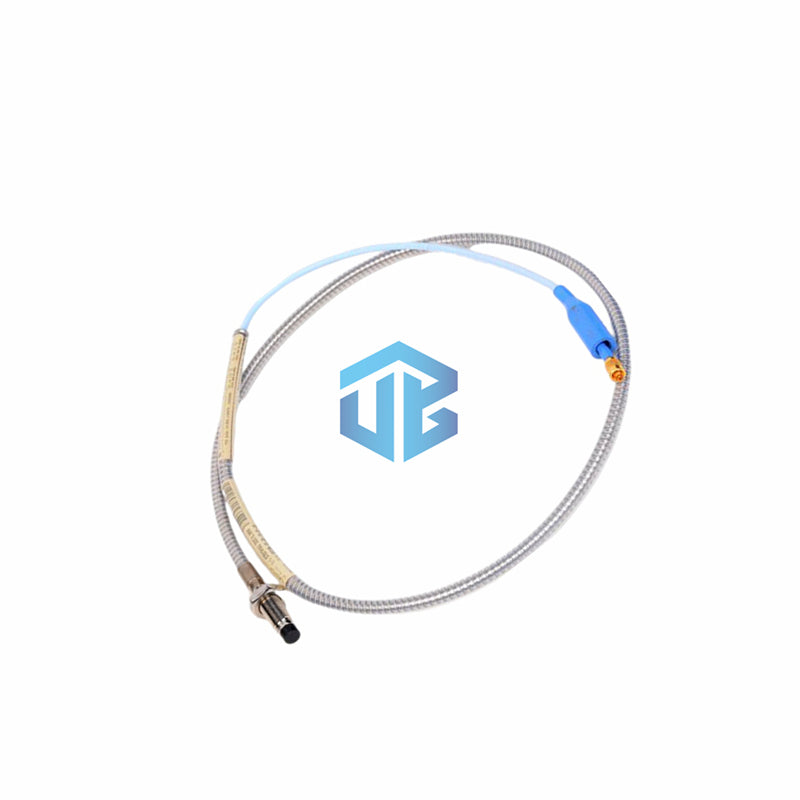

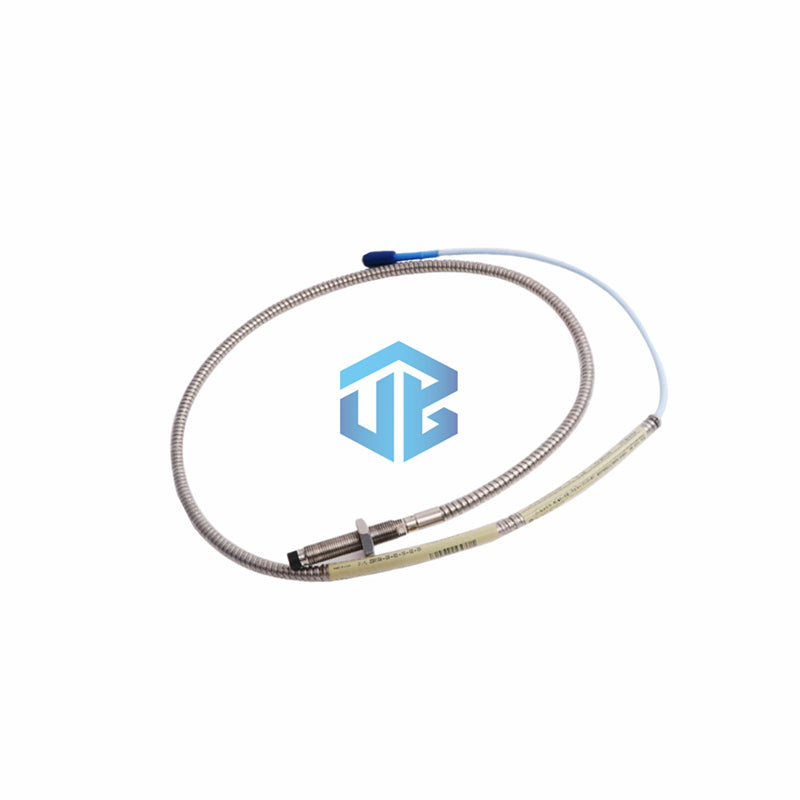

Bently Nevada 3300 XL Armored Metric Proximity Probe
Experience maximum protection with the 330104-00-05-90-02-05 armored proximity probe. This heavy-duty sensor combines M10x1 metric threading with full armor protection for harsh environments. The 330104-00-05-90-02-05 features an extended 9-meter cable and global safety certifications. Ideal for demanding industrial applications requiring robust vibration monitoring.
Armored Protection Features
- Full Armor Coverage: Complete cable protection
- Metric Threading: M10 x 1 international standard
- Compact Case: 50mm professional length
- Extended Reach: 9.0 meter armored cable
- Secure Connection: ClickLoc connector system
- Global Certifications: CSA, ATEX, IECEx approved
Electrical Characteristics
- DC Resistance: 9.87 ± 0.50 ohms
- Power Supply: -17.5 to -26 VDC
- Current Draw: 12 mA maximum
- Output Resistance: 50 ohms
- Supply Sensitivity: <2 mV per volt change
- Optimal Voltage: -23 to -26 VDC with barriers
- Target Material: AISI 4140 steel recommended
- Probe Gap: 1.27mm (50 mils) standard
Mechanical Design
- Case Material: 303/304 Stainless Steel
- Tip Construction: PPS Polyphenylene Sulfide
- Sealing System: Viton O-ring pressure seal
- Thread Type: M10 x 1 metric
- Unthreaded Length: 0mm minimum
- Armor Material: Flexible stainless steel
- Connector Type: Miniature coaxial ClickLoc
Environmental Ratings
- Temperature Range: -55°C to +232°C
- Operating Range: +18°C to +27°C optimal
- Altitude Rating: 2000 meters maximum
- Pressure Seal: Differential design
- Hazardous Areas: Class I, Zone 0 capable
- Safety Standards: Multiple classifications
Global Certifications
- CSA Approved: Canadian Standards
- ATEX Certified: European Directive
- IECEx Compliant: International Standard
- Zone 0 Rating: Hazardous areas
- Division 2: Non-incendive circuits
Complete Model Analysis
- 330104 - 8mm Probe with Armor
- 00 - 0mm Unthreaded Length
- 05 - 50mm Case Length
- 90 - 9.0 Meter Cable
- 02 - ClickLoc Connector
- 05 - Multiple Global Approvals
Shipping & Warranty
- 12-month comprehensive warranty
- FedEx Express delivery
- UPS Worldwide service
- DHL International shipping
- Fast order processing
- Complete tracking provided
Technical Support
What environments require armored cable?
Armored protection is essential in areas with physical abrasion, chemical exposure, or mechanical damage risks.
How does the 9-meter cable benefit installations?
The extended length allows flexible routing in large equipment and complex industrial layouts.
What maintenance does armored cable need?
Regular visual inspection for armor damage and connector integrity ensures long-term reliability.
Can this probe operate in explosive atmospheres?
Yes, with proper intrinsic safety barriers per installation drawings for hazardous area compliance.
What is the advantage of compact 50mm case?
Shorter case length provides installation flexibility in space-constrained machinery applications.
