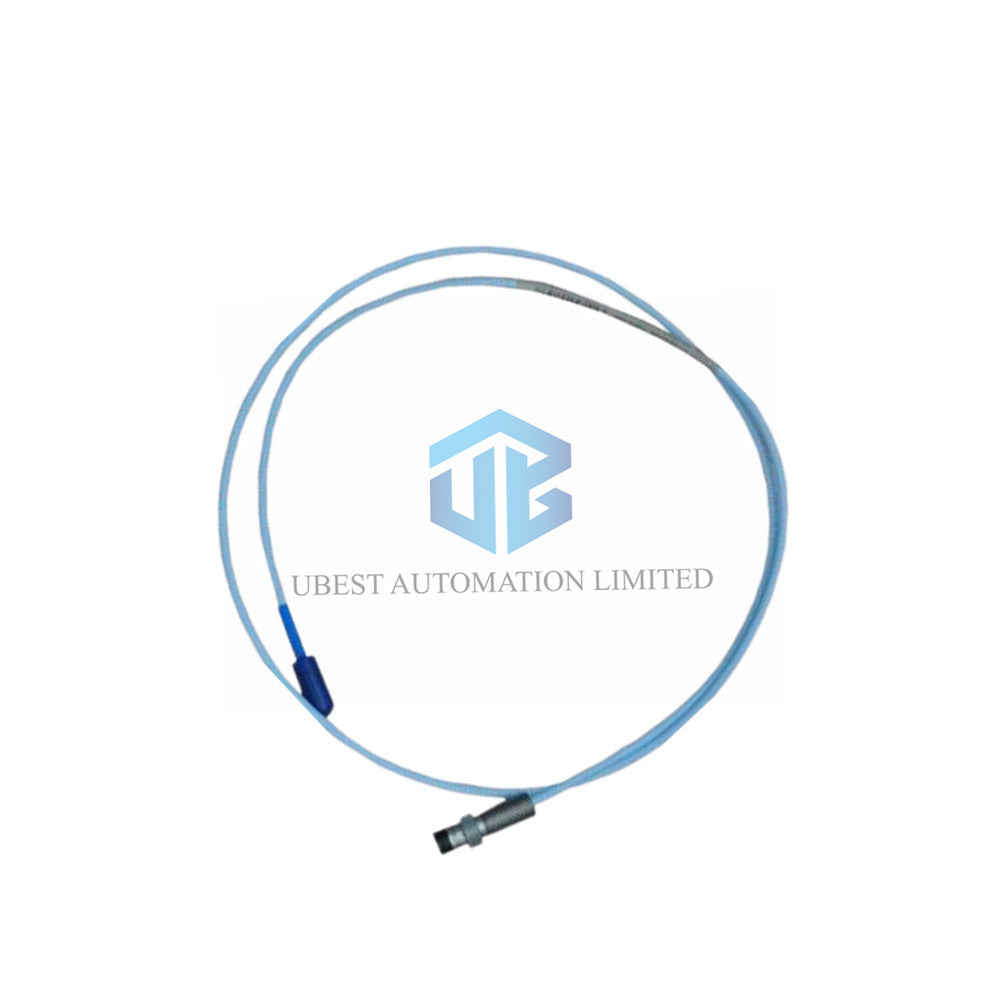

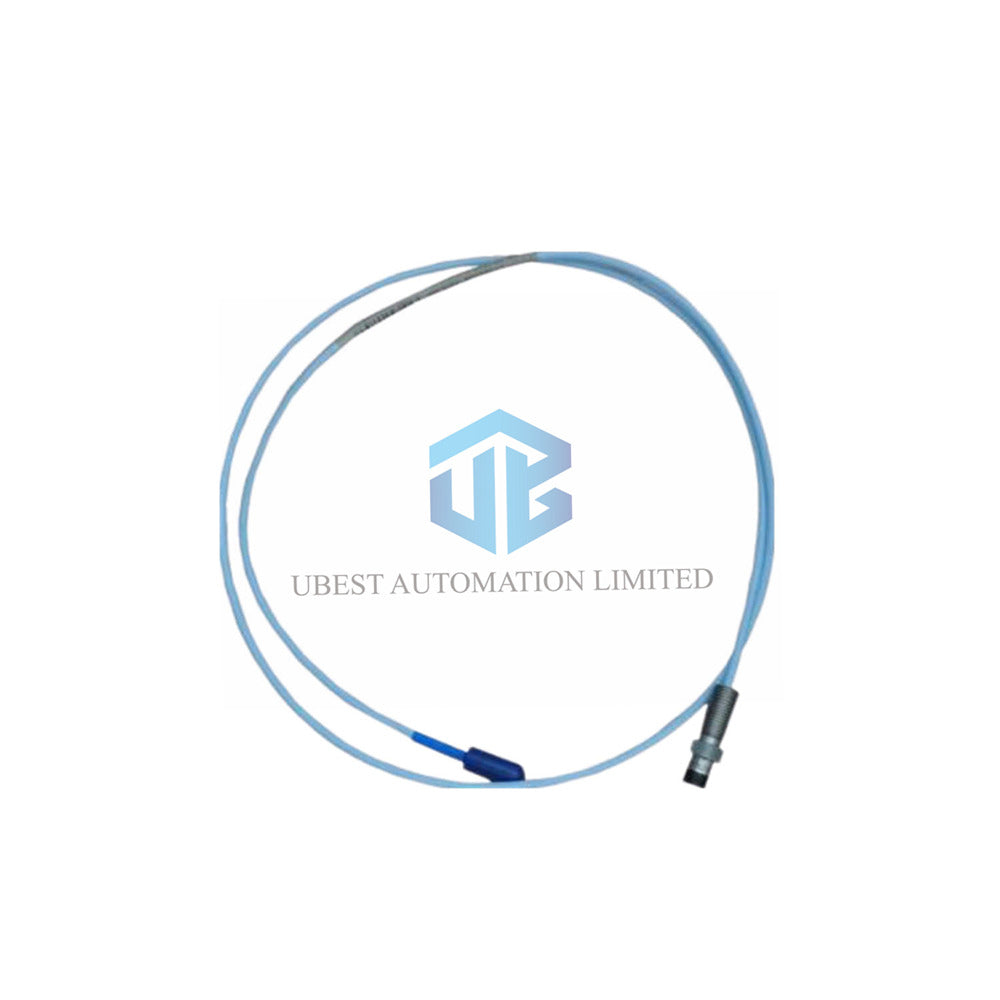

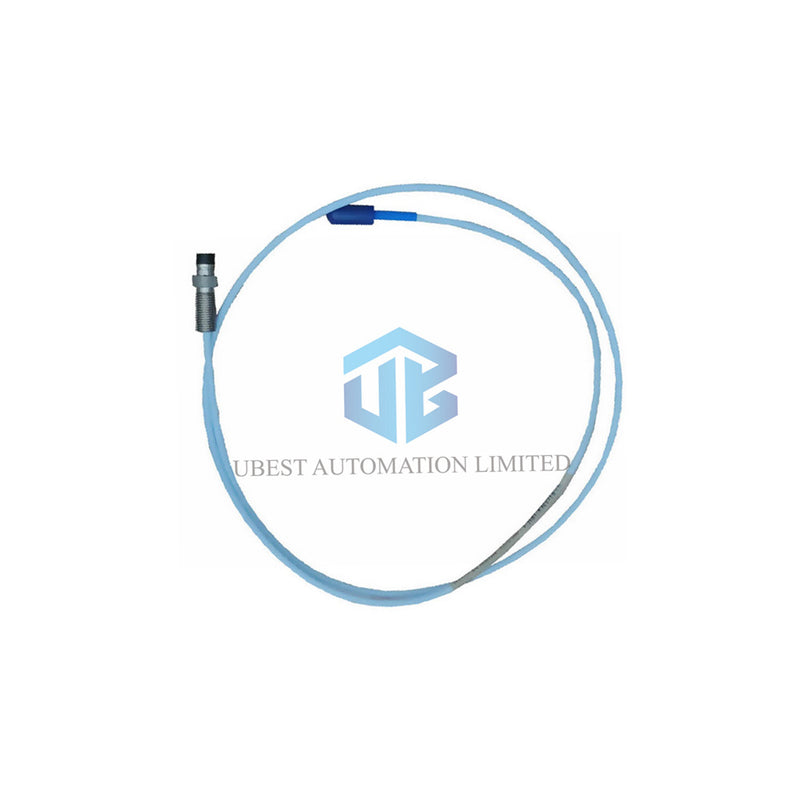

Bently Nevada 5mm Probe with Extended Case and Cable

Complete Product Suffix Information

The configuration of this specific 3300 5mm Proximity Probes is detailed below:

• Model: 330171-00-16-90-01-05
• Base Type: 330171 (5mm Diameter Probe)
• Unthreaded Length (00): 0 inch
• Overall Case Length (16): 1.6 inches
• Total Cable Length (90): 9.0 metres / 29.5 feet
• Connector (01): Miniature Coaxial ClickLoc with Protector
• Agency Approval (05): Multiple International Approvals

Detailed Technical Specifications

• Brand & Model: Bently Nevada 330171-00-16-90-01-05
• Sensing Tip: Polyphenylene sulfide (PPS) Material
• Case Construction: AISI 304 Stainless Steel
• Mounting Thread: 1/4-28 UNF (Max Engagement: 0.375 in)
• Power Supply: -17.5 VDC to -26 VDC, 12 mA max current
• System Output Impedance: 50 Ω
• Probe DC Resistance (9m): 9.87 Ω ± 0.90
• Cable Specification: 75 Ω Triaxial, FEP Insulation, 9.0m length
• Operating Temp Range: -35°C to +177°C (-31°F to +351°F)
• Recommended Installation Torque: 5.1 N·m (45 in·lb)

Frequently Asked Questions (FAQ)

• What is the advantage of the 1.6-inch case? It provides more physical length for mounting in deeper or recessed holes.
• Is the 9-meter cable standard? Yes, this model comes with a factory-integrated 9.0m (29.5ft) cable.
• What does the connector protector do? It shields the electrical contacts from dust, moisture, and physical impact.
• Can I use this in cold environments? Yes, but avoid sustained temperatures below -34°C to protect the internal seal.
