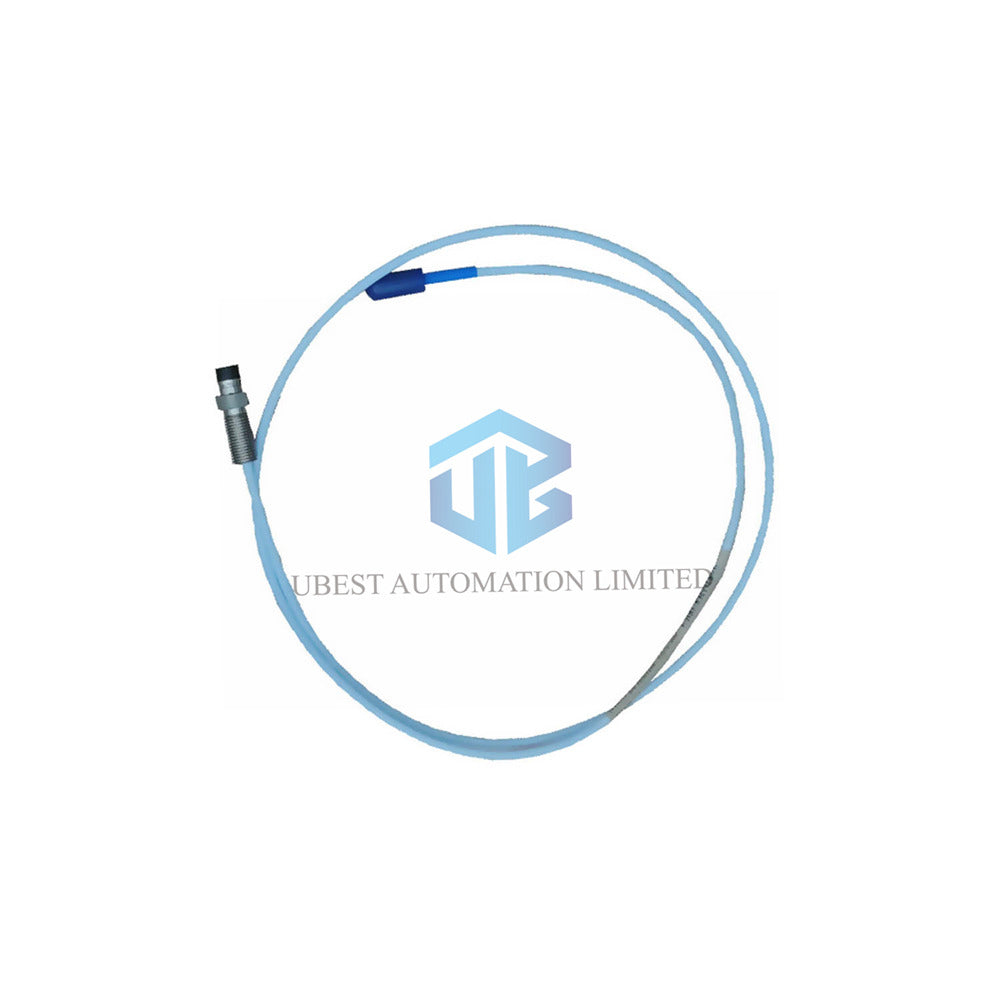

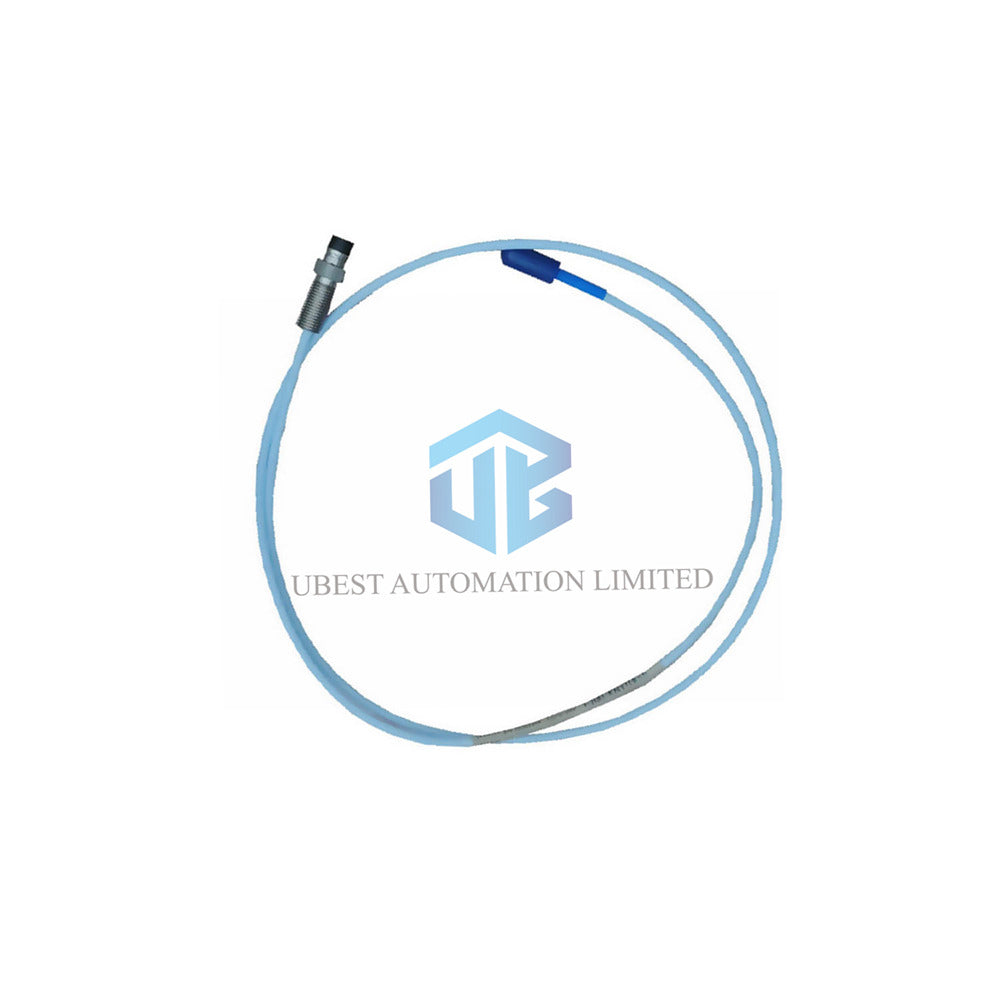

Bently Nevada 3300 5mm Proximity Probe with Extended Case Length

Complete Product Configuration

• Manufacturer & Series: Bently Nevada 3300 XL
• Full Product Number: 330171-00-20-05-02-00
  • Base Product: 330171 (5mm Probe without Armor)
  • Unthreaded Length: 00 (0.0 inch)
  • Case Length: 20 (2.0 inch)
  • Cable Length: 05 (0.5 meter / 1.6 feet)
  • Connector: 02 (Miniature Coaxial ClickLoc)
  • Agency Approval: 00 (Standard Configuration)

Technical Specifications

• Power Requirements: Operates on -17.5 to -26 VDC with 12 mA maximum current draw.
• Output Characteristics: 50 Ω output resistance ensures stable signal transmission.
• Cable Resistance: 7.45 Ω ± 0.50 measured at the 0.5-meter cable length.
• Temperature Range: Rated for operation from -35°C to +177°C (-31°F to +351°F).
• Construction Materials: PPS probe tip with AISI 304 stainless steel case.
• Cable Specification: 75 Ω triaxial cable with FEP insulation provides excellent durability.
• Mechanical Strength: Withstands 222 N (50 lbf) tensile force on all critical joints.

Installation Parameters

• Mounting Thread: Standard 1/4-28 UNF thread for consistent installation.
• Thread Engagement Limit: Maximum engagement of 0.375 inch (9.5 mm).
• Installation Torque: Apply 5.1 N·m (45 in·lb) to the probe case during mounting.
• Hole Preparation: Use #3 or larger tap drill for mounting hole preparation.
• Cable Management: Maintain minimum 25.4 mm (1.0 inch) bend radius.

Frequently Asked Questions

• What makes the 330171-00-20-05-02-00 unique?
  This model features a longer 2.0-inch case length for specific mounting applications.
• What is the operating temperature range?
  The Bently Nevada 330171-00-20-05-02-00 operates from -35°C to +177°C.
• Does this probe have agency approvals?
  This specific configuration (00 suffix) comes without additional agency approvals.
