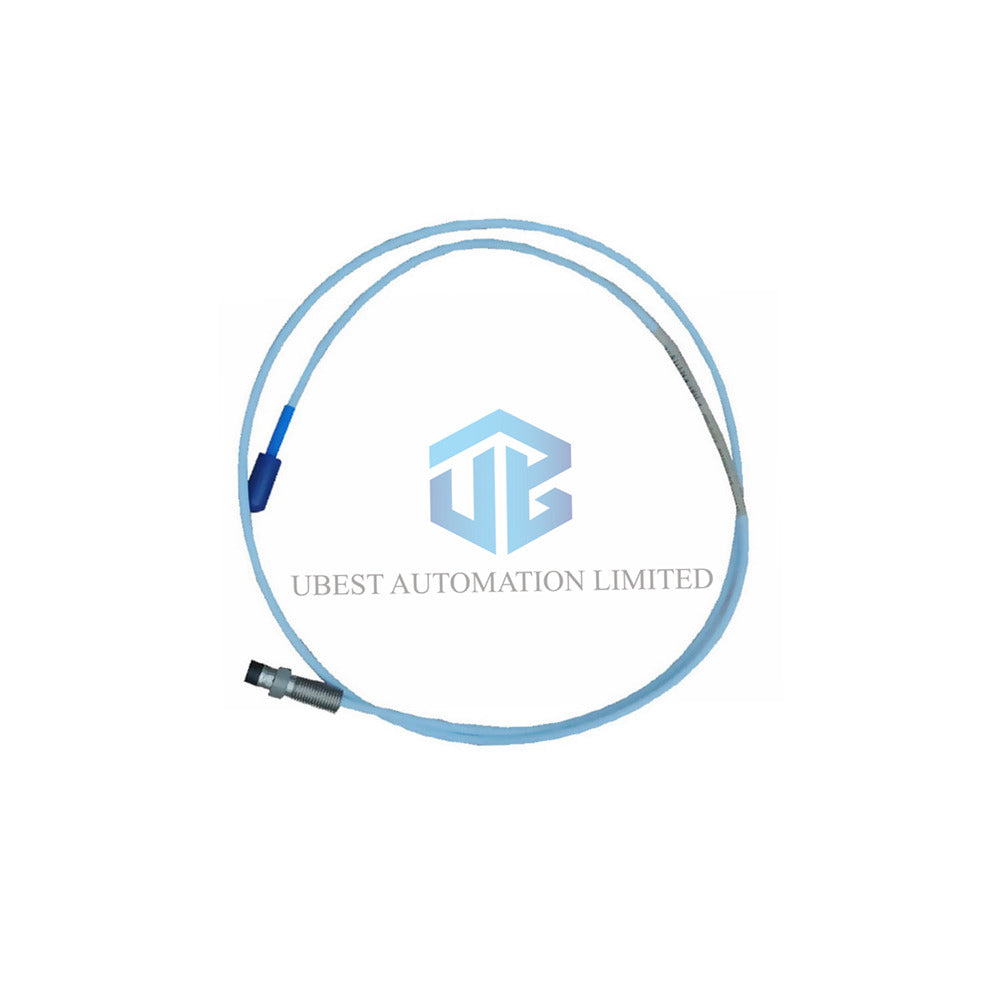

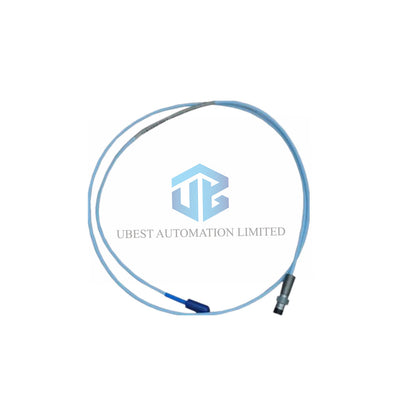

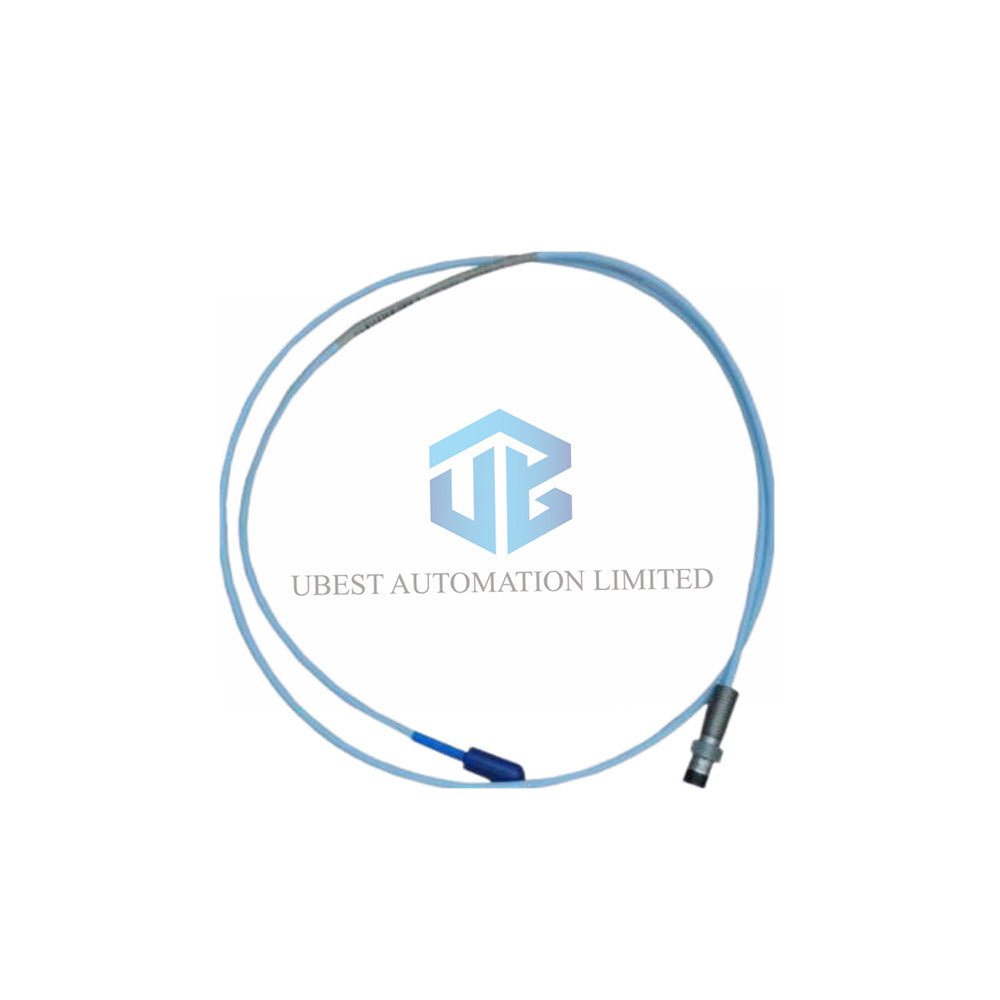

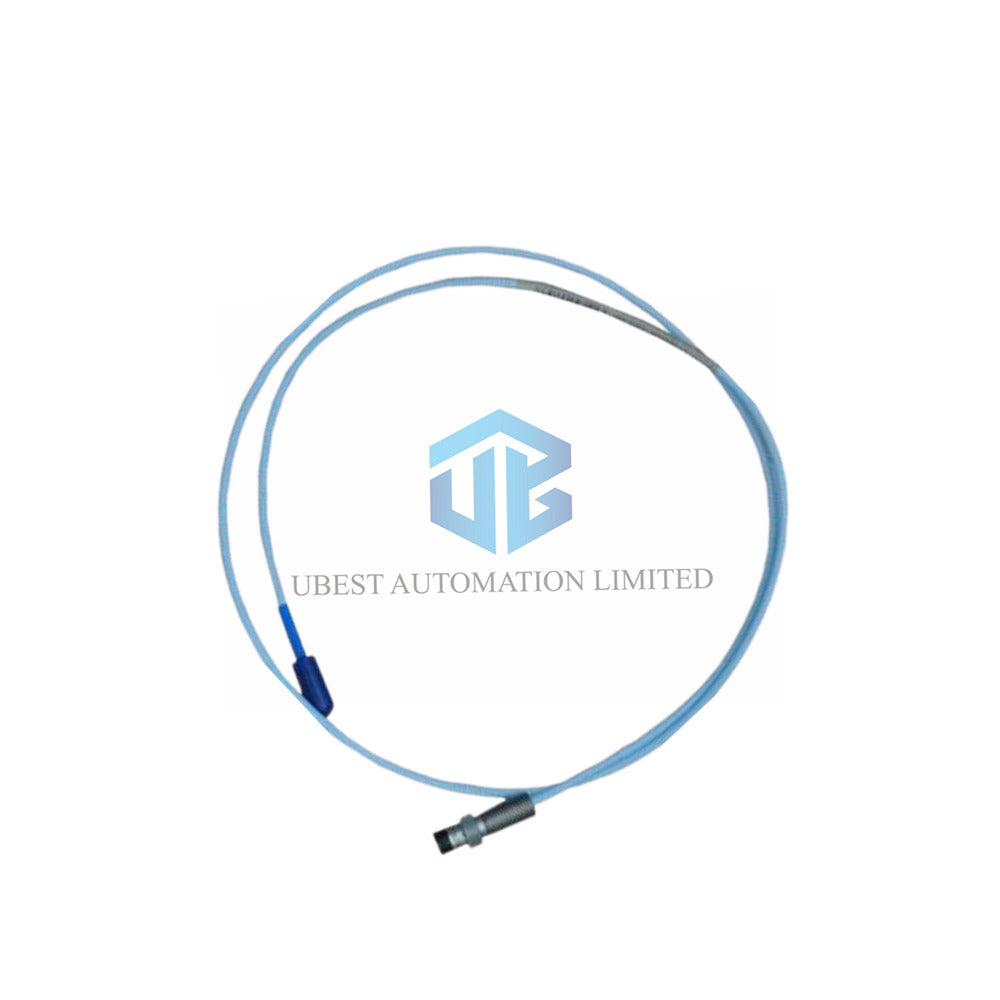

Bently Nevada 330171-08-24-10-02-00 Long-Case Proximity Probe
Complete Product Model & Suffix Information
Brand: Bently Nevada
Base Model: 330171 (3300 Series 5mm Probe)
Full Part Number: 330171-08-24-10-02-00
08: Unthreaded Length = 0.8 inch
24: Overall Case Length = 2.4 inches
10: Total Cable Length = 1.0 meter (3.3 feet)
02: Connector = Miniature Coaxial ClickLoc
00: Agency Approval = Standard Option
Key Technical Specifications & Performance
Measurement Principle: Eddy current displacement sensing.
Target Material: AISI 4140 steel (standard calibration).
Recommended Gap: 1.27 mm (50 mils) for rated output.
Power Supply: -17.5 to -26 VDC; 12 mA max consumption.
Output Impedance: 50 Ohms for stable signal transmission.
Supply Sensitivity: Less than 2 mV change per volt input variation.
Probe Cable: 75-ohm triaxial with FEP insulation.
Probe DC Resistance: 7.59 Ω ± 0.50 (center to outer conductor).
Robust Construction & Material Details
Probe Tip Material: Polyphenylene Sulfide (PPS) for durability.
Probe Case Material: AISI 304 stainless steel for corrosion resistance.
Case Thread: Standard 1/4-28 UNF for secure installation.
Connector Material: Gold-plated brass or beryllium copper.
Tensile Strength: 222 N (50 lbf) at case and cable connections.
Environmental Tolerance & Ratings
Operating Temperature: -35°C to +177°C (-31°F to +351°F).
Max Thread Engagement: 0.375 inch to prevent casing stress.
Min Cable Bend Radius: 25.4 mm (1.0 inch) for cable protection.
Magnetic Field Immunity: Excellent immunity to 60 Hz fields up to 300 Gauss.
Mechanical Installation Guidelines
Use a #3 or larger tap drill for 1/4-28 mounting hole preparation.
Apply recommended torque of 5.1 N·m (45 in·lb) to the probe case.
Do not exceed maximum case torque of 7.3 N·m (65 in·lb).
Keep connector torque below 0.565 N·m (0.42 ft•lbf) maximum.
Packaging & Shipping
Each 330171-08-24-10-02-00 probe ships in secure protective packaging.
We ship worldwide via reliable carriers including FedEx, UPS, and DHL.
The package includes the long-case 5mm proximity probe ready for use.
