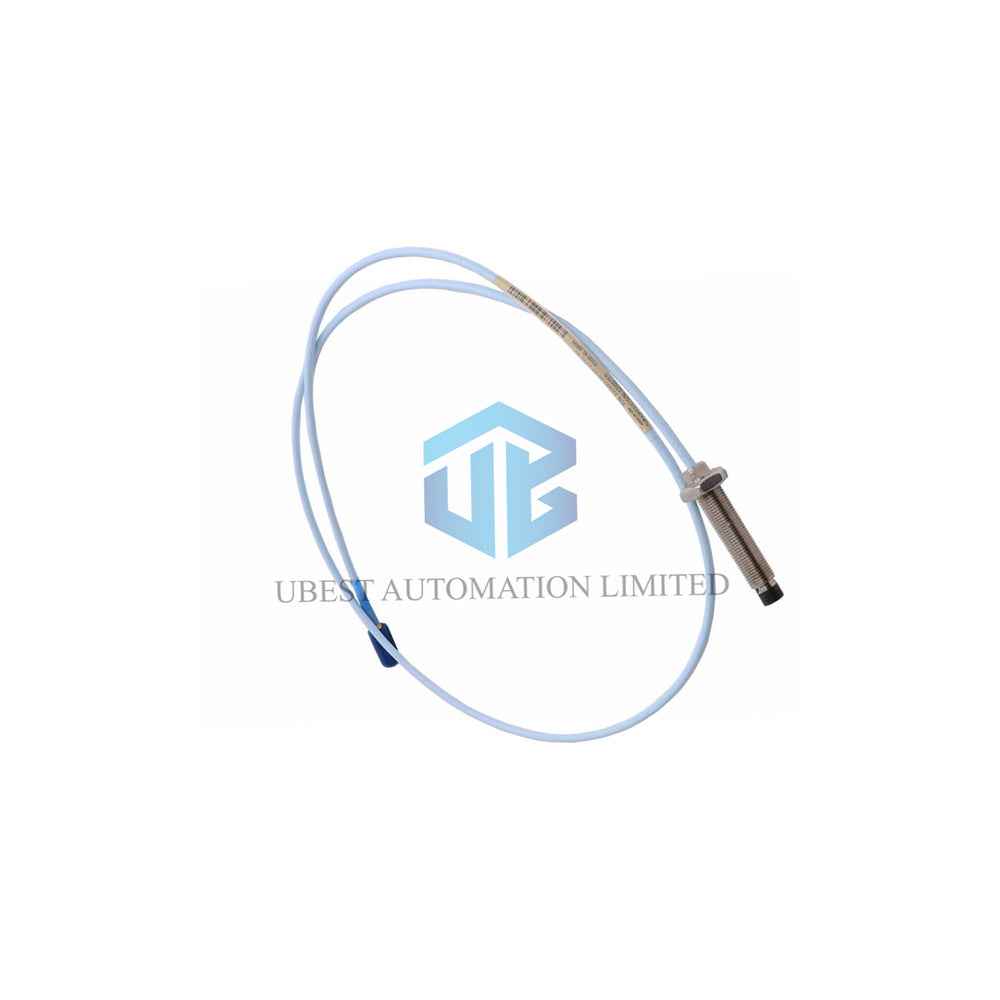

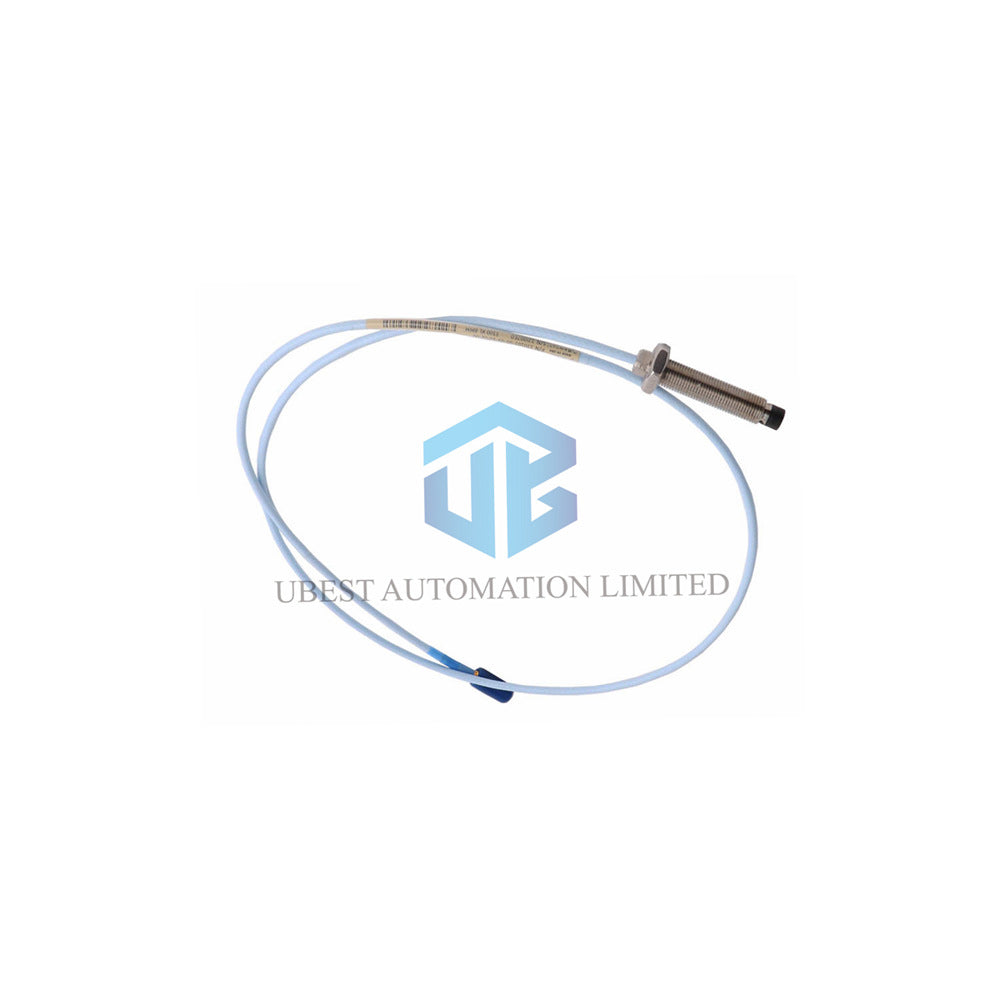

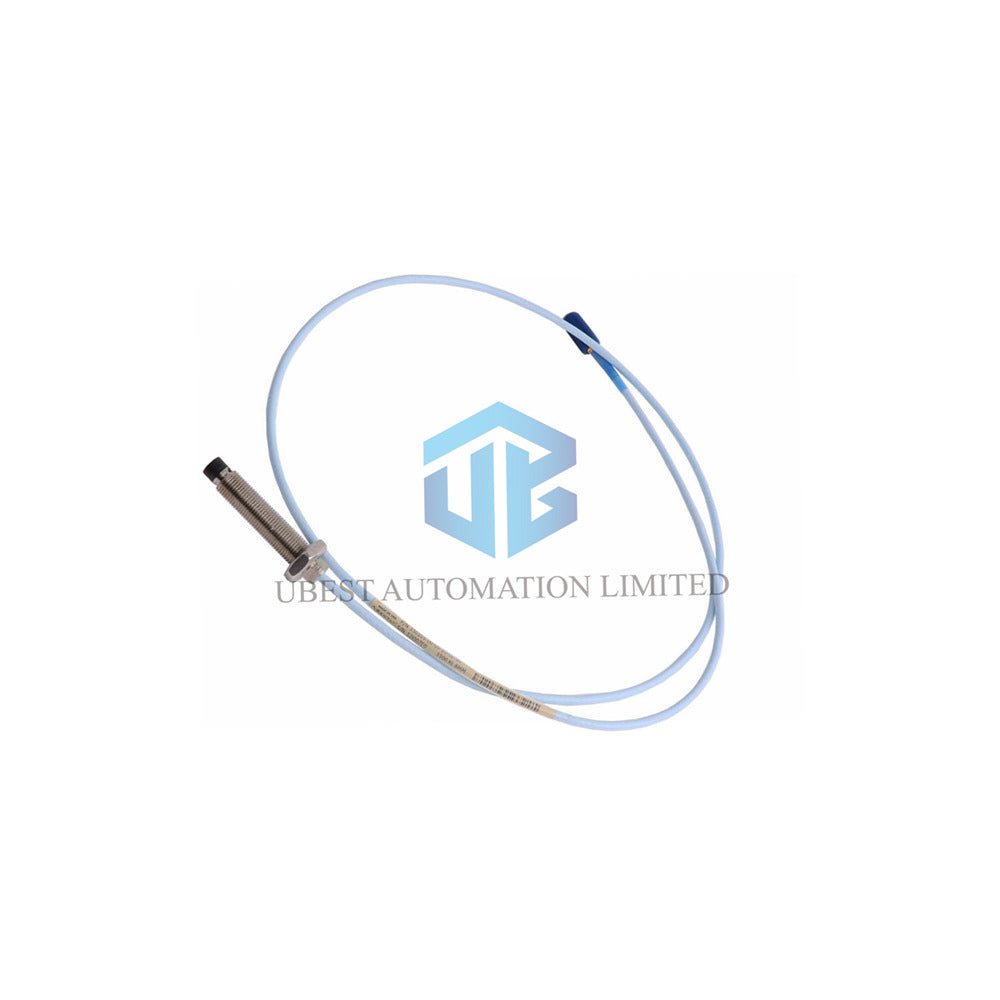

Bently Nevada 3300 5mm Proximity Probe: Precision Vibration and Position Measurement
Complete Product Model & Suffix Information
Brand: Bently Nevada
Base Product Type: 3300 5mm Proximity Transducer
Full Part Number: 330173-00-05-10-02-00
330173: 5mm Probe, M8x1 thread, without armor
-00: Unthreaded Length = 0 mm
-05: Overall Case Length = 50 mm
-10: Total Cable Length = 1.0 metre (3.3 feet)
-02: Connector = Miniature coaxial ClickLoc™
-00: Agency Approval = Not required
Core Technical Specifications & Performance
Electrical Power: Requires -17.5 to -26 Vdc, with 12 mA maximum current.
Output Impedance: 50 Ω nominal for proper signal transmission.
Probe DC Resistance: 7.59 Ω ± 0.50 (center to outer conductor for 1.0m cable).
Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
Probe Case Material: AISI 304 stainless steel construction.
Temperature Range: Operates from -35°C to +177°C (-31°F to +351°F).
Magnetic Field Immunity: Minimal output shift in fields up to 300 Gauss.
Physical Construction & Installation Guide
Probe Thread: M8 x 1.0 metric thread for secure mounting.
Maximum Thread Engagement: Do not exceed 12 mm engagement depth.
Recommended Case Torque: Tighten to 5.1 N·m (45 in·lb).
Maximum Case Torque: Never exceed 7.3 N·m (65 in·lb).
Cable Type: 75 Ω triaxial with FEP insulation.
Minimum Bend Radius: Maintain a 25.4 mm (1.0 in) cable bend radius.
Tensile Strength: Withstands 222 N (50 lbf) pull on case and connector.
Frequently Asked Questions (FAQ)
What is the target material for calibration? Specifications use an AISI 4140 steel target.
What is the standard gap setting for specifications? Data is based on a 1.27 mm (50 mil) gap.
What connector does this model use? It uses the Miniature Coaxial ClickLoc™ connector.
Can this probe work in hazardous areas? The "-00" suffix means it has no agency approvals for hazardous locations.
