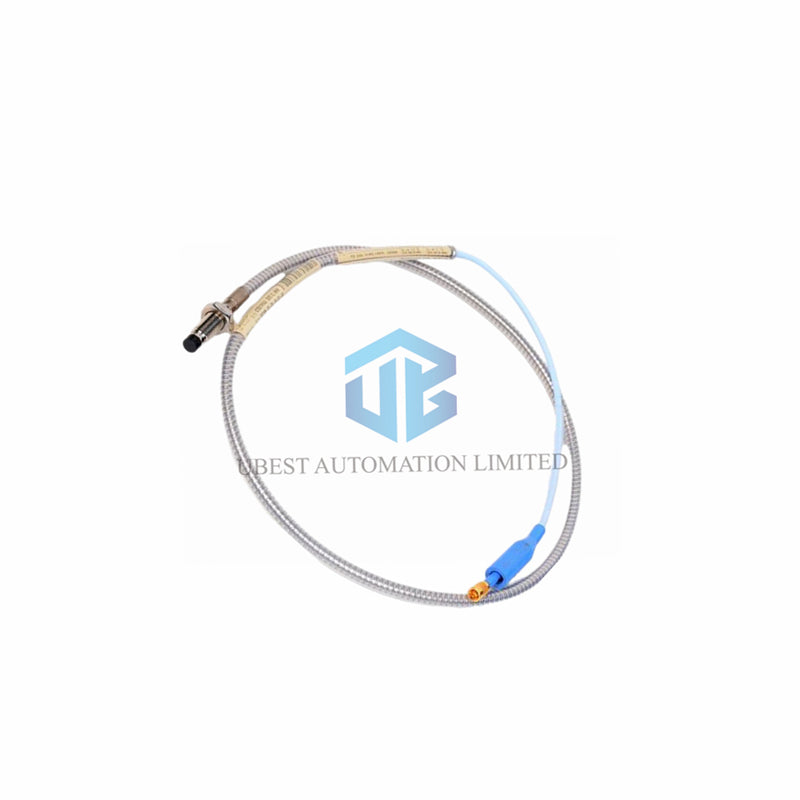

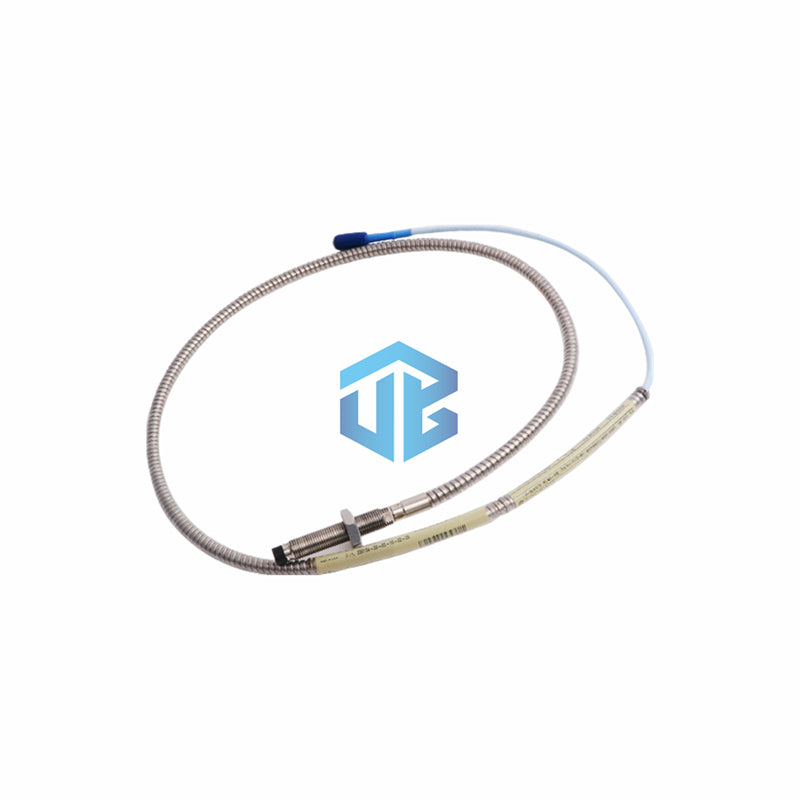

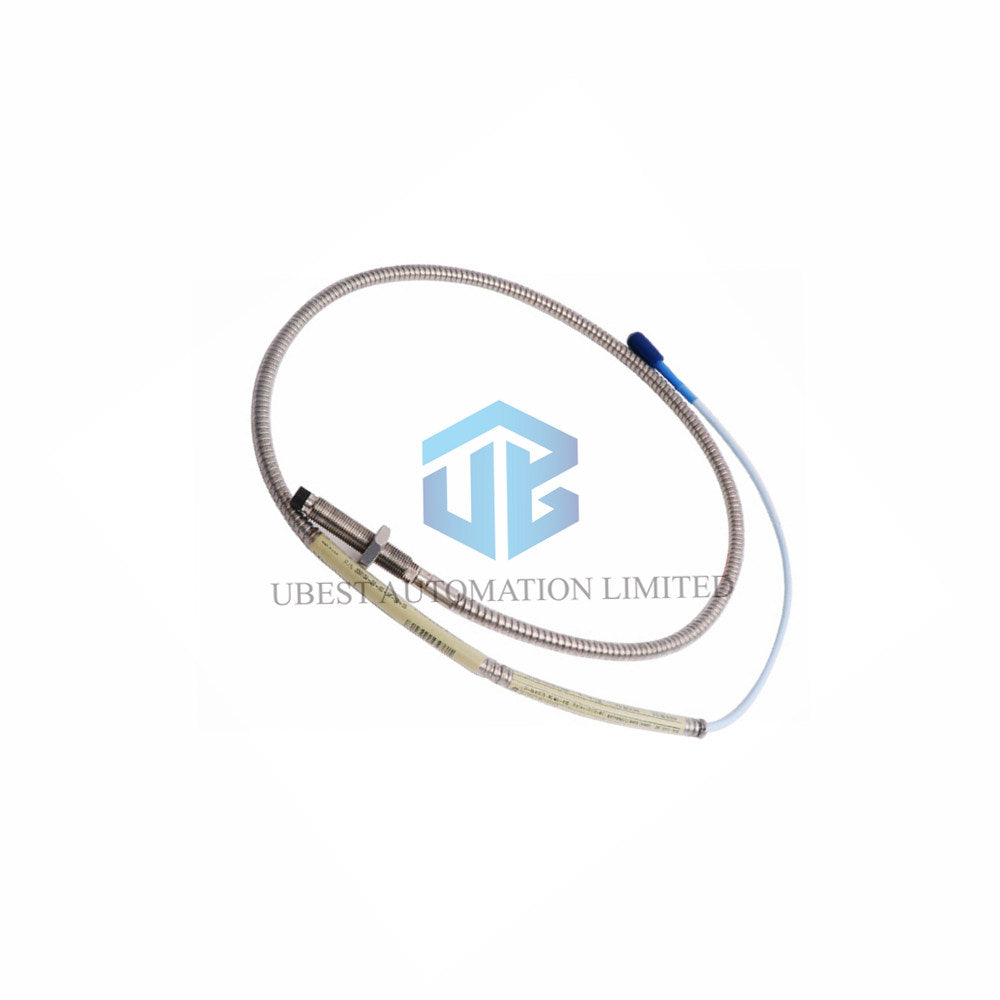

Bently Nevada 330174-00-05-10-12-00: Armored 5mm Probe with FluidLoc Cable
Product Model & Configuration Breakdown
Brand: Bently Nevada
Product Series: 3300 5mm Proximity Transducer
Complete Part Number: 330174-00-05-10-12-00
330174: 5mm Probe, M8x1 thread, with armor
-00: Unthreaded Length = 0 mm
-05: Overall Case Length = 50 mm
-10: Total Cable Length = 1.0 metre (3.3 feet)
-12: Connector = Miniature coaxial ClickLoc™, FluidLoc cable
-00: Agency Approval = Not required
Electrical & Environmental Specifications
Power Requirement: -17.5 Vdc to -26 Vdc, 12 mA maximum current draw.
Output Resistance: 50 Ω for compatibility with monitoring systems.
Probe DC Resistance (1.0m): 7.59 Ω ± 0.50, measured center to outer conductor.
Tip Material: Polyphenylene sulfide (PPS) for chemical and wear resistance.
Case Material: AISI 304 stainless steel with protective armor.
Operating Temperature: Stable performance from -35°C to +177°C.
Magnetic Field Resistance: Low sensitivity to 60 Hz fields up to 300 Gauss.
Mechanical Details & Installation Guide
Thread Size: Standard M8 x 1.0 metric mounting thread.
Maximum Engagement: Install with no more than 12 mm thread depth.
Recommended Torque: Apply 5.1 N·m (45 in·lb) to the probe case.
Torque Limit: Do not exceed 7.3 N·m (65 in·lb) during installation.
Cable Specification: 75 Ω triaxial with FEP insulation, FluidLoc design.
Cable Bend Radius: Maintain a minimum of 25.4 mm (1.0 inch).
Tensile Rating: Withstands 222 N (50 lbf) on both case and cable connections.
Frequently Asked Questions
What is FluidLoc cable? It is a sealed cable variant designed for wet or oily environments.
How does this model differ from standard versions? The Bently Nevada 330174-00-05-10-12-00 combines armor with FluidLoc cable.
What is the calibration target? Specifications are based on an AISI 4140 steel target.
What is the default test gap? Performance data uses a 1.27 mm (50 mil) gap setting.
Can I use this in hazardous locations? The "-00" option indicates it lacks hazardous area certifications.
Where can I find similar 5mm probes? Explore our full selection of 5mm Proximity Probes online.
