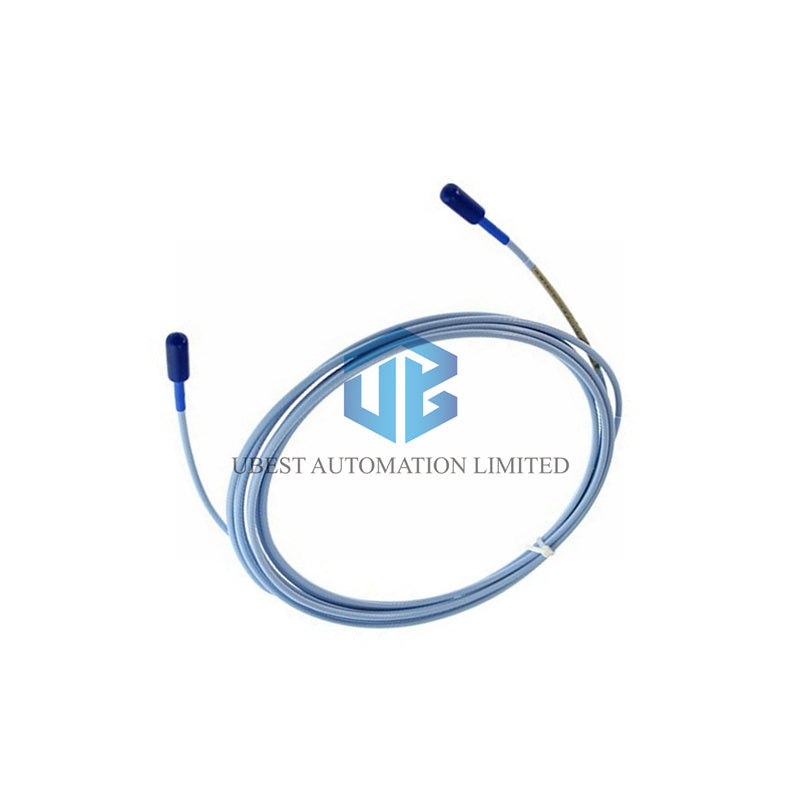

Bently Nevada 330191 Maximum Reach Proximity Probe

New original Bently Nevada 330191-00-16-90-CN 8mm ETR probe. Compact 1.6 inch case with maximum 9.0 meter cable. Longest available cable option. Country approvals included. Download the official datasheet here

Part Number Configuration

• 330191 Series - 3300 XL 8mm ETR Probe Platform
• 00 Design - No Unthreaded Section
• 16 Profile - Ultra-Compact 1.6 Inch Case
• 90 Length - Maximum 9.0 Meter Cable (29.5 Feet)
• CN Approval - Country Specific Certifications

Technical Specifications

• Brand: Bently Nevada
• Complete Part: 330191-00-16-90-CN
• Probe Type: 8mm ETR Vibration Sensor
• Thread Standard: 3/8-24 UNF
• Case Size: 1.6 Inch Compact
• Cable Length: 9.0 Meters (29.5 Feet)
• Power Requirements: -17.5 to -26 VDC
• Current Maximum: 12 mA
• Output Impedance: 50 Ω
• Probe Resistance: 9.87 ± 0.50 Ω
• Tip Material: Molded PPS Plastic
• Body Construction: 303/304 Stainless Steel
• Cable Type: 75Ω Triaxial FEP
• Cable Strength: 330 N Pull Resistance
• Torque Maximum: 0.565 N•m
• Thread Engagement: 0.563 Inch Maximum
• Weight Characteristic: 323 g/m
• Seal System: Viton O-ring
• Contact Quality: Gold-Plated Brass
• Voltage Stability: <2 mV/V Change
• Maximum Cable Length: 9.0 Meters
• Insulation Rating: >100 MΩ at 500 VDC
• Capacitance: <100 pF/m
• Signal Attenuation: <3 dB at 10 kHz

Temperature Performance Classes

• T1 Performance: -55°C to +232°C Full Range
• T2 Performance: -55°C to +177°C Extended
• T3 Performance: -55°C to +120°C Standard
• T4 Performance: -55°C to +80°C Moderate
• T5 Performance: -55°C to +40°C Basic

Premium Engineering Features

• TipLoc advanced molding technology
• CableLoc high-retention cable system
• Optional FluidLoc leak prevention
• Ultra-compact 1.6 inch housing
• Maximum 9.0 meter cable length
• Industrial-grade stainless steel
• Gold-plated connector reliability
• Extended temperature capability
• Superior signal integrity

Package Contents

• 3300 XL 8mm ETR proximity probe
• 9.0 meter triaxial FEP cable
• Complete installation documentation
• Country approval certificates
• Factory quality assurance papers

Warranty Protection

We provide complete 12-month product guarantee. All units are factory tested. Full technical support available.

Shipping Services

Fast global delivery via FedEx, UPS, DHL. Orders processed within 24 hours. Complete tracking provided.

Installation Guide

Apply maximum 0.565 N•m connector torque. Follow thread engagement specifications. Ensure proper cable routing for long lengths.

Application Information

Ideal for maximum distance applications. Perfect for remote monitoring systems. Excellent for large machinery installations.

Frequently Asked Questions

What is the maximum cable length available?

This version features maximum 9.0 meter cable.

What is the probe resistance for 9.0 meter cable?

Resistance measures 9.87 ± 0.50 Ω at 9.0 meters.

Is signal quality maintained over long distances?

Yes, with <3 dB signal attenuation at 10 kHz.

What temperature range does this probe handle?

Operates from -55°C to +232°C full range.

Is the housing suitable for tight spaces?

Yes, ultra-compact 1.6 inch case design.
