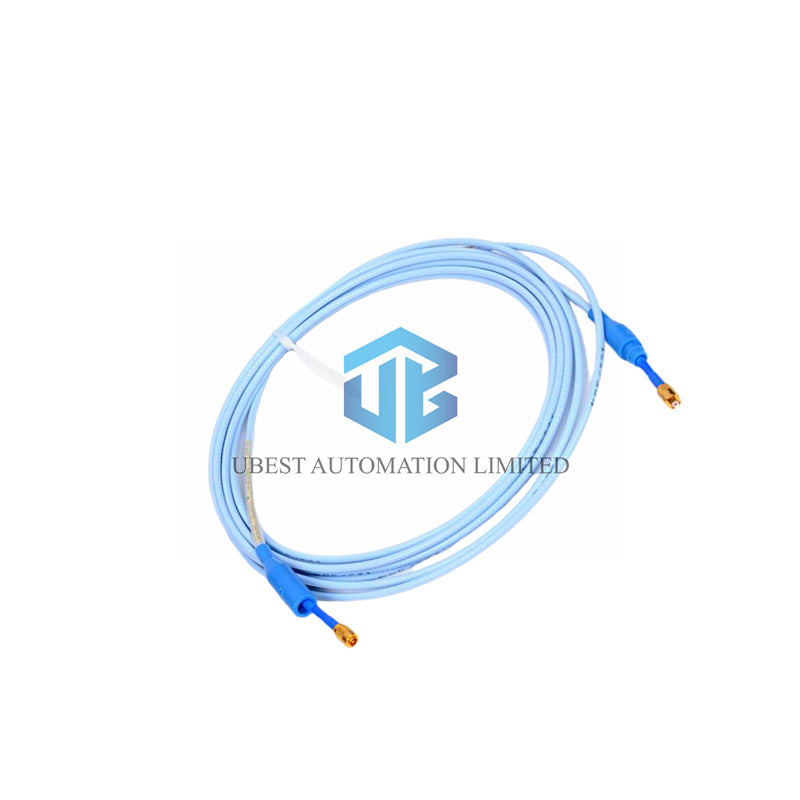

Bently Nevada 5-Meter Industrial Vibration Monitoring Solution

The Bently Nevada 330191-00-40-50-CN represents the pinnacle of long-reach vibration monitoring technology. This specialized 5-meter proximity probe delivers exceptional performance for industrial applications requiring extended cable runs. As part of the renowned 3300 XL series, it maintains Bently Nevada's legacy of precision and durability.

Technical Configuration Breakdown

• Series Foundation: 330191 identifies the 3300 XL 8mm ETR Probe platform
• Mounting Style: 00 indicates fully threaded 3/8-24 UNF connection
• Physical Dimensions: 40 specifies 4.0-inch stainless steel housing
• Reach Capability: 50 defines extended 5.0-meter integrated cable
• Certification Status: CN confirms country-specific compliance approval

Extended Length Advantages

• Specifically engineered for compatibility with 5-meter Proximitor sensor systems
• Eliminates need for separate extension cables in long-distance applications
• Maintains signal integrity across the full 5-meter cable length
• Provides installation flexibility for complex machinery layouts
• Reduces connection points that could compromise system reliability

Core Performance Metrics

• Brand Identity: Bently Nevada
• Complete Model: 330191-00-40-50-CN
• Power Requirements: -17.5 Vdc to -26 Vdc operating range
• Electrical Consumption: Maximum 12 mA current draw
• Voltage Stability: Less than 2 mV change per volt input variation
• Signal Output: 50 Ω impedance for clean data transmission
• Cable Resistance: 8.73 Ω ± 0.50 Ω at 5-meter length
• Environmental Range: -55°C to +232°C operational capability

Robust Engineering Construction

• Probe tip utilizes industrial-grade Polyphenylene sulfide (PPS) material
• Heavy-duty AISI 303/304 stainless steel case resists corrosion and impact
• 75Ω triaxial cable with FEP insulation ensures signal accuracy
• Gold-plated connectors prevent oxidation and maintain electrical integrity
• Viton O-ring creates reliable seal against environmental contaminants

Advanced Protection Systems

• TipLoc molding technology creates permanent probe tip integration
• CableLoc design guarantees 330N cable retention under stress
• Optional FluidLock cable available for severe fluid environments
• 8mm diameter provides superior coil protection and impact resistance
• Full-length cable integration eliminates intermediate connection failures

Installation & Integration

• Maintain supply voltage above -23.5 Vdc for optimal measurement linearity
• Apply precise 0.565 N•m torque during connector mating procedures
• Ensure complete 0.563-inch thread engagement for secure mounting
• Follow installation drawing 140979 for nonincendive circuit requirements
• Use exclusively with compatible 5-meter Bently Nevada Proximitor systems

Shipping & Package Information

• Factory-new 330191-00-40-50-CN proximity probe unit
• Complete manufacturer technical documentation and guides
• Secure protective packaging preventing transit damage
• Global express shipping via FedEx, UPS, and DHL networks
• Immediate dispatch from available inventory stock

Frequently Asked Questions

What makes this 5-meter probe unique?

This model features integrated 5-meter cable specifically designed for 5-meter Proximitor sensors.

Can I use this probe with shorter cable systems?

No, this specialized probe works exclusively with 5-meter Proximitor sensor configurations.

What is the electrical resistance for the 5-meter version?

The 5-meter probe has a nominal DC resistance of 8.73 Ω ± 0.50 Ω.

Does the extended length affect performance?

No, the probe maintains full performance specifications across the entire 5-meter length.

What temperature range can this probe withstand?

It operates reliably across an extensive temperature range from -55°C to +232°C.
