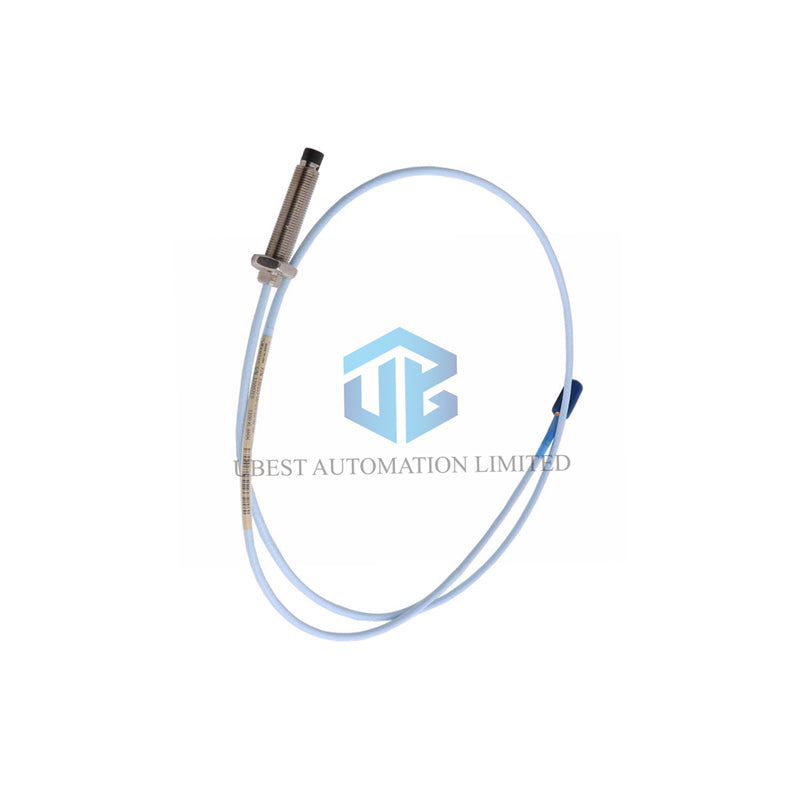

Bently Nevada Certified Fluid-Resistant Vibration Probe

This is the 330707-00-10-10-12-05 from Bently Nevada. It is a compact, certified sensor with a FluidLoc cable. Its short 1-inch case and 1-meter cable make it ideal for tight, oily, or wet industrial environments requiring approved equipment.

Complete Technical Overview

• Brand: Bently Nevada
• Model Identification: 330707-00-10-10-12-05
• Product Range: 3300 XL Series, 11mm Probe
• Mounting Spec: 5/8-18 UNF Thread
• Form Factor: Space-Saving 1.0 Inch Case
• Cable Details: 1.0 Meter FluidLoc (Oil-Resistant)
• Connector: Miniature Coaxial ClickLoc
• Electrical Characteristic: 75 Ω, 5.9 ± 0.5 Ω DC
• Environmental Limits: -51°C to +177°C
• Installation Torque (Optimal): 15.2 N•m
• Torque Ceiling: 45.2 N•m
• Cable Care: Minimum Bend 25.4 mm (1 in)
• Internal Protection: Viton O-ring Seal
• Unit Mass: 0.17 kg

Part Number Breakdown

• Root Code 330707
  • -00 ▶ Unthreaded portion: 0.0 inches.
  • -10 ▶ Probe case length: 1.0 inch.
  • -10 ▶ Total cable length: 1.0 meter.
  • -12 ▶ Connection: ClickLoc connector with FluidLoc cable.
  • -05 ▶ Approvals: Holds multiple international safety certifications.

Proper Mounting & Handling

• Apply 15.2 N•m of torque to secure the probe.
• Connect the ClickLoc connector by hand only.
• Maintain a gentle cable bend radius over 1 inch.
• Install in ambient conditions above -34°C (-29°F).
• Do not exceed a thread engagement depth of 0.938 inches.

Customer Assurance & Logistics

• All products are backed by a 12-month quality guarantee.
• Worldwide delivery via FedEx, UPS, and DHL couriers.
• Your shipment includes one 330707-00-10-10-12-05 probe.

Specialist FAQs

What does the "12" suffix indicate for the cable?

Option "12" specifies a ClickLoc connector paired with a FluidLoc cable, but without the separate connector protector. It's for environments where fluid resistance is key.

Why choose this model over a standard "01" version?

Choose the 330707-00-10-10-12-05 if your application involves oils/coolants AND requires certified equipment for regulated areas. It offers both fluid resistance and approvals.

What specific "Multiple Approvals" does the "-05" include?

Typically, this includes certifications like ATEX and IECEx for use in explosive atmospheres. It confirms the probe meets strict international safety standards.

Is the FluidLoc cable also chemical resistant?

Yes, the FluidLoc jacket provides strong resistance to a wide range of industrial oils, coolants, and many chemicals, protecting the internal wiring.

Can the probe tip material (PPS) handle abrasive environments?

Polyphenylene sulfide (PPS) is a robust engineering plastic with good chemical and wear resistance. It is suitable for most industrial applications, but not for highly abrasive media contacting the tip directly.
