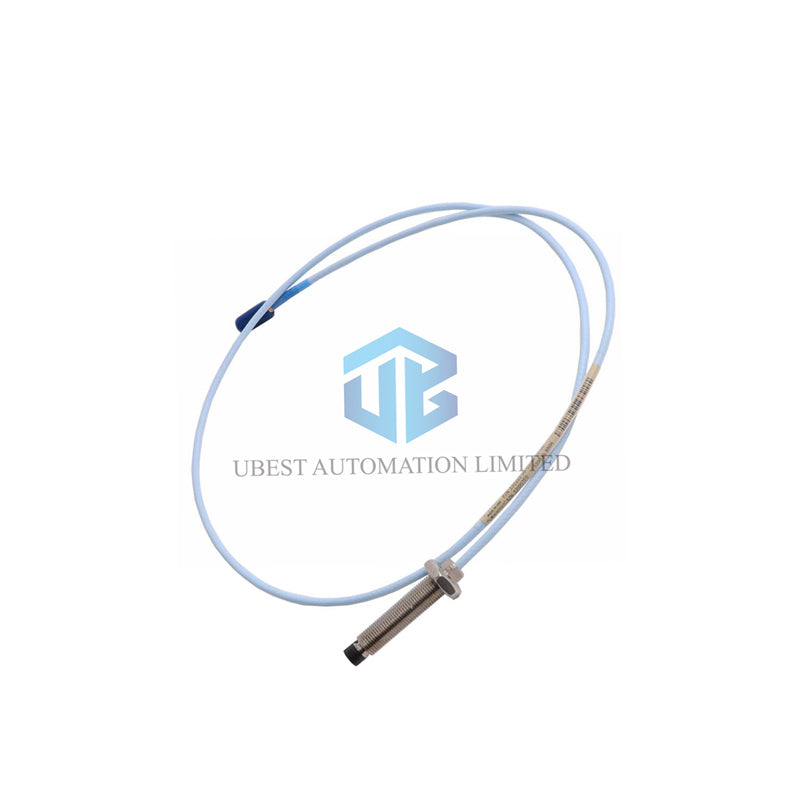

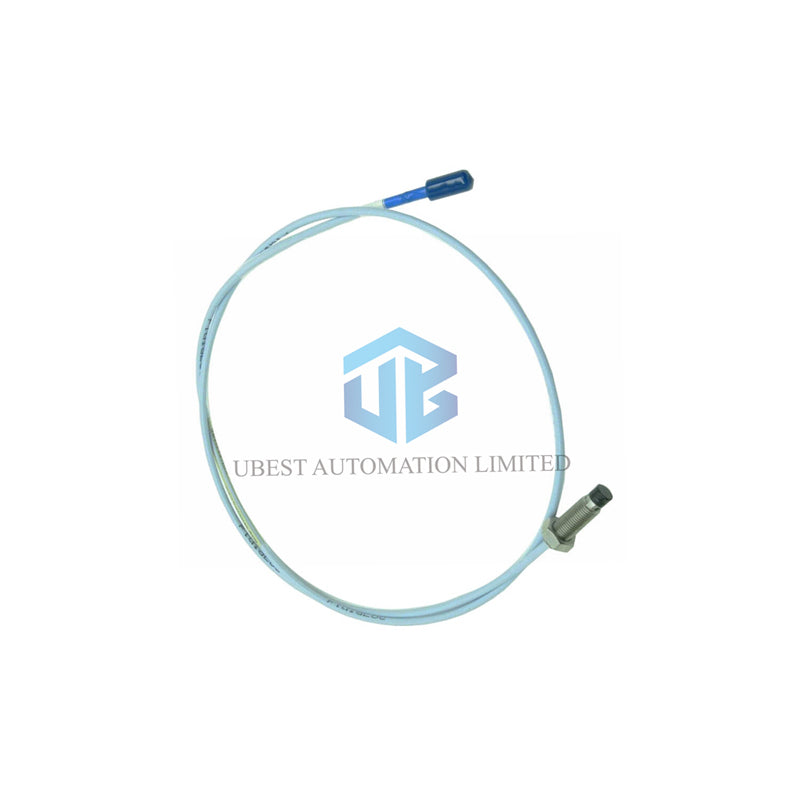

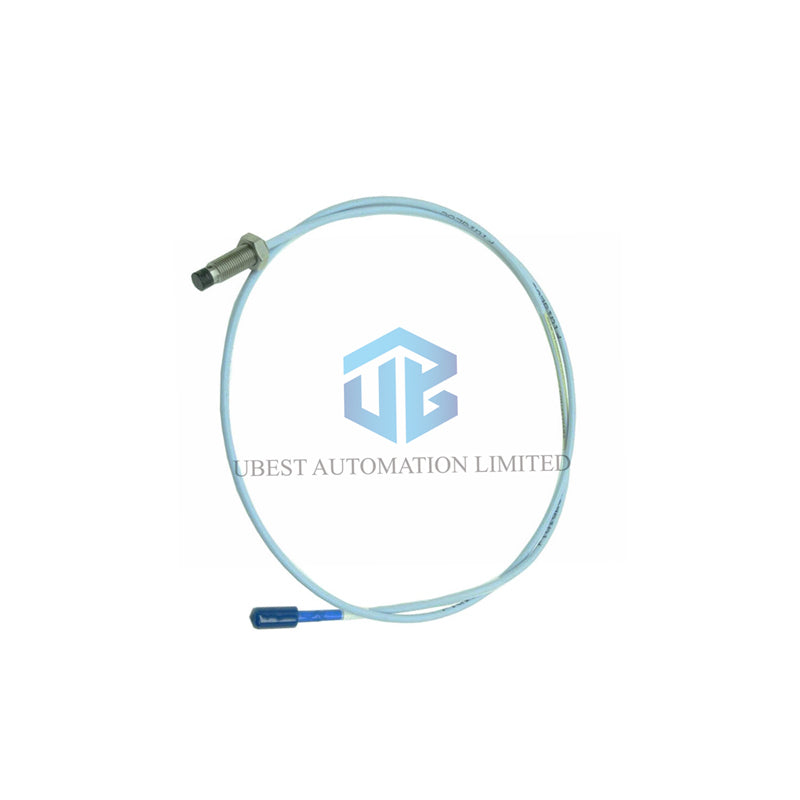

Bently Nevada 3300 XL 11mm Proximity Probe

This is a high-performance proximity probe for industrial machinery monitoring. It measures shaft vibration and position with great accuracy. The probe works in tough environments. It has a wide temperature range. The 330707-00-20-10-12-05 model comes with a standard 1-meter cable. It is ready for easy installation and reliable operation.

Key Features & Benefits

• Rugged Design: Stainless steel case and PPS tip resist corrosion and wear.
• Wide Temperature Range: Works from -51°C to +177°C.
• Secure Connection: Miniature coaxial ClickLoc connector prevents loosening.
• Global Approval: Meets multiple international agency standards for safety.
• Easy to Install: Clear torque specifications ensure correct mounting.

Technical Specifications

• Brand: Bently Nevada
• Model & Series: 3300 XL 11mm Proximity Probe
• Full Part Number: 330707-00-20-10-12-05
• Probe Thread: 5/8-18 UNF
• Unthreaded Length: 0.0 in
• Case Length: 2.0 in
• Cable Length: 1.0 metre (3.3 feet)
• Connector: Miniature coaxial ClickLoc
• Cable Type: FluidLoc, Triaxial, 75 Ω
• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 Stainless Steel
• Probe Resistance: 5.9 Ω ± 0.5
• Operating Temperature: -51°C to +177°C
• Warning: Temperatures below -34°C may damage the pressure seal.

Understanding Your Model Number: 330707-00-20-10-12-05

• 330707: Base number for 3300 XL 11mm probe.
• -00: Unthreaded length option (0.0 inch).
• -20: Overall case length option (2.0 inch).
• -10: Total cable length option (1.0 metre).
• -12: Connector option (Miniature coaxial ClickLoc).
• -05: Agency approval option (Multiple Approvals).

Installation Guide

• Case Torque: Use 15.2 N•m (133 in•lb) recommended torque. Do not exceed 45.2 N•m.
• Thread Engagement: Max engagement is 0.938 inch for 5/8-18 thread.
• Connector Torque: Hand tighten only. Max torque is 0.565 N•m.
• Cable Bending: Keep bend radius over 25.4 mm (1.0 inch).
• Seal pressure differentials with the Viton O-ring. For pressure tests, contact our design team.

Compatibility & Use

This probe works with Bently Nevada 3300 XL monitoring systems. It is perfect for vibration monitoring on turbines, compressors, pumps, and fans. The FluidLoc cable and ClickLoc connector suit harsh industrial environments. They resist oils and chemicals.

Agency Approvals

This product holds multiple international safety approvals (Option 05). It meets strict standards for use in industrial plants worldwide.

Packaging & Shipping

• Package Includes: One proximity probe, documentation.
• Shipping Weight: 0.17 Kg.
• Shipping Methods: We ship via FedEx, UPS, and DHL for fast delivery.

Warranty

We offer a 12-month warranty from the date of shipment. This warranty covers defects in materials and workmanship.

Frequently Asked Questions

What is the cable length for model 330707-00-20-10-12-05?

This model has a 1.0 metre (3.3 feet) long cable.

Can this probe handle high-pressure environments?

The probe has a Viton O-ring seal. It is not pressure tested before shipping. For high-pressure needs, please contact us for a custom test.

What is the minimum operating temperature?

The probe can operate at -51°C. But, exposure below -34°C may harm the pressure seal over time.

What connector does this probe use?

It uses a secure Miniature coaxial ClickLoc connector with FluidLoc cable.
