Certified Bently Nevada Armored Probe for 5-Meter Systems

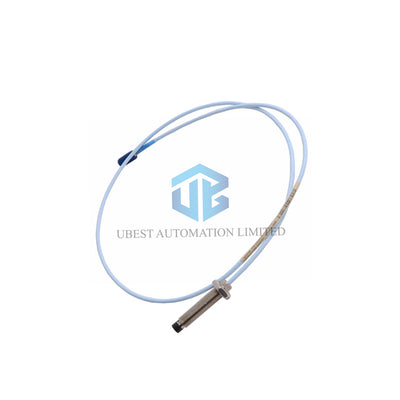

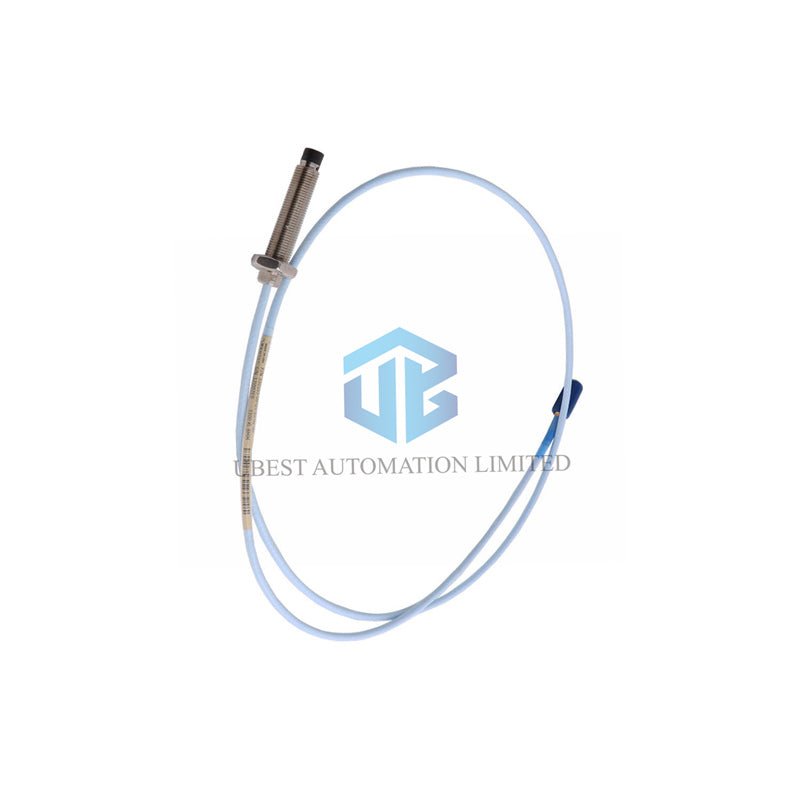

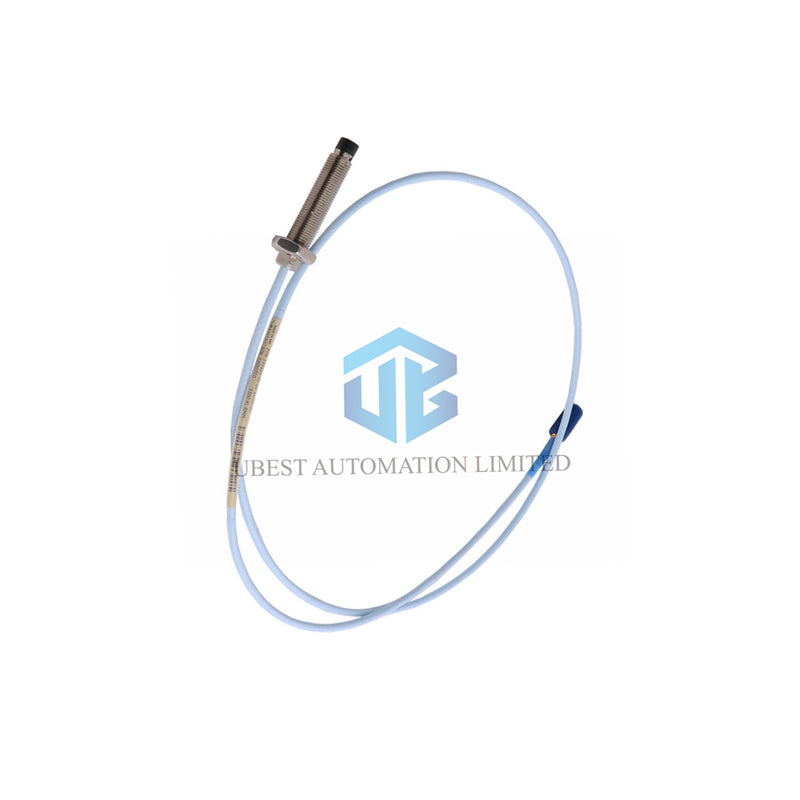

This is the Bently Nevada 330707-00-20-50-01-05. It is a factory-certified, armored proximity probe. Features a 5-meter standard cable with connector protector. Built with stainless steel armor for maximum durability. This model holds multiple international safety approvals. It is engineered specifically for use with 5-meter Proximitor sensors. Ensure reliable, compliant machine monitoring in demanding applications.

Complete Product Specifications

• Brand & Series: Bently Nevada 3300 XL
• Full Item Code: 330707-00-20-50-01-05
• Core Function: 11mm Vibration/Position Sensing
• Key Feature: With Stainless Steel Armor
• Mounting Thread: 1/2-20 UNF
• Armored Case Length: 2.0 Inches
• Total Cable Length: 5.0 Meters (16.4 Feet)
• Cable Type: Standard Triaxial, FEP Insulation
• Connector: ClickLoc with Protector
• Certification: Multiple Agency Approvals (e.g., ATEX)
• Tip Material: PPS Plastic
• Case/Armor Material: 304 Stainless Steel
• Operating Temperature: -51°C to +177°C
• Electrical Resistance (5m): 7.2 Ω ± 0.8 Ω
• Cable Impedance: 75 Ohms
• Max Thread Engagement: 0.750 Inches
• Recommended Torque: 15.2 N•m (133 in-lb)
• Absolute Max Torque: 45.2 N•m (400 in-lb)
• Min Cable Bend Radius: 25.4 mm (1.0 in)

Part Number Structure Explained

• █ 330707 – Base: 3300 XL 11mm Probe with Armor.
• █ -00 – Option A: Unthreaded Length = 0.0 in.
• █ -20 – Option B: Overall Case = 2.0 in.
• █ -50 – Option C: Cable = 5.0 meters.
• █ -01 – Option D: Connector Protector + Standard Cable.
• █ -05 – Option E: Includes Multiple Agency Approvals.

Critical Installation Notes

• Compatibility Alert: For use with 5-meter Proximitor sensors only.
• The armored section protects against physical damage.
• Tighten using the 1/2-20 UNF thread to 15.2 N•m.
• Do not exceed 0.75 inches of thread engagement.
• Keep the connector protector on until final connection.

Shipping & Warranty Commitment

• Designed for Bently Nevada 3300/3500 series compatible systems.
• The 330707-00-20-50-01-05 meets strict certification requirements.
• Shipped promptly worldwide via FedEx, UPS, or DHL.
• All purchases are covered by our 12-month quality assurance warranty.

In-Depth Technical FAQs

What makes this probe suitable for hazardous locations?

The suffix -05 indicates it carries approvals like ATEX/IECEx. This certifies its safe use in potentially explosive atmospheres.

Can I use this 5m armored probe with a 9m Proximitor?

No. You must pair it with a 5-meter Proximitor sensor. Mismatching cable lengths will cause calibration errors in the monitoring system.

What is the advantage of standard cable over FluidLoc here?

Standard cable is cost-effective for general industrial environments where severe fluid exposure is not a primary concern.

How does the armor affect the installation process?

The armor is rigid. Ensure the mounting location has enough clearance for the armored section and the cable bend radius immediately after it.

Are the agency approvals physically marked on the probe?

Typically, yes. Approved probes often have certification marks or labels on the connector or a tag on the cable for site verification.
