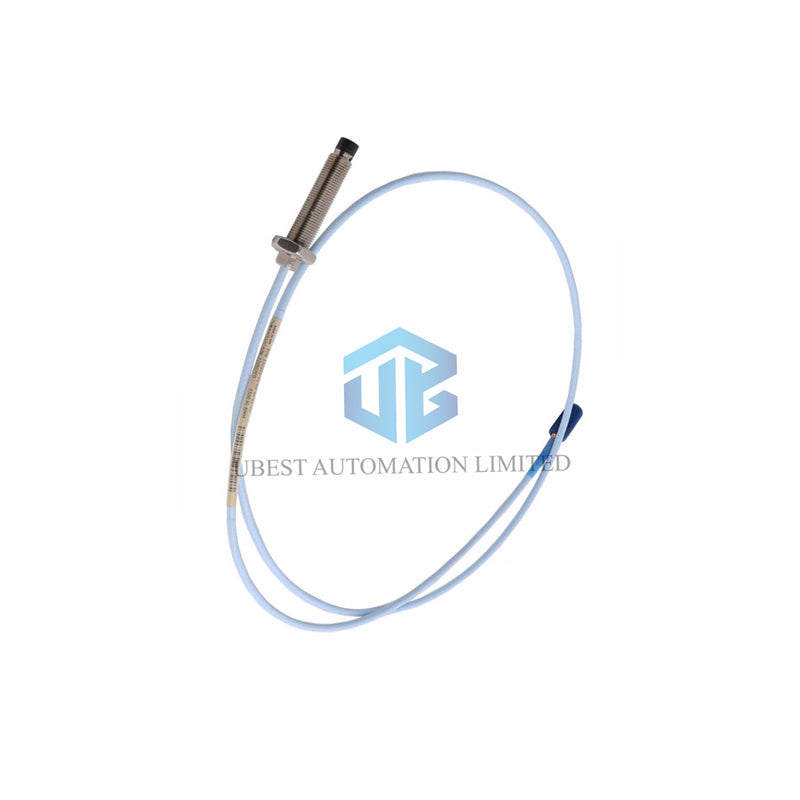

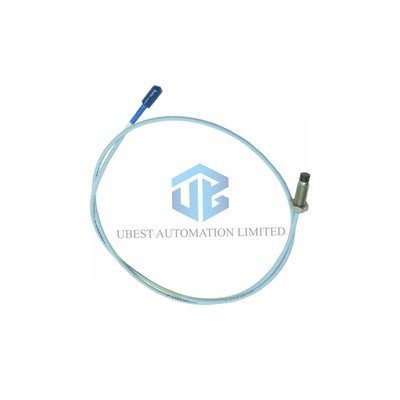

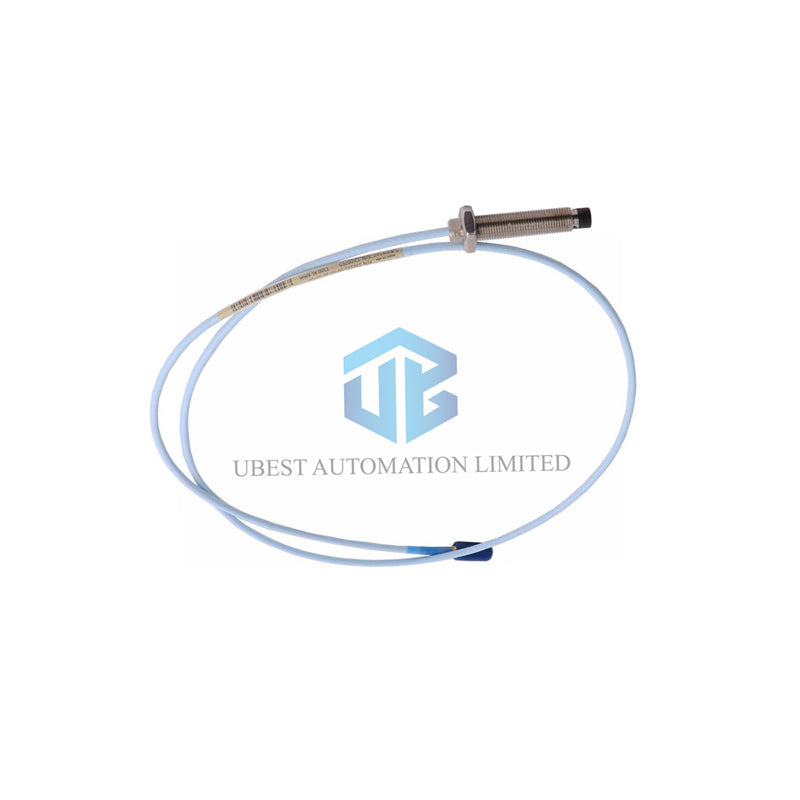

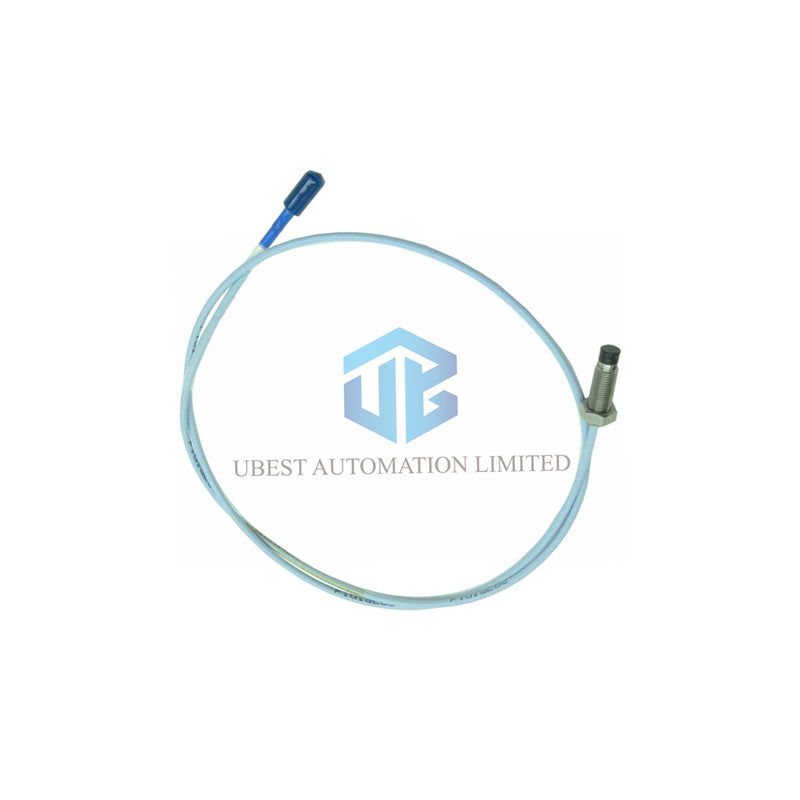

Bently Nevada 3300 XL Long-Reach Proximity Probe

Get the reliable Bently Nevada 330707-00-20-90-02-00 proximity probe. This 11mm sensor monitors machine vibration and position. Its long 9-meter cable offers flexible installation. Perfect for industrial monitoring systems. The probe ensures your machinery runs safely and smooth.

Key Product Specifications

• Brand & Model: Bently Nevada 3300 XL Proximity Probe
• Complete Part Number: 330707-00-20-90-02-00
• Sensor Size: 11 mm Diameter
• Thread Type: 5/8-18 UNF
• Case Material: Strong AISI 304 Stainless Steel
• Tip Material: Durable Polyphenylene sulfide (PPS)
• Cable Length: 9.0 meters (29.5 feet)
• Cable Type: 75 Ω Triaxial with FEP insulation
• Connector: Miniature coaxial ClickLoc
• Probe Resistance (9m): 8.5 ± 1.1 ohms
• Operating Temperature: -51°C to +177°C
• Recommended Torque: 15.2 N•m (133 in•lb)
• Max Torque: 45.2 N•m (400 in•lb)
• Minimum Bend Radius: 25.4 mm (1.0 inch)

Your Model Number Explained

• 330707 — 3300 XL Series, 11mm Probe Body.
• -00 — Unthreaded Section: 0.0 inch.
• -20 — Case Length: 2.0 inches total.
• -90 — Cable Length: 9.0 meters long.
• -02 — Connector: ClickLoc, standard cable.
• -00 — Agency Certs: Not required for this unit.

How to Install the Probe

• Check the thread is clean (5/8-18 UNF).
• Torque the case to 15.2 N•m max. Do not exceed 45.2 N•m.
• Engage threads up to 0.938 inches deep.
• Connect cable by hand. Max connector torque is 0.565 N•m.
• Keep cable bends above 1.0 inch radius.
• Avoid installing below -34°C (-29°F) to protect the seal.

System Compatibility

This 330707-00-20-90-02-00 probe works with Bently Nevada 3300 XL monitors. It is a direct fit for many machines needing long cable runs. Verify your system specs before purchase.

Product Approvals

This probe ships with no special agency approvals. It is built to Bently Nevada's factory specifications for reliable performance.

What's in the Box & Warranty

• One genuine Bently Nevada proximity probe.
• All standard packaging materials.
• Full 12-month replacement warranty. We cover material and workmanship defects.

Shipping & Delivery

We ship worldwide with FedEx, UPS, and DHL. You will receive a tracking number after your order ships.

Expert FAQ

What is the main advantage of the 9-meter cable?

It allows installation on machines where the monitor is far from the measurement point, reducing the need for cable extensions.

Can I use this probe for high-temperature applications?

Yes, it can operate up to +177°C (351°F). Ensure the connected monitor and cable are also rated for your environment.

What does the '02' suffix in the model mean?

It specifies the connector type: a Miniature coaxial ClickLoc connector with the standard triaxial cable.

How do I check if the probe is working correctly?

Measure the resistance between the center and outer conductor. For the 9m model, it should be between 7.4 and 9.6 ohms.

Is the probe tip replaceable if damaged?

No, the PPS tip is not a user-replaceable part. Please handle with care during installation.
