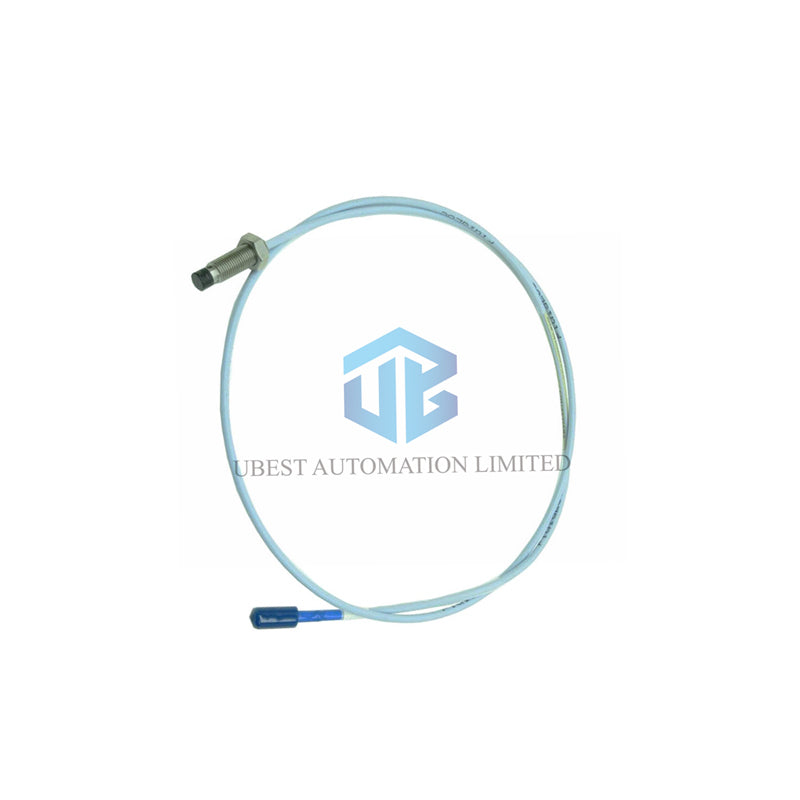

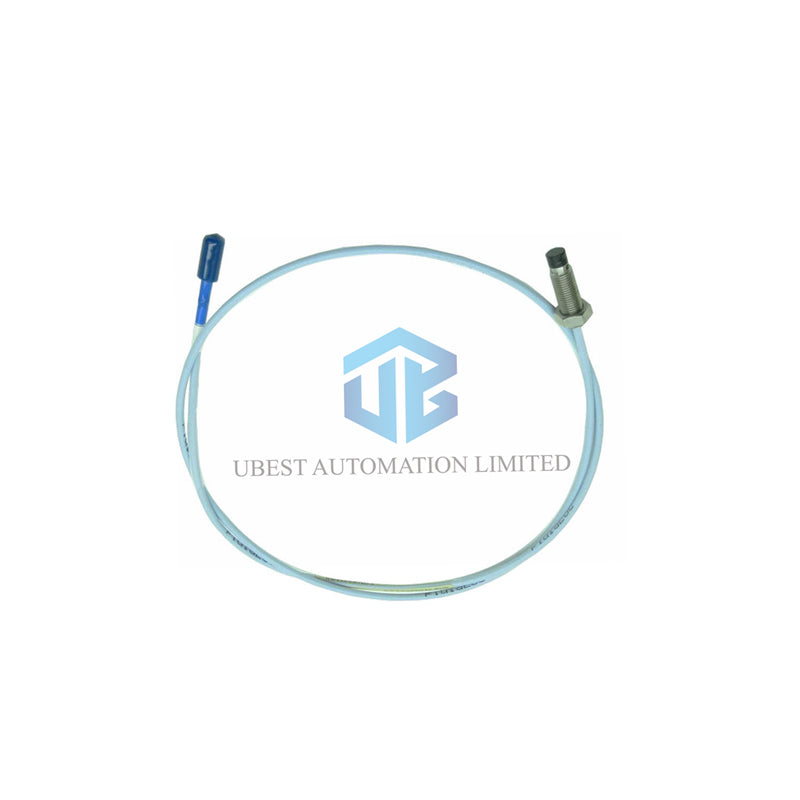

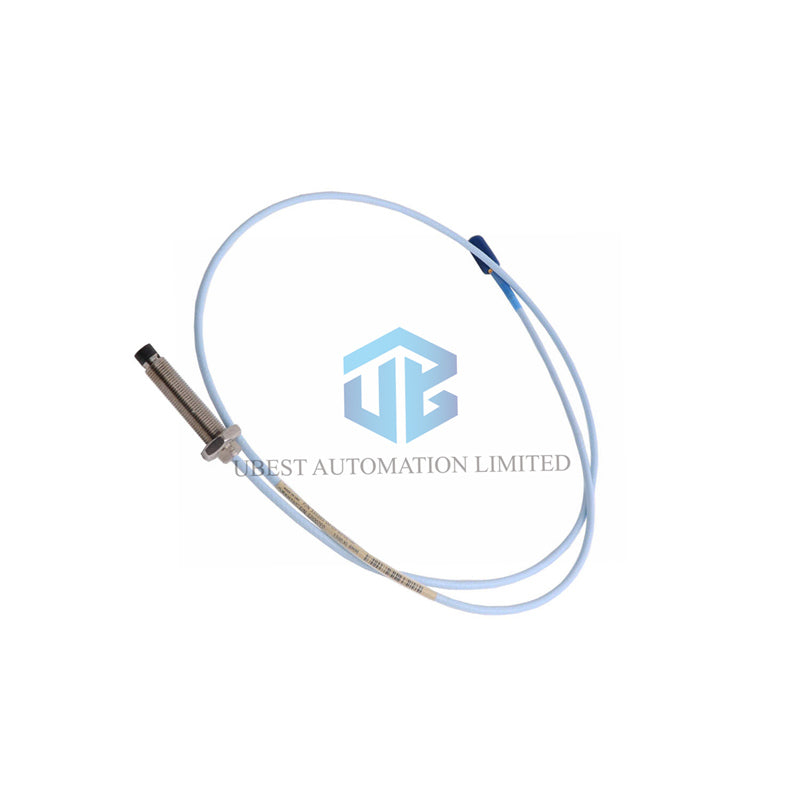

Bently Nevada 3300 XL 11mm Vibration Probe - Reliable Machine Monitoring

Get precise vibration data with the Bently Nevada 330707-00-24-90-01-00 proximity probe. This 11mm sensor is a core part of the 3300 XL monitoring series. It ensures early fault detection in turbines and motors. Its stainless steel body handles tough industrial conditions. The long 9-meter cable allows flexible sensor placement near your machinery.

Key Product Specifications

• Brand & Model: Bently Nevada 330707-00-24-90-01-00
• Probe Type: 11 mm Diameter, Proximity Sensor
• Measurement Range: Depends on system gap voltage (typically 200 mils/5.08mm)
• Cable Length: 9.0 meters (29.5 feet) standard
• Electrical Specs: 75 Ω Impedance, 8.5 ± 1.1 Ohms DC Resistance
• Operating Temp: -51°C to +177°C (Storage included)
• Case Material: AISI 304 Stainless Steel
• Tip Material: Tough Polyphenylene Sulfide (PPS)
• Cable Jacket: Fluoroethylene Propylene (FEP)
• Thread Size: Standard 5/8-18 UNF
• Case Length: 2.4 inches (including thread)

Model Number Decoder: 330707-00-24-90-01-00

• ► 330707 – Base Model
  • 3300 XL Series, 11mm Probe, 5/8-18 UNF Thread, No Armor
• ► 00 – Unthreaded Shank Length
  • Length: 0 inches.
• ► 24 – Overall Case Length
  • Length: 2.4 inches.
• ► 90 – Total Cable Length
  • Length: 9.0 meters (Pre-attached).
• ► 01 – Connector & Cable Type
  • Miniature Coaxial ClickLoc Connector with Standard Cable.
• ► 00 – Agency Approvals
  • Standard industrial version. No special certifications.

Installation & Handling Details

Mounting Instructions:

• Install using the 5/8-18 UNF thread.
• Use a torque wrench. Recommended torque is 15.2 N•m (133 in•lb).
• Do not exceed the maximum torque of 45.2 N•m (400 in•lb).
• Maximum thread engagement depth is 0.938 inches.

Cable & Connector Care:

• Connect by hand. The connector is "finger tight".
• Maximum connector torque is only 0.565 N•m (5 in•lb).
• Protect the cable. Keep bend radius over 25.4 mm (1.0 inch).
• Avoid crushing or pulling the cable during installation.

Compatibility & Warranty Info

System Compatibility:

• This 330707-00-24-90-01-00 probe works with:
  • Bently Nevada 3300 XL Monitoring Systems.
  • Bently Nevada 3500 Monitoring Systems.
  • Other systems using -24 Vdc proximity inputs.
• Check your monitor's manual for 11mm probe support.

Warranty & Support:

• This product is covered by a full 12-month warranty.
• The warranty covers defects in materials and workmanship.
• Contact us for warranty service or technical support.

Shipping Information

• Shipping Weight: Approximately 0.17 kg per unit.
• Global Shipping: We ship worldwide using FedEx, UPS, and DHL.
• Tracking information is provided for every order.

Expert FAQs

What is the "01" suffix in the model number for?

The "01" means it has a standard cable and a ClickLoc connector. It is not the FluidLoc version. Choose this for general indoor use.

Can I cut or extend the 9-meter cable?

No. The cable length is fixed at 9 meters. Cutting or splicing can ruin the electrical calibration. Order a different model if you need a shorter or longer cable.

What is the probe's sensitivity (mV/mil)?

Typical sensitivity is 200 mV/mil (7.87 V/mm). This value is standard for 11mm probes and works with your Bently Nevada monitor.

How do I handle the probe in cold environments?

Be careful below -34°C. The internal seal may become brittle. Allow the probe to warm up slowly before applying power in very cold conditions.

Is the probe tip replaceable if damaged?

No. The PPS tip is a fixed part of the probe assembly. If the tip is damaged, the entire probe unit must be replaced for reliable readings.
