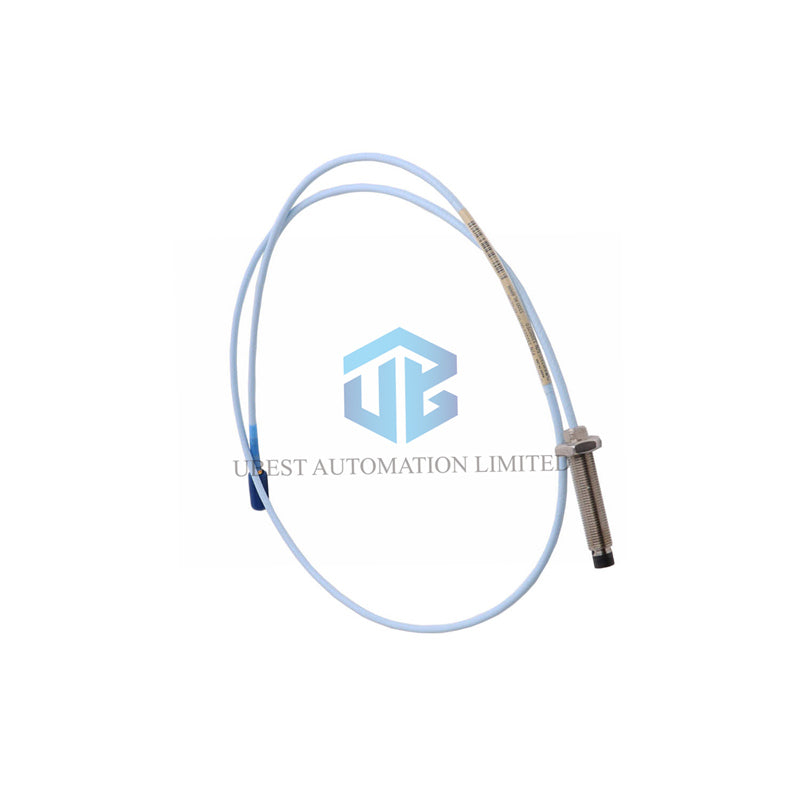

Bently Nevada Long-Reach Protected Probe for Demanding Installations

The Bently Nevada 330707-00-24-90-11-05 is engineered for tough, remote monitoring. It combines a long 9-meter FluidLoc cable with a connector protector. This setup resists moisture and physical damage. The probe has a standard 2.4-inch stainless steel case. Its PPS tip ensures reliable sensing in harsh conditions. This model carries multiple international safety approvals. It is the ideal solution for large machinery in wet or dirty environments.

Decoding the Part Number: 330707-00-24-90-11-05

• Product Family [330707]:
  • 3300 XL Machinery Protection Series.
  • 11mm Eddy-Current Displacement Probe.
  • Standard 5/8-18 UNF Thread.
• Feature -00: Unthreaded Section: 0.0 inch.
• Feature -24: Case Overall Length: 2.4 inches.
• Feature -90: Cable Length: 9.0 meters (29.5 feet).
• Feature -11: Connection: ClickLoc with Protector & FluidLoc Cable.
• Feature -05: Compliance: Multiple Agency Certifications.

Comprehensive Technical Parameters

• Original Manufacturer: Bently Nevada
• Complete Part Number: 330707-00-24-90-11-05
• Monitoring Platform: 3300 XL Vibration System
• Measurement Method: Non-Contact Eddy Current
• Sensor Diameter: 11.0 Millimeters
• Probe Body Material: Grade 304 Stainless Steel
• Sensing Tip Material: High-Strength PPS Plastic
• Cable Type: 75 Ohm Triaxial, FEP Jacketed
• Cable Technology: FluidLoc Moisture-Wick Barrier
• Connector Protection: Integrated Plastic Shroud
• Total Extended Length: 9.0 Meters (29.5 Feet)
• Nominal DC Resistance (9m): 8.5 Ohms
• Acceptable Resistance Range: 7.4 to 9.6 Ohms
• Primary Mounting Thread: 5/8-18 UNF
• Alternative Fit 1: M16 x 1.5 mm Thread
• Alternative Fit 2: M14 x 1.5 mm Thread
• Maximum Thread Engagement: 0.938 Inch (5/8-18)
• Correct Installation Torque: 15.2 Newton-Meters
• Absolute Torque Limit: 45.2 Newton-Meters
• Electrical Connector Style: ClickLock Coaxial
• Connector Torque Spec: Hand Tight Only
• Minimum Bend Radius: 25.4 mm (1.0 inch)
• Operating Temperature: -51°C to +177°C
• Static Seal Type: Factory-Installed Viton O-Ring
• Pre-Installation Warning: Do not expose below -34°C
• Shipping Weight per Unit: 0.17 Kilograms

Key Installation Notes

• Plan a safe route for the full 9-meter cable length.
• Use wide, gentle loops for any excess cable. Avoid tight coils.
• Protect the cable from sharp edges and high heat sources.
• Ensure the mounting hole is clean and threads are undamaged.
• Tighten the probe to the specified 15.2 N·m torque.
• Connect the cable: push firmly until the ClickLoc mechanism engages.
• The connector shroud protects against accidental impacts.
• Allow the probe to warm up if stored in a cold environment.

System Compatibility

This long-cable Bently Nevada 330707 probe must pair with a matching 9-meter Proximitor sensor in a 3300 XL system. The FluidLoc feature is ideal for outdoor or damp indoor applications.

Warranty Promise

Your purchase is protected by our 12-month warranty. This guarantee covers any failures due to original manufacturing defects for one full year.

Global Shipping Partners

We deliver worldwide with reliable services. We use FedEx, UPS, and DHL for all international shipments. You will receive full tracking details.

Expert FAQs

Why is the DC resistance higher for this 9-meter model?

The longer cable inherently has more electrical resistance. The 8.5-ohm value (range 7.4-9.6 Ω) is normal and calibrated for in the system design.

What environments is the "-11" option designed for?

Option "-11" is for harsh, wet, or dirty sites needing long cable runs. Examples include outdoor turbines, pulp & paper mills, or wastewater treatment plants.

Can I shorten the 9-meter cable if it's too long?

No. The cable is a fixed, sealed part of the probe assembly. Cutting it will destroy the probe and void the warranty. Order the correct length.

How should I store and handle the long FluidLoc cable?

Store it loosely coiled in large loops (over 24-inch diameter). Avoid kinks, crushing, or exposure to sharp objects that could pierce the jacket.

Does the connector protector affect mating with the proximitor?

No. The shroud fits around the standard ClickLoc connector. It does not interfere with the electrical connection. The connector still clicks into place normally.
