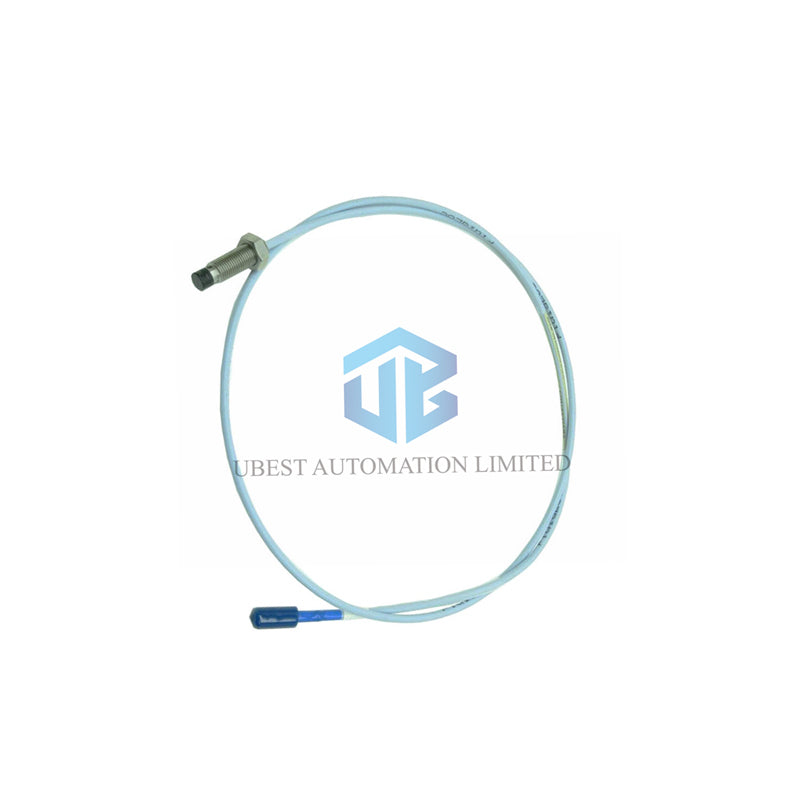

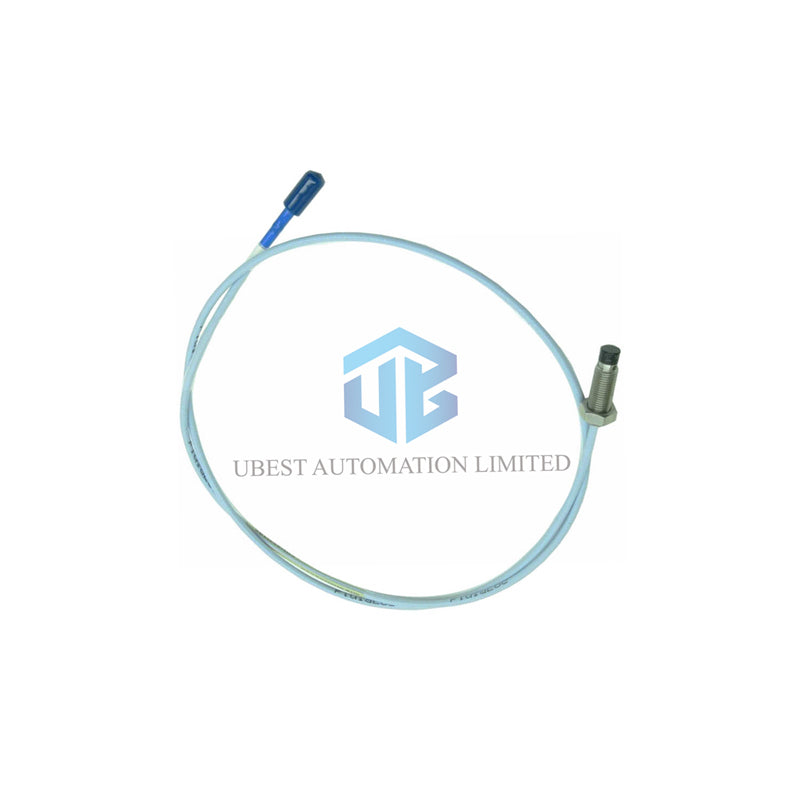

Bently Nevada Extra-Long Body Proximity Probe

The Bently Nevada 330707-00-55-10-01-00 features an extended 5.5-inch stainless steel case. This length is ideal for deep mounting holes or thick machine walls. The probe includes a connector protector for durable connections. It uses a standard 1-meter cable for easy hookup. This model is suitable for general industrial applications. Its robust PPS tip ensures long-term sensing accuracy. The extended body provides stability in challenging installations. It is a reliable choice for specialized mounting requirements.

Part Number Explanation: 330707-00-55-10-01-00

• Base Code (330707):
  • Platform: 3300 XL Monitoring System.
  • Function: 11mm Proximity Displacement Probe.
  • Design: 5/8-18 UNF Thread, No Armor.
• Option -00: Unthreaded Segment = 0.0 in.
• Option -55: Case Length = 5.5 inches (Extra Long).
• Option -10: Cable Length = 1.0 meter (3.3 ft).
• Option -01: Connector = ClickLoc with Protector.
• Option -00: Approvals = Not Required.

Comprehensive Technical Specifications

• Brand & Full Model: Bently Nevada 330707-00-55-10-01-00
• Product Series: 3300 XL Vibration Sensor
• Measurement Type: Eddy-Current Sensing
• Sensing Diameter: 11.0 mm (0.433 in)
• Body Material: AISI 304 Stainless Steel
• Tip Material: Polyphenylene Sulfide (PPS)
• Cable Specification: 75 Ohm Triaxial
• Cable Type: Standard FEP Insulated
• Connector Feature: Protective Plastic Shroud
• Total Cable Length: 1.0 Meter (3.28 Feet)
• DC Resistance (1m): 5.9 Ohms
• Resistance Range: 5.4 to 6.4 Ohms
• Mounting Thread: 5/8-18 UNF (Primary)
• Compatible Thread: M16 x 1.5 mm
• Max Thread Engagement (5/8-18): 0.938 Inch
• Recommended Torque: 15.2 N·m (133 in-lb)
• Maximum Torque: 45.2 N·m (400 in-lb)
• Electrical Connector: ClickLoc Coaxial
• Connector Torque: Hand Tight Only
• Minimum Bend Radius: 25.4 mm (1.0 inch)
• Operating Temperature: -51°C to +177°C
• Storage Temperature: -51°C to +177°C
• Environmental Seal: Pre-installed Viton O-Ring
• Low-Temp Warning: Do not install below -34°C (-29°F)
• Shipping Weight: Approximately 0.17 kg per unit

Installation & Setup Guide

• This probe is designed for deep mounting holes (over 5.5 inches).
• Measure your mounting hole depth to ensure it accommodates the long case.
• The connector shroud protects against accidental bumps during wiring.
• Thoroughly clean the deep mounting hole threads before installation.
• Hand-start the long probe carefully to avoid cross-threading.
• Tighten to the specified 15.2 N·m using a long-reach torque tool if needed.
• Push the protected ClickLoc connector until it clicks into place.
• If stored in cold conditions, warm the probe above -34°C before use.

Compatibility & Use Case

This extra-long Bently Nevada 330707 probe is fully compatible with 3300 XL monitoring systems. It is specifically intended for applications where the sensing point is located deep within a machine housing or behind a thick wall.

Warranty Information

We offer a dependable 12-month product warranty. This warranty covers any material or craftsmanship defects for one year from the date of purchase.

Shipping Partners

We provide fast and reliable worldwide shipping. We use FedEx, UPS, and DHL for all deliveries, with full tracking provided.

Expert FAQ

What is a typical application for a 5.5-inch long probe?

It is used on large diesel engines, certain turbine designs, or any equipment where the bearing or measurement point is located far inboard from the mounting surface.

Does the long case affect the probe's sensitivity or calibration?

No. The electrical and sensing characteristics are identical to standard-length probes. Only the mechanical housing length is different.

Is special tooling needed to install this long probe?

A standard deep socket or crowfoot wrench may be helpful. The key requirement is a torque wrench capable of applying the correct torque in a potentially confined space.

Can this probe be used in a high-temperature environment?

Yes, its operating temperature range is -51°C to +177°C, identical to all 3300 XL 11mm probes. The materials are rated for this range.

Why would I choose this over a standard 2.4-inch probe?

Choose this 330707-00-55-10-01-00 only if your machine design requires the probe to reach through a very deep cavity to get close to the target shaft.
