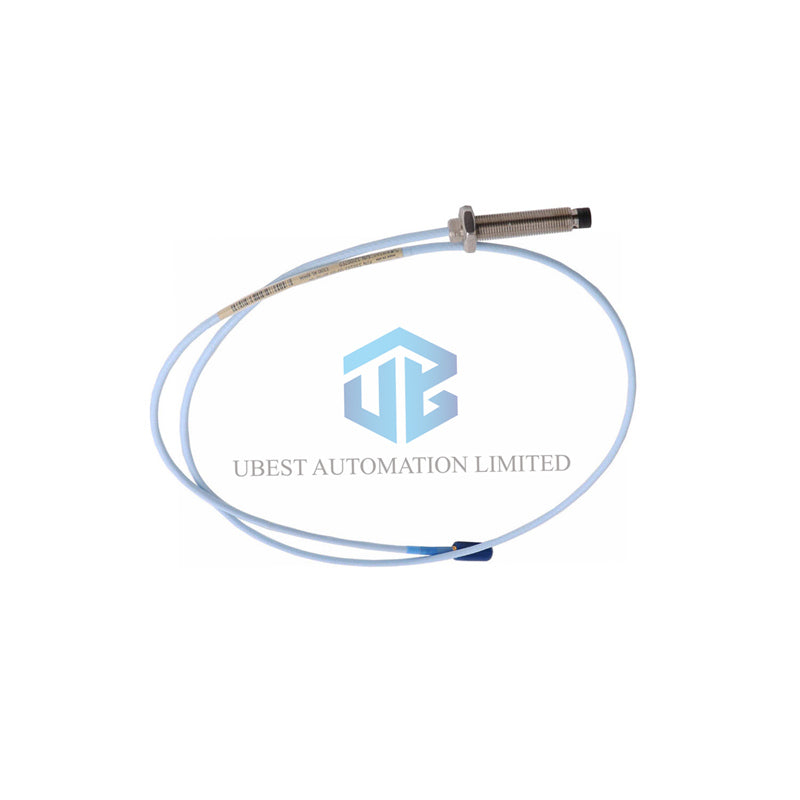

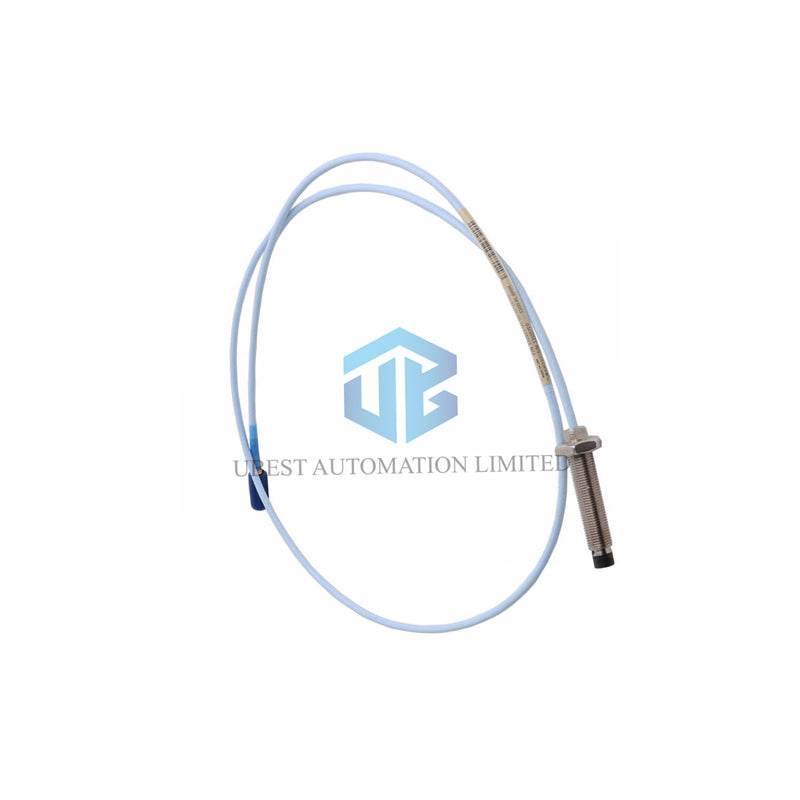

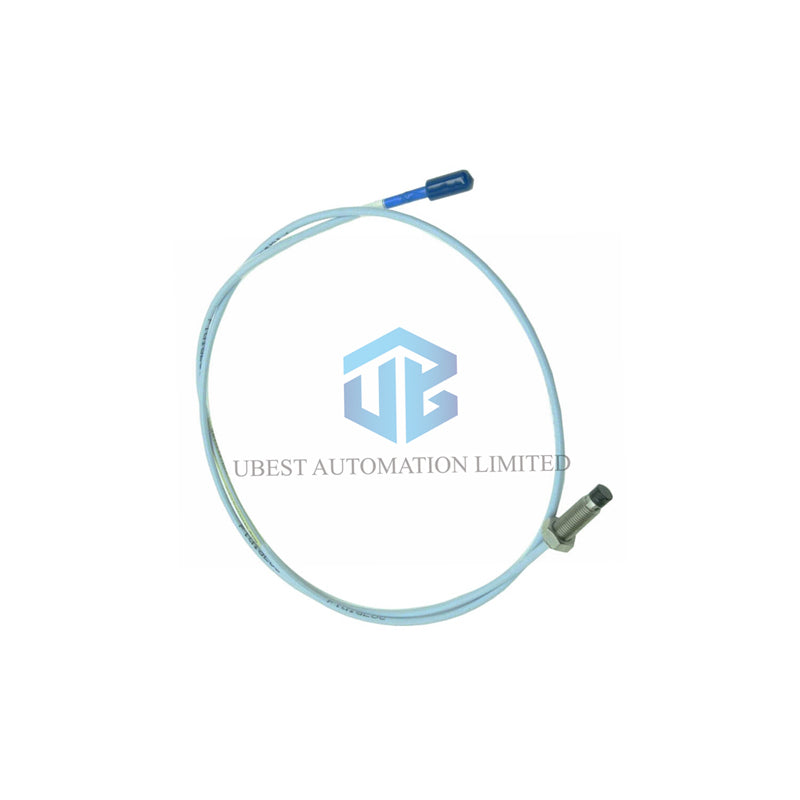

Bently Nevada 330707-05-35-10-11-00 3300 XL 11mm Proximity Probe

Get the Bently Nevada 330707-05-35-10-11-00 Proximity Probe for precise machinery monitoring. This sensor is part of the trusted 3300 XL Series. It offers reliable vibration and position measurement in industrial settings. We guarantee authenticity and provide fast global shipping.

Technical Specifications

• Brand: Bently Nevada
• Series: 3300 XL
• Model Number: 330707-05-35-10-11-00
• Product Type: Proximity Probe / Sensor
• Measurement Range: 11 mm (0.43 in)
• Output Signal: 75 Ω Triaxial, FEP Insulated
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Thread Size: 5/8-18 UNF
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 304 Stainless Steel (SST)
• Weight: 0.17 Kg

Model Number Breakdown

Understand your Bently Nevada 330707-05-35-10-11-00 sensor with this detailed breakdown:

• 330707: 3300 XL 11 mm Probe, 5/8-18 UNF thread, without armor
• 05: Unthreaded Length = 0.5 in
• 35: Overall Case Length = 3.5 in
• 10: Total Length = 1.0 metre (3.3 feet)
• 11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
• 00: Agency Approval Not Required

Installation Guide

Follow these steps for safe Bently Nevada probe installation:

• Thread Engagement: Do not exceed 0.938 in for 5/8-18 probes.
• Torque Settings: Tighten the probe case to 15.2 N•m (133 in•lb). The maximum is 45.2 N•m (400 in•lb).
• Connector Torque: Finger tight is recommended. Maximum torque is 0.565 N•m (5 in•lb).
• Bend Radius: Keep the minimum bend radius above 25.4 mm (1.0 in).

Compatibility & Applications

This 330707-05-35-10-11-00 probe works with 3300 XL systems. It is ideal for industrial machinery protection. Use it for vibration monitoring and shaft position sensing in turbines and compressors.

Certification & Compliance

The Bently Nevada 3300 XL probe meets high industrial standards. It uses a Viton O-ring for differential pressure sealing. We do not pressure test probes before shipment.

Warranty & Shipping

Buy with confidence. We offer a 12-month warranty on all new Bently Nevada parts. We ship worldwide using FedEx, UPS, and DHL. We also offer fast delivery for urgent needs.

Package Contents

• 1 x Bently Nevada 330707-05-35-10-11-00 Proximity Probe
• User Manual (Digital Copy)

Frequently Asked Questions (FAQ)

Q: What is the operating temperature of the Bently Nevada 330707-05-35-10-11-00?

A: The probe works from -51°C to +177°C. Do not expose the probe to temperatures below -34°C for long periods. This can damage the pressure seal.

Q: What is the warranty period for this sensor?

A: We provide a 12-month warranty on this genuine Bently Nevada product. This covers defects in materials and workmanship.

Q: How do I identify the cable length from the model number?

A: Look at the 10th character group in the model. For example, "10" means a 1.0 metre cable. "05" means 5 metres, and "09" means 9 metres.

Q: What thread size does this 3300 XL probe have?

A: This specific model has a 5/8-18 UNF thread. Always check the thread engagement depth before installation.

Q: What is the resistance of the 1-meter probe?

A: The resistance from center to outer conductor is 5.9 ± 0.5 ohms for the 1-meter length.
