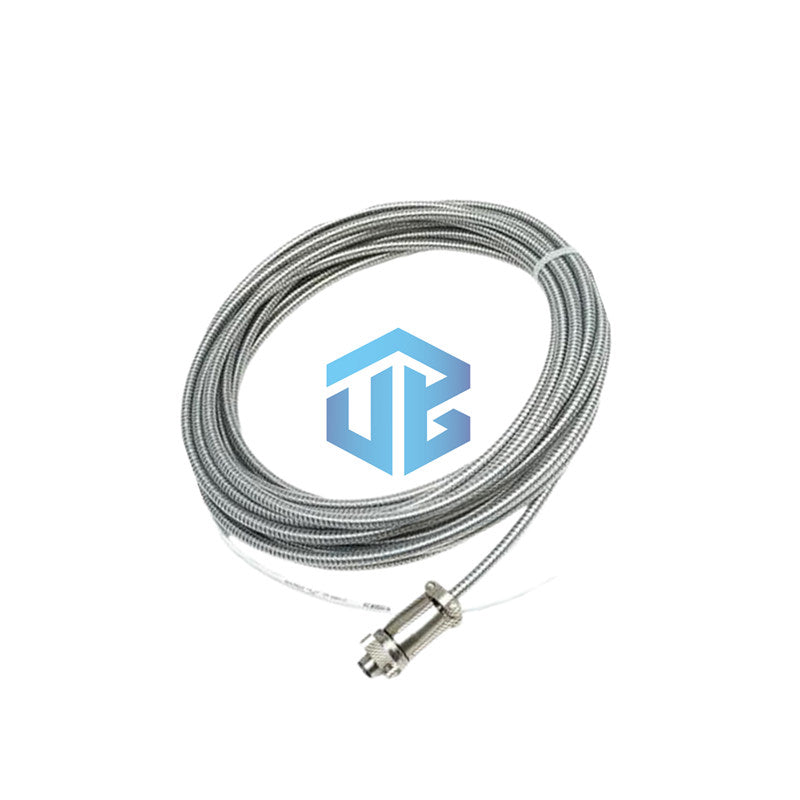

Bently Nevada 330904-00-10-70-02-05: Compact 3300 NSv Probe

This 3300 NSv proximity probe is brand new. It comes in original factory packaging. Enjoy a full 12-month warranty. We ship worldwide via FedEx, UPS, and DHL.

Complete Configuration Details

• Full part number: 330904-00-10-70-02-05
• Unthreaded section: 00 mm length
• Total case length: 100 mm (compact)
• Cable length: 7.0 meters (23 feet)
• Connector type: Miniature ClickLoc
• Cable specification: Standard cable (option 02)
• Safety certifications: Multiple approvals
• Thread type: M8x1 with armor

Advanced Technical Specifications

• DC probe resistance: 5.9 ± 0.9 ohms
• Linear measurement range: 1.5 mm (60 mils)
• Voltage sensitivity: 7.87 V/mm (±12.5%/-20%)
• Frequency response: 0 to 10 kHz (±3 dB)
• Operating temperature: -52°C to +177°C
• Minimum target diameter: 8.9 mm
• Maximum installation torque: 0.56 N•m
• Cable impedance: 75 ohm coaxial FEP
• Minimum bend radius: 25.4 mm
• Center conductor resistance: 0.220 Ω/m
• Shield resistance: 0.066 Ω/m
• Cable capacitance: 69.9 pF/m typical
• Maximum thread engagement: 12 mm
• Recommended gap setting: 1.0 mm (40 mils)
• Maximum field wiring: 305 meters
• Output voltage range: -1 to -13 Vdc
• Linearity deviation: < ±0.06 mm
• Probe tip material: Polyphenylene sulfide
• Case material: 304 stainless steel

Comparison Options

This 3300 NSv probe features a compact 100mm case. Compare with 330904-00-15-10-02-05 or 330904-00-12-10-01-CN for different case lengths.
