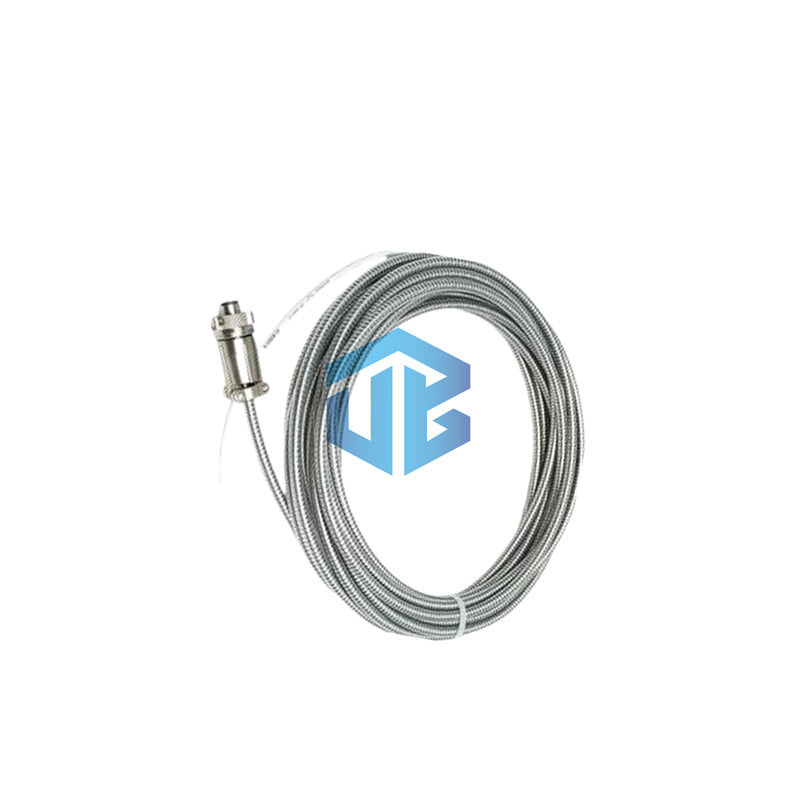

Bently Nevada 330904-08-15-50-12-05 NSv Proximity Probe

Bently Nevada's 3300 NSv Proximity Probes deliver superior performance for industrial vibration monitoring. The model 330904-08-15-50-12-05 combines extended reach with FluidLoc technology and global certifications. It ensures reliable operation in the most demanding environments worldwide.

Model Configuration Details

• 330904: Base model with M8x1 threading and armored protection

• -08-: 80 millimeter unthreaded section

• -15-: 150 millimeter total case length

• -50-: 5.0 meters integrated cable length

• -12-: ClickLoc connector with FluidLoc cable

• -05: Multiple international agency approvals

Technical Specifications

• Brand: Bently Nevada

• Model: 330904-08-15-50-12-05

• Measurement Range: 1.5 mm (60 mils) linear range

• Sensitivity: 7.87 V/mm (200 mV/mil) output

• Linearity: ±0.06 mm maximum deviation

• Frequency Response: 0 to 10 kHz (±3 dB)

• Electrical Resistance: 5.3 Ω ± 0.7 Ω

• Temperature Range: -52°C to +177°C operation

• Probe Tip: Chemical-resistant PPS material

• Case Material: 304 stainless steel construction

• Cable Type: FluidLoc for harsh environments

• Target Size: 13 mm minimum recommended diameter

Installation Guidelines

• Hand-tighten installation without tools

• Apply maximum 5.1 N•m connector torque

• Maintain 25.4 mm minimum bend radius

• Use three-conductor shielded cable

• Support 305 meters field wiring distance

Package Contents

• One 3300 NSv proximity probe

• FluidLoc cable assembly

• Connection accessories

Global Shipping Options

• Fast FedEx delivery available

• Reliable UPS shipping service

• International DHL options

Professional FAQs

• What certifications does this model include?

  • It carries multiple international agency approvals.

• How does FluidLoc cable improve performance?

  • It offers superior chemical resistance in wet conditions.

• What temperature range does it support?

  • It operates from -52°C to +177°C reliably.

• Is it compatible with older systems?

  • Yes, works with previous 3300 RAM systems.

• Why choose the longer case design?

  • The 150mm case provides better mounting flexibility.

Download Manual

Get complete technical specifications: 3300 XL NSv Proximity Transducer System Datasheet
