Bently Nevada 5mm Proximity Probe | 330172-00-08-10-02-05
Manufacturer:
Bently Nevada
Product No.:
330172-00-08-10-02-05
Condition:
In Stock
Product Type:
Proximity Probe
Product Origin:
USA
Weight:
323g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

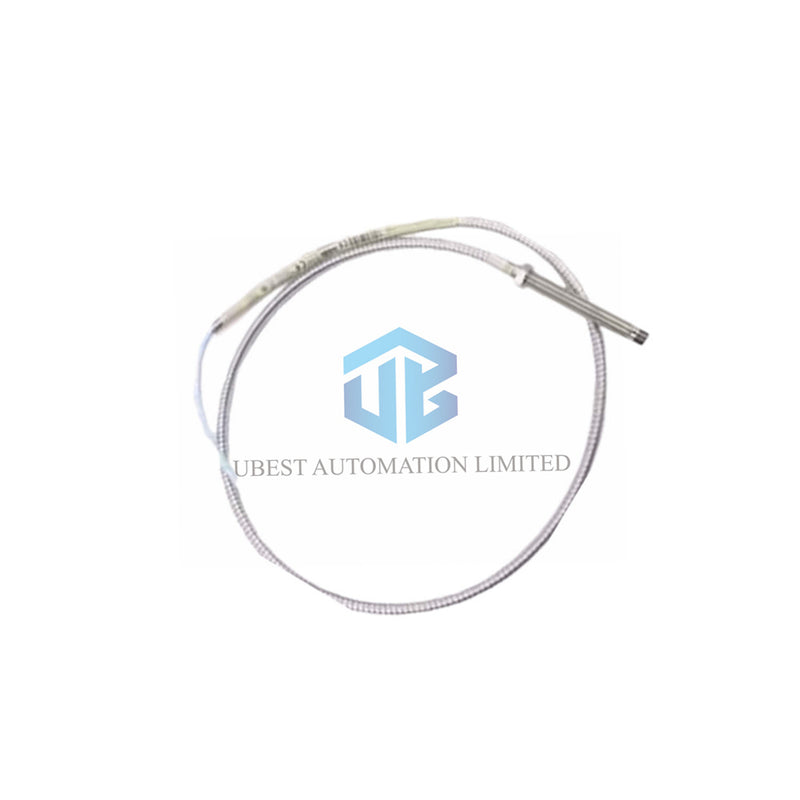

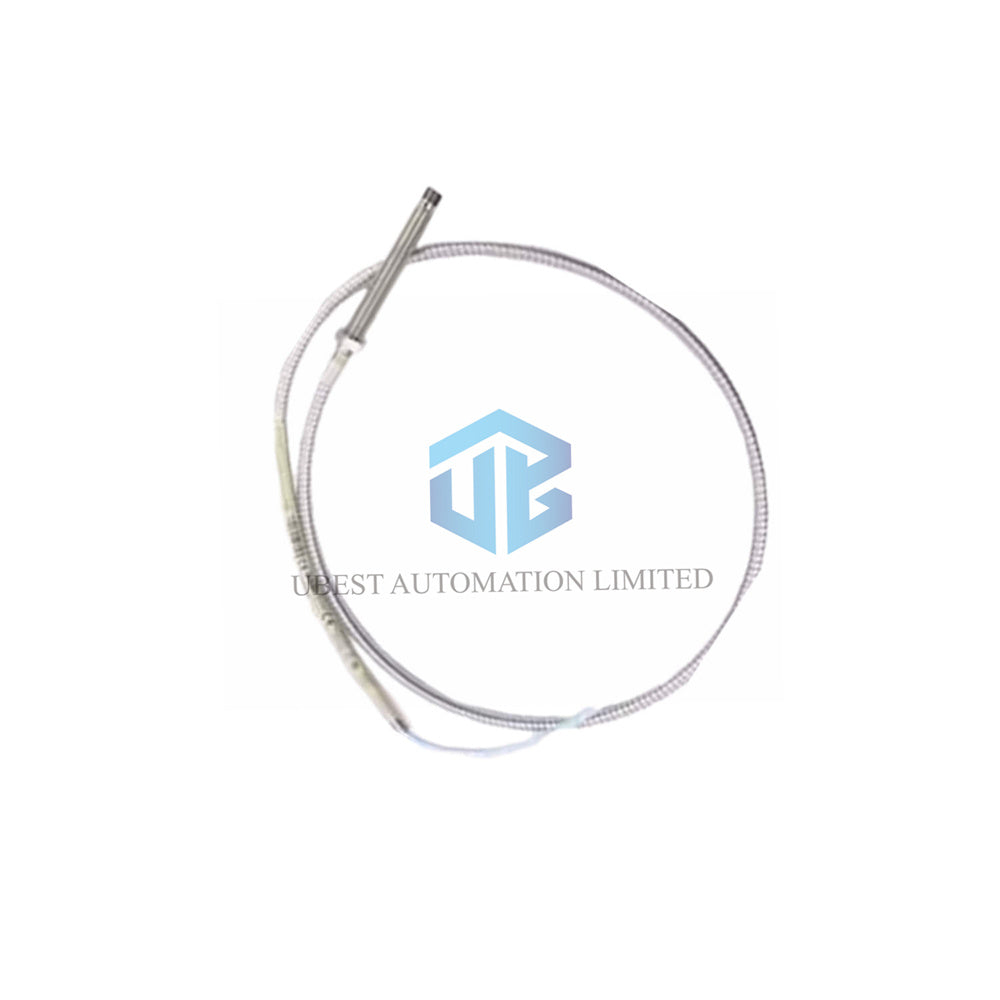

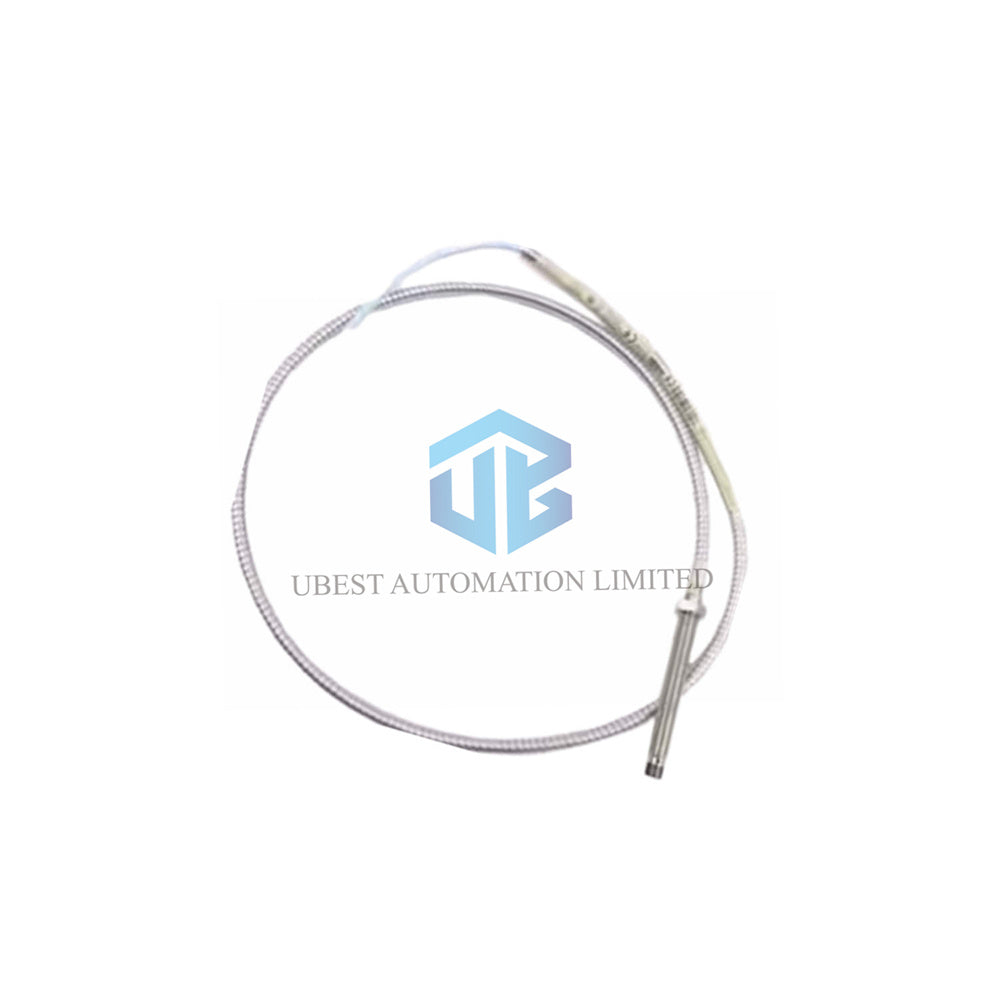

Bently Nevada 3300 Series 5mm Proximity Probe: High-Performance Vibration & Position Monitoring
Complete Product Suffix Breakdown
- Model: 3300 Series 5mm Probe
-
Full Part Number: 330172-00-08-10-02-05
- 330172: Base Model (5mm Probe, 1/4-28 UNF Thread, Armored)
- 00: Unthreaded Length = 0 in
- 08: Overall Case Length = 0.8 in
- 10: Total Cable Length = 1.0 metre (3.3 feet)
- 02: Connector = Miniature Coaxial ClickLoc
- 05: Agency Approvals = Multiple (ATEX, IECEx, etc.)
Core Technical Specifications
- Brand & Series: Bently Nevada 3300 Series
- Probe Tip Material: Robust Polyphenylene Sulfide (PPS)
- Probe Case Material: Durable AISI 304 Stainless Steel
- Mounting Thread: 1/4-28 UNF
- Electrical Power: Requires -17.5 to -26 VDC supply
- Output Impedance: 50 Ohms (compatible with standard monitors)
- Probe Cable: 75-ohm triaxial with FEP insulation
- Connector Torque: Maximum 0.565 N·m (0.42 ft-lbf)
- Minimum Bend Radius: 25.4 mm (1.0 inch) for cable protection
Environmental & Operational Ratings
- Operating Temperature: -35°C to +177°C (-31°F to +351°F)
- Robust Construction: Withstands 222 N (50 lbf) tensile strength
- Recommended Case Torque: 5.1 N·m (45 in-lb) for secure mounting
- Magnetic Field Immunity: Low sensitivity to 60 Hz interference (e.g., 0.0014 mV/mil/Gauss at 50 mil gap)
What's in the Box?
- One (1) Bently Nevada 330172-00-08-10-02-05 5mm Proximity Probe.
- Standard packaging with protective materials.
For a complete selection, explore our range of 3300 5mm Proximity Probes.
Frequently Asked Questions (FAQ)
- What is the probe's resistance? The 1.0-meter probe has 7.59 ± 0.5 Ohms between center and outer conductor.
- What target material is used for specs? Specifications assume an AISI 4140 steel target.
- How do you ship this item? We ship globally via FedEx, UPS, and DHL for reliable delivery.
- Who manufactures this sensor? Bently Nevada, a leading brand in condition monitoring, manufactures the 3300 series.
