Overview

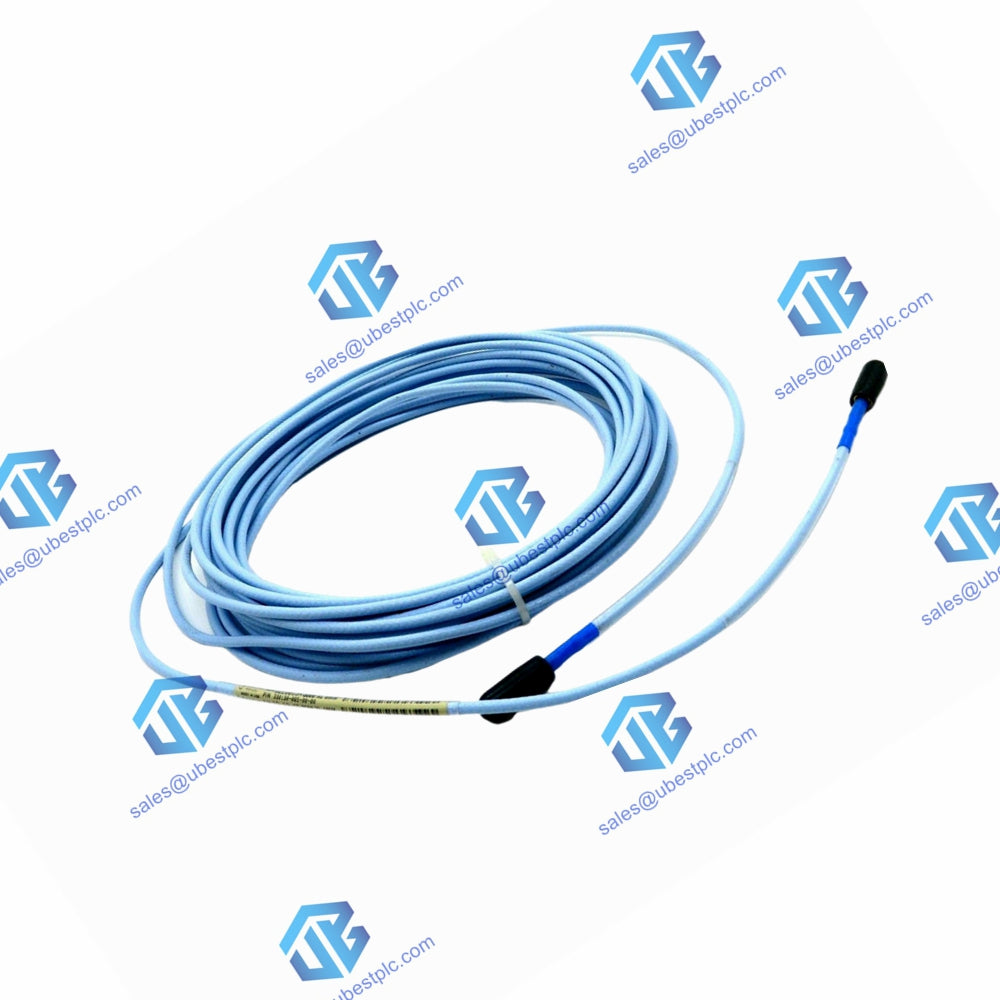

The Bently Nevada 330130-040-10-05 extension cable is a premium solution for connecting the 3300 XL 8 mm Proximitor Sensor and 8 mm probe in machinery monitoring applications. Designed for reliability, this cable includes innovative features like FluidLoc protection to prevent oil leakage, ensuring optimal performance in challenging industrial environments. Its robust construction and compliance with CSA, ATEX, and IECEx approvals make it suitable for a variety of hazardous zones.

Key Features and Benefits

• Cable Length: Available in 4.0 meters (11.5 feet).
• Connector Protection: Equipped with FluidLoc cable to prevent fluid ingress.
• Approvals: Certified by CSA, ATEX, and IECEx for safe use in hazardous environments.
• Weight Options:
  • 34 g/m (0.4 oz/ft); total weight: 0.136 kg.

• Included Accessories: Silicone tape for alternative connector protection (not recommended for turbine oil exposure).

Technical Specifications

Electrical Parameters

• DC Resistance:
  • RCORE (Center Conductor): 0.88 ± 0.13 Ω (4.0 m cable).
  • RJACKET (Outer Conductor): 0.26 ± 0.05 Ω (4.0 m cable).
• Capacitance: 69.9 pF/m (21.3 pF/ft).
• Output Resistance: 50 Ω.
• Supply Voltage:
  • Requires -17.5 Vdc to -26 Vdc; recommended -23 Vdc to -26 Vdc with barriers.

Environmental and Mechanical Features

• Linear Range:
  • Operates from 0.25 to 2.3 mm (10 to 90 mils).
  • Linear range starts at 0.25 mm (10 mils).
• Field Wiring:
  • Supports 0.2 to 1.5 mm² (16 to 24 AWG) shielded triad cables.
  • Maximum wiring length: 305 m (1,000 ft).

Design Enhancements

• TipLoc Technology: Ensures a robust bond between probe tip and body.
• CableLoc System: Provides 330 N (75 lbf) pull strength for enhanced durability.

Part Number Breakdown

• 330130: Series designation for the extension cable.
• 040: Cable length in decimeters (4.0 meters).
• 10: FluidLoc cable option for oil and fluid resistance.
• 05: Certifications, including CSA, ATEX, and IECEx approvals.
