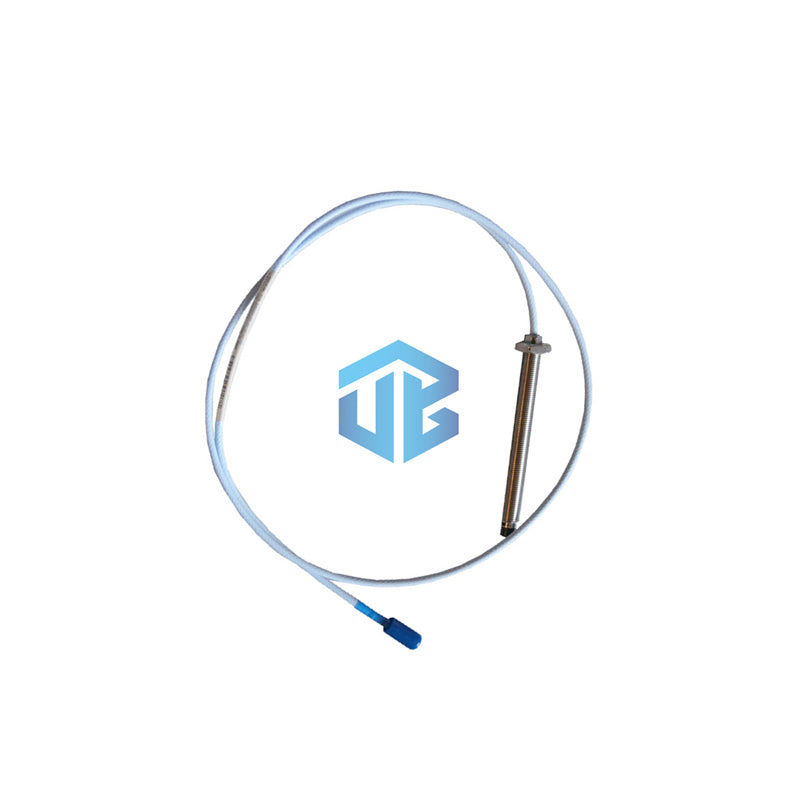

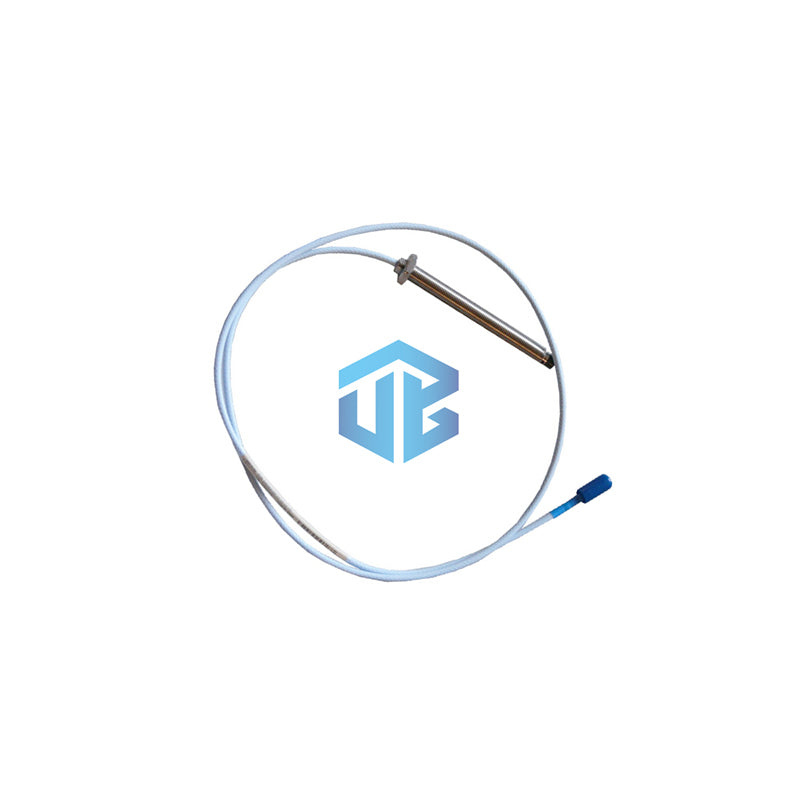

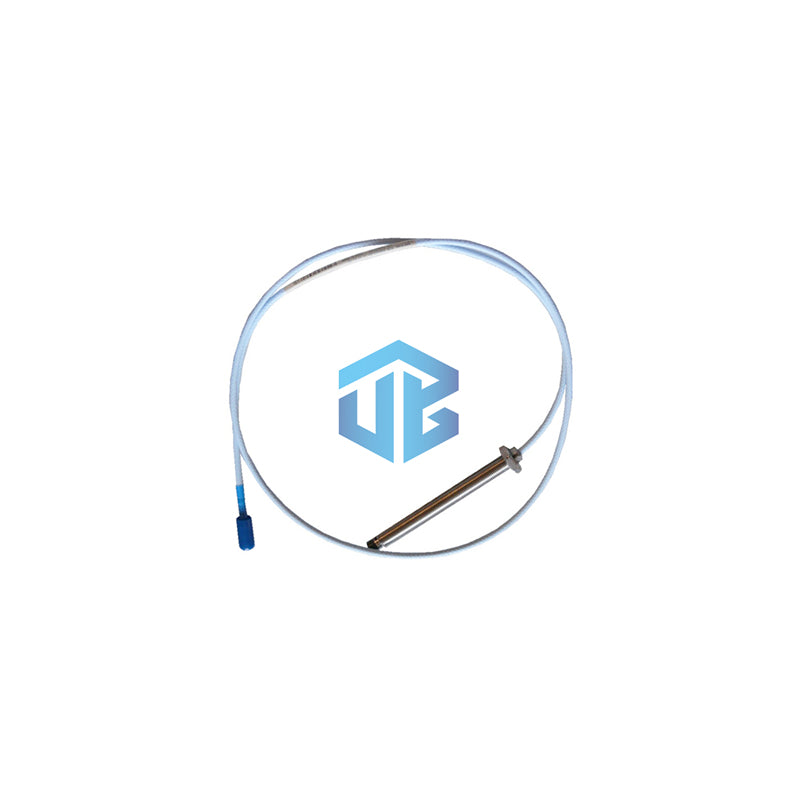

Bently Nevada 330103 XL 600mm Probe: Deep Reach Sensing

Decoding Your Part Number: 330103-00-60-05-02-05

• Brand & Series: Bently Nevada 3300 XL Platform
• Core Product: 8mm Proximity Probe (330103)
• Configuration Breakdown:
  • » -00 » Unthreaded Shank: 0 mm
  • » -60 » Case Length: 600 mm (Primary Feature)
  • » -05 » Cable: 0.5 meter (1.6 ft)
  • » -02 » Connection: ClickLoc Coaxial, Standard Cable
  • » -05 » Certifications: CSA, ATEX, IECEx Approved

Technical Performance & Key Specifications

• Measurement & Output: 0.25 to 2.3mm linear range (~-1 to -17 Vdc). Set gap to 1.27mm (~-9 Vdc).
• Electrical Characteristic: Nominal probe resistance measures 7.45 Ω ± 0.50 for the 0.5m cable version.
• Robust Construction: PPS plastic tip and long AISI 303/304 SST case resist corrosion and wear.
• Environmental Rating: Operates from -52°C to +177°C; handles up to 93% humidity per IEC 68-2-3.
• Intrinsic Safety: Agency option -05 provides AEx/Ex ia IIC T5-T1 Ga approval for hazardous areas.

Expert FAQ: Your Technical Questions Answered

• Q: What is the typical application for a 600mm long probe?
  A: It is ideal for measuring vibration on deep-set bearings or through thick machine casings where standard probes cannot reach.
• Q: How does the long case affect the probe's sensitivity or calibration?
  A: The case length does not alter the electrical sensitivity. The 3300 XL system calibration depends on the probe tip-to-target gap.
• Q: Can I cut or shorten the 0.5-meter integral cable if needed?
  A: No, the cable length is fixed. Altering it will change the electrical characteristics and void the product warranty.
• Q: What is the approximate weight of this 600mm probe?
  A: At 323 g/m, the total probe weight is approximately 194 grams, excluding the cable.
• Q: Is special grounding required for use in electrically noisy environments?
  A: Proper installation using the recommended shielded cable and following Bently Nevada system grounding guidelines is essential for noise immunity.
