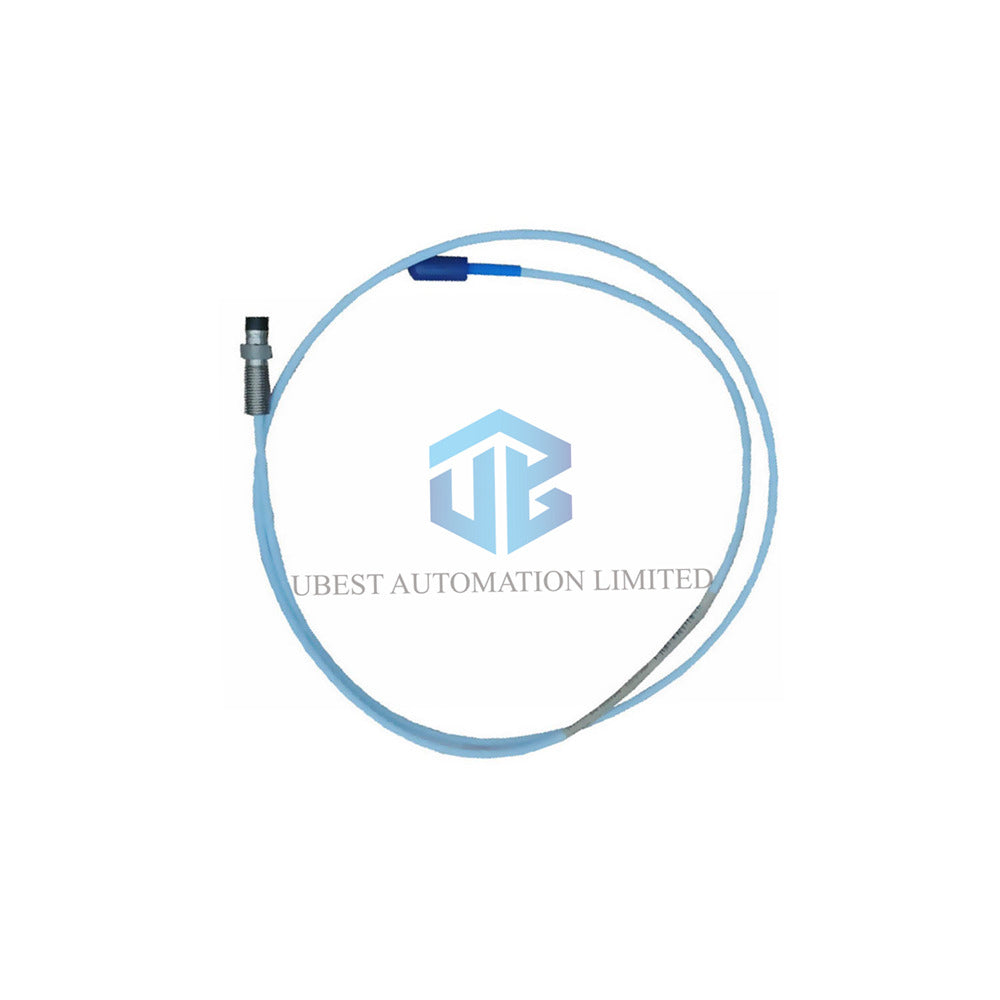

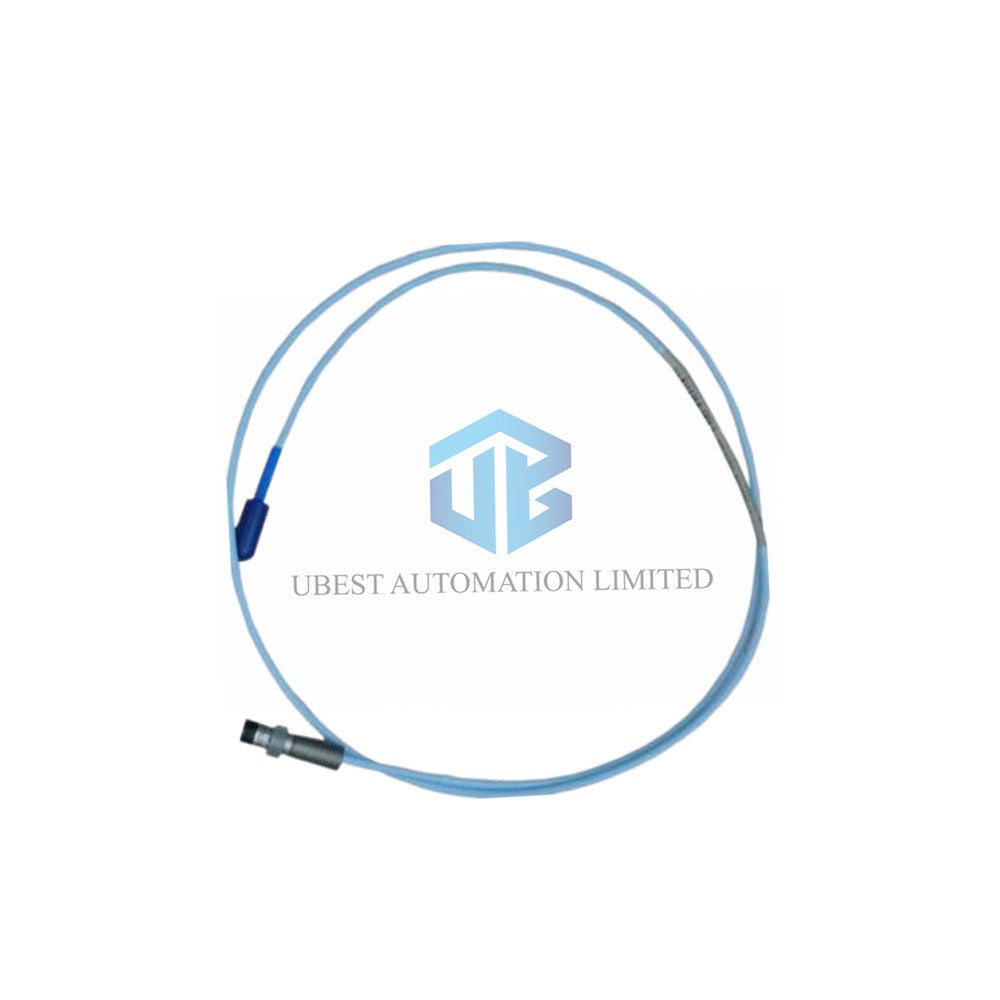

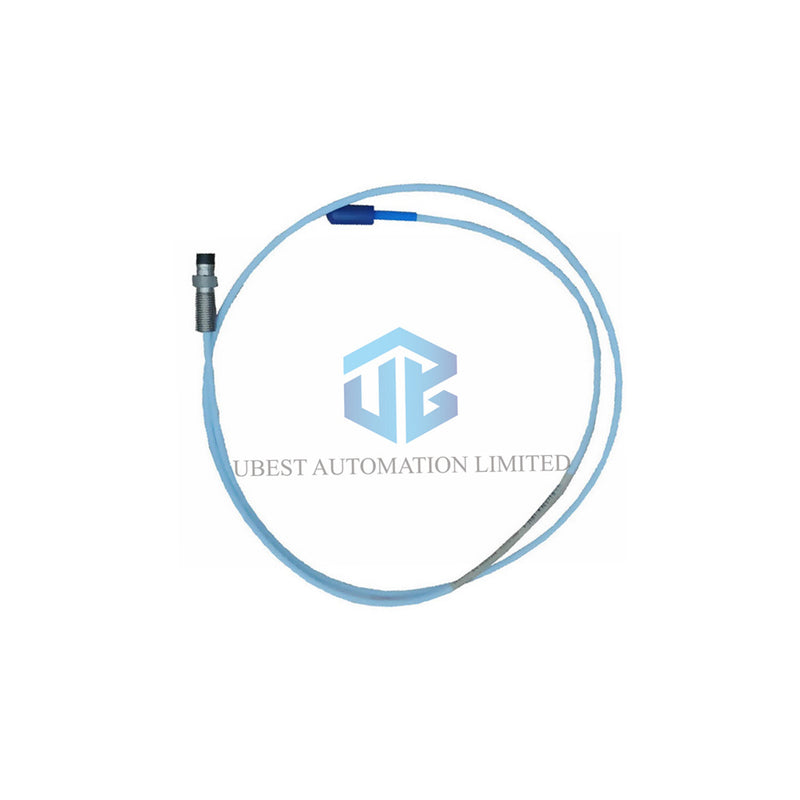

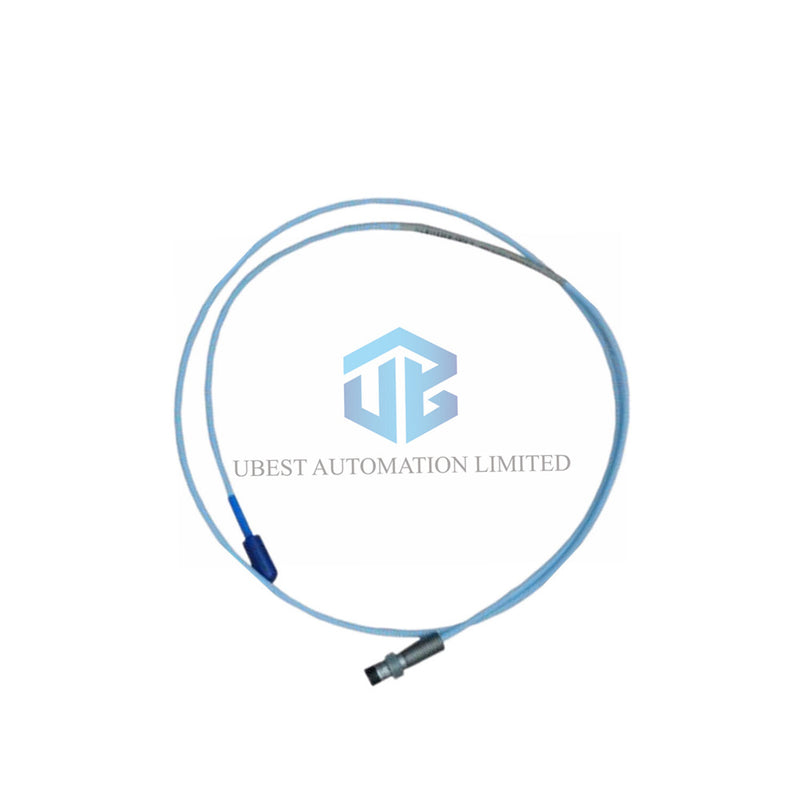

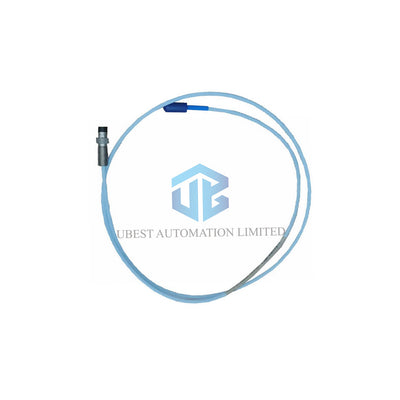

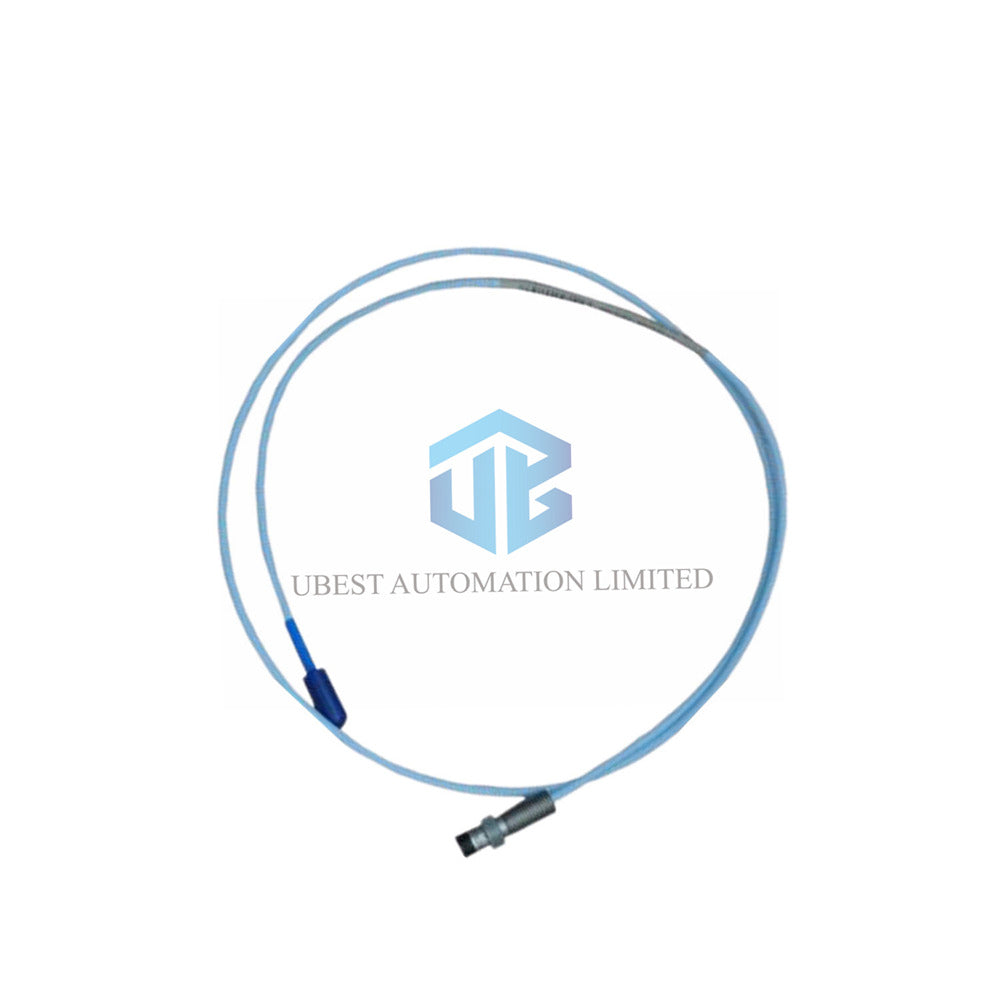

Introducing the Bently Nevada 3300 Series 5mm Proximity Probe
Complete Product Model & Suffix Information
Brand: Bently Nevada
Base Model: 330171 (3300 Series 5mm Probe)
Full Part Number: 330171-01-10-10-02-00
01: Unthreaded Length = 0.1 inch
10: Overall Case Length = 1.0 inch
10: Total Cable Length = 1.0 meter (3.3 feet)
02: Connector = Miniature Coaxial ClickLoc
00: Agency Approval = Standard Option
Key Technical Specifications & Performance
Measurement Principle: Eddy current displacement sensing.
Target Material: AISI 4140 steel (standard calibration).
Recommended Gap: 1.27 mm (50 mils) for rated output.
Power Supply: -17.5 to -26 VDC; 12 mA max current.
Output Impedance: 50 Ohms for stable signal transmission.
Probe Sensitivity: Less than 2 mV change per volt input variation.
Probe Cable: 75-ohm triaxial with FEP insulation for durability.
Probe DC Resistance: 7.59 Ω ± 0.50 (center to outer conductor).
Robust Construction & Material Details
Probe Tip Material: Polyphenylene Sulfide (PPS) for chemical and thermal resilience.
Probe Case Material: AISI 304 stainless steel for corrosion resistance.
Case Thread: Standard 1/4-28 UNF for secure mounting.
Connector Material: Gold-plated brass or beryllium copper.
Tensile Strength: 222 N (50 lbf) at case and cable connections.
Environmental Tolerance & Ratings
Operating Temperature: -35°C to +177°C (-31°F to +351°F).
Max Thread Engagement: 0.375 inch to prevent casing stress.
Min Cable Bend Radius: 25.4 mm (1.0 inch) to protect internal wiring.
Magnetic Field Immunity: Minimal output effect from 60 Hz fields up to 300 Gauss.
Frequently Asked Questions (FAQ)
What is the standard cable length for this model?
The part number suffix "10" specifies a standard 1.0-meter cable length. Can this probe handle high-temperature environments?
Yes, the probe operates reliably from -35°C to +177°C. What connector type does this probe use?
It uses a Miniature Coaxial ClickLoc connector for a secure fit. Where can I find more 5mm probe options?
