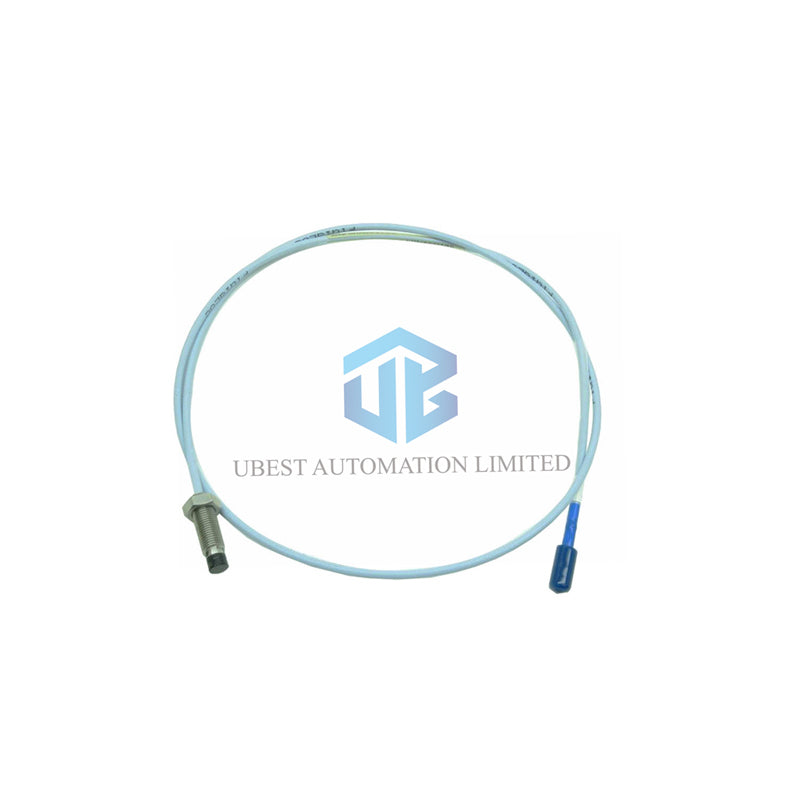

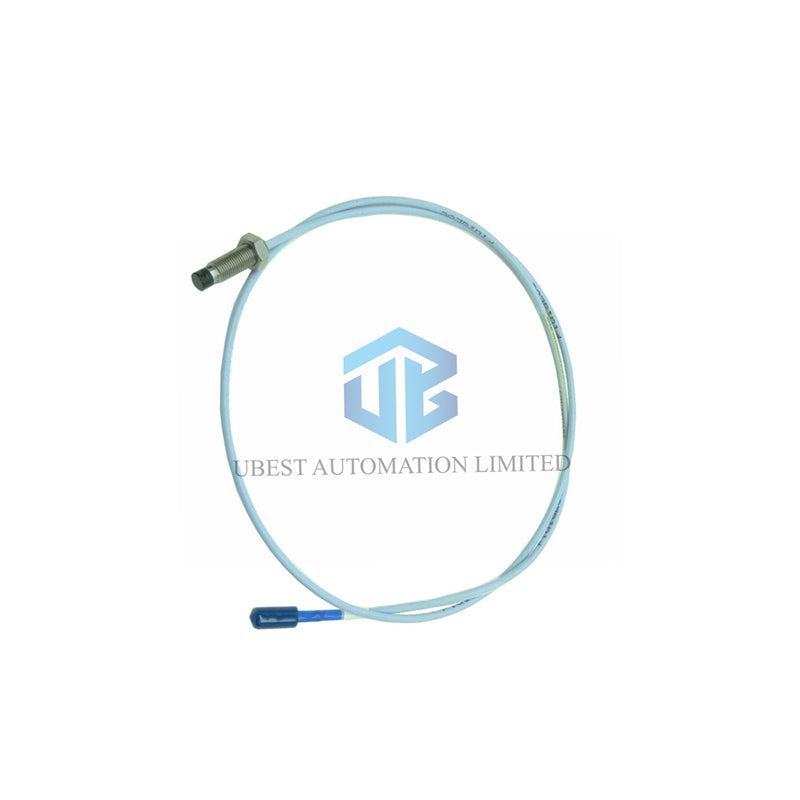

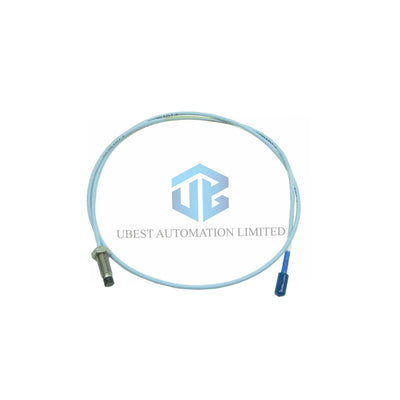

Bently Nevada 3300 XL 11 mm Proximity Probe: Premium Vibration & Position Sensing

This Bently Nevada 3300 XL 11 mm proximity probe offers reliable machinery monitoring. It measures shaft vibration and position. The probe ensures your equipment runs safely and efficiently. It fits into most industrial monitoring systems easily. The robust design handles tough environmental conditions.

Technical Data & Specifications

• Brand: Bently Nevada
• Model: 3300 XL Proximity Probe
• Full Part Number: 330707-00-20-10-01-00
• Probe Diameter: 11 mm
• Measurement Range: Standard for 3300 XL system.
• Output Signal: The probe works with compatible Bently Nevada monitors (e.g., 3300 series).
• Accuracy: High, meeting Bently Nevada standards.
• Operating Temperature: -51°C to +177°C (-60°F to +351°F).
• Probe Case Thread: 5/8-18 UNF
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 Stainless Steel.
• Cable Type & Length: 75 Ω triaxial, FEP insulated. 1.0 metre (3.3 feet) total length.
• Cable Connector: Miniature coaxial ClickLoc with protector.
• Probe DC Resistance: 5.9 ± 0.5 ohms (for 1.0m cable).

Understanding Your Model Number: 330707-00-20-10-01-00

• 330707: Base part number for 3300 XL 11mm probe.
• -00: Unthreaded Length = 0.0 inch.
• -20: Overall Case Length = 2.0 inches.
• -10: Total Cable Length = 1.0 metre.
• -01: Connector Type = Miniature coaxial ClickLoc with protector.
• -00: Agency Approval = Not required.

Installation Guide

• Use the correct threaded hole (5/8-18 UNF).
• Recommended Case Torque: 15.2 N•m (133 in•lb).
• Maximum Case Torque: 45.2 N•m (400 in•lb).
• Ensure maximum thread engagement of 0.938 inches.
• Hand-tighten the cable connector (Max torque: 0.565 N•m).
• Maintain a minimum bend radius of 25.4 mm (1.0 in) for the cable.
• Avoid temperatures below -34°C (-29°F) during installation to protect the seal.

Compatibility Notes

This probe pairs with Bently Nevada 3300 XL monitor systems. It is a direct replacement for many machines. Always check your system requirements first. The ClickLoc connector ensures a secure link.

Certification & Approval

This product has no specific agency approvals (option 00). It meets Bently Nevada's quality standards.

Package Includes & Warranty

• One Bently Nevada 330707-00-20-10-01-00 proximity probe.
• Standard packaging.
• Full 12-month warranty against manufacturing defects.

Shipping Information

We ship fast via FedEx, UPS, or DHL. You will get tracking details after order dispatch.

Frequently Asked Questions (FAQ)

What is the cable length of this probe?

The total cable length is 1.0 metre (3.3 feet), as indicated by the "-10" suffix.

What thread size is on the probe case?

The probe case has a standard 5/8-18 UNF thread.

What is the operating temperature range?

The probe works from -51°C to +177°C. Avoid installing below -34°C to protect the internal seal.

Is this probe compatible with my Bently Nevada system?

This 3300 XL 11mm probe works with compatible 3300 series monitors. Check your monitor manual.

What is the warranty period?

We offer a 12-month warranty from the shipment date.
