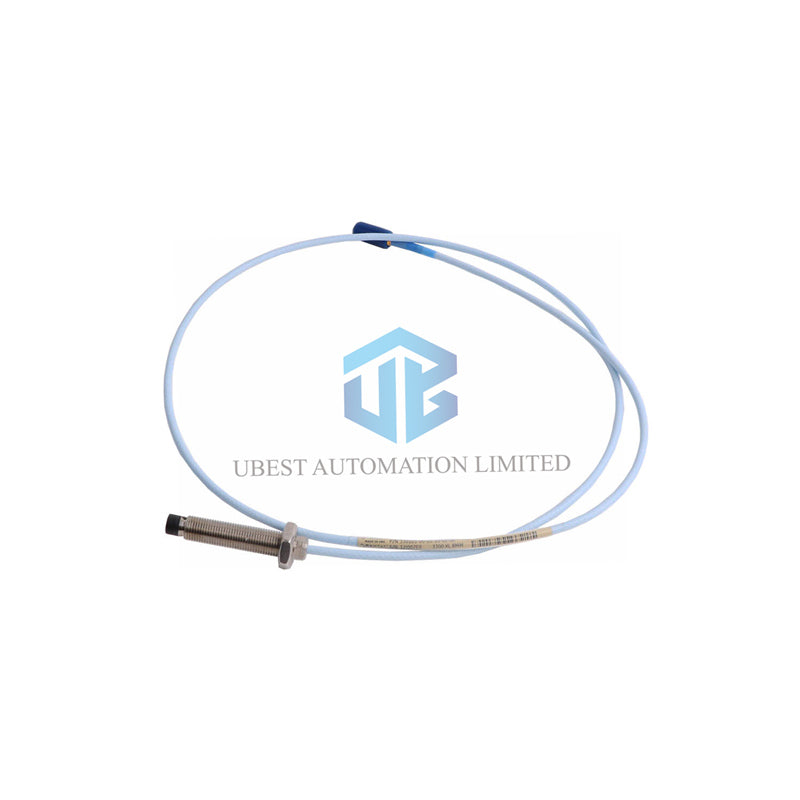

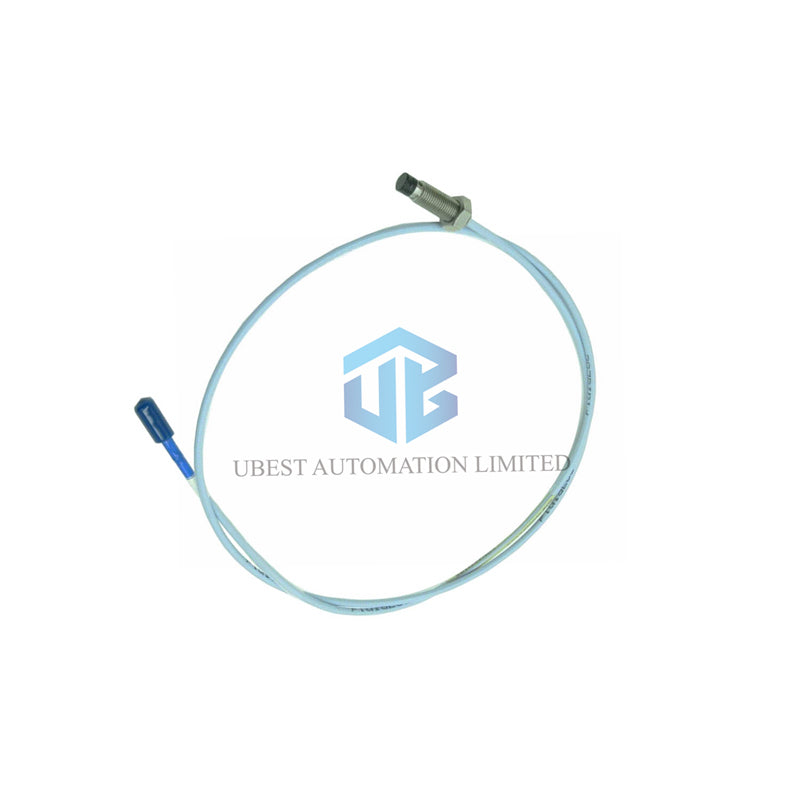

Bently Nevada 3300 XL Proximity Probe with 9-Meter Cable
This is a long-reach industrial sensor. It monitors machine health from a distance. The part number is 330707-00-20-90-01-05. It helps prevent costly downtime. You get reliable vibration and position data. The 9-meter cable offers flexible installation.
Main Product Highlights
- Extended Reach: 9.0 meters of cable for remote mounting.
- Robust Build: Stainless steel case and tough PPS tip.
- Secure Connection: ClickLoc connector with a protective cover.
- Trusted Brand: Bently Nevada quality for critical machinery.
- Easy Setup: Clear installation instructions provided.
Detailed Technical Specifications
- Brand & Model: Bently Nevada 3300 XL 11mm
- Full Part Number: 330707-00-20-90-01-05
- Sensing Type: Proximity / Displacement
- Case Length: 2.0 inches
- Cable Length: 9.0 meters (29.5 feet)
- Connector: Miniature Coaxial ClickLoc (with protector)
- Cable Type: Standard, 75 Ohm Triaxial, FEP Insulated
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Electrical Resistance: 8.5 Ohms ± 1.1
- Operating Temp: -51°C to +177°C
- Seal Warning: Avoid below -34°C to protect the O-ring.
Your Model Number Decoded
- 330707 – 3300 XL 11mm Probe Base Model
- -00 – Unthreaded Section: 0.0 inch
- -20 – Case Length: 2.0 inches
- -90 – Total Cable: 9.0 meters
- -01 – Connector: ClickLoc with Protector
- -05 – Agency: Multiple Global Approvals
Installation & Handling Notes
- Mounting Torque: Tighten to 15.2 N•m (133 in-lb). Never exceed 45.2 N•m.
- Thread Use: Do not engage more than 0.938 inches.
- Connector: Hand-tighten only. Maximum is 0.565 N•m.
- Cable Care: Do not bend sharper than 25.4 mm (1 inch) radius.
- The probe has a Viton O-ring seal. It is not pressure tested by default.
Compatibility & Applications
This 330707-00-20-90-01-05 probe works with Bently Nevada 3300 XL monitors. Use it on turbines, generators, and large pumps. The long cable is perfect for hard-to-reach spots. It ensures signal integrity over distance.
Quality & Approvals
This product carries multiple international safety approvals. It meets high standards for industrial use worldwide.
Shipping & What's Included
- In the Box: One proximity probe with connector protector.
- Weight: 0.17 kg (approx.).
- Delivery: We ship quickly via FedEx, UPS, and DHL.
Our Warranty to You
Your purchase is protected by a 12-month warranty. This covers any defects in materials or workmanship.
Frequently Asked Questions
What is the main advantage of the 9-meter cable?
It allows you to install the monitor far from the measurement point. This is useful in large or complex machinery layouts.
Does the connector protector come attached?
Yes, the model 330707-00-20-90-01-05 includes a ClickLoc connector with a protective cover to prevent damage during handling.
What is the probe's electrical resistance for the 9m version?
The typical probe resistance is 8.5 Ohms, with a tolerance of ± 1.1 Ohms.
Can I use this probe for high-speed machinery?
Yes, the 3300 XL series is designed for precise measurement on rotating equipment like turbines and compressors.
Is the cable oil-resistant?
The FEP-insulated cable offers good resistance to many oils and chemicals found in industrial environments.
