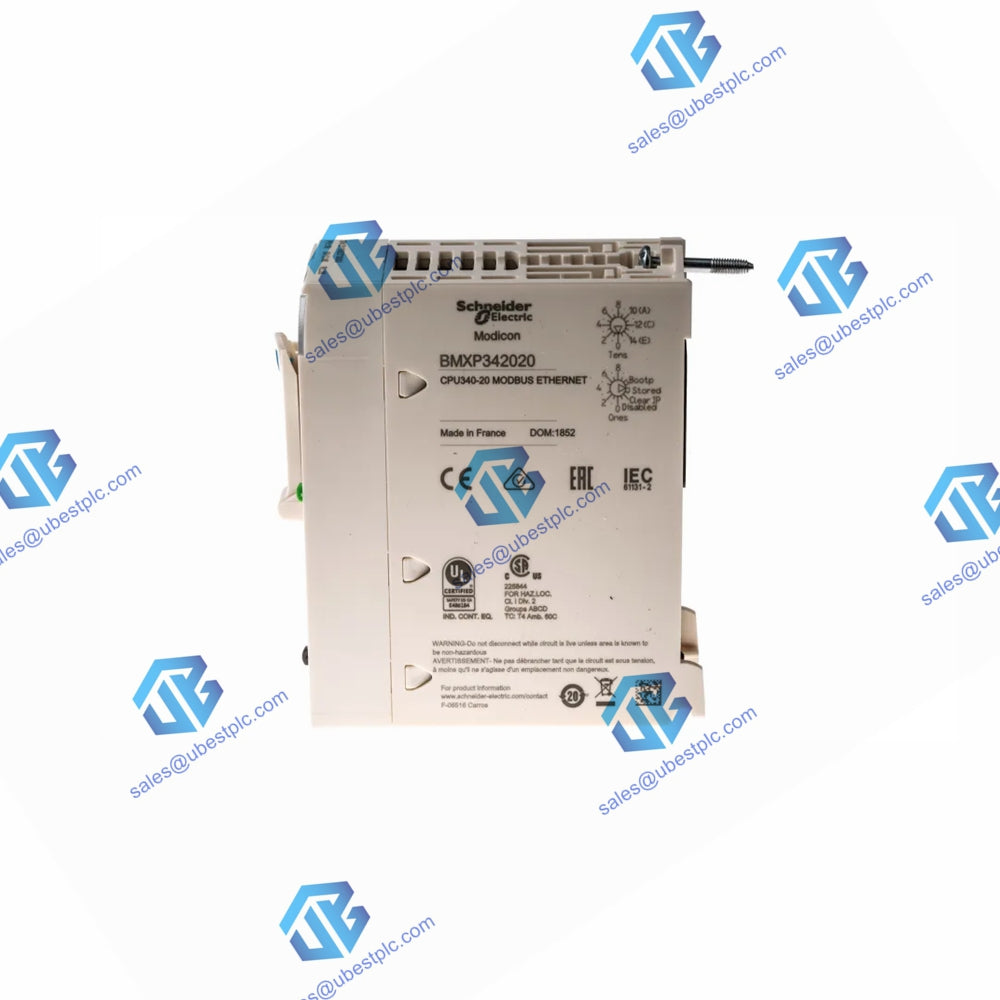

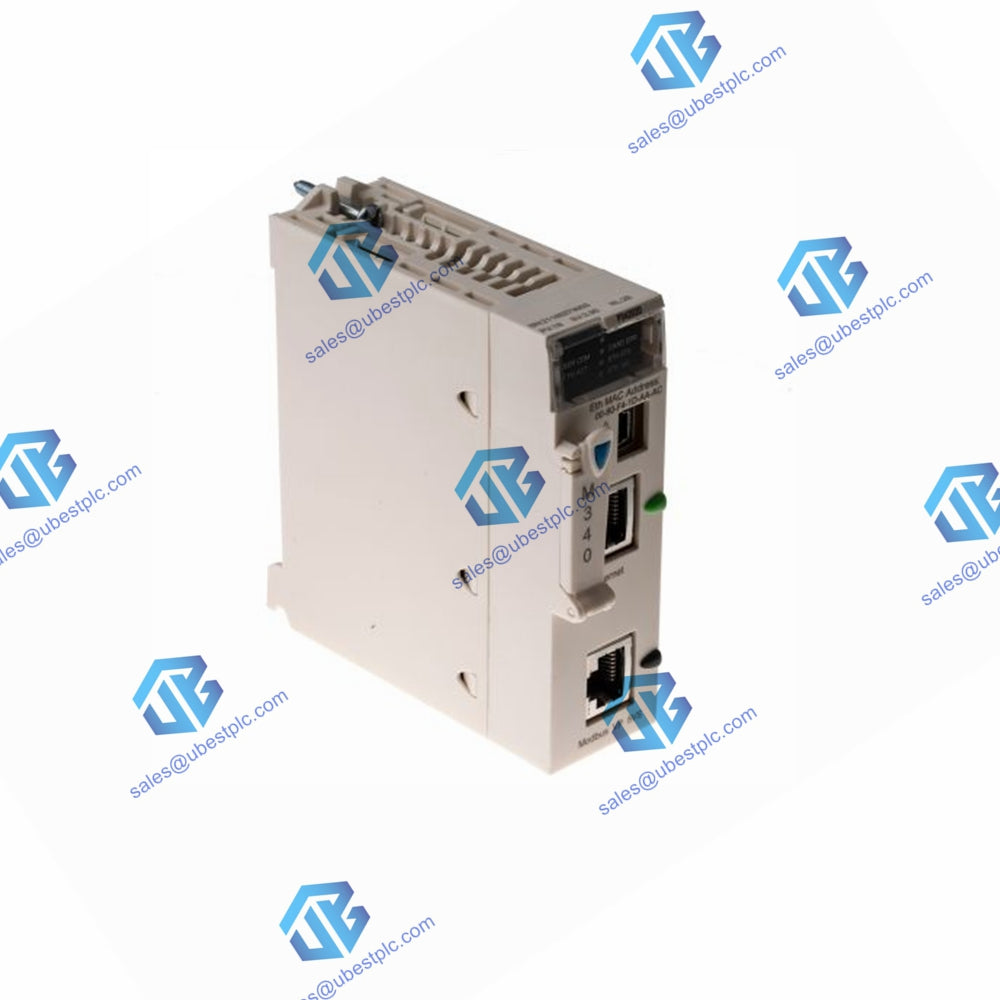

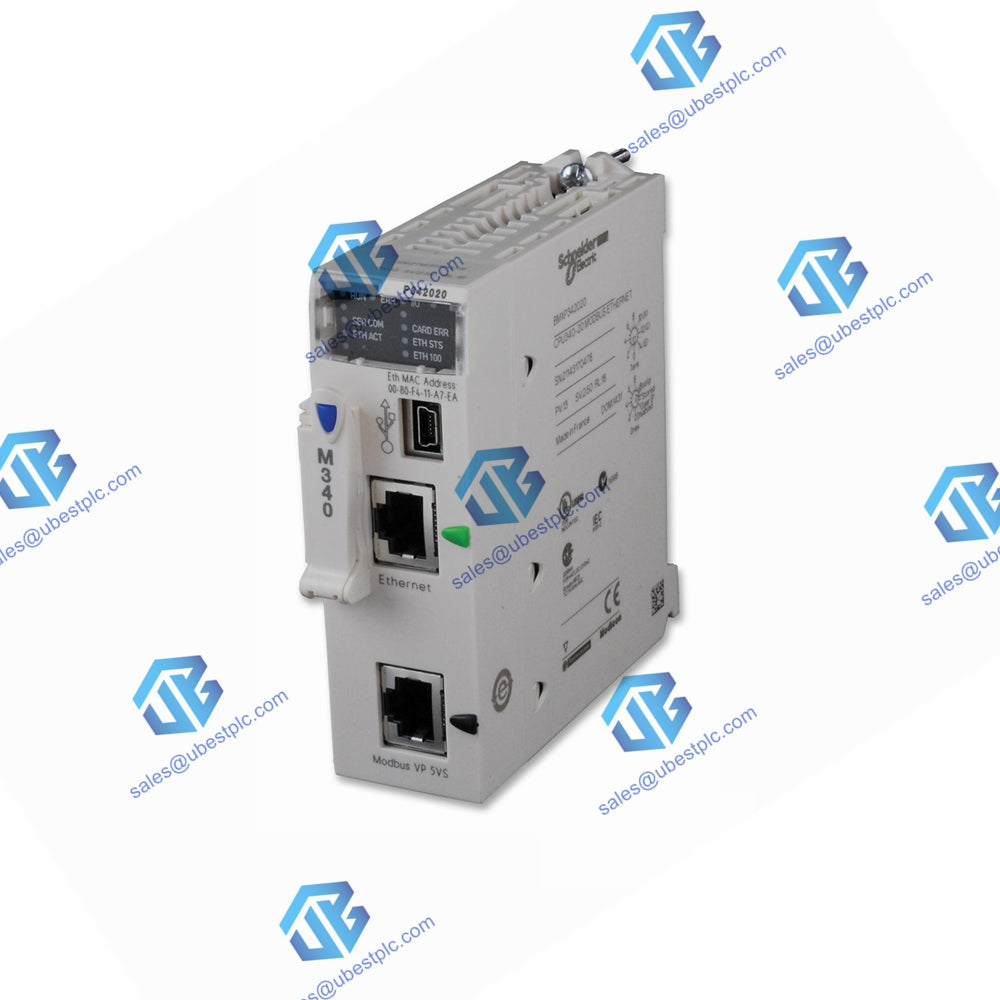

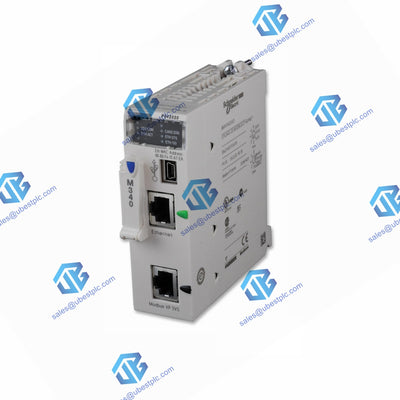

BMXP342020 Processor Module Schneider

In stock
Manufacturer:
Schneider
Product No.:
BMXP342020
Condition:
In Stock
Product Type:
Processor Module
Product Origin:
FR
Weight:
205g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

Schneider Model: BMXP342020

Schneider Main

Range of Product: Modicon M340 automation platform
Product or Component Type: Processor module
Concept: Transparent Ready, CANopen
Number of Racks: 4
Number of Slots: 11
Discrete I/O Processor Capacity: 1024 I/O multi-rack configuration, 704 I/O single-rack configuration
Analogue I/O Processor Capacity: 256 I/O multi-rack configuration, 66 I/O single-rack configuration
Number of Application Specific Channels: 36
Monitoring: Diagnostic counters Modbus, Event counters Modbus

Schneider Complementary

Control Channels: Programmable loops
Integrated Connection Type:
  • Non-isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex
  • Non-isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex
  • Non-isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex
  • Non-isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex
  • USB port 12 Mbit/s
  • Ethernet TCP/IP RJ45 1 twisted pair 10/100 Mbit/s
Communication Module Processor Capacity: 2 Ethernet communication modules, 4 AS-Interface modules
Embedded Communication Service:
  • Bandwidth management, Ethernet TCP/IP
  • Data Editor, Ethernet TCP/IP
  • Modbus TCP messaging, Ethernet TCP/IP
  • Rack Viewer, Ethernet TCP/IP
  • SNMP network administrator, Ethernet TCP/IP
Port Ethernet: 10BASE-T/100BASE-TX
Number of Devices per Segment: 0…32 (character mode), 0…32 (Modbus)
Number of Devices: 2 point-to-point (character mode), 2 point-to-point (Modbus)
Bus Length:
  • 0…32.8 ft (0…10 m) serial link non-isolated character mode segment
  • 0…32.8 ft (0…10 m) serial link non-isolated Modbus segment
  • 0…3280.8 ft (0…1000 m) serial link isolated character mode segment
  • 0…3280.8 ft (0…1000 m) serial link isolated Modbus segment
  • 0…49.2 ft (0…15 m) character mode point-to-point
  • 0…49.2 ft (0…15 m) Modbus point-to-point
Maximum Tap Links Length:
  • <49.2 ft (15 m) serial link non-isolated character mode segment
  • <49.2 ft (15 m) serial link non-isolated Modbus segment
  • <131.2 ft (40 m) serial link isolated character mode segment
  • <131.2 ft (40 m) serial link isolated Modbus segment
Number of Addresses: 0…248 (character mode), 0…248 (Modbus)
Requests:
  • 1 K data bytes per request (character mode)
  • 252 data bytes per RTU request (Modbus)
  • 504 data bytes per ASCII request (Modbus)
Control Parameter:
  • One CRC on each frame (RTU) Modbus
  • One LRC on each frame (ASCII) character mode
  • One LRC on each frame (ASCII) Modbus
Memory Description:
  • Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols, and data
  • Internal RAM 4096 kB
  • Internal RAM 256 kB data
  • Internal RAM 3584 kB program constants and symbols
  • Supplied memory card (BMXRMS008MP) activation of standard web server, class B10
Maximum Size of Object Areas: 256 kB unlocated internal data, 32634 %Mi located internal bits
Default Size of Object Areas:
  • 1024 %MWi internal words located internal data
  • 256 %KWi constant words located internal data
  • 512 %Mi located internal bits
Application Structure:
  • 1 cyclic/periodic master task
  • 1 periodic fast task
  • No auxiliary task
  • 64 event tasks
Execution Time per Instruction:
  • 0.12 µs Boolean
  • 0.17 µs double-length words
  • 0.25 µs single-length words
  • 1.16 µs floating points
Number of Instructions per ms: 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 8.1 Kinst/ms 100 % Boolean
System Overhead: 0.13 ms fast task, 0.7 ms master task
Current Consumption: 95 mA 24 V DC
Supply: Internal power supply via rack
Marking: CE
Status LED:
  • 1 LED (Green) activity on Ethernet network (ETH ACT)
  • 1 LED (Green) processor running (RUN)
  • 1 LED (Green) status of Ethernet network (ETH STS)
  • 1 LED (Red) data rate (ETH 100)
  • 1 LED (Red) I/O module fault (I/O)
  • 1 LED (Red) memory card fault (CARD ERR)
  • 1 LED (Red) processor or system fault (ERR)
  • 1 LED (Yellow) activity on Modbus (SER COM)
Net Weight: 0.452 lb(US) (0.205 kg)

Schneider Environment

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Relative Humidity: 10…95 % without condensation
IP Degree of Protection: IP20
Protective Treatment: TC
Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility

Schneider Product Certifications

Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
Standards:
  • EN 61131-2
  • EN/IEC 61010-2-201
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
  • IACS E10
  • EN/IEC 61000-6-5, interface type 1 and type 2
  • EN/IEC 61850-3, location G
Environmental Characteristic: Hazardous location class I division 2

Schneider Ordering and Shipping Details

Category: US1PC3418160
Discount Schedule: PC34
GTIN: 3595863910711
Returnability: Yes
Country of Origin: FR

Schneider Packing Units
