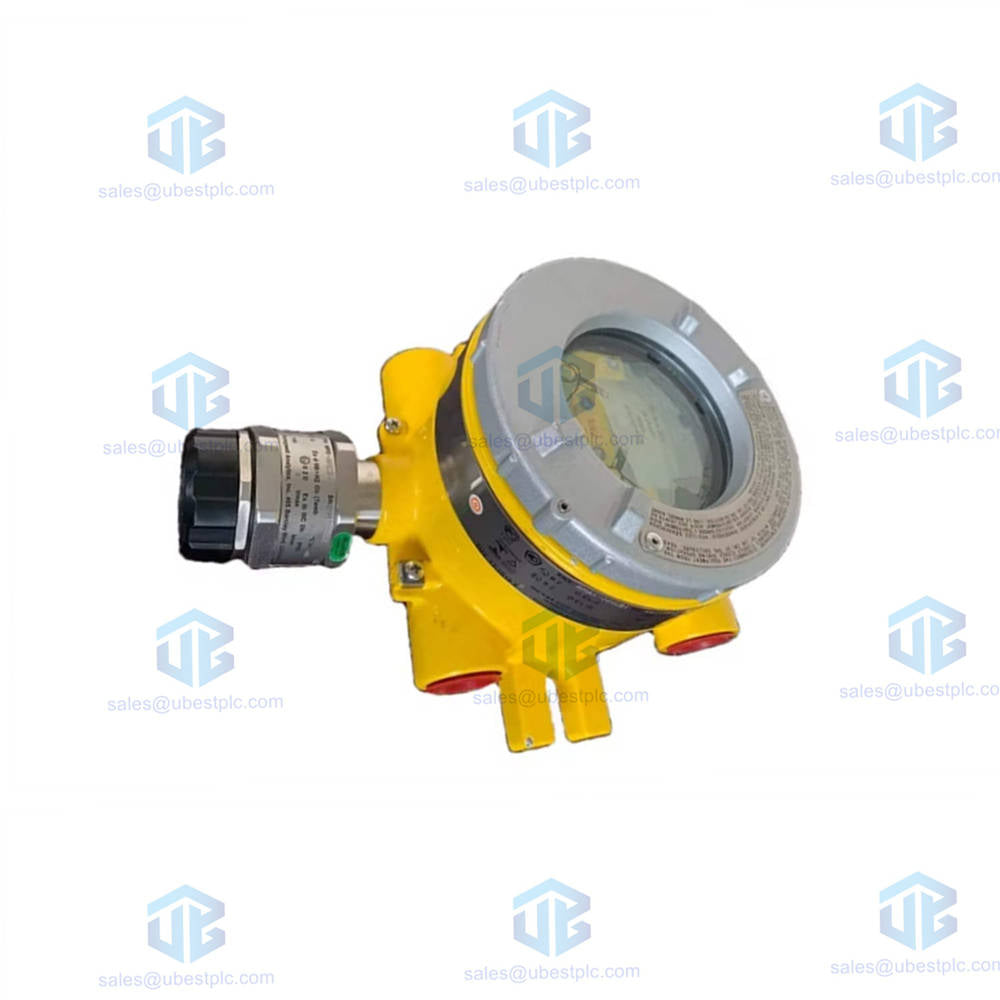

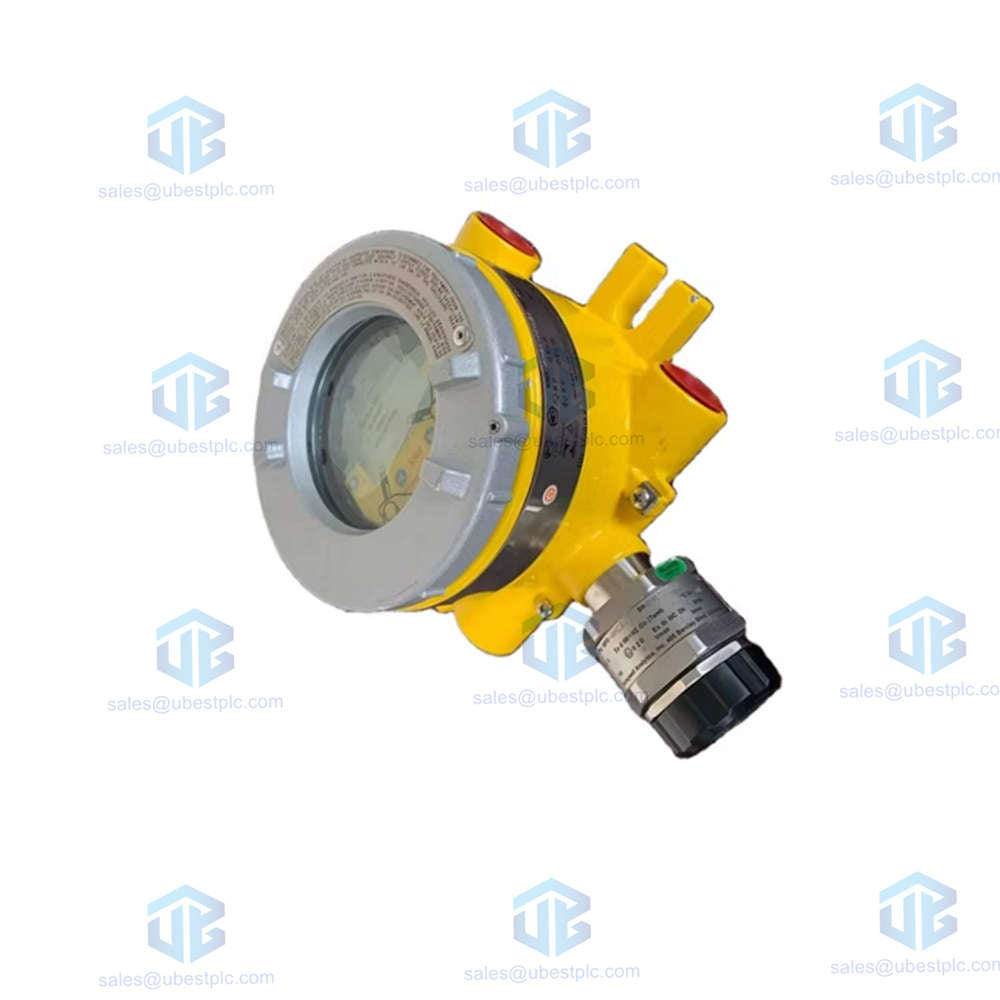

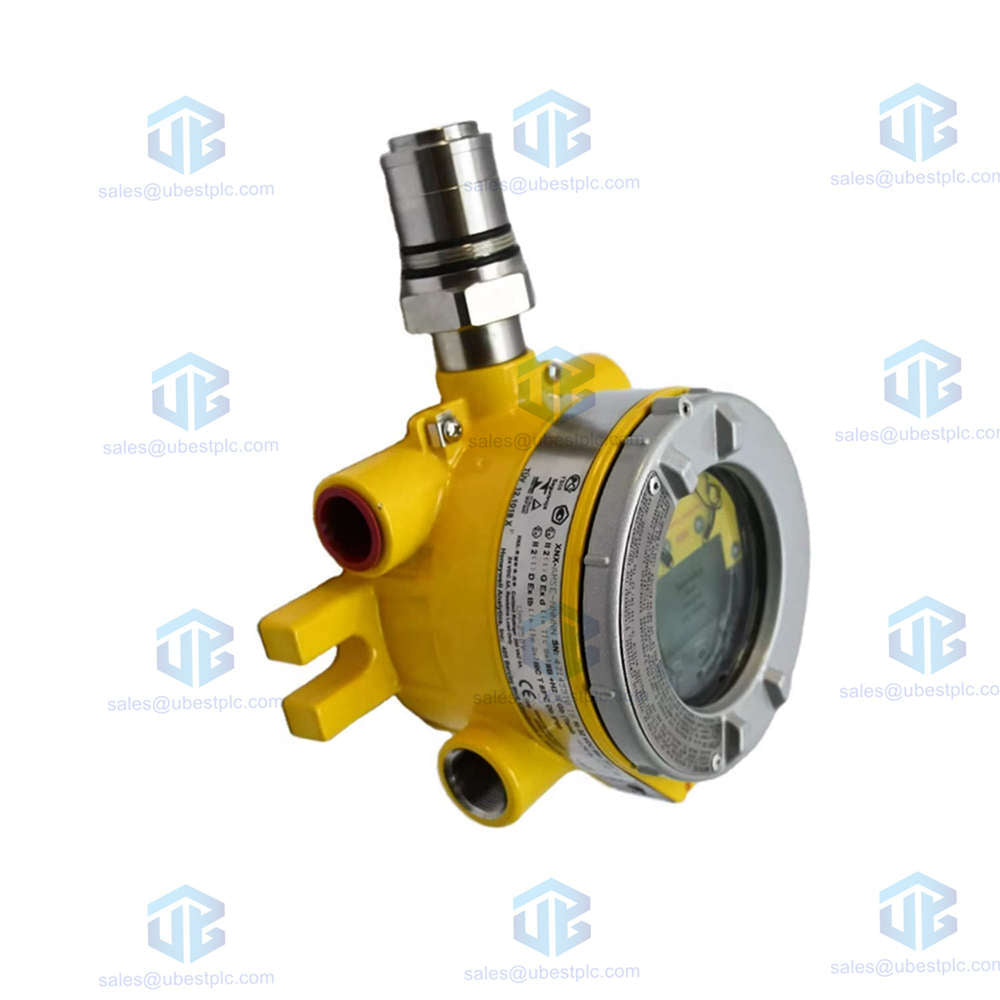

Honeywell XNX-UTSE-RHCB1 Industrial Combustible Gas Transmitter

The XNX-UTSE-RHCB1 transmitter gives field operators total safety by continuously monitoring flammable gas risks in tough industrial plants.

Summary Overview

• Honeywell builds the XNX-UTSE-RHCB1 transmitter to detect flammable gases across hazardous petrochemical facilities.
• This strong device uses a catalytic bead sensor to track combustible gas leaks quickly and accurately.
• The solid 316 stainless steel housing stops harsh salt air corrosion in heavy offshore platform applications.
• Integrated relay controls activate local sirens or shut down equipment immediately during dangerous gas leaks.
• Operators change settings easily using local HART handheld tools without opening the heavy steel housing cover.

Core Technical Parameters

• Brand Identity: Honeywell manufactures this reliable safety unit for critical gas monitoring systems worldwide.
• Model Identifier: Plant engineers specify the industrial part number XNX-UTSE-RHCB1 for full site safety.
• Measurement Scale Range: The catalytic sensor monitors explosive gas levels accurately from 0 to 100% LEL concentration.
• Response Time Speed: The internal sensing circuit triggers alert signals in less than 15 seconds during tests.
• Signal Resolution Output: Digital processing circuits deliver precise gas measurement readings down to 1% LEL resolution continuously.
• Full Scale Linearity: The calibrated sensor tracks gas levels with fine linear accuracy within ±3% LEL limits.
• Operating Temperature Range: Internal components work perfectly in extreme weather ranging from -40°C up to +65°C.
• Environmental Immunity: Specialized internal coating layers protect sensor electronics against heavy dust and high humidity.
• Interference Resistance: Advanced catalytic elements ignore common silicone vapors and reduce poison risks from field chemicals.
• Instrument Physical Weight: The thick stainless steel casing weighs approximately 6.8 kg (15 lbs) for stability.

Nomenclature Tree Structure

• Honeywell XNX Series Gas Transmitter
  • XNX: Universal Gas Detection Platform
    • U: Approvals - UL and CSA Certified for Hazardous Locations
    • T: Conduit Thread Type - Standard 3/4" NPT Field Cable Entry
    • S: Material Grade - Corrosion Resistant 316 Stainless Steel Enclosure
    • E: Personality Board - Interface for Electrochemical and Catalytic Cartridges
    • R: Relay Option - Built-in Alarm and Fault Relay Contacts Included
    • H: Local Interface - Built-in Local HART Protocol Communication Port
    • CB1: Sensor Element - Catalytic Bead Flammable Gas Sensor Cartridge

Key Product Advantages

• Dual local HART ports allow technicians to run diagnostics without stopping main plant operations.
• Configurable alarm relays switch emergency valves directly during dangerous gas leaks on remote sites.
• Strong stainless steel housing resists physical impacts and chemical spills in heavy oil refineries.
• Plug-in sensor cartridges simplify field replacements and shorten repair times for maintenance crews significantly.
• Full UL and CSA safety ratings grant fast compliance approval for critical industrial construction projects.

Installation Procedures

• Mount the steel unit firmly onto a flat wall or heavy steel pipe using proper bolts.
• Thread power wires through the 3/4" NPT entry using explosion-proof cable glands for safety.
• Attach alarm relay wires to external emergency horns or automatic shutdown valves in the panel.
• Connect standard three-wire 4-20mA loop lines to control room computers for continuous remote monitoring.
• Fasten ground wires onto the outer stainless steel frame to prevent electrical noise issues.

Package Contents and Logistics

• The factory shipping box includes one transmitter body and one catalytic bead sensor cartridge.
• We cover every purchase with a full 12-month quality warranty for complete customer protection.
• Our team ships orders quickly using global express carriers like FedEx, UPS, and DHL Express.

Frequently Asked Questions

• Does this transmitter model include physical relay contacts for local alarms?
  • Yes, the letter R in the product code indicates built-in alarm and fault relays.
• What gas type does the catalytic sensor cartridge detect in the field?
  • The CB1 sensor detects flammable and explosive gases like methane or propane up to 100% LEL.
• Can technicians adjust settings using standard HART communication handheld tools?
  • Yes, technicians connect HART tools to the local port for fast non-intrusive field setup routines.
• Does this unit carry safety approvals for explosive industrial atmospheres in North America?
  • Yes, the letter U confirms full UL and CSA safety certifications for hazardous industrial sites.
• How long does the standard product warranty protect this transmitter unit after purchase?
  • We back this industrial transmitter unit with a full 12-month quality warranty against defects.
