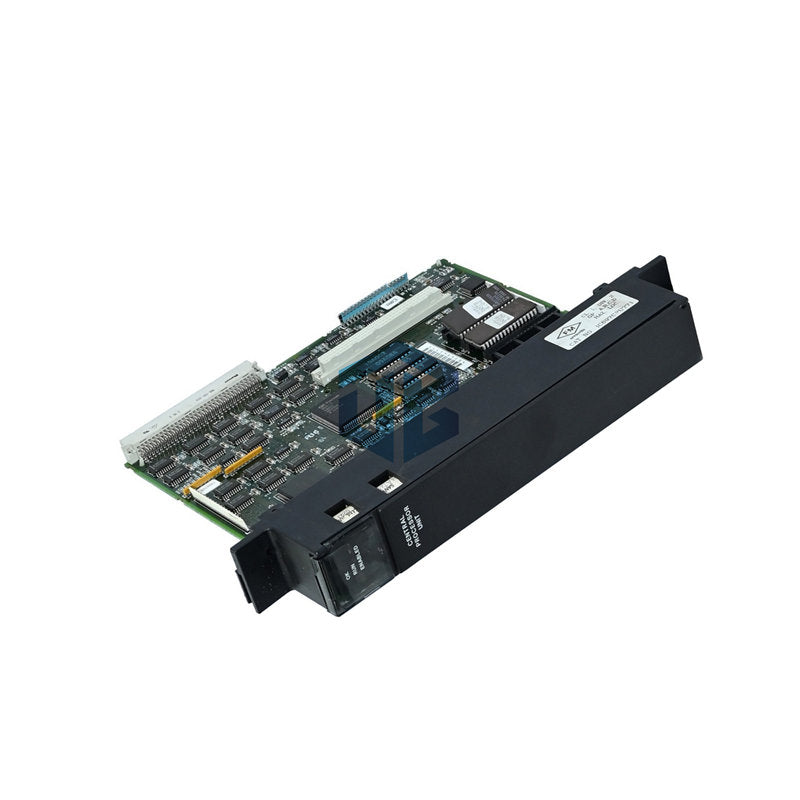

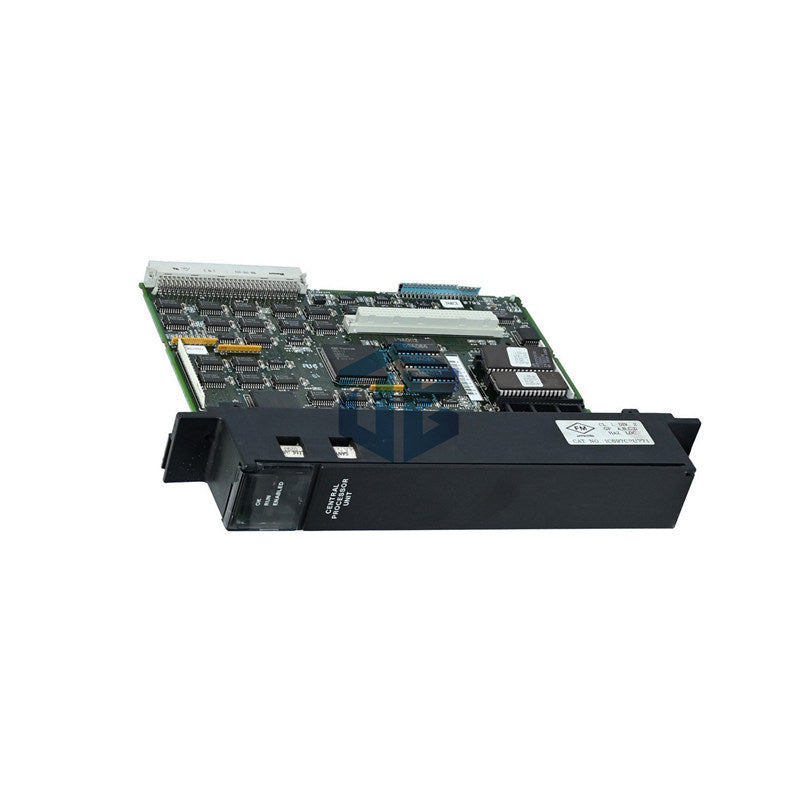

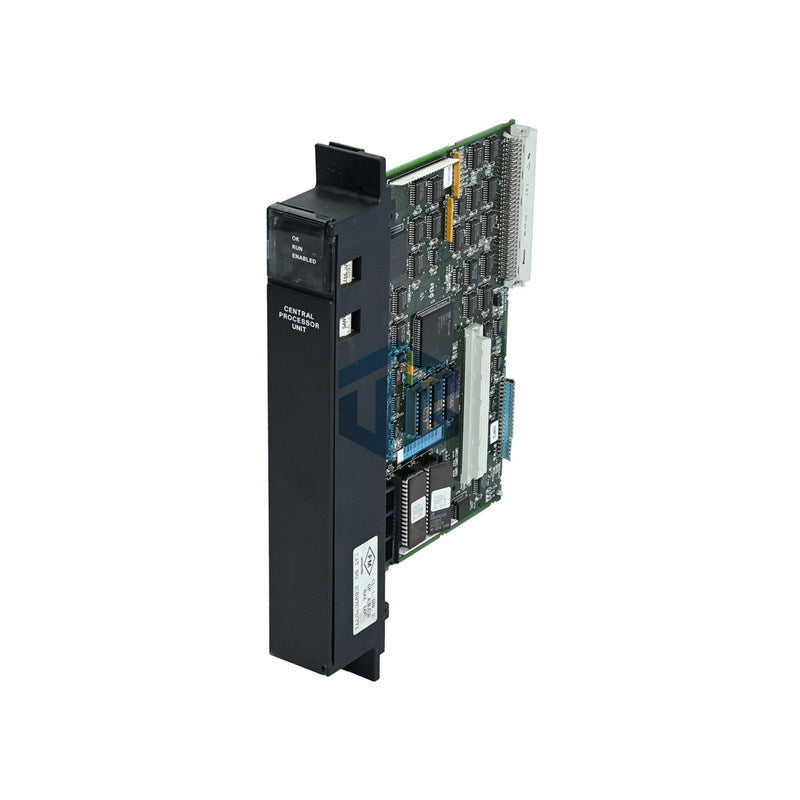

GE Fanuc IC697CPU771: High-Speed Processor Module

The IC697CPU771 powers your Series 90-70 automation system with reliable performance. This CPU module handles complex control tasks with speed and precision. It supports extensive I/O configurations and advanced programming options. Perfect for industrial applications requiring robust processing power.

Technical Specifications

• Brand: GE Fanuc (Emerson Automation)
• Model: IC697CPU771
• Series: Series 90-70
• Type: CPU Processor Module
• Processor: 80C186 microprocessor @ 12MHz
• Boolean Speed: 0.4 μs per instruction
• Discrete I/O Memory: 2KB
• Analog I/O Memory: 8KB (8000 points)
• Expansion Memory: Up to 512KB RAM
• Communication Port: RS485 serial interface
• Battery Backup: Lithium battery IC697ACC701
• LED Indicators: Module OK, RUN, Outputs Enabled
• Slot Requirement: Slot 1 of Rack 0
• VME Standard: C.1 compatible

Programming & Compatibility

• Works with Logicmaster 90-70, VersaPro, and Proficy ME
• Supports Windows and MS-DOS programming environments
• Compatible with all IC697 I/O and communication modules
• Password protection for program security
• Floating point math capability for complex calculations
• Ethernet communication through interface modules

Package & Support

• Includes one IC697CPU771 processor module
• 12-month warranty against manufacturing defects
• Worldwide shipping via FedEx, UPS, or DHL available
• Comprehensive installation and programming manuals

Frequently Asked Questions

• What programming software works with this CPU?
  It uses Logicmaster 90-70, VersaPro, or Proficy Machine Edition software.
• How much memory can be added to this processor?
  You can expand up to 512KB using CMOS RAM expansion boards.
• What types of I/O systems does it support?
  It handles both discrete (2000 points) and analog (8000 points) I/O.
• Does it include battery backup?
  Yes, it uses lithium battery IC697ACC701 for memory protection.
• Can I connect to Ethernet networks?
  Yes, through compatible IC697 LAN interface modules.
