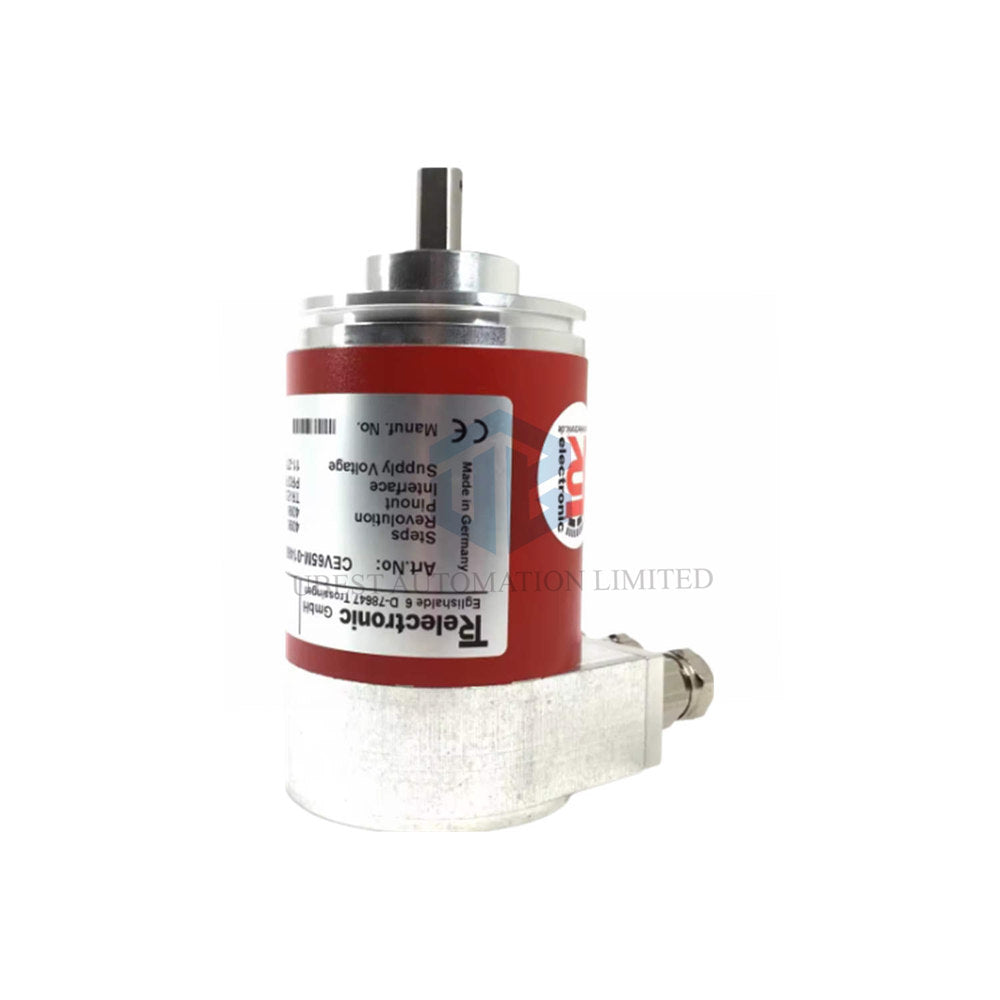

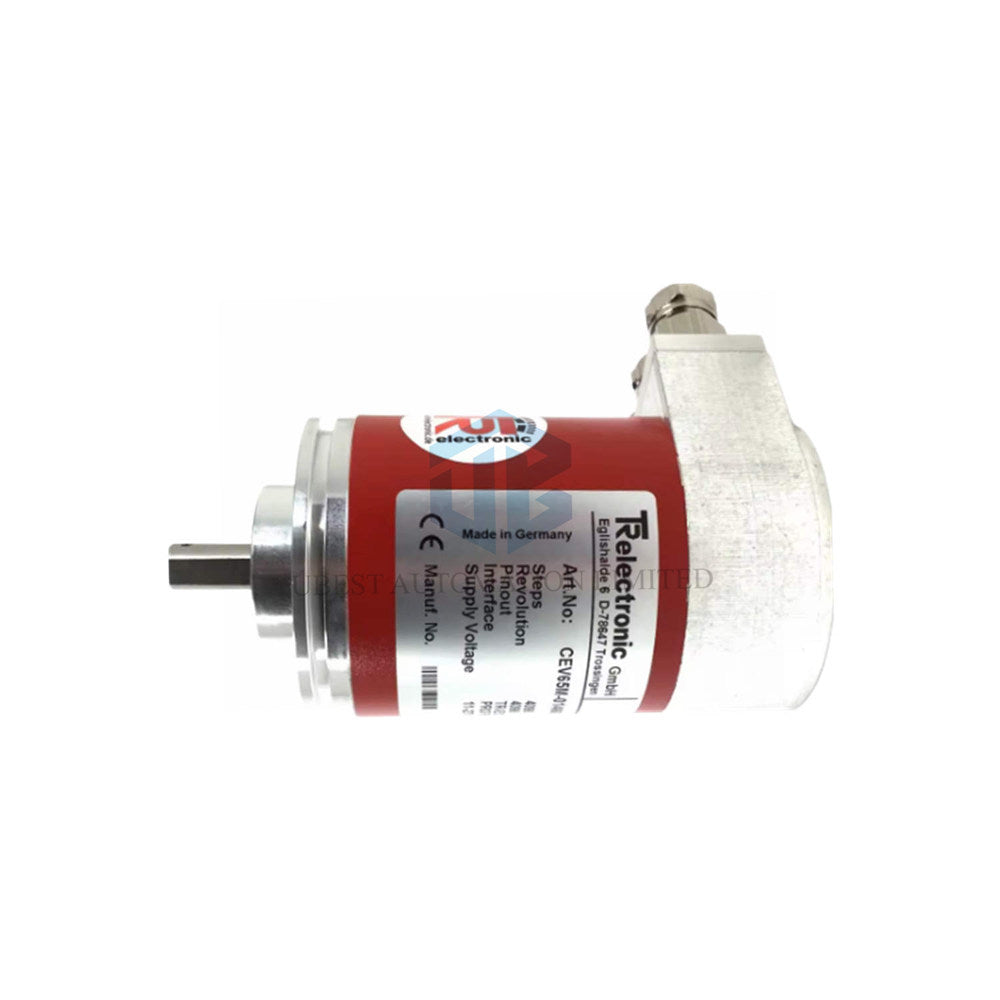

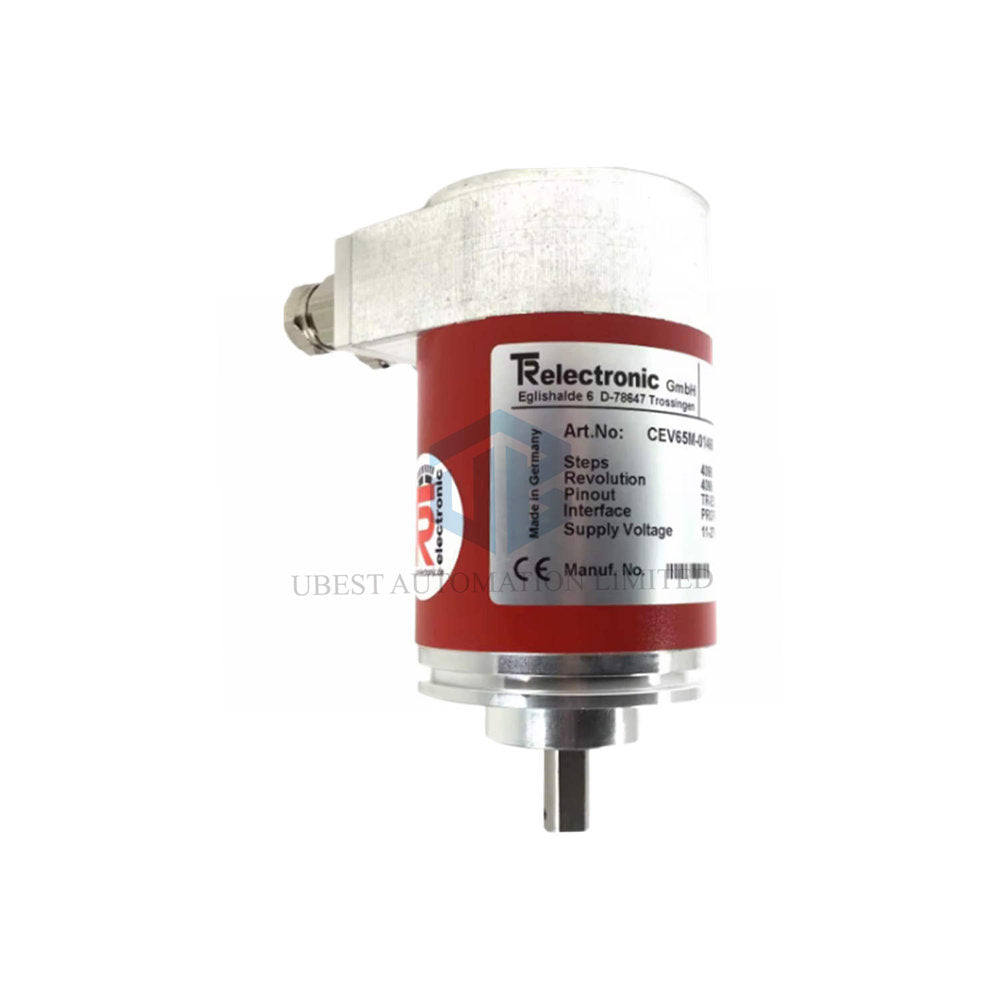

TR Electronic CEV65M-01360 – Absolute Rotary Encoder with SSI Interface

• Brand: TR Electronic
• Model: CEV65M-01360
• Author: Ubest Automation
• Steps per revolution: 8,192,000
• Revolutions: 4,096,000
• Programmable: Yes (via TRWinProg)
• Interface: SSI
• Code format: Programmable (Gray/Binary)
• Supply voltage: 11–27 V DC
• Output level: RS422
• Protection class: IP65
• Temperature range: -20°C to +70°C
• Flange type: ZB36
• Shaft type: 10FL/19.5
• Connector type: Contact 12-pin
• Connector position: Radial on housing
• Pinout No.: ST185E
• Mating plug: Included
• Options – F/R: Encoder direction control
• Options – Preset: 1 and 2 electronic preset inputs
• Options – Programmable: Full WINPROG support
• Drawing No.: 04-CEV65M-M0021
• Version No.: 158
• Parameter file: CE816-095
• Firmware No.: 437860
• ECCN: N

Frequently asked questions

• Q: What is the total resolution of CEV65M-01360?
  A: The encoder provides 8,192,000 steps per revolution and 4,096,000 revolutions. This equals 46 bits total.
• Q: Can I use this encoder outdoors?
  A: Yes. The IP65 protection class resists dust and water jets. The -20°C to +70°C range suits harsh environments.
• Q: Do I need a separate programming tool?
  A: You need TRWinProg software from TR Electronic. Ubest Automation can help you access it.
• Q: What SSI code formats does it support?
  A: You can program Gray code or Binary code through the SSI interface.
• Q: Is the mating plug really included?
  A: Yes. The package includes the matching 12-pin connector for the radial housing port.
