Technical Data

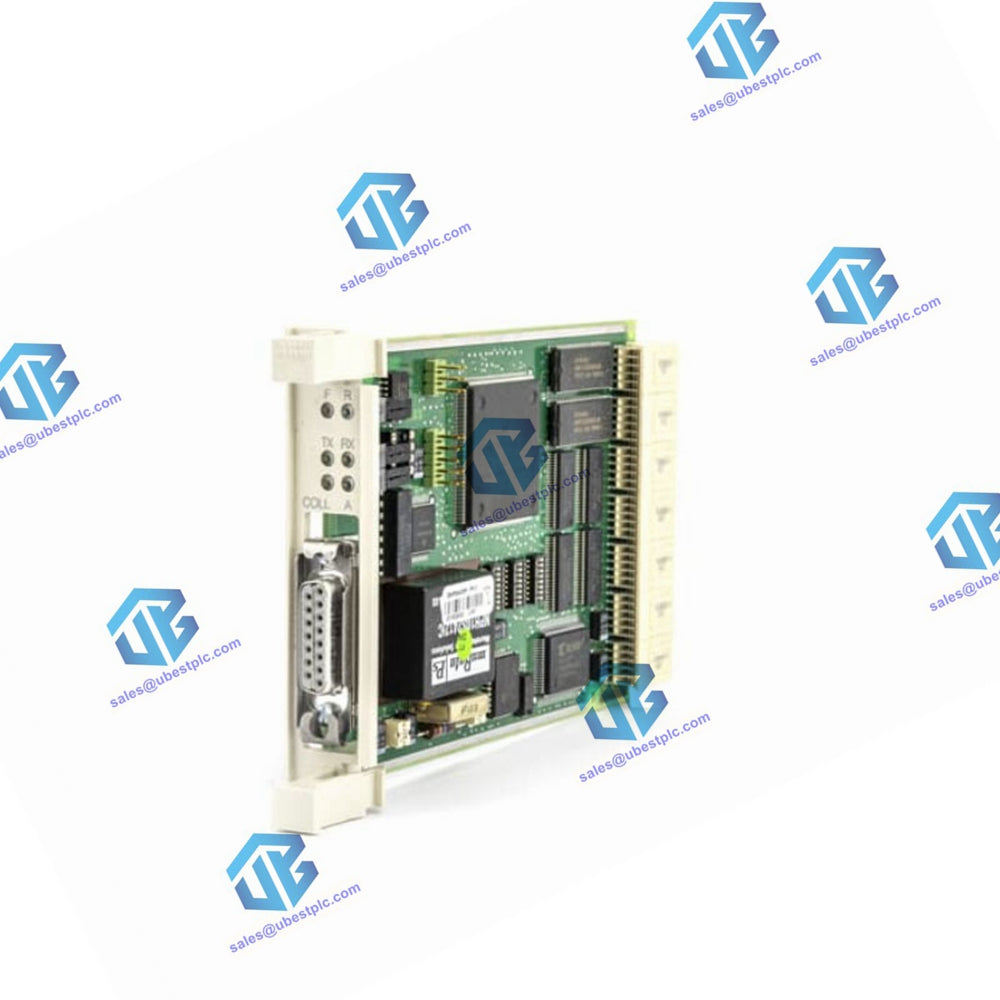

CI520 Communication Interface

The CI520 communication interface is used in the Advant Controller 400 Series. The communication interface CI520 is a submodule which can handle about 4000 CDPs and has full functionality of a bus administrator. It can be a bus master on the bus.

Front Panel of the Communication Interface CI520

The front panel of the CI520 contains the ordinary green “R” (Run) LED and the red “F” (Fault) LED.

Technical Data of Communication Interface CI520

The communication interface CI520 is inserted into the Advant Controller 450/460 submodule carrier or in the Advant Controller 410 CPU.

Power Consumption

• Power consumption of the CI520 is 3.7 W (+5V) and 2 x 2.5 W (+24V).

Connection Specifications

Bus connection X8, cable 1 and X9, cable 2 on CI520:

• Type of connector: D-sub female, 9 pin
• Output voltage: RS-485, GND, 24 V
• Output current: max. 60mA
• Input voltage: RS-485
• Input impedance type: 12 kohm

Modem cable

• Cable number: TK515 (Used for AC 450)
• Connection: CI520 to TC625, TC512 or TC516
• Cable length: 1.80 m (5.9 ft.)
• Connection type: It is connected one-to-one
• Remarks: Right hand angled hood in CI520 end.

Modem cable

• Cable number: TK593 (Used for AC 410)
• Connection: CI520 to TC625, TC512 or TC516
• Cable length: 3.60 m (11.8 ft.)
• Connection type: It is connected one-to-one
• Remarks: Right hand angled hood in CI520 end.
