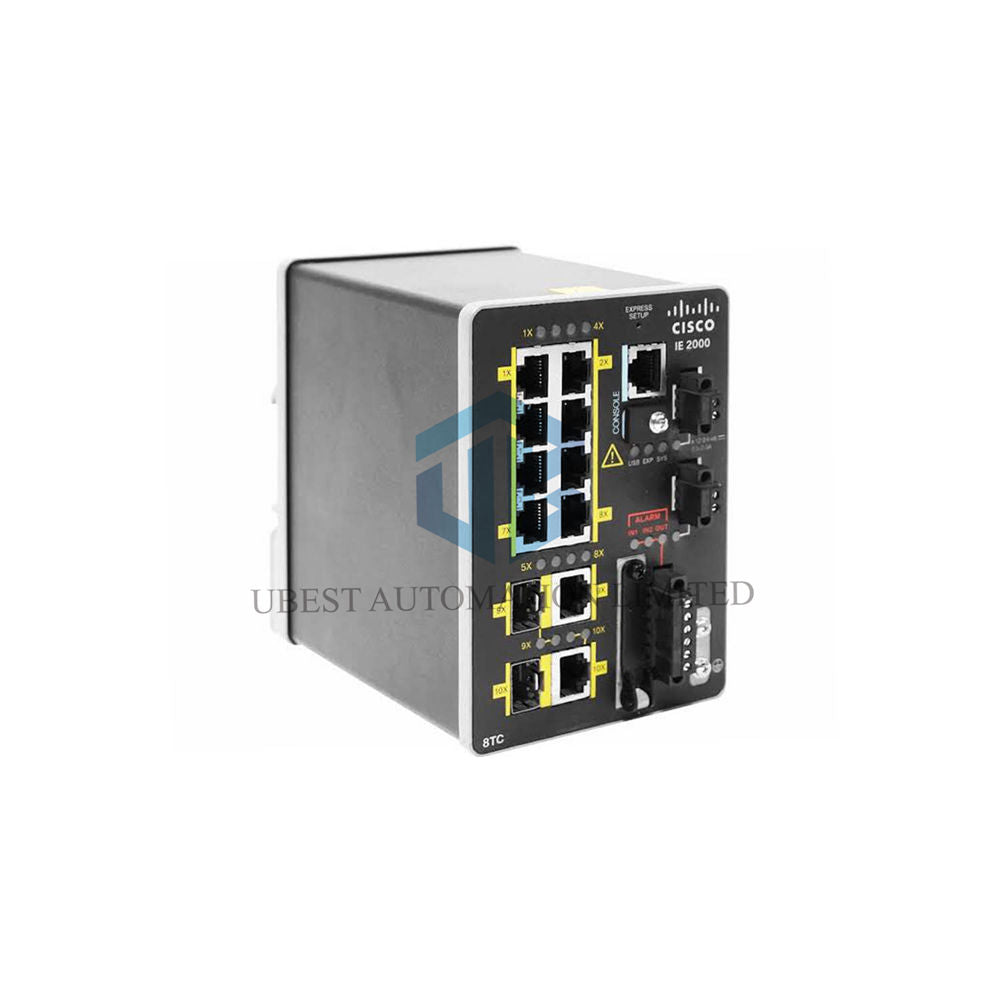

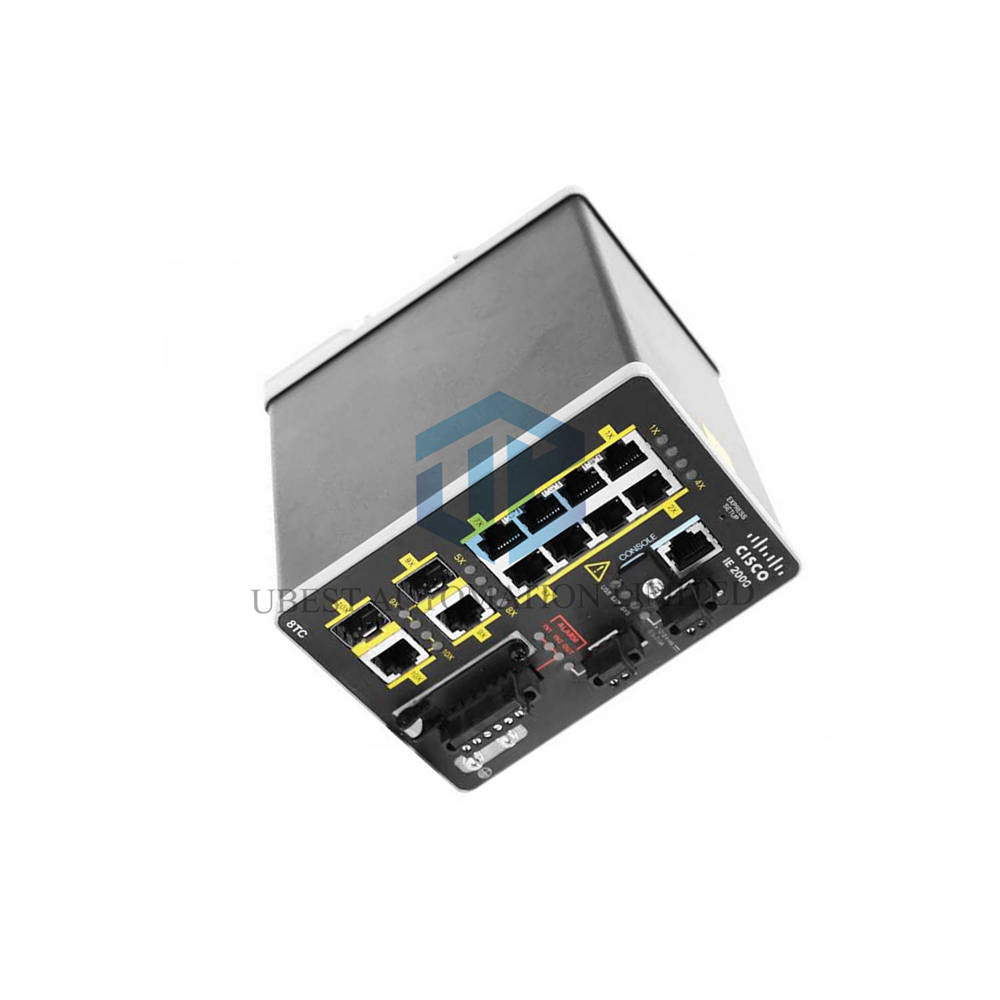

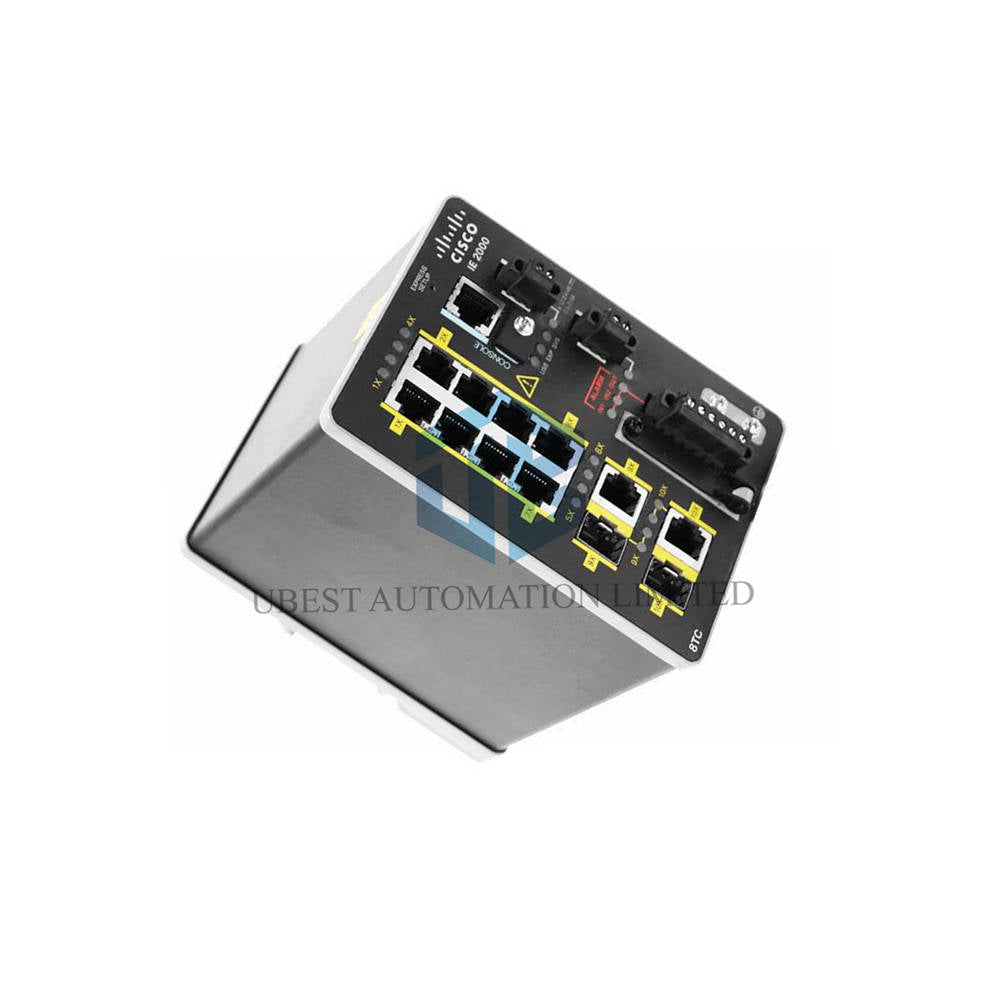

Cisco IE-2000-8TC-G-B Industrial Ethernet Switch Overview

Engineers design the Cisco IE-2000-8TC-G-B switch for reliable data transmission in extreme industrial automation environments. This compact IE-2000-8TC-G-B switch belongs to the Cisco IE 2000 Series and features eight Fast Ethernet ports plus two Gigabit combo ports. Industry operators rely on this rugged access switch to deliver safe, low-latency network convergence across factories, power utilities, and transportation systems.

Summary of Technical Advantages

• Rugged hardware design ensures uninterrupted network uptime under high electromagnetic noise and extreme temperature shifts.
• Built-in Cisco LAN Base software unlocks advanced Layer 2 switching, IPv4 static routing, and high-level security features.
• Dual-input DC power terminals and alarm output relays provide immediate hardware fault alerts to maintain daily operations.

Key Technical Specifications

• Manufacturer: Cisco
• Model Number: IE-2000-8TC-G-B
• Product Series: Cisco Industrial Ethernet 2000 Series
• Product Category: Ruggedized Industrial Ethernet Access Switch
• Total Port Count: 10 total physical communication ports
• Fast Ethernet Ports: 8 x 10/100Base-T RJ45 copper downlink ports
• Gigabit Combo Ports: 2 x 10/100/1000Base-T or SFP combo uplink slots
• Default Software License: LAN Base factory license pre-installed
• Power Consumption Range: 12.5 Watts to 20 Watts total operational energy draw
• System Memory Hardware: 256 MB DRAM with ECC memory and 64 MB onboard flash
• Operating Temperature Range: -40°C to 70°C (-40°F to 158°F) continuous operational threshold
• Storage Temperature Range: -40°C to 85°C (-40°F to 185°F) non-operational limit
• Relative Operating Humidity: 5% to 95% non-condensing industrial environmental tolerance
• Electromagnetic Interference Immunity: High anti-interference resistance compliant with industrial IEC 61850-3 standards
• Signal Resolution and Timing: IEEE 1588v2 Precision Time Protocol FPGA hardware accuracy for time-critical automation
• Alarm Relay Contacts: Two dry-contact alarm inputs plus one alarm output relay rated up to 1A at 24VDC

Core Selling Points and Features

• Low power consumption saves energy costs and reduces heat output inside sealed control cabinets.
• Dual DC power inputs guarantee seamless power failover during unexpected plant electrical outages.
• Compact DIN-rail mounting form factor saves valuable space inside crowded industrial control panels.
• IEEE 1588v2 PTP hardware support delivers microsecond-level timing accuracy for motion control systems.
• Industrial protocol integration supports seamless communication with EtherNet/IP and PROFINET industrial networks.
• Advanced security suite protects critical plant data using 802.1x, DHCP Snooping, and Dynamic ARP Inspection.

Installation and Mounting Guide

• Attach the heavy-duty DIN-rail mounting bracket securely to the back panel of the switch housing.
• Snap the unit directly onto a standard 35mm DIN rail inside your industrial control panel.
• Connect ground wiring to the dedicated chassis grounding screw before applying external power.
• Wire the dual DC power supplies into the removable terminal block using proper copper wire gauges.
• Insert Category 5 UTP cables into the RJ45 copper ports until locking tabs click into place.
• Slide compatible Cisco industrial SFP transceivers into the uplink combo slots for fiber connections.

Package Contents and Fast Shipping

• Package includes one brand-new Cisco industrial switch unit packed in protective ESD anti-static bags.
• Package includes one removable power terminal block and one DIN-rail mounting kit hardware package.
• Sturdy foam inserts protect the main device inside reinforced box packaging during international air transport.
• Express delivery options include fast, fully trackable shipping via FedEx international priority networks.
• Express delivery options include rapid global transport services handled through UPS express cargo flights.
• Express delivery options include reliable direct door-to-door air freight services provided by DHL Express hubs.

12-Month Warranty and Terms

• Every unit includes a standard 12-month factory warranty covering all internal hardware defects.
• Our technical support team assists customers with hardware diagnostic testing throughout the entire warranty period.

Frequently Asked Questions

• Can I upgrade the LAN Base license on this model? Yes, operators can purchase e-licenses to upgrade directly to Enhanced LAN Base or IP Lite software levels.
• Does this switch support local memory backup? Yes, the switch accepts an optional 1GB industrial SD memory card for quick configuration backup and swap.
• What types of SFP transceivers work with the combo ports? The combo slots accept standard Cisco rugged copper transceivers, multimode SFP modules, and single-mode SFP optical transceivers.
• How does the switch handle severe electrical noise in factories? Cisco builds high electromagnetic immunity into the chassis to block extreme voltage surges and electrical noise interference.
• Can I manage this switch using standard Cisco tools? Yes, network engineers manage this unit using Cisco Prime, Web Device Manager, Cisco DNA Center, or standard Command Line Interface.
