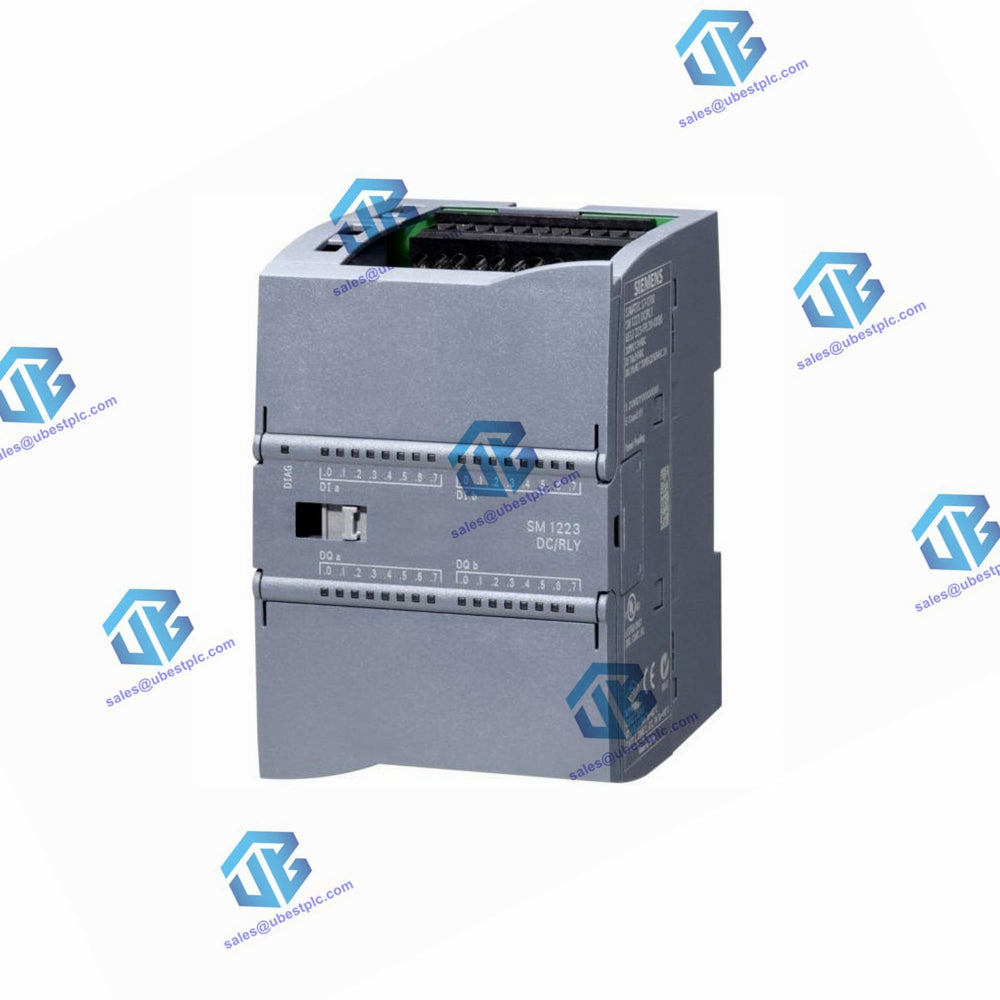

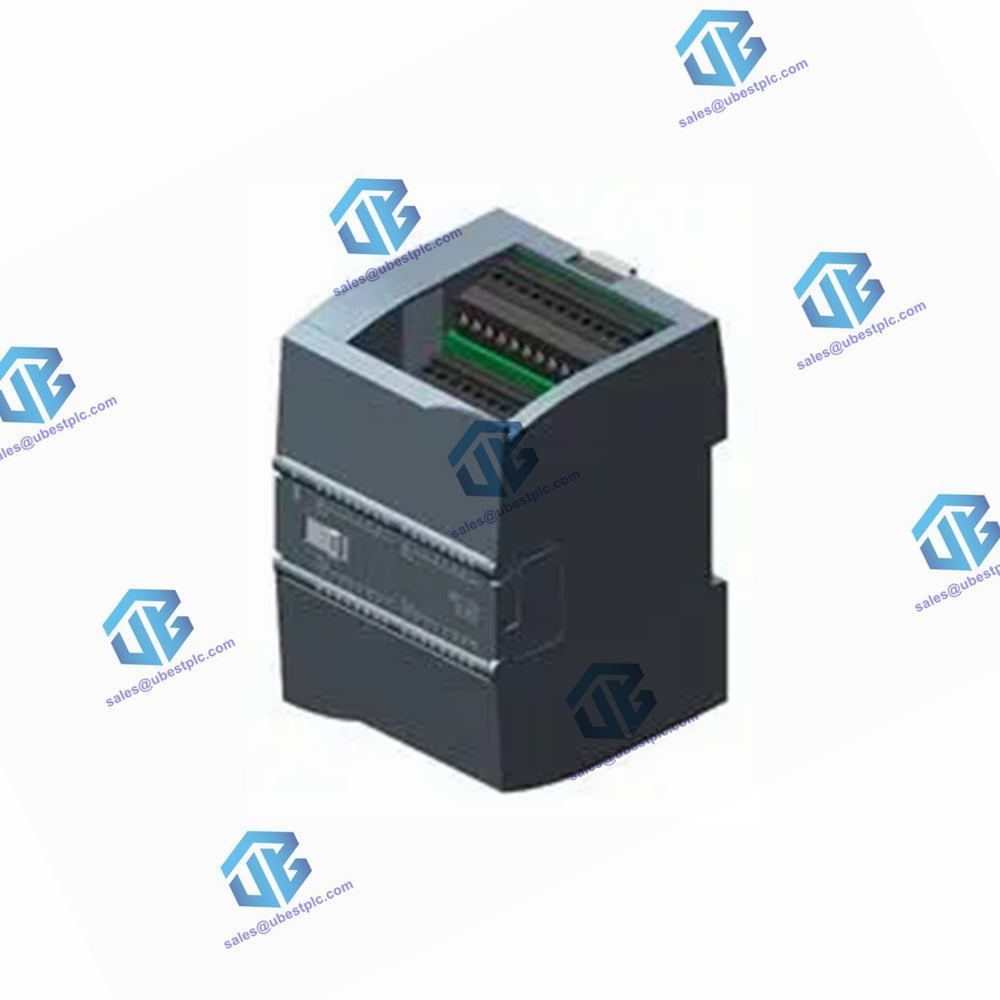

Digital I/O Module | 6ES7223-1PL32-0XB0 Siemens
Manufacturer:
Siemens
Product No.:
6ES7223-1PL32-0XB0
Condition:
In Stock
Product Type:
Digital I/O Module
Product Origin:
DE
Weight:
350g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Siemens Product Information | |
|---|---|
| Article Number (Market Facing Number): | 6ES7223-1PL32-0XB0 |
Siemens Supply Voltage | |
|---|---|
| Rated Value (DC): | 24 V DC |
| Permissible Range, Lower Limit (DC): | 20.4 V |
| Permissible Range, Upper Limit (DC): | 28.8 V |
Siemens Input Current | |
|---|---|
| From Backplane Bus 5 V DC, Max.: | 180 mA |
| From Load Voltage L+ (Without Load), Max.: | 4 mA/input, 11 mA/relay |
Siemens Output Voltage | |
|---|---|
| Power Supply to the Transmitters: | Present |
Siemens Power Loss | |
|---|---|
| Power Loss, Typ.: | 10 W |
Siemens Digital Inputs | |
|---|---|
| Number of Digital Inputs: | 16, in groups of 2 |
| Input Characteristic Curve in Accordance with IEC 61131, Type 1: | Yes |
| Number of Simultaneously Controllable Inputs: | All mounting positions Up to 40 °C, max.: 16 |
| Input Voltage: | Type: DC Rated value: 24 V For signal "0": 5 V DC at 1 mA For signal "1": 15 VDC at 2.5 mA |
| Input Current: | For signal "0", max. (permissible quiescent current): 1 mA For signal "1", min.: 2.5 mA For signal "1", typ.: 4 mA |
| Input Delay (for Rated Value of Input Voltage): | For standard inputs Parameterizable: Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms, and 12.8 ms, selectable in groups of four |
| For Interrupt Inputs: | Parameterizable: Yes |
| Cable Length: | Shielded, max.: 500 m Unshielded, max.: 300 m |
Siemens Digital Outputs | |
|---|---|
| Number of Digital Outputs: | 16, in groups of 4 |
| Short-Circuit Protection: | No; to be provided externally |
| Switching Capacity of the Outputs: | With resistive load, max.: 2 A On lamp load, max.: 30 W with DC, 200 W with AC |
| Output Voltage: | Rated value (DC): 5 V DC to 30 V DC Rated value (AC): 5 V AC to 250 V AC |
| Output Current: | For signal "1" permissible range, max.: 2 A |
| Output Delay with Resistive Load: | "0" to "1", max.: 10 ms "1" to "0", max.: 10 ms |
| Aggregate Current of Outputs (Per Group): | Horizontal installation, up to 50 °C, max.: 8 A; Current per mass |
| Number of Relay Outputs: | 16 |
| Rated Input Voltage of Relay Coil L+ (DC): | 24 V |
| Number of Operating Cycles, Max.: | Mechanically: 10 million At rated load voltage: 100,000 |
| Switching Capacity of Contacts: | With inductive load, max.: 2 A On lamp load, max.: 30 W with DC, 200 W with AC With resistive load, max.: 2 A |
| Cable Length: | Shielded, max.: 500 m Unshielded, max.: 150 m |
Siemens Dimensions | |
|---|---|
| Width: | 70 mm |
| Height: | 100 mm |
| Depth: | 75 mm |
Siemens Weights | |
|---|---|
| Weight, Approx.: | 350 g |
