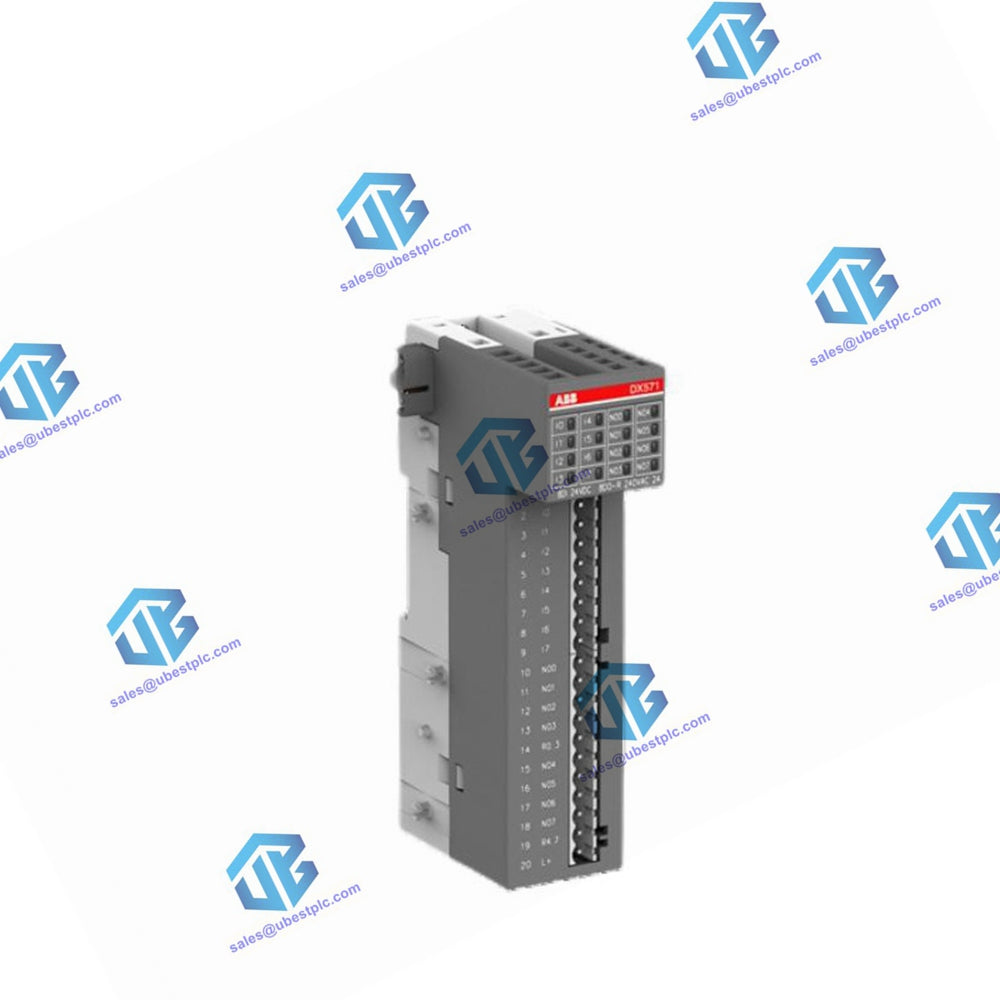

DX571 ABB 1TNE968902R2302 Digital I/O Module
Manufacturer:
ABB
Product No.:
DX571
Condition:
In Stock
Product Type:
Digital I/O Module
Product Origin:
Switzerland
Weight:
150g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
DX571 Digital Input/Output Module Overview
The DX571 is a versatile digital input/output module designed for industrial applications, providing reliable performance and flexible configuration options. This document provides an in-depth look at its ordering information, dimensions, technical specifications, and system data.
Technical Data
Module Technical Data
| Parameter | Value |
|---|---|
| Process Supply Voltage L+ | 24 V DC |
| Current Consumption via L+ | 50 mA |
| Inrush Current (at power-up) | 0.0035 A²s |
| Max. Ripple | 5% |
| Protection Against Reversed Voltage | Yes |
| Rated Protection Fuse for L+ | Recommended; outputs must be protected by a 3 A fuse |
| Galvanic Isolation | Yes, between input group and output group and rest of module |
| Isolated Groups | 3 groups (1 group for 8 input channels, 2 groups for 8 output channels) |
| Surge-Voltage (max.) | 35 V DC for 0.5 s |
| Max. Power Dissipation within Module | 2.3 W |
| Weight | 150 g |
| Mounting Position | Horizontal or vertical |
| Cooling | Natural convection |
Digital Inputs
| Parameter | Value |
|---|---|
| Number of Channels per Module | 8 |
| Distribution of Channels into Groups | 1 group for 8 channels |
| Connections of Channels I0 ... I7 | Terminals 2 ... 9 |
| Reference Potential for Channels I0 ... I7 | Terminal 1 |
| Indication of Input Signals | 1 yellow LED per channel |
| Input Type | EN 61131-2 Type 1 source, sink, AC |
| Input Signal Range | -24 V DC to +24 V DC, 24 V AC 50/60 Hz |
| Max. Cable Length (Shielded) | 500 m |
| Max. Cable Length (Unshielded) | 300 m |
Digital Outputs
| Parameter | Value |
|---|---|
| Number of Channels per Module | 8 normally-open relay outputs |
| Distribution of Channels into Groups | 2 groups (4 channels per group) |
| Connections of Channels O0 ... O3 | Terminals 10 ... 13 |
| Connections of Channels O4 ... O7 | Terminals 15 ... 18 |
| Relay Output Voltage | 24 V DC / 24 V AC or 120/240 V AC |
| Rated Current per Channel | 2.0 A (24 V DC / 24 V AC / 48 V AC / 120 V AC / 240 V AC, resistive loads) |
| Rated Current per Group | 8 A |
| Lamp Load (max.) | 200 W (230 V AC), 30 W (24 V DC) |
| Max. Cable Length (Shielded) | 500 m |
| Max. Cable Length (Unshielded) | 150 m |
System Data AC500-eCo
Environmental Conditions
| Parameter | Value |
|---|---|
| Operating Temperature | 0 °C ... +60 °C (horizontal mounting), 0 °C ... +40 °C (vertical mounting, output load reduced to 50%) |
| Storage Temperature | -40 °C ... +70 °C |
| Transport Temperature | -40 °C ... +70 °C |
| Humidity | Max. 95%, non-condensing |
| Air Pressure (Operating) | > 800 hPa / < 2000 m |
| Air Pressure (Storage) | > 660 hPa / < 3500 m |
