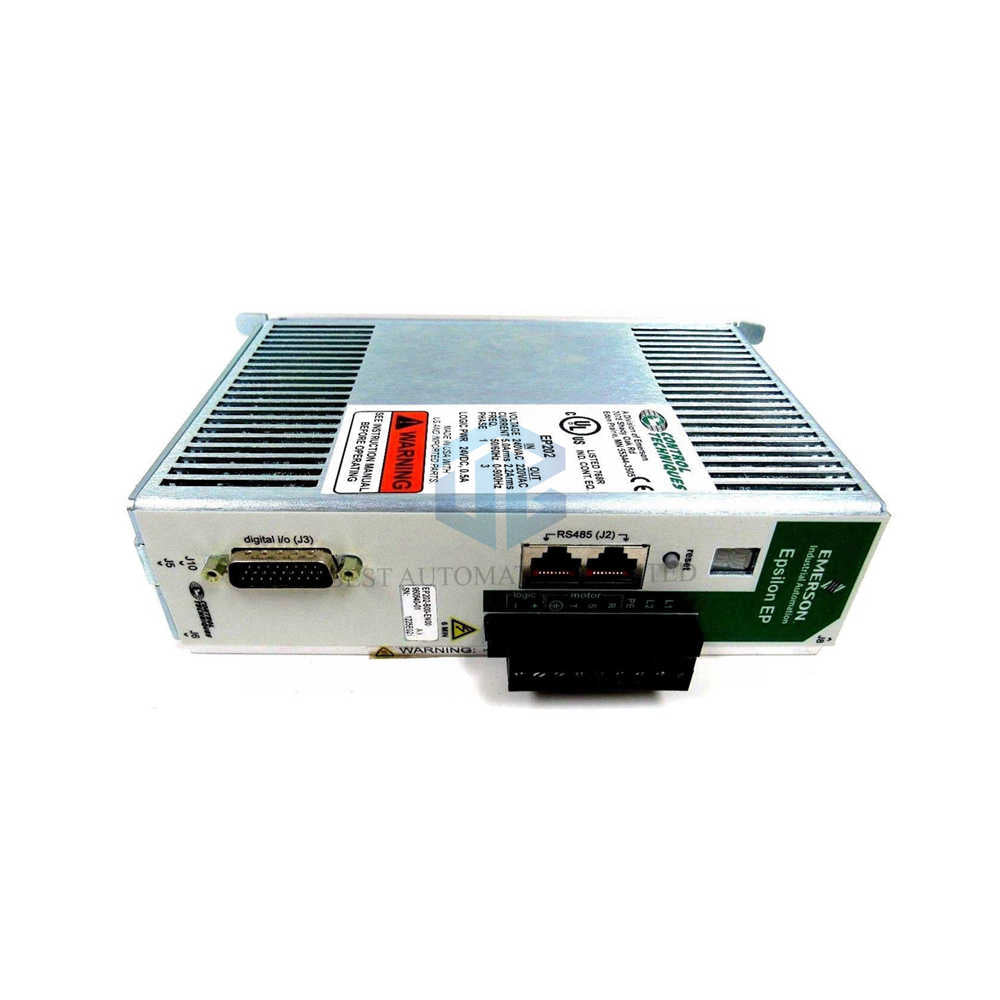

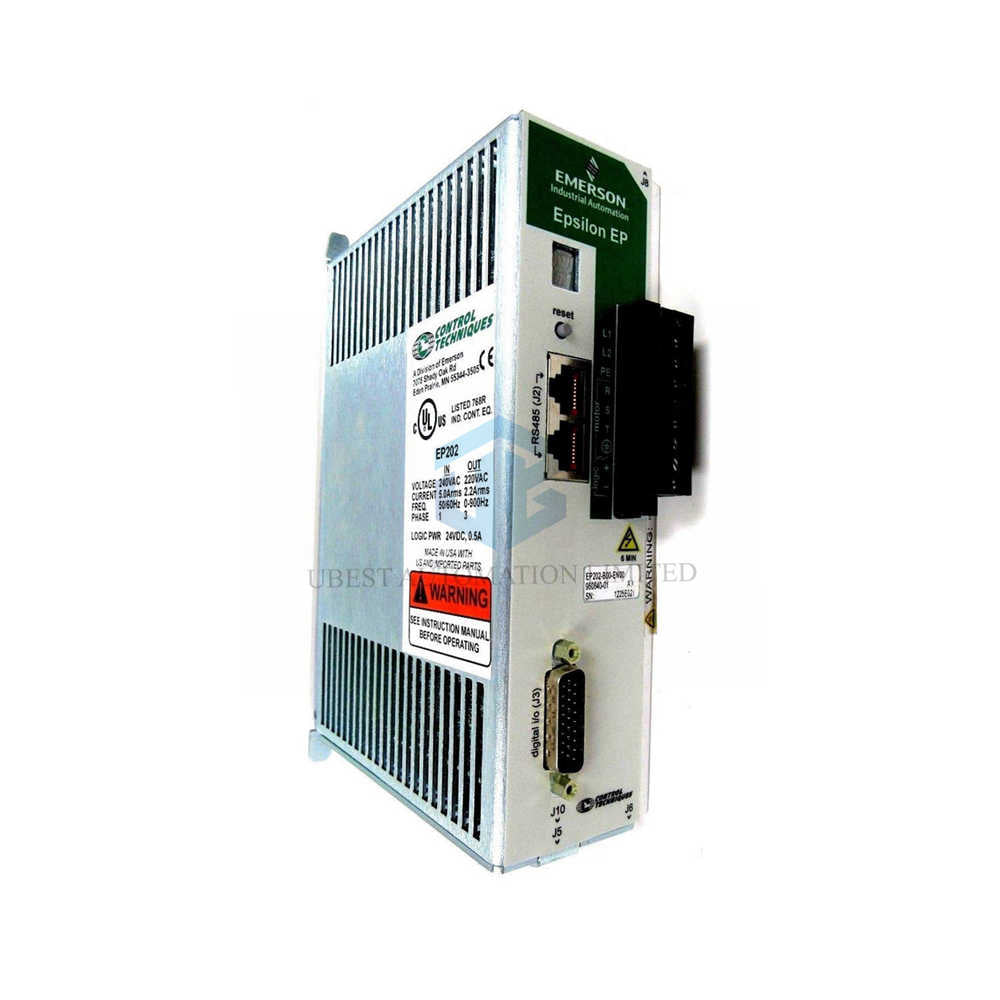

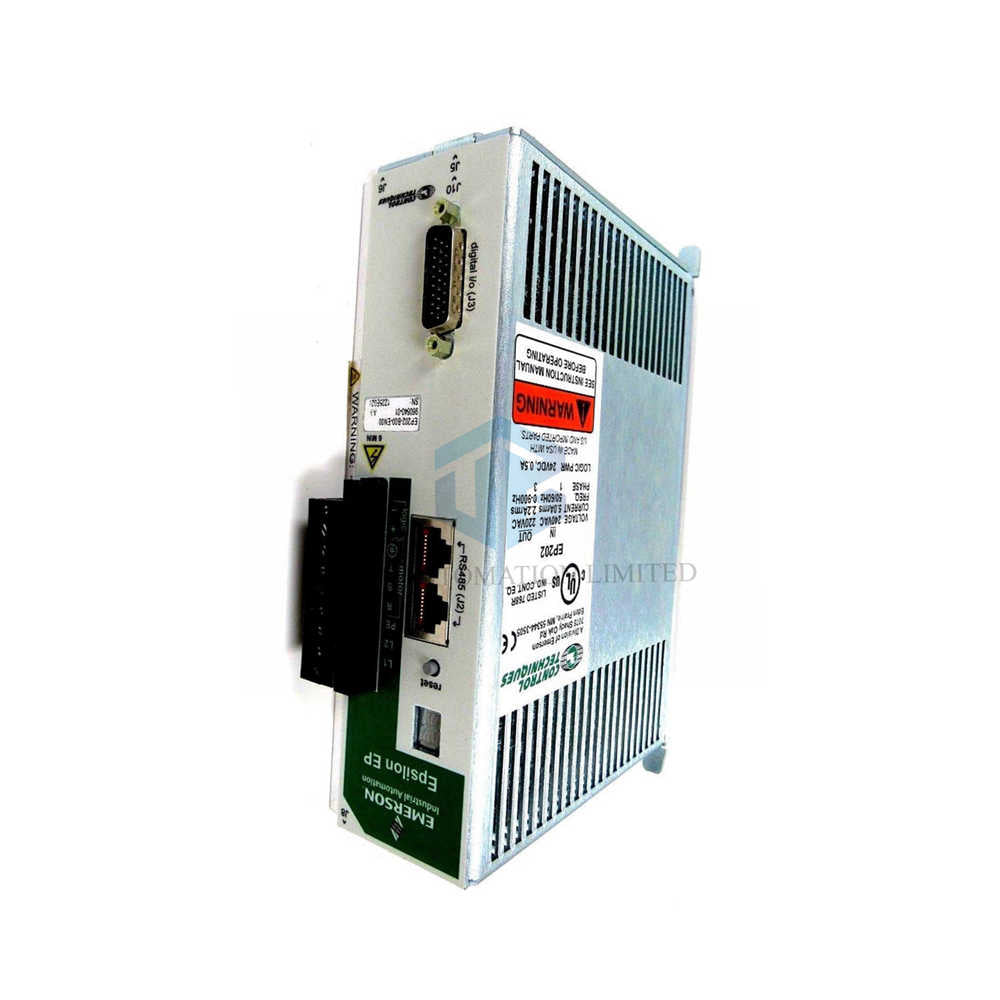

EP202-B00-EN00 Digital Servo Drive: Flexible Power for Demanding Motion Control

Key Technical Specifications – Power & Efficiency

• Brand & Model: Emerson EP202-B00-EN00 digital servo drive.
• AC Power Input: 20 Vac to 264 Vac, single phase, 47-63 Hz.
• DC Power Input: 10 Vdc to 340 Vdc – great for battery or DC bus applications.
• Switching Frequency: 10 kHz for smooth motor control.
• Efficiency (AC Power): 95% at full rated output power.
• Power Supply Output: 5 Vdc, 250 mA max for powering a master encoder.
• Ingress Protection (IP): Drive = IP20. NT motors = IP65/IP54. Molded cables = IP65.

Communication Interfaces – Multiple Protocol Support

• Serial Interface (RS-485): Modbus protocol with 32-bit data extension. Baud rates: 19.2k (default) or 9600.
• EtherNet Interface (EP-P Models): 10/100 M baud, auto-negotiated. Supports EtherNet/IP, Modbus TCP/IP, HTTP, and SMSC.
• DeviceNet Interface (EP-DN Models): Baud rates 125K, 250K, 500K. Draws max 25 mA from network.

Control Inputs – Analog & Digital

• Analog Command Input: ±10 Vdc, 14-bit resolution, 100k ohm impedance, differential. Absolute max input ±14 Vdc.
• Digital Inputs: 5 inputs on EP-B models (16 on EP-I and EP-P). Accept 10-30 Vdc, 4.8k ohm impedance. Opto-isolated. Max response time 500 µs.
• Input Debounce: Configurable 0-2000 ms via PowerTools Pro software.

Control Outputs – Diagnostics & Digital

• Diagnostic Analog Outputs (2): ±10 Vdc into 10k ohm, short-circuit proof to ground. 10-bit resolution. Software-selectable signals.
• Digital Outputs: 3 on EP-B (8 on EP-I and EP-P). 150 mA max each, short-circuit proof. Current source from 10-30 Vdc I/O supply. Opto-isolated.
• Motor Temperature Sensor: Compatible with PTC thermistor (2k ohm trip point). Fault turn-on threshold = 0.83V. Reset threshold = 0.41V.

Frequently Asked Questions (FAQ)

• Q: What power sources work with the EP202-B00-EN00?
  A: This drive accepts 20-264 Vac single phase or 10-340 Vdc. UL approval for DC input is pending.
• Q: Which communication protocols does the EP202-B00-EN00 support?
  A: It supports RS-485 Modbus, EtherNet/IP, Modbus TCP/IP, and DeviceNet (depending on model variant).
• Q: What is the maximum pulse input frequency?
  A: Differential RS422 inputs accept 1 MHz per channel. Single ended TTL inputs accept 500 kHz per channel.
• Q: How do I connect a motor temperature sensor?
  A: Use a PTC thermistor with 2k ohm resistance at trip point. The drive trips at 0.83V and resets at 0.41V.
• Q: What software configures the EP202-B00-EN00?
  A: PowerTools Pro software handles all configuration including input debounce and output signal selection.
• Q: Are the digital outputs short-circuit protected?
  A: Yes. All digital outputs are short-circuit proof and current-source type from 10-30 Vdc I/O power.
