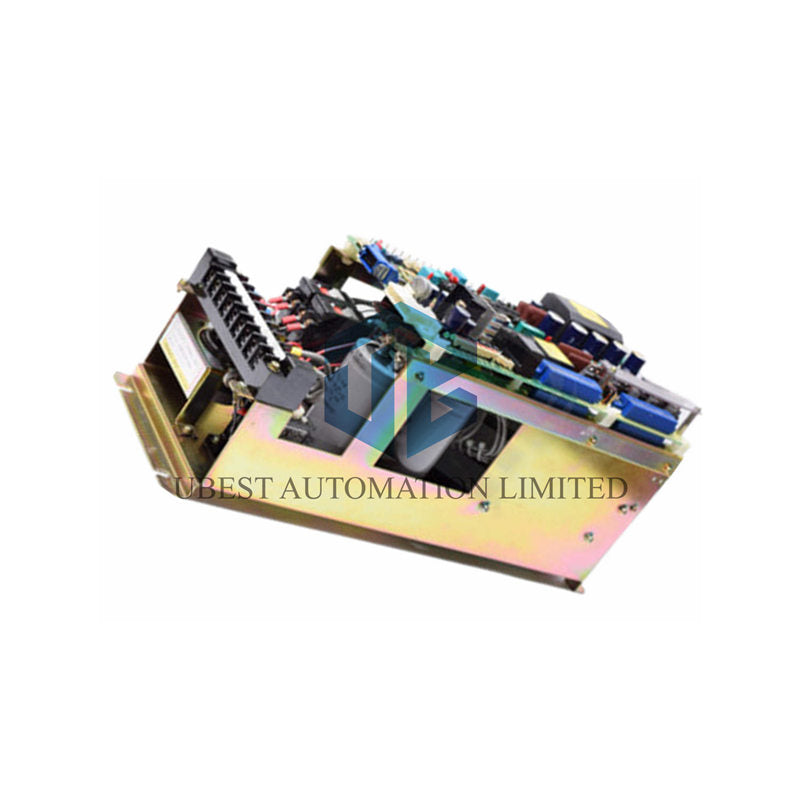

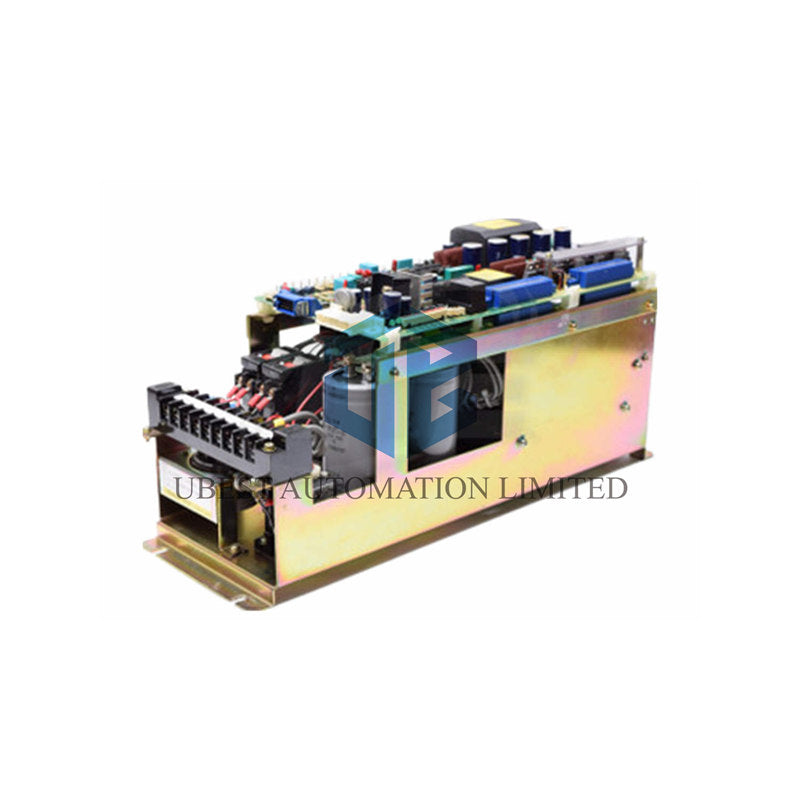

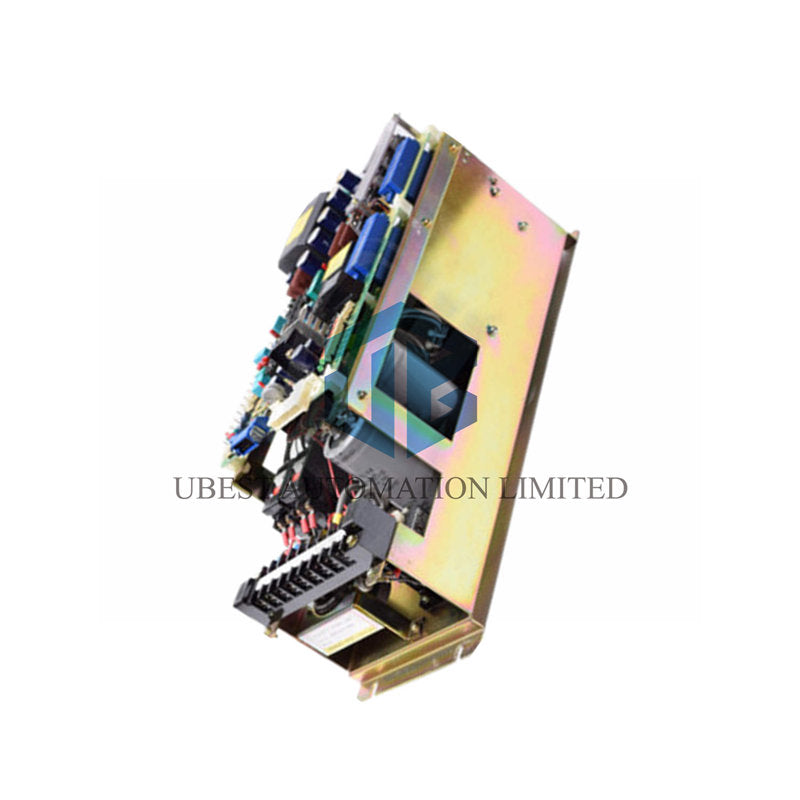

FANUC A06B-6047-H004 DC Servo Drive

The A06B-6047-H004 delivers precision motion control for demanding industrial applications. This DC servo drive from FANUC provides exceptional velocity control in CNC and automotive systems.

Technical Specifications

• Brand: FANUC
• Model: A06B-6047-H004
• Product Type: DC Servo Drive
• Drive Series: 30M Model
• Weight: 19.00 lbs (8.62 kg)
• Operating Temperature: 0 to 40°C
• Velocity Control: High-precision digital regulation
• Vibration Resistance: Up to 5G maximum
• Altitude Rating: 1000 meters above sea level
• Response Frequency: 1.2 kHz bandwidth
• Control Resolution: 0.001 mm positioning accuracy
• Input Voltage: 200-230V AC three-phase
• Output Power: 2.5 kW maximum capacity
• Communication Interface: Digital I/O with encoder feedback
• Cooling Method: Natural convection with heatsink

Performance Features

• Advanced velocity control maintains consistent motor speed
• Digital signal processing ensures precise motion commands
• High-frequency response handles rapid speed changes
• Thermal protection prevents overheating during operation
• Vibration tolerance supports harsh industrial environments
• Altitude compatibility allows installation in various locations

Environmental Specifications

• The drive operates reliably from 0 to 40 degrees Celsius
• It maintains performance at 1000 meters above sea level
• Vibration resistance reaches 5G for stable operation
• Humidity tolerance extends to 95% non-condensing
• Electromagnetic interference meets industrial standards
• Natural cooling eliminates need for external fans

Installation Guidelines

• Ensure proper mounting for 19-pound unit weight
• Provide adequate space for heat dissipation around drive
• Verify input voltage matches 200-230V AC requirement
• Use appropriate cable sizing for power connections
• Maintain clear access for maintenance and troubleshooting
• Follow local electrical codes for all installations

Package Contents

• One FANUC A06B-6047-H004 DC servo drive unit
• Complete installation manual with wiring diagrams
• Mounting hardware and connection accessories
• Technical specification sheet and operation guide
• Protective packaging for secure international transit
• Shipping options include FedEx, UPS, and DHL services

Warranty Information

• Full 12-month warranty covering manufacturing defects
• Technical support for installation and setup assistance
• Replacement service for qualified warranty claims
• Expert guidance for system integration projects

Frequently Asked Questions

• What applications suit this servo drive best?
• The unit excels in CNC machining centers and automotive automation systems
• How does the velocity control feature work?
• Digital processors maintain precise motor speed under varying load conditions
• What environmental conditions affect performance?
• Temperature extremes beyond 0-40°C may require additional cooling measures
• Can this drive handle rapid acceleration demands?
• Yes, the 1.2 kHz response frequency manages quick speed changes effectively
• What maintenance does the drive require?
• Regular cleaning and periodic thermal inspection ensure long-term reliability
