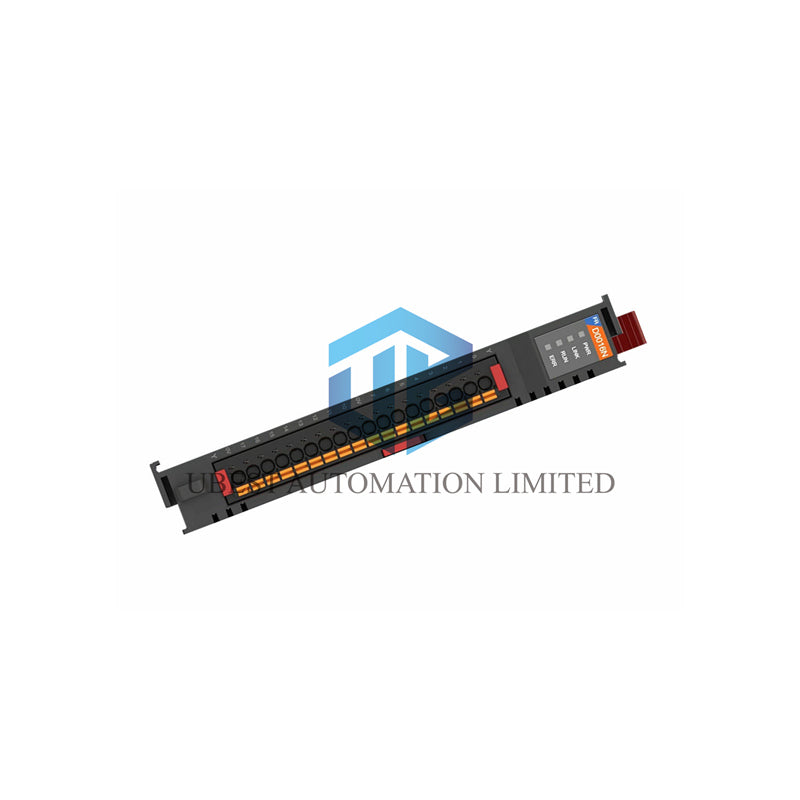

FR-D0016N Flexem Digital Output Module - 16-Channel Controller
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

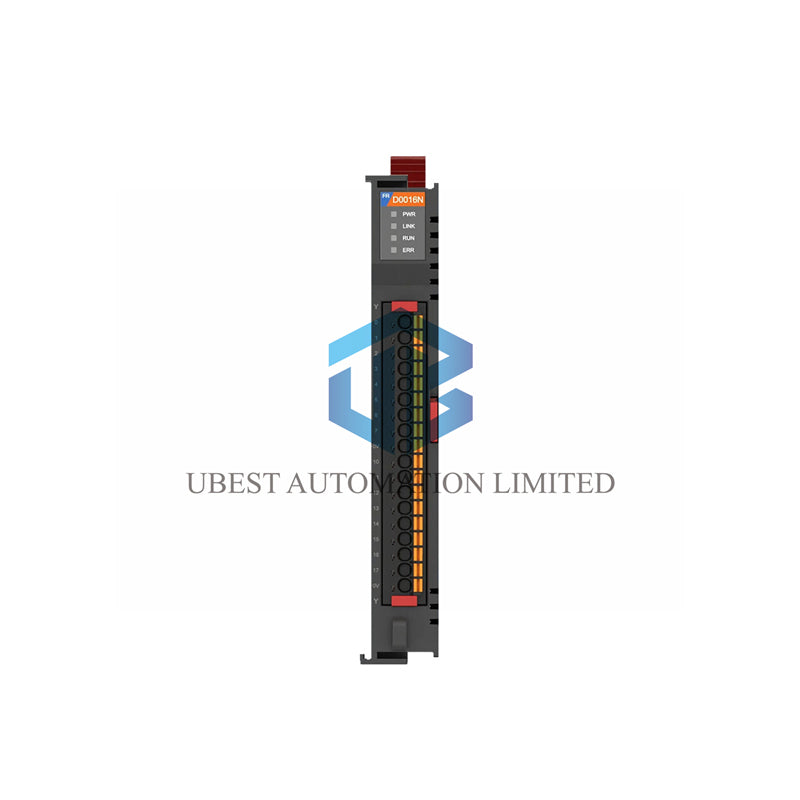

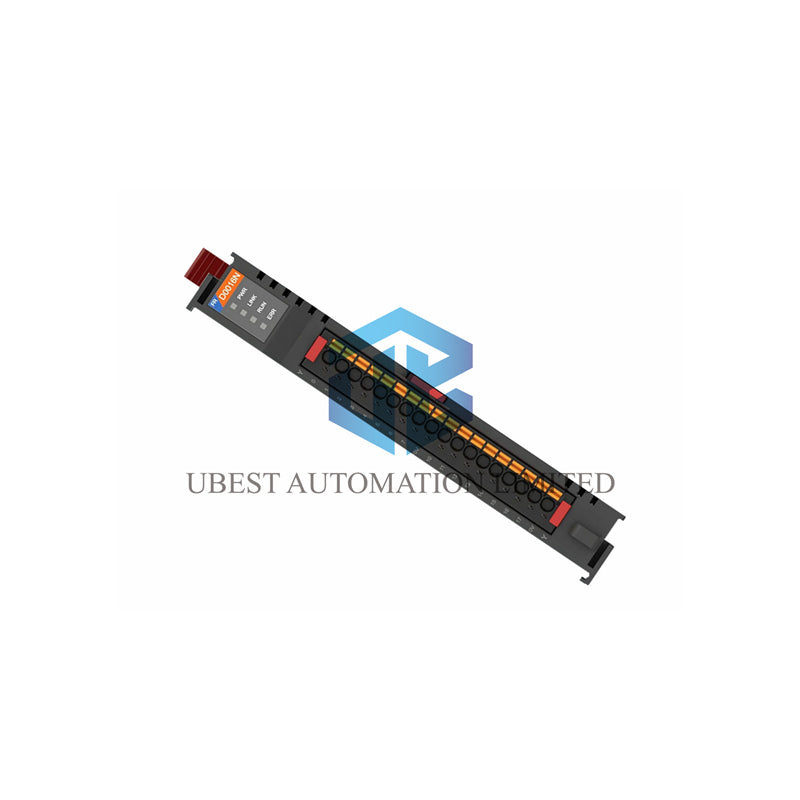

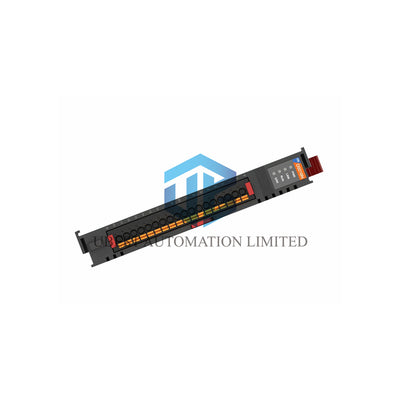

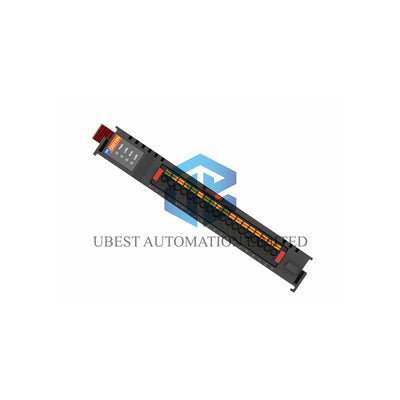

Flexem FR-D0016N Digital Output Module - 16-Channel Control Power
Meet the FR-D0016N output module - your reliable partner for controlling multiple devices. This compact module delivers strong switching power for automation systems.
Key Benefits
- 16 output points - Control many devices
- High current capacity - Up to 1A per channel
- LED status indicators - Easy monitoring
- Quick installation - DIN rail mounting
- Compact design - Saves panel space
Technical Specifications
- Product Model: FR-D0016N Digital Module
- Output Type: 16 channels NPN transistor
- Output Current: Single channel 1000mA max
- Total Current: All channels 500mA max
- Voltage Range: 12-24V DC operating
- On-state Voltage: ≤ 1.5V typical
- Leakage Current: ≤ 0.1mA when off
- Response Time: Turn on < 1ms, Turn off < 1ms
- Isolation: 1500V AC channel to system
- Connection: Removable terminal block
- Operating Temp: -20°C to +60°C
- Storage Temp: -40°C to +85°C
- Humidity Range: 10% to 95% non-condensing
- Vibration Resistance: 5-55Hz, 1.5mm amplitude
- Module Dimensions: 111mm × 18mm × 76mm
- Product Weight: 65 grams
Easy Setup Guide
Mount on standard DIN rail. Connect 24V DC power. Wire load devices. Check LED indicators. Configure in software. Ready to operate.
Ideal Applications
- Relay and contactor control
- Solenoid valve operation
- Small motor starters
- Indicator lamp control
- Alarm and warning systems
Worldwide Shipping
Fast delivery via FedEx, UPS, DHL. Orders ship same day. Tracking number provided.
Package Contents
- Flexem FR-D0016N Output Module
- Installation guide
- Technical documentation
Warranty Protection
12-month quality guarantee from delivery date. We ensure reliable performance.
Expert Questions & Answers
What devices can I control with this module?
You can control relays, solenoids, small motors, lamps, and other 24V DC devices up to 1A per channel.
How do I protect against voltage spikes?
Add flyback diodes for inductive loads like relays and solenoids to protect the output transistors.
Can all 16 outputs work at full current together?
No, the total current for all channels is limited to 500mA when used simultaneously for safe operation.
What's the difference between NPN and PNP types?
NPN outputs switch the negative side, while PNP outputs switch the positive side of your load circuit.
How long do the output transistors last?
With proper use and within specifications, the solid-state outputs typically last over 100,000 hours.
